| EPR/HFXLEVA LSOH 0.6/1kV Torsion Resistant Power Cable |  |
|
|
Windmill Cables
Application
These cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation).
Standards
DIN VDE 0262/12.95
DIN VDE 0281 part 13

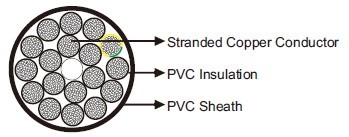

Construction
Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
Insulation: PVC Type TI 2/YI 2.
Sheath: PVC Type TM 2/YM 2.
Technical Data
Rated Voltage Uo/U (Um) |
600/1000V |
Operating Temperatures |
flexing: -5℃~+80℃; fixed: -40℃~+80℃ |
Minimum Bending Radius |
flexing: 7.5×OD; fixed: 4×OD |
Flame Retardant |
VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Oil Resistant |
Yes |
Silicone Free |
Yes |
UV Resistant |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
2×0.5 |
6.3 |
56 |
3G0.5 |
6.7 |
68 |
3×0.5 |
6.7 |
68 |
4G0.5 |
7.2 |
100 |
4×0.5 |
7.2 |
100 |
5G0.5 |
8.0 |
117 |
5×0.5 |
8.0 |
117 |
6G0.5 |
8.9 |
126 |
7G0.5 |
8.9 |
138 |
7×0.5 |
8.9 |
138 |
8G0.5 |
10.2 |
150 |
8×0.5 |
10.2 |
150 |
10G0.5 |
11.2 |
176 |
12G0.5 |
11.4 |
200 |
12×0.5 |
11.4 |
200 |
14G0.5 |
12.3 |
230 |
16G0.5 |
12.9 |
250 |
18G0.5 |
13.8 |
276 |
20G0.5 |
14.4 |
293 |
21G0.5 |
14.4 |
305 |
25G0.5 |
16.4 |
335 |
30G0.5 |
17.2 |
348 |
32G0.5 |
18.0 |
355 |
34G0.5 |
18.7 |
520 |
40G0.5 |
20.2 |
590 |
42G0.5 |
20.2 |
595 |
50G0.5 |
22.1 |
715 |
52G0.5 |
22.1 |
740 |
61G0.5 |
23.6 |
840 |
65G0.5 |
25.0 |
880 |
80G0.5 |
27.2 |
960 |
100G0.5 |
30.2 |
1050 |
2×0.75 |
6.6 |
66 |
3G0.75 |
7.0 |
74 |
3×0.75 |
7.0 |
74 |
4G0.75 |
7.6 |
126 |
4×0.75 |
7.6 |
126 |
5G0.75 |
8.4 |
140 |
5×0.75 |
8.4 |
140 |
6G0.75 |
9.3 |
170 |
6×0.75 |
9.3 |
170 |
7G0.75 |
9.3 |
190 |
7×0.75 |
9.3 |
190 |
8G0.75 |
10.9 |
212 |
8×0.75 |
10.9 |
212 |
9G0.75 |
11.8 |
227 |
10G0.75 |
11.8 |
238 |
12G0.75 |
12.3 |
257 |
12×0.75 |
12.3 |
257 |
14G0.75 |
12.9 |
286 |
15G0.75 |
13.8 |
319 |
18G0.75 |
14.5 |
362 |
20G0.75 |
15.4 |
394 |
21G0.75 |
16.1 |
422 |
25G0.75 |
17.4 |
486 |
32G0.75 |
19.1 |
595 |
34G0.75 |
19.9 |
638 |
37G0.75 |
19.9 |
696 |
40G0.75 |
21.5 |
726 |
41G0.75 |
21.5 |
750 |
42G0.75 |
21.5 |
770 |
50G0.75 |
23.5 |
895 |
61G0.75 |
25.3 |
1070 |
65G0.75 |
26.9 |
1110 |
80G0.75 |
28.9 |
1500 |
100G0.75 |
32.1 |
1889 |
2×1 |
7.0 |
80 |
3G1 |
7.3 |
96 |
3×1 |
7.3 |
96 |
4G1 |
8.2 |
100 |
4×1 |
8.2 |
100 |
5G1 |
9.2 |
130 |
5×1 |
9.2 |
130 |
6G1 |
9.9 |
150 |
7G1 |
9.9 |
170 |
7×1 |
9.9 |
170 |
8G1 |
11.6 |
230 |
9G1 |
12.8 |
250 |
10G1 |
12.8 |
270 |
10×1 |
12.8 |
270 |
12G1 |
13.0 |
290 |
12×1 |
13.0 |
290 |
14G1 |
14.0 |
320 |
16G1 |
14.8 |
360 |
18G1 |
15.7 |
405 |
18×1 |
15.7 |
405 |
20G1 |
16.7 |
450 |
21G1 |
17.4 |
510 |
24G1 |
18.4 |
550 |
25G1 |
18.8 |
570 |
25×1 |
18.8 |
570 |
26G1 |
18.8 |
590 |
30×1 |
19.9 |
650 |
34G1 |
21.5 |
750 |
36G1 |
21.5 |
790 |
40G1 |
23.2 |
850 |
40×1 |
23.2 |
850 |
41G1 |
23.2 |
890 |
42G1 |
23.2 |
900 |
50G1 |
25.6 |
1100 |
56G1 |
26.4 |
1190 |
61G1 |
27.3 |
1266 |
65G1 |
29.0 |
1560 |
80G1 |
31.4 |
1810 |
100G1 |
34.8 |
1950 |
3G16 |
20.5 |
700 |
2×1.5 |
8.2 |
95 |
3G1.5 |
8.6 |
112 |
3×1.5 |
8.6 |
112 |
4G1.5 |
9.6 |
139 |
4×1.5 |
9.6 |
139 |
5G1.5 |
10.7 |
170 |
5×1.5 |
10.7 |
170 |
6G1.5 |
11.6 |
190 |
7G1.5 |
11.6 |
225 |
7×1.5 |
11.6 |
225 |
8G1.5 |
13.8 |
250 |
9G1.5 |
15.2 |
280 |
10G1.5 |
15.2 |
300 |
11G1.5 |
15.5 |
330 |
12G1.5 |
15.5 |
370 |
12×1.5 |
15.5 |
370 |
14G1.5 |
16.6 |
400 |
16G1.5 |
17.5 |
450 |
18G1.5 |
18.6 |
520 |
19G1.5 |
18.6 |
550 |
20G1.5 |
19.7 |
600 |
21G1.5 |
20.6 |
600 |
25G1.5 |
22.5 |
730 |
32G1.5 |
24.5 |
880 |
34G1.5 |
25.6 |
950 |
40G1.5 |
27.6 |
990 |
42G1.5 |
27.6 |
1120 |
50G1.5 |
30.4 |
1400 |
56G1.5 |
31.5 |
1530 |
61G1.5 |
32.6 |
1700 |
65G1.5 |
34.8 |
1900 |
80G1.5 |
37.4 |
2300 |
100G1.5 |
41.6 |
2700 |
2×2.5 |
9.4 |
160 |
3G2.5 |
10.1 |
175 |
3×2.5 |
10.1 |
175 |
4G2.5 |
11.2 |
203 |
4×2.5 |
11.2 |
203 |
5G2.5 |
12.5 |
251 |
5×2.5 |
12.5 |
251 |
7G2.5 |
13.8 |
330 |
7×2.5 |
13.8 |
330 |
8G2.5 |
16.1 |
400 |
12G2.5 |
18.3 |
553 |
14G2.5 |
19.4 |
630 |
18G2.5 |
22.0 |
795 |
21G2.5 |
25.0 |
930 |
25G2.5 |
26.7 |
1110 |
34G2.5 |
30.4 |
1450 |
42G2.5 |
33.0 |
1750 |
50G2.5 |
36.2 |
2100 |
61G2.5 |
38.8 |
2540 |
100G2.5 |
49.5 |
3850 |
2×4 |
11.4 |
180 |
3G4 |
12.3 |
230 |
4G4 |
13.7 |
310 |
5G4 |
15.2 |
410 |
7G4 |
16.7 |
540 |
8G4 |
19.9 |
710 |
12G4 |
22.6 |
860 |
3G6 |
14.0 |
370 |
4G6 |
15.5 |
430 |
5G6 |
17.3 |
650 |
7G6 |
19.2 |
860 |
3G10 |
16.4 |
660 |
4G10 |
18.2 |
790 |
5G10 |
20.4 |
960 |
7G10 |
22.4 |
1300 |
3G16 |
20.5 |
700 |
4G16 |
22.6 |
1100 |
5G16 |
25.4 |
1600 |
7G16 |
27.8 |
1890 |
3G25 |
24.8 |
1450 |
4G25 |
27.6 |
1600 |
5G25 |
30.3 |
2050 |
7G25 |
33.6 |
2900 |
3G35 |
27.5 |
1900 |
4G35 |
30.5 |
2400 |
5G35 |
34.1 |
2900 |
3G50 |
33.5 |
2700 |
4G50 |
37.2 |
3400 |
5G50 |
41.8 |
4361 |
3G70 |
38.7 |
3300 |
4G70 |
42.7 |
4400 |
5G70 |
47.6 |
5807 |
3G95 |
43.3 |
5050 |
4G95 |
48.0 |
6010 |
5G95 |
52.8 |
7752 |
4G120 |
52.6 |
7500 |
4G150 |
61.3 |
8640 |
4G185 |
67.1 |
10380 |
G: with green-yellow earth core
×: without green-yellow earth core
