S-3GSHCOEU 0.6/1 kV & UL 1000V 90°C

S-3GSHCOEU 0.6/1 kV & UL 1000V 90°C

Application

These cables are designed for use at medium mechanical stresses in wind turbines.

Standards

UL 758
DIN VDE 0250

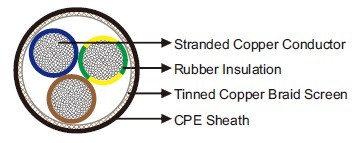

Construction

Conductor: Stranded bare copper, class 5 according to IEC 60228/DIN EN 60228.
Insulation: Rubber compound.
Screen: Tinned copper wires. Mixed braid of tinned copper wires and polyester yarn can be offered
upon request.
Sheath: CPE.

Technical Data

Rated Voltage Uo/U (Um)

600/1000V (DIN VDE 0250)/ 1000V (AWM 758)

Operating Temperatures

-40℃~+90℃

Maximum Permissible Tensile Load

15 N/mm²

Minimum Bending Radius

flexing: 10×OD; fixed: 6×OD

Short-circuit Temperature

250℃

Flame Retardant

IEC 60332-1

Oil Resistant

Yes

Ozone Resistant

Yes

UV Resistant

Yes

Dimensions and Weight

Construction

Nominal Overall Diameter

Nominal Weight

No. of cores×mm²

mm

kg/km

1×95

23.0

1120

1×120

26.0

1607

1×185

30.5

2341

1×240

34.0

2953
