Windmill Cables
Application
These cables are designed for data transmission in the Tower.
Standards
IEC 60794

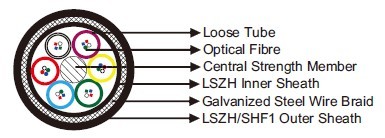

Construction
Fibre Type: Loose Tube.
Support Element: Central strength member.
Inner Sheath: LSZH.
Armour: Galvanized steel wire braid (GSWB).
Outer Sheath: SHF1/LSZH.
Technical Data
Operating Temperatures |
-40℃~+70℃ |
Minimum Bending Radius |
350mm |
Flame Retardant |
IEC 60332-3 |
Halogen Free |
IEC 60754 |
Smoke Density |
IEC 61034 |
Fire Resistant |
IEC 60331-25 |
No-Fire Propagation |
IEC 60331-3-24 |
Dimensions and Weight
Construction |
Fibre Type |
Nominal Overall Diameter |
Nominal Weight |
No. of fibres |
- |
mm |
kg/km |
2~48 |
Multimode G50/125 |
16.5 |
350 |
2~48 |
Multimode G62.5/125 |
16.5 |
350 |
2~48 |
Single-Mode E9/125 |
16.5 |
350 |
