N2XS2Y Medium Voltage Power CableApplication
These cables are commonly used in wind parks, suitable for indoor installation and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.
Standards
IEC 60502
DIN VDE 0276 part 620
HD 620 S1

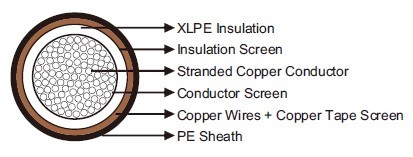

Construction
Conductor: Stranded bare copper conductor according to HD 383.
Conductor Screen: Semiconducting compound.
Insulation: XLPE, PE-compound DIX8 to HD 620.1.
Insulation Screen: Semiconducting compound.
Tape: Conductive material.
Screen: Braiding of copper wires with one or two tapes applied helically.
Tape: Separation tape.
Sheath: PE, compound DMP2 to HD 620.1.
Technical Data
Rated Voltage U0/U (Um) |
6/10 kV, 12/20 kV, 18/30 kV |
Operating Temperatures |
-20℃~+90℃ |
Minimum Bending Radius |
15×OD |
Short-circuit Temperature |
250℃ |
Dimensions and Weight
6/10 kV
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
1×35 rm/16 |
25.5 |
910 |
1×50 rm/16 |
26.5 |
990 |
1×70 rm/16 |
28.5 |
1205 |
1×95 rm/16 |
29.5 |
1520 |
1×120 rm/16 |
31.5 |
1760 |
1×150 rm/16 |
32.5 |
2020 |
1×150 rm/25 |
32.5 |
2130 |
1×185 rm/16 |
34.5 |
2360 |
1×185 rm/25 |
34.5 |
2470 |
1×240 rm/16 |
36.5 |
2960 |
1×240 rm/25 |
36.5 |
3020 |
1×300 rm/25 |
38.5 |
3630 |
1×400 rm/35 |
42.5 |
4560 |
1×500 rm/35 |
45.5 |
5580 |
12/20 kV
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
1×35 rm/16 |
27.5 |
960 |
1×50 rm/16 |
28.5 |
1160 |
1×70 rm/16 |
30.5 |
1410 |
1×95 rm/16 |
31.5 |
1670 |
1×120 rm/16 |
33.5 |
1960 |
1×150 rm/16 |
34.5 |
2220 |
1×150 rm/25 |
34.5 |
2310 |
1×185 rm/16 |
36.5 |
2620 |
1×185 rm/25 |
36.5 |
2670 |
1×240 rm/16 |
39.0 |
3160 |
1×240 rm/25 |
39.0 |
3270 |
1×300 rm/25 |
41.0 |
3880 |
1×400 rm/35 |
44.5 |
4820 |
1×500 rm/35 |
47.5 |
5860 |
18/30 kV
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
1×50 rm/16 |
35.5 |
1410 |
1×70 rm/16 |
37.5 |
1660 |
1×95 rm/16 |
38.5 |
1970 |
1×120 rm/16 |
40.5 |
2220 |
1×150 rm/25 |
41.5 |
2650 |
1×185 rm/25 |
43.5 |
2980 |
1×240 rm/25 |
45.5 |
3570 |
1×300 rm/25 |
48.5 |
4220 |
1×400 rm/25 |
51.5 |
5170 |
1×500 rm/25 |
54.5 |
6260 |
