H05VV5-F 300/500VApplication
These cables are used as supply or interconnecting cables for measuring, controlling and regulating for light and medium mechanical stresses.
Standards
HD 21.13 S1
DIN VDE 0281 Part. 13/5/96

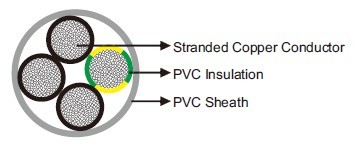

Construction
Conductor: Stranded bare copper, class 5/class 6 according to IEC 60228.
Insulation: PVC Type YI 4.
Sheath: PVC oil resistant Type YM 5.
Technical Data
Rated Voltage Uo/U (Um) |
300/500 V |
Operating Temperatures |
flexing: -15℃~+80℃; fixed: -40℃~+80℃ |
Minimum Bending Radius |
flexing: 10×OD; fixed: 6×OD |
Flame Retardant |
IEC 60332-1 |
Oil Resistant |
Yes |
Ozone Resistant |
Yes |
Silicone Free |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of cores×mm² |
mm |
kg/km |
3G0.75 |
6.5 |
57 |
4G0.75 |
7.0 |
70 |
5G0.75 |
7.8 |
89 |
7G0.75 |
9.4 |
130 |
12G0.75 |
11.5 |
174 |
18G0.75 |
13.8 |
259 |
25G0.75 |
16.8 |
362 |
41G0.75 |
21.5 |
602 |
50G0.75 |
23.6 |
723 |
2×1 |
6.2 |
54 |
3G1 |
6.7 |
66 |
4G1 |
7.5 |
82 |
5G1 |
8.0 |
105 |
7G1 |
9.6 |
149 |
12G1 |
12.3 |
210 |
14G1 |
13.9 |
267 |
18G1 |
14.4 |
302 |
25G1 |
17.5 |
418 |
34G1 |
21.4 |
622 |
2×1.5 |
7.7 |
75 |
3G1.5 |
7.9 |
93 |
4G1.5 |
8.9 |
117 |
5G1.5 |
10.3 |
143 |
7G1.5 |
11.9 |
220 |
12G1.5 |
14.3 |
292 |
18G1.5 |
17.2 |
435 |
25G1.5 |
21.2 |
620 |
34G1.5 |
24.5 |
842 |
50G1.5 |
30.3 |
1305 |
3G2.5 |
9.4 |
144 |
4G2.5 |
10.8 |
180 |
5G2.5 |
11.8 |
229 |
7G2.5 |
14.0 |
300 |
12G2.5 |
17.3 |
453 |
18G2.5 |
20.5 |
684 |
25G2.5 |
25.5 |
943 |
G: with yellow/green earth core
×: without yellow/green earth core
