Mining Cable
NSGAFOEU/NSHXAFOE Medium-Voltage Single Core Cables
Applications
These cables are designed for fixed installation in track-bound vehicles and buses,in pipes and closed installation ducts, as well as for theconnection of mobile parts. 3 kV-rated cables can beused in low-voltage switch boards to ensure inherentlyshort-circuit and earth-fault proof connections.
Standards
DIN VDE 0250 Part 602 (for NSGAFOEU/NSGAFCMOEU)
DIN VDE 0250 Part 606 (for halogen free versionNSHXAFOE/NSHXAFCMOE)

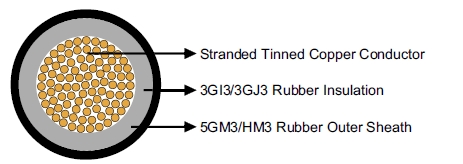

Construction
Conductors: Stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228.
Inner Conductor Layer (for 6kV): Semi-conducting layer.
Insulation: EPR compound type 3GI3/3GJ3.
Optional Screen (for NSGAFCMOEU/NSHXAFCMOE): Tinned copper wires.
Outer Sheath: Chlorinated rubber type 5GM3, oil resistant and flame retardant (for NSGAFOEU/ NSGAFCMOEU). Halogen-free polymer compound HM3, oil-resistant, flame retardant, low smoke (for NSHXAFOE//NSHXAFOE).
Dimensions and Weight
NSGAFOEU/NSHXAFOE 1.8/3kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No. ×mm² | mm | mm | kg/km |
| 1×1.5 | 5.7 | 7.0 | 50 |
| 1×2.5 | 6.0 | 7.5 | 60 |
| 1×4 | 6.8 | 9.0 | 80 |
| 1×6 | 7.3 | 9.5 | 100 |
| 1×10 | 8.7 | 11.0 | 160 |
| 1×16 | 10.0 | 13.0 | 230 |
| 1×25 | 12.4 | 15.0 | 340 |
| 1×35 | 13.4 | 16.5 | 430 |
| 1×50 | 14.9 | 18.0 | 580 |
| 1×70 | 16.6 | 20.5 | 780 |
| 1×95 | 19.3 | 24.0 | 1030 |
| 1×120 | 20.8 | 26.0 | 1270 |
| 1×150 | 23.0 | 28.0 | 1570 |
| 1×185 | 25.2 | 31.0 | 1900 |
| 1×240 | 28.1 | 34.5 | 2500 |
| 1×300 | 30.8 | 38.0 | 3000 |
| 1×400 | 40.0 | 34.6 | 4000 |
NSGAFOEU/NSHXAFOE 3.6/6kV
| Number of Cores×Nominal Cross Section | Minimium Overall Diameter | Maximum Overall Diameter | Nominal Weight |
| No. ×mm² | mm | mm | kg/km |
| 1×1.5 | 8.3 | 9.5 | 135 |
| 1×2.5 | 8.6 | 10.5 | 150 |
| 1×4 | 9.4 | 12.0 | 170 |
| 1×6 | 9.9 | 13.0 | 200 |
| 1×10 | 10.9 | 14.5 | 250 |
| 1×16 | 12.6 | 15.5 | 350 |
| 1×25 | 14.5 | 17.5 | 480 |
| 1×35 | 15.6 | 19.0 | 600 |
| 1×50 | 17.1 | 21.0 | 760 |
| 1×70 | 18.8 | 23.0 | 960 |
| 1×95 | 21.3 | 26.5 | 1240 |
| 1×120 | 23.2 | 28.5 | 1530 |
| 1×150 | 25.0 | 30.5 | 1790 |
| 1×185 | 26.8 | 33.0 | 2130 |
NSGAFCMOEU/NSHXAFCMOE 3.6/6kV
| Number of Cores×Nominal Cross Section | Nominal Overall Diameter | Nominal Weight |
| No.×mm² | mm | kg/km |
| 1×185 | 38.5 | 3060 |
