Telephone Cables |  |
||||||||||
|
||||||||||||
|
||||||||||||
Solid PE Insulated & AP Sheathed (ALPETH) Air Core Cables to ICEA S-85-625
Mechanical And Tthermal Properties
Temperature range during operation (fixed state): -30°C – +70°C
Temperature range during installation (mobile state): -20°C – +50°C
Minimum bending radius: 10 x Overall Diameter (unarmoured cables);15 x Overall Diameter (armoured cables)
Color Code
Standard colour code is per ICEA S-85-625 given in Colour Code Chart
Dimensions And Weight
Solid PE Insulated and AP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625
| Cable Code | Number of Pairs | Nominal Sheath Thickness mm/inch |
Nominal Overall Diameter mm/inch |
Nominal Weight kg/km / lbs/kft |
0.4mm Conductor, 0.7mm Insulated Wire |
||||
TP625-2Y(A)2Y-3P04 |
3 |
1.5/0.059 |
8.0/0.315 |
55/37 |
TP625-2Y(A)2Y-5P04 |
5 |
1.5/0.059 |
8.5/0.335 |
60/40 |
TP625-2Y(A)2Y-6P04 |
6 |
1.5/0.059 |
9.0/0.354 |
65/44 |
TP625-2Y(A)2Y-10P04 |
10 |
1.5/0.059 |
9.5/0.374 |
80/54 |
TP625-2Y(A)2Y-12P04 |
12 |
1.5/0.059 |
10.0/0.394 |
90/60 |
TP625-2Y(A)2Y-15P04 |
15 |
1.5/0.059 |
10.5/0.413 |
100/67 |
TP625-2Y(A)2Y-20P04 |
20 |
1.5/0.059 |
11.0/0.433 |
120/81 |
TP625-2Y(A)2Y-25P04 |
25 |
1.5/0.059 |
12.0/0.472 |
140/94 |
TP625-2Y(A)2Y-30P04 |
30 |
1.5/0.059 |
12.5/0.492 |
155/104 |
TP625-2Y(A)2Y-40P04 |
40 |
1.5/0.059 |
13.5/0.531 |
190/128 |
TP625-2Y(A)2Y-50P04 |
50 |
1.5/0.059 |
14.5/0.571 |
220/148 |
TP625-2Y(A)2Y-75P04 |
75 |
1.5/0.059 |
16.5/0.650 |
300/202 |
TP625-2Y(A)2Y-100P04 |
100 |
1.5/0.059 |
18.0/0.709 |
380/255 |
TP625-2Y(A)2Y-150P04 |
150 |
1.5/0.059 |
21.0/0.827 |
540/363 |
TP625-2Y(A)2Y-200P04 |
200 |
1.5/0.059 |
24.0/0.945 |
690/464 |
TP625-2Y(A)2Y-300P04 |
300 |
1.5/0.059 |
27.5/1.083 |
1000/672 |
TP625-2Y(A)2Y-400P04 |
400 |
1.8/0.071 |
31.5/1.24 |
1300/874 |
TP625-2Y(A)2Y-600P04 |
600 |
2.0/0.079 |
37.5/1.476 |
1900/1277 |
TP625-2Y(A)2Y-800P04 |
800 |
2.3/0.091 |
43.0/1.693 |
2800/1882 |
TP625-2Y(A)2Y-900P04 |
900 |
2.3/0.091 |
46.0/1.811 |
2961/1990 |
TP625-2Y(A)2Y-1000P04 |
1000 |
2.5/0.098 |
48.0/1.890 |
3264/2193 |
TP625-2Y(A)2Y-1200P04 |
1200 |
2.8/0.110 |
52.0/2.047 |
3873/2603 |
TP625-2Y(A)2Y-1500P04 |
1500 |
2.8/0.110 |
58.0/2.283 |
4819/3238 |
TP625-2Y(A)2Y-1800P04 |
1800 |
3.2/0.126 |
63.0/2.480 |
5777/3882 |
TP625-2Y(A)2Y-2100P04 |
2100 |
3.2/0.126 |
68.0/2.677 |
6731/4523 |
TP625-2Y(A)2Y-2400P04 |
2400 |
3.5/0.138 |
72.0/2.834 |
7645/5137 |
TP625-2Y(A)2Y-2700P04 |
2700 |
3.5/0.138 |
76.0/2.992 |
8556/5749 |
TP625-2Y(A)2Y-3000P04 |
3000 |
3.5/0.138 |
80.0/3.150 |
9466/6361 |
| 0.5mm Conductor, 0.9mm Insulated Wire | ||||
TP625-2Y(A)2Y-3P05 |
3 |
1.5/0.059 |
8.5/0.335 |
60/40 |
TP625-2Y(A)2Y-5P05 |
5 |
1.5/0.059 |
9.5/0.374 |
70/47 |
TP625-2Y(A)2Y-6P05 |
6 |
1.5/0.059 |
10.0/0.394 |
75/50 |
TP625-2Y(A)2Y-10P05 |
10 |
1.5/0.059 |
11.0/0.433 |
100/67 |
TP625-2Y(A)2Y-12P05 |
12 |
1.5/0.059 |
11.5/0.453 |
120/81 |
TP625-2Y(A)2Y-15P05 |
15 |
1.5/0.059 |
12.0/0.472 |
130/87 |
TP625-2Y(A)2Y-20P05 |
20 |
1.5/0.059 |
13.0/0.512 |
160/108 |
TP625-2Y(A)2Y-25P05 |
25 |
1.5/0.059 |
14.0/0.551 |
190/128 |
TP625-2Y(A)2Y-30P05 |
30 |
1.5/0.059 |
14.5/0.571 |
220/148 |
TP625-2Y(A)2Y-40P05 |
40 |
1.5/0.059 |
16.0/0.630 |
270/181 |
TP625-2Y(A)2Y-50P05 |
50 |
1.5/0.059 |
17.0/0.669 |
320/215 |
TP625-2Y(A)2Y-70P05 |
70 |
1.5/0.059 |
19.0/0.748 |
406/273 |
TP625-2Y(A)2Y-75P05 |
75 |
1.5/0.059 |
19.5/0.768 |
440/296 |
TP625-2Y(A)2Y-100P05 |
100 |
1.5/0.059 |
22.5/0.886 |
570/383 |
TP625-2Y(A)2Y-150P05 |
150 |
1.5/0.059 |
26.0/1.024 |
810/544 |
TP625-2Y(A)2Y-200P05 |
200 |
1.8/0.071 |
29.5/1.157 |
1070/719 |
TP625-2Y(A)2Y-300P05 |
300 |
1.8/0.071 |
35.0/1.380 |
1530/1028 |
TP625-2Y(A)2Y-400P05 |
400 |
2.0/0.079 |
39.5/1.555 |
2010/1351 |
TP625-2Y(A)2Y-500P05 |
500 |
2.3/0.091 |
43.0/1.690 |
2577/1732 |
TP625-2Y(A)2Y-600P05 |
600 |
2.3/0.091 |
48.0/1.886 |
2980/2002 |
TP625-2Y(A)2Y-900P05 |
900 |
2.5/0.098 |
57.0/2.240 |
4415/2967 |
TP625-2Y(A)2Y-1000P05 |
1000 |
2.8/0.110 |
60.0/2.360 |
5015/3370 |
TP625-2Y(A)2Y-1200P05 |
1200 |
3.2/0.126 |
65.0/2.559 |
5959/4004 |
TP625-2Y(A)2Y-1500P05 |
1500 |
3.5/0.138 |
72.0/2.835 |
7414/4982 |
| 0.63mm Conductor, 1.15mm Insulated Wire | ||||
| TP625-2Y(A)2Y-3P063 | 3 | 1.5/0.059 | 9.5/0.374 | 70/47 |
| TP625-2Y(A)2Y-5P063 | 5 | 1.5/0.059 | 10.5/0.413 | 90/60 |
| TP625-2Y(A)2Y-6P063 | 6 | 1.5/0.059 | 11.0/0.433 | 100/67 |
| TP625-2Y(A)2Y-10P063 | 10 | 1.5/0.059 | 12.5/0.492 | 130/87 |
| TP625-2Y(A)2Y-12P063 | 12 | 1.5/0.059 | 13.0/0.512 | 160/108 |
| TP625-2Y(A)2Y-15P063 | 15 | 1.5/0.059 | 13.5/0.531 | 180/121 |
| TP625-2Y(A)2Y-20P063 | 20 | 1.5/0.059 | 15.0/0.591 | 230/155 |
| TP625-2Y(A)2Y-25P063 | 25 | 1.5/0.059 | 16.0/0.630 | 260/175 |
| TP625-2Y(A)2Y-30P063 | 30 | 1.5/0.059 | 17.0/0.669 | 310/208 |
| TP625-2Y(A)2Y-40P063 | 40 | 1.5/0.059 | 19.0/0.748 | 390/262 |
| TP625-2Y(A)2Y-50P063 | 50 | 1.5/0.059 | 20.5/0.807 | 460/309 |
| TP625-2Y(A)2Y-75P063 | 75 | 1.5/0.059 | 24.0/0.945 | 660/443 |
| TP625-2Y(A)2Y-100P063 | 100 | 1.5/0.059 | 27.0/1.061 | 850/571 |
| TP625-2Y(A)2Y-150P063 | 150 | 1.8/0.071 | 32.0/1.260 | 1240/833 |
| TP625-2Y(A)2Y-200P063 | 200 | 2.0/0.079 | 36.5/1.437 | 1830/1230 |
| TP625-2Y(A)2Y-300P063 | 300 | 2.0/0.079 | 43.5/1.712 | 2360/1586 |
| TP625-2Y(A)2Y-400P063 | 400 | 2.3/0.091 | 50.0/1.968 | 3120/2097 |
| TP625-2Y(A)2Y-600P063 | 600 | 2.5/0.098 | 59.5/2.340 | 4610/3098 |
| 0.9mm Conductor, 1.5mm Insulated Wire | ||||
| TP625-2Y(A)2Y-3P09 | 3 | 1.5/0.059 | 11.0/0.433 | 100/67 |
| TP625-2Y(A)2Y-5P09 | 5 | 1.5/0.059 | 12.5/0.492 | 140/94 |
| TP625-2Y(A)2Y-6P09 | 6 | 1.5/0.059 | 13.0/0.512 | 160/108 |
| TP625-2Y(A)2Y-10P09 | 10 | 1.5/0.059 | 15.0/0.591 | 220/148 |
| TP625-2Y(A)2Y-12P09 | 12 | 1.5/0.059 | 16.0/0.630 | 260/175 |
| TP625-2Y(A)2Y-15P09 | 15 | 1.5/0.059 | 17.5/0.689 | 310/208 |
| TP625-2Y(A)2Y-20P09 | 20 | 1.5/0.059 | 19.0/0.748 | 390/262 |
| TP625-2Y(A)2Y-25P09 | 25 | 1.5/0.059 | 20.5/0.807 | 460/309 |
| TP625-2Y(A)2Y-30P09 | 30 | 1.5/0.059 | 22.5/0.885 | 570/383 |
| TP625-2Y(A)2Y-40P09 | 40 | 1.5/0.059 | 25.5/1.000 | 720/484 |
| TP625-2Y(A)2Y-50P09 | 50 | 1.5/0.059 | 27.5/1.080 | 850/571 |
| TP625-2Y(A)2Y-75P09 | 75 | 1.8/0.071 | 33.0/1.300 | 1240/833 |
| TP625-2Y(A)2Y-100P09 | 100 | 2.0/0.079 | 37.0/1.460 | 1620/1089 |
| TP625-2Y(A)2Y-150P09 | 150 | 2.0/0.079 | 44.5/1.750 | 2380/1599 |
| TP625-2Y(A)2Y-200P09 | 200 | 2.3/0.091 | 51.0/2.010 | 3130/2103 |
| TP625-2Y(A)2Y-300P09 | 300 | 2.5/0.099 | 60.5/2.380 | 4700/3158 |
| TP625-2Y(A)2Y-400P09 | 400 | 2.8/0.110 | 69.5/2.740 | 6210/4173 |

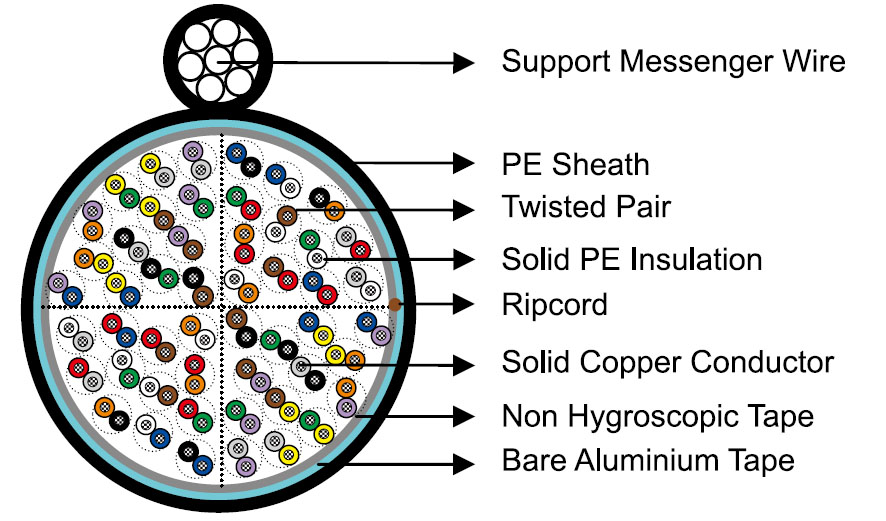

Fig 8 Solid PE Insulated & AP Sheathed (Alpeth) Air Core Cable to ICEA S-85-625
| Cable Code | Number of Pairs |
Support Messenger Wire Diameter mm/inch |
Nominal Sheath Thickness mm/inch |
Nominal Overall Dimension d x D x H mm/inch |
Nominal Weight kg/km / lbs/kft |
| 0.4mm Conductor, 0.7mm Insulated Wire | |||||
TP625-2Y(A)2Y-3P04-SS |
3 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X8.0X20.0 / 0.36X0.315X0.787 |
245/165 |
TP625-2Y(A)2Y-5P04-SS |
5 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X8.5X20.5 / 0.36X0.335X0.807 |
250/168 |
TP625-2Y(A)2Y-6P04-SS |
6 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X9.0X21.0 / 0.36X0.354X0.827 |
260/175 |
TP625-2Y(A)2Y-10P04-SS |
10 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X9.5X21.5 / 0.36X0.374X0.846 |
270/181 |
TP625-2Y(A)2Y-12P04-SS |
12 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X10.0X22.0 / 0.36X0.394X0.866 |
280/188 |
TP625-2Y(A)2Y-15P04-SS |
15 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X10.5X22.5 / 0.36X0.413X0.886 |
290/195 |
TP625-2Y(A)2Y-20P04-SS |
20 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X11.0X23.5 / 0.36X0.433X0.925 |
310/208 |
TP625-2Y(A)2Y-25P04-SS |
25 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X12.0X24.0 / 0.36X0.472X0.945 |
330/222 |
TP625-2Y(A)2Y-30P04-SS |
30 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X12.5X24.5 / 0.36X0.492X0.965 |
350/235 |
TP625-2Y(A)2Y-40P04-SS |
40 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X13.5X25.5 / 0.36X0.531X1.000 |
390/262 |
TP625-2Y(A)2Y-50P04-SS |
50 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X14.5X26.5 / 0.36X0.571X1.040 |
410/276 |
TP625-2Y(A)2Y-75P04-SS |
75 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X16.5X28.5 / 0.36X0.650X1.120 |
490/329 |
TP625-2Y(A)2Y-100P04-SS |
100 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X18.0X30.0 / 0.36X0.709X1.180 |
570/383 |
TP625-2Y(A)2Y-150P04-SS |
150 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X21.0X33.0 / 0.36X0.827X1.300 |
730/491 |
TP625-2Y(A)2Y-200P04-SS |
200 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X23.5X36.0 / 0.36X0.925X1.420 |
880/591 |
TP625-2Y(A)2Y-300P04-SS |
300 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.1X27.5X39.5 / 0.36X1.080X1.560 |
1220/820 |
TP625-2Y(A)2Y-400P04-SS |
400 |
7/2.03 / 7/0.08 |
1.5/0.059 |
9.7X31.5X44.0 / 0.382X1.240X1.73 |
1490/1001 |
