FTG10(O)M1
应用和描述
这些电缆适用于为那些即使发生火灾也必须正常运作的安全系统。特别适用于烟雾探测系统、消防灭火系统、电力供应自动扶梯和自动门、电力供应应急照明、报警系统、通风设备等，可固定安装在室内和室外、铺设在墙壁和货架上。
标准及认证
- EN 50200
- CEI 20-11
- CEI 20-22 III
- CEI 20-29
- CEI 20-35
- CEI 20-36
- CEI 20-37
- CEI 20-45
- UNEL 00722

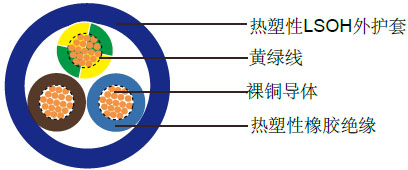

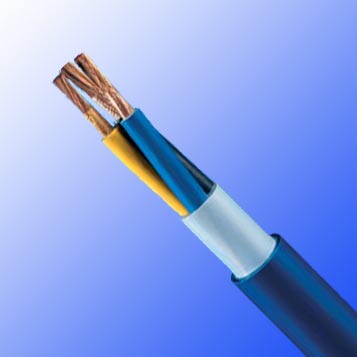

电缆结构
| 柔软裸铜导体 IEC60228 cl.5 |
| 热塑性橡胶G10绝缘 |
| 玻璃或云母带 |
| 低烟无卤热塑性复合物M1外护套 |
技术特性
| 工作电压 |
600/1000V |
| 测试电压 |
4000V |
| 最小弯曲半径 |
14 x Ø |
| 应用时的工作温度 |
-5º C to +90º C |
| 静态时可承受的温度 |
-25º C to +90º C |
| 短路时可达到的最高温度 |
+250º C |
| 阻燃 |
CEI 20-22 II - IEC 60332-3-C |
| 绝缘电阻 |
10 MΩ x km |
电缆参数
| 线规 |
芯数 x 导体截面积 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称电缆重量 |
| |
# x mm² |
mm |
mm |
mm |
kg/km |
| 单芯 |
| 16(30/30) |
1 x 1.5 |
1.0 |
1.4 |
7.6 |
80 |
| 14(50/30) |
1 x 2.5 |
1.0 |
1.4 |
8.0 |
90 |
| 12(56/28) |
1 x 4.0 |
1.0 |
1.4 |
8.6 |
110 |
| 10(84/28) |
1 x 6.0 |
1.0 |
1.4 |
9.1 |
130 |
| 8(80/26) |
1 x 10.0 |
1.0 |
1.4 |
10.5 |
180 |
| 6(128/26) |
1 x 16.0 |
1.0 |
1.4 |
11.7 |
250 |
| 4(200/26) |
1 x 25.0 |
1.2 |
1.4 |
13.0 |
350 |
| 2(280/26) |
1 x 35.0 |
1.2 |
1.6 |
14.2 |
460 |
| 1(400/26) |
1 x 50.0 |
1.4 |
1.6 |
16.2 |
620 |
| 2/0(356/24) |
1 x 70.0 |
1.4 |
1.8 |
17.9 |
820 |
| 3/0(485/24) |
1 x 95.0 |
1.6 |
2.0 |
19.6 |
1100 |
| 4/0(614/24) |
1 x 120.0 |
1.6 |
2.0 |
21.4 |
1350 |
| 300MCM |
1 x 150.0 |
1.8 |
2.0 |
23.3 |
1630 |
| 350MCM |
1 x 185.0 |
2.0 |
2.0 |
26.0 |
1980 |
| 500MCM |
1 x 240.0 |
2.4 |
2.0 |
29.4 |
2550 |
| 2芯 |
| 16(30/30) |
2 x 1.5 |
1.0 |
1.8 |
13.4 |
230 |
| 14(50/30) |
2 x 2.5 |
1.0 |
1.8 |
14.4 |
270 |
| 12(56/28) |
2 x 4.0 |
1.0 |
1.8 |
15.5 |
330 |
| 10(84/28) |
2 x 6.0 |
1.0 |
1.8 |
16.6 |
400 |
| 8(80/26) |
2 x 10.0 |
1.0 |
1.8 |
19.0 |
560 |
| 6(128/26) |
2 x 16.0 |
1.0 |
1.8 |
21.2 |
750 |
| 4(200/26) |
2 x 25.0 |
1.2 |
2.0 |
23.9 |
1020 |
| 2(280/26) |
2 x 35.0 |
1.2 |
2.0 |
26.2 |
1300 |
| 1(400/26) |
2 x 50.0 |
1.4 |
2.0 |
30.1 |
1750 |
| 3芯(包括接地线) |
| 16(30/30) |
3 x 1.5 |
1.0 |
1.8 |
14.2 |
260 |
| 14(50/30) |
3 x 2.5 |
1.0 |
1.8 |
15.1 |
320 |
| 12(56/28) |
3 x 4.0 |
1.0 |
1.8 |
16.4 |
390 |
| 10(84/28) |
3 x 6.0 |
1.0 |
1.8 |
17.5 |
470 |
| 8(80/26) |
3 x 10.0 |
1.0 |
1.8 |
20.0 |
670 |
| 6(128/26) |
3 x 16.0 |
1.0 |
1.8 |
22.6 |
910 |
| 4(200/26) |
3 x 25.0 |
1.2 |
2.0 |
25.4 |
1250 |
| 2(280/26) |
3 x 35.0 |
1.2 |
2.0 |
27.8 |
1640 |
| 1(400/26) |
3 x 50.0 |
1.4 |
2.0 |
32.2 |
2210 |
| 4芯(包括接地线) |
| 16(30/30) |
4 x 1.5 |
1.0 |
1.8 |
15.2 |
300 |
| 14(50/30) |
4 x 2.5 |
1.0 |
1.8 |
16.4 |
370 |
| 12(56/28) |
4 x 4.0 |
1.0 |
1.8 |
17.9 |
460 |
| 10(84/28) |
4 x 6.0 |
1.0 |
1.8 |
18.7 |
560 |
| 8(80/26) |
4 x 10.0 |
1.0 |
2.0 |
21.9 |
810 |
| 6(128/26) |
4 x 16.0 |
1.0 |
2.0 |
24.7 |
1100 |
| 4(200/26) |
4 x 25.0 |
1.2 |
2.0 |
27.9 |
1530 |
| 2(280/26) |
3 x 35.0+ 1 x 25 |
1.2 |
2.0 |
30.0 |
1900 |
| 1(400/26) |
3 x 50.0+ 1 x 25 |
1.4 |
2.0 |
33.7 |
2440 |
| 5芯(包括接地线) |
| 16(30/30) |
5 x 1.5 |
1.0 |
|
16.5 |
350 |
| 14(50/30) |
5 x 2.5 |
1.0 |
1.8 |
17.9 |
430 |
| 12(56/28) |
5 x 4.0 |
1.0 |
1.8 |
19.3 |
540 |
| 10(84/28) |
5 x 6.0 |
1.0 |
1.8 |
20.0 |
670 |
| 8(80/26) |
5 x 10.0 |
1.0 |
2.0 |
24.0 |
990 |
| 6(128/26) |
5 x 16.0 |
1.0 |
2.0 |
27.1 |
1350 |
| 4(200/26) |
5 x 25.0 |
1.2 |
2.0 |
30.7 |
1870 |
| 2(280/26) |
5 x 35.0 |
1.2 |
2.2 |
34.0 |
2480 |
| 1(400/26) |
5 x 50.0 |
1.4 |
2.2 |
39.7 |
3410 |
| 16(30/30) |
7 x 1.5 |
1.0 |
1.8 |
17.9 |
420 |
| 16(30/30) |
10 x 1.5 |
1.0 |
2.0 |
21.8 |
560 |
| 16(30/30) |
12 x 1.5 |
1.0 |
2.0 |
22.6 |
630 |
| 16(30/30) |
16 x 1.5 |
1.0 |
2.0 |
25.4 |
790 |
| 16(30/30) |
19 x 1.5 |
1.0 |
2.0 |
26.2 |
890 |
| 14(50/30) |
24 x 2.5 |
1.0 |
2.0 |
30.2 |
1170 |
| 14(50/30) |
7 x 2.5 |
1.0 |
1.8 |
19.0 |
520 |
| 14(50/30) |
10 x 2.5 |
1.0 |
2.0 |
23.7 |
700 |
| 14(50/30) |
12 x 2.5 |
1.0 |
2.0 |
24.4 |
800 |
| 14(50/30) |
16 x 2.5 |
1.0 |
2.0 |
27.1 |
1000 |
| 14(50/30) |
19 x 2.5 |
1.0 |
2.0 |
28.5 |
1130 |
| 14(50/30) |
24 x 2.5 |
1.0 |
2.2 |
33.1 |
1510 |
