FG7OH1R/FG7OH2R
应用及描述
这些电缆适合于电力传输、厂房、住宅建筑和手工业。适宜砌体及金属结构安装，过道、管道及类似系统。也适用于固定安装在室内和室外。地下铺设亦可用。屏蔽可有效防止外部电磁干扰，适合民用、工业场所及传输信号和指令。
标准及认证
- UNEL 35377
- CEI 20-13
- CEI 20-22II
- CEI 20-35 (EN60332-1)
- CEI 20-37 pt.2 (EN50267)
- CEI 20-52

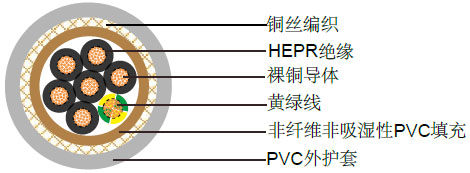

电缆结构
| 柔软裸铜导体 cl.5 |
| HEPR, G7绝缘，遵循CEI 20-11，CEI 20-3 |
| 非纤维非吸湿性填料 |
| 铜带屏蔽(FG7OH1R) |
| 铜丝编织屏蔽(FG7OH2R) |
| 灰色聚氯乙烯外护套 |
技术特性
| 工作电压 |
600/1000V |
| 测试电压 |
4000V |
| 最小弯曲半径 |
8x Ø |
| 应用时的工作温度 |
-0º C to +90º C |
| 静态时可承受的温度 |
-25º C to +90º C |
| 短路时可达到的最高温度 |
+250º C |
| 阻燃 |
CEI 20-22 II - IEC 60332-34, CEI EN 60332-1 |
| 绝缘电阻 |
10 MΩ x km |
电缆参数
| 线规 |
芯数 x 导体截面积 |
标称绝缘厚度 |
标称胡桃厚度 |
标称外径 |
标称电缆重量 |
| # x mm² |
mm |
mm |
mm |
kg/km |
| 电力 |
| 16(30/30) |
2 x 1.5 |
0.7 |
1.8 |
12.6 |
241 |
| 14(50/30) |
2 x 2.5 |
0.7 |
1.8 |
13.5 |
280 |
| 12(56/28) |
2 x 4 |
0.7 |
1.8 |
14.5 |
336 |
| 10(84/28) |
2 x 6 |
0.7 |
1.8 |
15.5 |
395 |
| 8(80/26) |
2 x 10 |
0.7 |
1.8 |
18.4 |
567 |
| 6(128/26) |
2 x 16 |
0.7 |
1.8 |
20.5 |
738 |
| 4(200/26) |
2 x 25 |
0.9 |
1.8 |
25.3 |
1107 |
| 2(280/26) |
2 x 35 |
0.9 |
1.8 |
27.7 |
1403 |
| 1(400/26) |
2 x 50 |
1 |
1.8 |
30.6 |
1830 |
| 2/0(356/24) |
2 x 70 |
.1.1 |
1.8 |
36.4 |
2571 |
| 3/0(485/24) |
2 x 95 |
1.1 |
1.8 |
39.0 |
3143 |
| 4/0(614/24) |
2 x 120 |
1.2 |
1.8 |
46.3 |
4316 |
| 250MCM |
2 x 150 |
1.4 |
1.8 |
52.8 |
5547 |
| 16(30/30) |
3 x 1.5 |
0.7 |
1.8 |
13.0 |
262 |
| 14(50/30) |
3 x 2.5 |
0.7 |
1.8 |
14.1 |
316 |
| 12(56/28) |
3 x 4 |
0.7 |
1.8 |
15.0 |
380 |
| 10(84/28) |
3 x 6 |
0.7 |
1.8 |
16.1 |
456 |
| 8(80/26) |
3 x 10 |
0.7 |
1.8 |
19.3 |
675 |
| 6(128/26) |
3 x 16 |
0.7 |
1.8 |
22.3 |
939 |
| 4(200/26) |
3 x 25 |
0.9 |
1.8 |
26.6 |
1346 |
| 2(280/26) |
3 x 35 |
0.9 |
1.8 |
29.2 |
1744 |
| 1(400/26) |
3 x 50 |
1 |
1.8 |
32.3 |
2262 |
| 2/0(356/24) |
3 x 70 |
1.1 |
1.9 |
38.5 |
3188 |
| 3/0(485/24) |
3 x 95 |
1.1 |
2 |
44.2 |
4309 |
| 4/0(614/24) |
3 x 120 |
1.2 |
2.1 |
51.6 |
5635 |
| 300MCM |
3 x 150 |
1.4 |
2.3 |
56.6 |
6921 |
| 350MCM |
3 x 185 |
1.6 |
2.4 |
60.2 |
8079 |
| 450MCM |
3 x 240 |
1.7 |
2.6 |
69.7 |
10639 |
| - |
3 x 35 + 25 |
0.9 |
1.8 |
31.1 |
2038 |
| - |
3 x 50 + 25 |
1 |
1.8 |
34.7 |
2606 |
| - |
3 x 70+ 35 |
1.1 |
1.9 |
39.8 |
3540 |
| - |
3 x 95 + 50 |
1.1 |
2.1 |
45.9 |
4818 |
| - |
3 x 120 + 70 |
1.2 |
2.2 |
53.9 |
6358 |
| - |
3 x 150 + 95 |
1.4 |
2.4 |
59.0 |
7852 |
| - |
3 x 185 + 95 |
1.6 |
2.6 |
62.8 |
9066 |
| - |
3 x 240 + 150 |
1.7 |
2.8 |
73.0 |
12078 |
| 16(30/30) |
4 x 1.5 |
0.7 |
1.8 |
13.8 |
298 |
| 14(50/30) |
4 x 2.5 |
0.7 |
1.8 |
14.9 |
357 |
| 12(56/28) |
4 x 4 |
0.7 |
1.8 |
16.1 |
438 |
| 10(84/28) |
4 x 6 |
0.7 |
1.8 |
17.3 |
535 |
| 8(80/26) |
4 x 10 |
0.7 |
1.8 |
20.8 |
802 |
| 6(128/26) |
4 x 16 |
0.7 |
1.8 |
24.6 |
1164 |
| 4(200/26) |
4 x 25 |
0.9 |
1.8 |
28.8 |
1664 |
| 16(30/30) |
5 x 1.5 |
0.7 |
1.8 |
14.9 |
351 |
| 14(50/30) |
5 x 2.5 |
0.7 |
1.8 |
16.2 |
424 |
| 12(56/28) |
5 x 4 |
0.7 |
1.8 |
17.5 |
527 |
| 10(84/28) |
5 x 6 |
0.7 |
1.8 |
18.9 |
635 |
| 8(80/26) |
5 x 10 |
0.7 |
1.8 |
23.7 |
1027 |
| 6(128/26) |
5 x 16 |
0.7 |
1.8 |
26.9 |
1415 |
| 4(200/26) |
5 x 25 |
0.9 |
1.8 |
31.6 |
2022 |
| 控制 |
| 16(30/30) |
7 x 1.5 |
0.7 |
1.8 |
15.7 |
399 |
| 16(30/30) |
10 x 1.5 |
0.7 |
1.8 |
17.8 |
503 |
| 16(30/30) |
12 x 1.5 |
0.7 |
1.8 |
19.2 |
574 |
| 16(30/30) |
16 x 1.5 |
0.7 |
1.8 |
21.0 |
690 |
| 16(30/30) |
19 x 1.5 |
0.7 |
1.8 |
22.6 |
813 |
| 16(30/30) |
24 x 1.5 |
0.7 |
1.8 |
24.6 |
927 |
| 14(50/30) |
7 x2.5 |
0.7 |
1.8 |
17.1 |
496 |
| 14(50/30) |
10 x 2.5 |
0.7 |
1.8 |
19.5 |
644 |
| 14(50/30) |
12 x 2.5 |
0.7 |
1.8 |
21.2 |
732 |
| 14(50/30) |
16 x 2.5 |
0.7 |
1.8 |
24.0 |
950 |
| 14(50/30) |
19 x 2.5 |
0.7 |
1.8 |
25.0 |
1056 |
| 14(50/30) |
24 x 2.5 |
0.7 |
1.8 |
38.3 |
1281 |
镀锌钢丝铠装(FG7OH1RAR/FG7OH2RAR也可根据客户需求提供。
