FG7M1/FG7OM1
应用及描述
这些电缆适用于电源电路或信号与指令传输。遇到火灾危险时它可确保生命财产安全。用于医院、学校、商业区、公共场所、宾馆、地铁，住宅楼宇及仪器仪表。适宜固定安装在室内或室外，墙壁或金属框架上。
标准及认证
- CEI 20-11
- CEI 20-13
- CEI 20-22 III
- CEI 20-29
- CEI 20-35
- CEI 20-37
- CEI 20-38
- CEI-UNEL 00722
- CEI-UNEL 35382/35384
- EN 60332-1
- 直流低压73/23/EEC & 93/68/EEC.
- ROHS认证

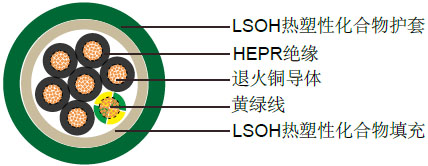

电缆结构
| 柔软裸铜导体 IEC60228 cl.5 |
| HEPR, G7绝缘 |
| 低烟无卤热塑性复合物内护套 |
| 低烟无卤热塑性复合物M1外护套 |
技术特性
| 工作电压 |
600/1000V |
| 测试电压 |
4000V |
| 最小弯曲半径 |
UNEL 35382: 4 x outer diameter UNEL 35384: 6 x outer diameter |
| 应用时的工作温度 |
-0º C to +90º C |
| 静态时可承受的温度 |
-25º C to +90º C |
| 短路时可达到的最高温度 |
+250º C |
| 阻燃 |
CEI 20-22 II, IEC 60332-3-C |
| 绝缘电阻 |
100 MΩ x km |
电缆参数
| 线规 |
芯数 x 导体截面积 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称电缆重量 |
|
# x mm² |
mm |
mm |
mm |
kg/km |
| FG7M1(电力) |
| 16(30/30) |
1x1.5 |
0.7 |
1.4 |
6.7 |
55 |
| 14(50/30) |
1x2.5 |
0.7 |
1.4 |
7.2 |
65 |
| 12(56/28) |
1x4 |
0.7 |
1.4 |
7.8 |
85 |
| 10(84/28) |
1x6 |
0.7 |
1.4 |
8.4 |
105 |
| 8(80/26) |
1x10 |
0.7 |
1.4 |
9.4 |
155 |
| 6(128/26) |
1x16 |
0.7 |
1.4 |
10.4 |
210 |
| 4(200/26) |
1x25 |
0.9 |
1.4 |
12.2 |
310 |
| 2(280/26) |
1x35 |
0.9 |
1.4 |
13.6 |
410 |
| 1(400/26) |
1x50 |
1 |
1.4 |
15.4 |
560 |
| 2/0(356/24) |
1x70 |
1.1 |
1.4 |
17.3 |
770 |
| 3/0(485/24) |
1x95 |
1.1 |
1.5 |
19.4 |
990 |
| 4/0(614/24) |
1x120 |
1.2 |
1.5 |
21.4 |
1250 |
| 250 MCM |
1x150 |
1.4 |
1.6 |
23.8 |
1550 |
| 350 MCM |
1x185 |
1.6 |
1.6 |
36.0 |
1900 |
| 450 MCM |
1x240 |
1.7 |
1.7 |
29.2 |
2450 |
| 550 MCM |
1x300 |
1.8 |
1.8 |
32.0 |
3000 |
| FG7OM1(电力） |
| 16(30/30) |
2x1.5 |
0.7 |
1.8 |
12.0 |
155 |
| 14(50/30) |
2x2.5 |
0.7 |
1.8 |
13.0 |
190 |
| 12(56/28) |
2x4 |
0.7 |
1.8 |
14.2 |
240 |
| 10(84/28) |
2x6 |
0.7 |
1.8 |
15.4 |
310 |
| 8(80/26) |
2x10 |
0.7 |
1.8 |
17.3 |
460 |
| 6(128/26) |
2x16 |
0.7 |
1.8 |
19.4 |
620 |
| 4(200/26) |
2x25 |
0.9 |
1.8 |
23.0 |
900 |
| 2(280/26) |
2x35 |
0.9 |
1.8 |
25.7 |
1200 |
| 1(400/26) |
2x50 |
1.0 |
1.8 |
29.3 |
1650 |
| 2/0(356/24) |
2x70 |
1.1 |
1.8 |
33.1 |
2050 |
| 3/0(485/24) |
2x95 |
1.1 |
2.0 |
37.4 |
2670 |
| 4/0(614/24) |
2x120 |
1.2 |
2.1 |
41.5 |
3330 |
| 250 MCM |
2x150 |
1.4 |
2.2 |
46.1 |
4100 |
| 16(30/30) |
3x1.5 |
0.7 |
1.8 |
12.5 |
175 |
| 14(50/30) |
3x2.5 |
0.7 |
1.8 |
13.6 |
220 |
| 12(56/28) |
3x4 |
0.7 |
1.8 |
14.9 |
280 |
| 10(84/28) |
3x6 |
0.7 |
1.8 |
16.2 |
365 |
| 8(80/26) |
3x10 |
0.7 |
1.8 |
18.2 |
550 |
| 6(128/26) |
3x16 |
0.7 |
1.8 |
20.6 |
760 |
| 4(200/26) |
3x25 |
0.9 |
1.8 |
24.5 |
1100 |
| 2(280/26) |
3x35 |
0.9 |
1.8 |
27.3 |
1500 |
| 1(400/26) |
3x50 |
1 |
1.8 |
31.2 |
2050 |
| 2/0(356/24) |
3x70 |
1.1 |
1.9 |
35.6 |
2850 |
| 3/0(485/24) |
3x95 |
1.1 |
2.0 |
40.0 |
3600 |
| 4/0(614/24) |
3x120 |
1.2 |
2.1 |
44.4 |
4600 |
| 250 MCM |
3x150 |
1.4 |
2.3 |
49.5 |
5600 |
| 350 MCM |
3x185 |
1.6 |
2.4 |
55.2 |
6900 |
| 450 MCM |
3x240 |
1.7 |
2.6 |
61.9 |
9150 |
| 550 MCM |
3x300 |
1.8 |
2.8 |
68.0 |
11000 |
| 16(30/30) |
4x1.5 |
0.7 |
1.8 |
13.4 |
200 |
| 14(50/30) |
4x2.5 |
0.7 |
1.8 |
14.6 |
260 |
| 12(56/28) |
4x4 |
0.7 |
1.8 |
16.0 |
340 |
| 10(84/28) |
4x6 |
0.7 |
1.8 |
17.5 |
440 |
| 8(80/26) |
4x10 |
0.7 |
1.8 |
19.8 |
670 |
| 6(128/26) |
4x16 |
0.7 |
1.8 |
22.4 |
950 |
| 4(200/26) |
4x25 |
0.9 |
1.8 |
26.8 |
1400 |
| 2(280/26) |
3x35+25 |
0.9 |
1.8 |
29.2 |
1700 |
| 1(400/26) |
3x50+25 |
1 |
1.8 |
32.4 |
2300 |
| 2/0(356/24) |
3x70+35 |
1.1 |
1.9 |
37.0 |
3100 |
| 3/0(485/24) |
3x95+50 |
1.1 |
2.1 |
42.0 |
4050 |
| 4/0(614/24) |
3x120+70 |
1.2 |
2.2 |
46.9 |
5250 |
| 300MCM |
3x150+95 |
1.4 |
2.4 |
52.5 |
6500 |
| 350MCM |
3x185+95 |
1.6 |
2.5 |
57.3 |
7800 |
| 500MCM |
3x240+150 |
1.7 |
2.7 |
65.5 |
10500 |
| 16(30/30) |
5x1.5 |
0.7 |
1.8 |
14.4 |
250 |
| 14(50/30) |
5x2.5 |
0.7 |
1.8 |
15.6 |
320 |
| 12(56/28) |
5x4 |
0.7 |
1.8 |
17.3 |
410 |
| 10(84/28) |
5x6 |
0.7 |
1.8 |
18.9 |
540 |
| 8(80/26) |
5x10 |
0.7 |
1.8 |
21.5 |
800 |
| 6(128/26) |
5x16 |
0.7 |
1.8 |
24.4 |
1150 |
| 4(200/26) |
5x25 |
0.9 |
1.8 |
29.3 |
1700 |
| 2(280/26) |
5x35 |
0.9 |
1.8 |
32.8 |
2250 |
| 1(400/26) |
5x50 |
1 |
2.0 |
38.2 |
3200 |
| FG7OM1(控制) |
| 16(30/30) |
7x1.5 |
0.7 |
1.8 |
15.4 |
275 |
| 16(30/30) |
10x1.5 |
0.7 |
1.8 |
18.7 |
365 |
| 16(30/30) |
12x1.5 |
0.7 |
1.8 |
19.3 |
410 |
| 16(30/30) |
16x1.5 |
0.7 |
1.8 |
21.1 |
510 |
| 16(30/30) |
19x1.5 |
0.7 |
1.8 |
22.1 |
580 |
| 16(30/30) |
24x1.5 |
0.7 |
1.8 |
25.4 |
700 |
| 14(30/50) |
7x2.5 |
0.7 |
1.8 |
16.8 |
310 |
| 14(30/50) |
10x2.5 |
0.7 |
1.8 |
20.6 |
395 |
| 14(30/50) |
12x2.5 |
0.7 |
1.8 |
21.3 |
445 |
| 14(30/50) |
16x2.5 |
0.7 |
1.8 |
23.3 |
545 |
| 14(30/50) |
19x2.5 |
0.7 |
1.8 |
24.5 |
615 |
| 14(30/50) |
24x2.5 |
0.7 |
1.8 |
28.3 |
