U-1000 RVFV
应用及描述
U-1000 RVFV,增加了铠装和护套,是U-1000 R2V的增强版,可不需要机械保护的情况下直埋,安装于墙上,电缆架或管道中,在有机械保护的情况下也适用于有爆炸危险(NF C 15-100 BE3等级)的场所,但在这种情况下其强度必须减少15%。
标准及认证
XP C 32-322(原 NF C 32-321)

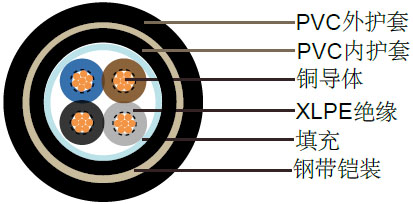

电缆结构
- 多股柔软铜导体
- 遵循IEC 60228 class 2
- 交联聚乙烯绝缘,遵循XP C 32-321
- 色彩编码遵循HD 308 S2(XP C32-321)
- 非纤维非吸湿性材料填充(仅适用于多芯)
- 聚氯乙烯内护套
- 两条钢带螺旋铠装
- 黑色聚氯乙烯外护套
技术特性
- 工作电压600/1000 V
- 测试电压3500 V
- 最小弯曲半径10 x Ø
- 工作温度范围-15°C - 90°C
- 短路时达到的最高温度250°C
- 阻燃EN 60332-1/NF C 32-070 C2
电缆参数
线规 | 芯数 × 导体截面积 | 绝缘厚度 | 铠装厚度 | 最小护套厚度 | 外径(近似值) | 重量(近似值) |
---|---|---|---|---|---|---|
# × mm² | mm | mm | mm | mm | kg/km | |
16 | 2 x 1.5 | 0.7 | 0.2 | 1.3 | 11.5 | 230 |
14 | 2 x 2.5 | 0.7 | 0.2 | 1.3 | 12.5 | 275 |
12 | 2 x 4 | 0.7 | 0.2 | 1.4 | 13.5 | 330 |
10 | 2 x 6 | 0.7 | 0.2 | 1.4 | 15.5 | 430 |
8 | 2 x 10 | 0.7 | 0.2 | 1.4 | 16.5 | 555 |
6 | 2 x 16 | 0.7 | 0.2 | 1.5 | 19 | 770 |
4 | 2 x 25 | 0.9 | 0.2 | 1.6 | 22.5 | 1080 |
2 | 2 x 35 | 0.9 | 0.2 | 1.7 | 25 | 1390 |
16 | 3 x 1.5 | 0.7 | 0.2 | 1.3 | 12 | 255 |
14 | 3 x 2.5 | 0.7 | 0.2 | 1.3 | 13 | 305 |
12 | 3 x 4 | 0.7 | 0.2 | 1.4 | 14 | 380 |
10 | 3 x 6 | 0.7 | 0.2 | 1.4 | 16 | 500 |
8 | 3 x 10 | 0.7 | 0.2 | 1.5 | 17.5 | 665 |
6 | 3 x 16 | 0.7 | 0.2 | 1.5 | 20 | 930 |
4 | 3 x 25 | 0.9 | 0.2 | 1.6 | 24 | 1325 |
2 | 3 x 35 | 0.9 | 0.2 | 1.7 | 26.5 | 1720 |
1 | 3 x 50 | 0.9 | 0.2 | 1.8 | 29 | 2125 |
2/0 | 3 x 70 | 1.1 | 0.2 | 2 | 34.5 | 3080 |
3/0 | 3 x 95 | 1.1 | 0.5 | 2.1 | 40 | 4505 |
4/0 | 3 x 120 | 1.2 | 0.5 | 2.3 | 44.5 | 5540 |
300MCM | 3 x 150 | 1.4 | 0.5 | 2.4 | 48.5 | 6655 |
500MCM | 3 x 185 | 1.6 | 0.5 | 2.5 | 53.5 | 8150 |
750MCM | 3 x 240 | 1.7 | 0.5 | 2.7 | 61 | 10575 |
- | 3 x 300 | 1.8 | 0.5 | 2.9 | 66.5 | 13055 |
1 | 3 x 50 + 35 | 1.0/09 | 0.2 | 1.9 | 33 | 2730 |
2/0 | 3 x 70 + 50 | 1.1/0.9 | 0.2 | 2 | 36 | 3440 |
3/0 | 3 x 95 + 50 | 1.1/1.0 | 0.5 | 2.2 | 42.5 | 5080 |
4/0 | 3 x 120 + 70 | 1.2/1.1 | 0.5 | 2.3 | 46.5 | 6275 |
300MCM | 3 x 150 + 70 | 1.4/1.1 | 0.5 | 2.5 | 50 | 7340 |
500MCM | 3 x 185 + 70 | 1.6/1.1 | 0.5 | 2.6 | 56 | 8975 |
750MCM | 3 x 240 + 95 | 1.7/1.1 | 0.5 | 2.8 | 62.5 | 11435 |
16 | 4 x 1.5 | 0.7 | 0.2 | 1.3 | 13 | 290 |
14 | 4 x 2.5 | 0.7 | 0.2 | 1.4 | 14 | 355 |
12 | 4 x 4 | 0.7 | 0.2 | 1.4 | 15 | 440 |
10 | 4 x 6 | 0.7 | 0.2 | 1.4 | 17 | 585 |
8 | 4 x 10 | 0.7 | 0.2 | 1.5 | 19 | 800 |
6 | 4 x 16 | 0.7 | 0.2 | 1.6 | 22 | 1120 |
4 | 4 x 25 | 0.9 | 0.2 | 1.7 | 26 | 1650 |
2 | 4 x 35 | 0.9 | 0.2 | 1.8 | 29 | 2135 |
1 | 4 x 50 | 1 | 0.2 | 1.9 | 32.5 | 2745 |
2/0 | 4 x 70 | 1.1 | 0.5 | 2.1 | 39 | 4295 |
3/0 | 4 x 95 | 1.1 | 0.5 | 2.3 | 44.5 | 5660 |
4/0 | 4 x 120 | 1.2 | 0.5 | 2.4 | 48.5 | 6880 |
300MCM | 4 x 150 | 1.4 | 0.5 | 2.6 | 53 | 8315 |
500MCM | 4 x 185 | 1.6 | 0.5 | 2.7 | 60.5 | 10510 |
750MCM | 4 x 240 | 1.7 | 0.5 | 2.9 | 67 | 13370 |
- | 4 x 300 | 1.8 | 0.5 | 3.1 | 73 | 16360 |
16 | 5 x 1.5 | 0.7 | 0.2 | 1.4 | 14 | 335 |
14 | 5 x 2.5 | 0.7 | 0.2 | 1.4 | 15 | 415 |
12 | 5 x 4 | 0.7 | 0.2 | 1.4 | 16 | 515 |
10 | 5 x 6 | 0.7 | 0.2 | 1.5 | 18.5 | 705 |
8 | 5 x 10 | 0.7 | 0.2 | 1.6 | 21 | 955 |
6 | 5 x 16 | 0.7 | 0.2 | 1.8 | 23.5 | 1340 |
4 | 5 x 25 | 0.9 | 0.2 | 1.8 | 29.5 | 2085 |
16 | 7 x 1.5 | 0.7 | 0.2 | 1.4 | 15 | 395 |
14 | 7 x 2.5 | 0.7 | 0.2 | 1.4 | 16 | 495 |
16 | 12 x 1.5 | 0.7 | 0.2 | 1.5 | 19 | 605 |
14 | 12 x 2.5 | 0.7 | 0.2 | 1.5 | 20.5 | 750 |
16 | 19 x 1.5 | 0.7 | 0.2 | 1.5 | 21.5 | 775 |
14 | 19 x 2.5 | 0.7 | 0.2 | 1.6 | 24 | 1045 |
16 | 24 x 1.5 | 0.7 | 0.2 | 1.6 | 24.5 | 980 |
14 | 24 x 2.5 | 0.7 | 0.5 | 1.7 | 29 | 1570 |
16 | 27 x 1.5 | 0.7 | 0.2 | 1.7 | 25 | 1050 |
14 | 27 x 2.5 | 0.7 | 0.2 | 1.8 | 28.5 | 1410 |
16 | 37 x 1.5 | 0.7 | 0.2 | 1.7 | 28 | 1320 |
14 | 37 x 2.5 | 0.7 | 0.2 | 1.8 | 31.5 | 1790 |
