U-1000 AR2V
应用及描述
这些电缆是适用于所有类型的低压工业连接，在城市电网，建筑安装等，特别是在高温度的情况下适用抗太阳辐射。良好的耐低温和化学剂性能。可用于没有额外的露天机械保护，固定在墙上或滚道内的人行道。可敷设在地下，由砖瓦建成机械保护。对每年超过两个月遭遇洪涝的情况，不建议铺设地下电缆。适当的机械保护，可以用于易受爆炸危险的地区，但在这种情况下，允许的电流负荷减少15％。
标准及认证
XP C 32-321（原 NF C 32-321）
EN 60332-1/NF C 32-070 2.1(C2)
EN 50575(Eca)
CE 认证

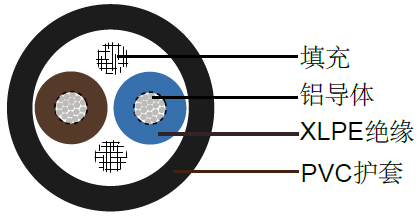

电缆结构
- 多股柔软铝导体
- 遵循IEC 60228 class 2
- 交联聚乙烯绝缘，遵循XP C 32-321
- 色彩编码遵循XP C 32-321
- 非纤维非吸湿性材料填充（仅适用于多芯）
- 黑色聚氯乙烯外护套
技术特性
- 工作电压600/1000 V
- 测试电压3500 V
- 最小弯曲半径8 x Ø
- 工作温度范围-15°C - 90°C
- 短路时达到的最高温度250°C
- 阻燃EN 60332-1/NF C 32-070 C2
电缆参数
| 导体 | 标称绝缘厚度 | 标称护套厚度 | 外径（近似值） | 重量（近似值） | ||
|---|---|---|---|---|---|---|
| 芯数 × 导体截面积 | 导体类别 | |||||
| No. × mm² | mm | mm | mm | kg/km | ||
| 1x35 | 2 | 0.9 | 1.4 | 13.5 | 190 | |
| 1x50 | 2 | 1.0 | 1.4 | 13.7 | 245 | |
| 1x70 | 2 | 1.1 | 1.4 | 15.8 | 325 | |
| 1x95 | 2 | 1.1 | 1.5 | 17.5 | 425 | |
| 1x120 | 2 | 1.2 | 1.5 | 19.3 | 520 | |
| 1x150 | 2 | 1.4 | 1.6 | 21.5 | 630 | |
| 1x185 | 2 | 1.6 | 1.6 | 24.7 | 780 | |
| 1x240 | 2 | 1.7 | 1.7 | 27.7 | 990 | |
| 1x300 | 2 | 1.8 | 1.8 | 30.6 | 1210 | |
| 1x400 | 2 | 2.0 | 1.9 | 34.2 | 1510 | |
| 1x500 | 2 | 2.2 | 2.0 | 38.0 | 1860 | |
| 1x630 | 2 | 2.4 | 2.2 | 42.9 | 2400 | |
| 2芯 | ||||||
| 2x1.5 | 2 | 0.7 | 1.8 | 9.2 | 94 | |
| 2x2.5 | 2 | 0.7 | 1.8 | 10.0 | 110 | |
| 2x4.0 | 2 | 0.7 | 1.8 | 11.0 | 146 | |
| 2x6.0 | 2 | 0.7 | 1.8 | 12.0 | 172 | |
| 2x10 | 2 | 0.7 | 1.8 | 13.6 | 219 | |
| 2x16 | 2 | 0.7 | 1.8 | 15.4 | 279 | |
| 2x25 | 2 | 0.9 | 1.8 | 18.4 | 388 | |
| 2x35 | 2 | 0.9 | 1.8 | 20.6 | 475 | |
| 2x50 | 2 | 1.0 | 1.8 | 23.6 | 610 | |
| 2x70 | 2 | 1.1 | 1.9 | 26.8 | 796 | |
| 2x95 | 2 | 1.1 | 2.0 | 30.2 | 1055 | |
| 2x120 | 2 | 1.2 | 2.1 | 33.7 | 1267 | |
| 2x150 | 2 | 1.4 | 2.2 | 37.5 | 1538 | |
| 2x185 | 2 | 1.6 | 2.4 | 41.6 | 1911 | |
| 2x240 | 2 | 1.7 | 2.5 | 46.7 | 2423 | |
| 2x300 | 2 | 1.8 | 2.7 | 51.4 | 2992 | |
| 2x400 | 2 | 2.0 | 2.9 | 58.9 | 3739 | |
| 3芯 | ||||||
| 3x1.5 | 2 | 0.7 | 1.8 | 9.6 | 112 | |
| 3x2.5 | 2 | 0.7 | 1.8 | 10.5 | 132 | |
| 3x4.0 | 2 | 0.7 | 1.8 | 11.6 | 180 | |
| 3x6.0 | 2 | 0.7 | 1.8 | 12.6 | 215 | |
| 3x10 | 2 | 0.7 | 1.8 | 14.4 | 279 | |
| 3x16 | 2 | 0.7 | 1.8 | 16.3 | 362 | |
| 3x25 | 2 | 0.9 | 1.8 | 19.5 | 513 | |
| 3x35 | 2 | 0.9 | 1.8 | 21.9 | 635 | |
| 3x50 | 2 | 1.0 | 1.8 | 25.1 | 825 | |
| 3x70 | 2 | 1.1 | 1.9 | 28.7 | 1086 | |
| 3x95 | 2 | 1.1 | 2.0 | 32.4 | 1468 | |
| 3x120 | 2 | 1.2 | 2.1 | 36.1 | 1768 | |
| 3x150 | 2 | 1.4 | 2.3 | 40.3 | 2151 | |
| 3x185 | 2 | 1.6 | 2.4 | 44.6 | 2674 | |
| 3x240 | 2 | 1.7 | 2.6 | 50.2 | 3434 | |
| 3x300 | 2 | 1.8 | 2.7 | 55.2 | 4211 | |
| 3x400 | 2 | 2.0 | 3.0 | 63.3 | 5307 | |
| 4芯 | ||||||
| 4x1.5 | 2 | 0.7 | 1.8 | 10.4 | 132 | |
| 4x2.5 | 2 | 0.7 | 1.8 | 11.3 | 157 | |
| 4x4.0 | 2 | 0.7 | 1.8 | 12.5 | 217 | |
| 4x6.0 | 2 | 0.7 | 1.8 | 13.7 | 262 | |
| 4x10 | 2 | 0.7 | 1.8 | 15.7 | 343 | |
| 4x16 | 2 | 0.7 | 1.8 | 17.8 | 486 | |
| 4x25 | 2 | 0.9 | 1.8 | 21.5 | 646 | |
| 4x35 | 2 | 0.9 | 1.8 | 24.1 | 850 | |
| 4x50 | 2 | 1.0 | 1.8 | 27.8 | 1066 | |
| 4x70 | 2 | 1.1 | 2.0 | 32.0 | 1405 | |
| 4x95 | 2 | 1.1 | 2.1 | 36.1 | 1900 | |
| 4x120 | 2 | 1.2 | 2.3 | 40.2 | 2290 | |
| 4x150 | 2 | 1.4 | 2.4 | 44.9 | 2813 | |
| 4x185 | 2 | 1.6 | 2.6 | 49.8 | 3468 | |
| 4x240 | 2 | 1.7 | 2.8 | 56.0 | 4487 | |
| 4x300 | 2 | 1.8 | 3.0 | 61.7 | 5541 | |
| 4x400 | 2 | 2.0 | 3.2 | 70.7 | 6934 | |
| 5芯 | ||||||
| 5x1.5 | 2 | 0.7 | 1.8 | 12.2 | 154 | |
| 5x2.5 | 2 | 0.7 | 1.8 | 12.8 | 186 | |
| 5x4.0 | 2 | 0.7 | 1.8 | 14.3 | 257 | |
| 5x6.0 | 2 | 0.7 | 1.8 | 15.8 | 311 | |
| 5x10 | 2 | 0.7 | 1.8 | 18.3 | 407 | |
| 5x16 | 2 | 0.7 | 1.8 | 21.2 | 610 | |
| 4x25+1x16 | 2 | 0.9 | 0.7 | 1.8 | 25.3 | 713 |
| 4x35+1x16 | 2 | 0.9 | 0.7 | 1.8 | 28.4 | 910 |
| 4x50+1x25 | 2 | 1.0 | 0.9 | 2.1 | 33.1 | 1151 |
| 4x70+1x16 |
2 | 1.1 | 0.9 | 2.2 | 38.7 | 1530 |
| 4x70+1x35 | 2 | 1.1 | 0.9 | 2.2 | 39.2 | 1600 |
| 4x95+1x50 | 2 | 1.1 | 1.0 | 2.4 | 44.3 | 2052 |
| 4x120+1x70 | 2 | 1.2 | 1.1 | 2.5 | 49.3 | 2505 |
| 4x150+1x70 | 2 | 1.4 | 1.1 | 2.7 | 54.3 | 3006 |
| 4x150+1x120 | 2 | 1.4 | 1.2 | 2.7 | 55.0 | 3207 |
| 4x185+1x95 | 2 | 1.6 | 1.1 | 2.9 | 61.0 | 3839 |
| 4x185+1x150 | 2 | 1.6 | 1.4 | 2.9 | 61.6 | 4092 |
| 4x240+1x25 | 2 | 1.7 | 0.9 | 3.1 | 68.6 | 4592 |
| 4x240+1x70 | 2 | 1.7 | 1.1 | 3.1 | 69.3 | 4713 |
| 5x95 | 2 | 1.1 | 2.4 | 44.8 | 2330 | |
| 5x120 | 2 | 1.2 | 2.5 | 49.8 | 2719 | |
| 5x150 | 2 | 1.4 | 2.7 | 55.5 | 3340 | |
| 5x185 | 2 | 1.6 | 2.9 | 62.1 | 4262 | |
| 5x240 | 2 | 1.7 | 3.1 | 70.1 | 5540 | |
| 多芯 | ||||||
| 7x1.5 | 2 | 0.7 | 1.8 | 13.2 | 189 | |
| 10x1.5 | 2 | 0.7 | 1.8 | 16.4 | 257 | |
| 12x1.5 | 2 | 0.7 | 1.8 | 16.9 | 288 | |
| 7x2.5 | 2 | 0.7 | 1.8 | 14.4 | 230 | |
| 10x2.5 | 2 | 0.7 | 1.8 | 18.0 | 313 | |
| 12x2.5 | 2 | 0.7 | 1.8 | 18.6 | 353 | |
