657TQ(BS 6883)
应用及描述
此电缆是为在海上应用，不需要机械保护。应用实例包括船舶和海上钻井平台和石油平台的固定布线。

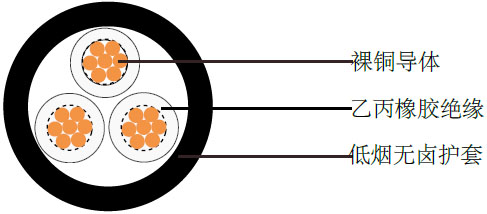

电缆结构
| - 多股镀锡退火铜丝 |
| - 多股遵循BS 6360 Cl-2/IEC 60228 Cl-2 |
| - EPR(乙丙橡胶)绝缘，遵循BS 6899 |
| - LSOH(低烟无卤), SW4，遵循BS 6899 |
线芯颜色
| 1芯: 黑色/黄绿色 |
| 2芯及以上: 白色绝缘加黑色数字标注 |
技术特性
| 工作电压 |
600/1000V |
| 测试电压 |
2000V |
| 最小弯曲半径 |
达到10mm² - 3×外径 |
| |
10mm²-25mm² - 4×外径 |
| |
25mm²以上 - 6×外径 |
| 工作温度范围 |
-25º C～+85º C |
| 阻燃 |
IEC 60332.1 |
| 绝缘电阻 |
20 MΩ×km |
| 氧指数32%, HCL 5% |
电缆参数
| 线规 |
芯数×导体截面积 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称电缆重量 |
| (股数/直径) |
#×mm² |
mm |
mm |
mm |
kg/km |
| 6571TQ |
| 17(7/26) |
1×1.0 |
0.8 |
1 |
5.2 |
41 |
| 16(7/24) |
1×1.5 |
0.8 |
1 |
5.5 |
47 |
| 14(7/22) |
1×2.5 |
0.8 |
1 |
6 |
55 |
| 12(7/20) |
1×4 |
1 |
1 |
6.9 |
84 |
| 10(7/18) |
1×6 |
1 |
1 |
7.5 |
110 |
| 8(7/16) |
1×10 |
1.2 |
1.1 |
9 |
165 |
| 6(7/14) |
1×16 |
1.2 |
1.1 |
101 |
235 |
| 4(7/12) |
1×25 |
1.4 |
1.2 |
12.4 |
375 |
| 2(7/10) |
1×35 |
1.4 |
1.2 |
13.3 |
460 |
| 1(19/13) |
1×50 |
1.6 |
1.3 |
15.2 |
670 |
| 2/0(19/11) |
1×70 |
1.6 |
1.4 |
17.2 |
835 |
| 3/0(19/10) |
1×95 |
1.8 |
1.4 |
19.3 |
1200 |
| 4/0(37/12) |
1×120 |
1.8 |
1.5 |
21.4 |
1410 |
| 300MCM(37/11) |
1×150 |
2 |
1.6 |
23.5 |
1890 |
| 350MCM(37/10) |
1×185 |
2.2 |
1.7 |
26 |
2360 |
| 500MCM(61/11) |
1×240 |
2.4 |
1.8 |
29.2 |
3050 |
| -(61/10) |
1×300 |
2.6 |
1.9 |
32.3 |
3700 |
| -(61/9) |
1×400 |
2.8 |
2.1 |
36.4 |
4400 |
| -(61/8) |
1×500 |
3 |
2.2 |
40.2 |
5360 |
| -(127/10) |
1×630 |
3 |
2.3 |
44.1 |
6660 |
| 6572TQ |
| 17(7/26) |
2×1.0 |
0.8 |
1 |
8 |
85 |
| 16(7/24) |
2×1.5 |
0.8 |
1 |
8.6 |
115 |
| 14(7/22) |
2×2.5 |
0.8 |
1.1 |
9.8 |
147 |
| 12(7/20) |
2×4 |
1 |
1.2 |
12 |
225 |
| 10(7/18) |
2×6 |
1 |
1.2 |
13.1 |
285 |
| 8(7/16) |
2×10 |
1.2 |
1.3 |
16 |
440 |
| 6(7/14) |
2×16 |
1.2 |
1.4 |
18.3 |
635 |
| 4(7/12) |
2×25 |
1.4 |
1.6 |
22.9 |
1020 |
| 2(7/10) |
2×35 |
1.4 |
1.6 |
24.7 |
1230 |
| 1(19/13) |
2×50 |
1.6 |
1.8 |
28.4 |
1650 |
| 2/0(19/11) |
2×70 |
1.6 |
1.9 |
32.3 |
2200 |
| 3/0(19/10) |
2×95 |
1.8 |
2.1 |
37 |
2940 |
| 4/0(37/12) |
2×120 |
1.8 |
2.2 |
40.8 |
3680 |
| 300MCM(37/11) |
2×150 |
2 |
2.4 |
45.1 |
4450 |
| 350MCM(37/10) |
2×185 |
2.2 |
2.6 |
50 |
5600 |
| 500MCM(61/11) |
2×240 |
2.4 |
2.8 |
56.6 |
7260 |
| -(61/10) |
2×300 |
2.6 |
3 |
62.7 |
9020 |
| 6573TQ |
| 17(7/26) |
3×1.0 |
0.8 |
1 |
8.4 |
95 |
| 16(7/24) |
3×1.5 |
0.8 |
1.1 |
9.3 |
130 |
| 14(7/22) |
3×2.5 |
0.8 |
1.1 |
10.4 |
175 |
| 12(7/20) |
3×4 |
1 |
1.2 |
12.7 |
270 |
| 10(7/18) |
3×6 |
1 |
1.2 |
13.9 |
355 |
| 8(7/16) |
3×10 |
1.2 |
1.4 |
17.2 |
570 |
| 6(7/14) |
3×16 |
1.2 |
1.4 |
19.5 |
790 |
| 4(7/12) |
3×25 |
1.4 |
1.6 |
24.4 |
1290 |
| 2(7/10) |
3×35 |
1.4 |
1.7 |
26.5 |
1590 |
| 1(19/13) |
3×50 |
1.6 |
1.8 |
30.3 |
2150 |
| 2/0(19/11) |
3×70 |
1.6 |
2 |
34.7 |
2920 |
| 3/0(19/10) |
3×95 |
1.8 |
2.2 |
39.7 |
3790 |
| 4/0(37/12) |
3×120 |
1.8 |
2.3 |
43.8 |
4790 |
| 300MCM(37/11) |
3×150 |
2 |
2.5 |
48.4 |
5860 |
| 350MCM(37/10) |
3×185 |
2.2 |
2.7 |
53.9 |
7290 |
| 500MCM(61/11) |
3×240 |
2.4 |
3 |
61.1 |
9500 |
| -(61/10) |
3×300 |
2.6 |
3.2 |
67.6 |
11960 |
| 6574TQ |
| 17(7/26) |
4×1.0 |
0.8 |
1.1 |
9.3 |
130 |
| 16(7/24) |
4×1.5 |
0.8 |
1.1 |
10.1 |
160 |
| 14(7/22) |
4×2.5 |
0.8 |
1.1 |
11.4 |
220 |
| 12(7/20) |
4×4 |
1 |
1.2 |
13.9 |
345 |
| 10(7/18) |
4×6 |
1 |
1.3 |
15.4 |
450 |
| 8(7/16) |
4×10 |
1.2 |
1.4 |
18.9 |
700 |
| 6(7/14) |
4×16 |
1.2 |
1.5 |
21.7 |
1020 |
| 4(7/12) |
4×25 |
1.4 |
1.7 |
27.1 |
1630 |
| 2(7/10) |
4×35 |
1.4 |
1.8 |
29.4 |
2058 |
| 1(19/13) |
4×50 |
1.6 |
2 |
33.9 |
2700 |
| 2/0(19/11) |
4×70 |
1.6 |
2.1 |
38.5 |
3730 |
| 3/0(19/10) |
4×95 |
1.8 |
2.4 |
44.5 |
4960 |
| 4/0(37/12) |
4×120 |
1.8 |
2.5 |
48.9 |
6240 |
| 300MCM(37/11) |
4×150 |
2 |
2.7 |
54.1 |
7600 |
| 350MCM(37/10) |
4×185 |
2.2 |
2.9 |
60 |
9510 |
| 500MCM(61/11) |
4×240 |
2.4 |
3.2 |
68 |
12410 |
| -(61/10) |
4×300 |
2.6 |
3.5 |
75.7 |
15200 |
| 6575TQ |
| 17(7/26) |
5×1.0 |
0.8 |
1.1 |
10.1 |
155 |
| 16(7/24) |
5×1.5 |
0.8 |
1.1 |
11 |
190 |
| 14(7/22) |
5×2.5 |
0.8 |
1.2 |
12.6 |
280 |
| 12(7/20) |
5×4 |
1 |
1.3 |
15.3 |
425 |
| 6576TQ |
| 17(7/26) |
6×1.0 |
0.8 |
1.1 |
11.1 |
180 |
| 16(7/24) |
6×1.5 |
0.8 |
1.2 |
12.2 |
240 |
| 14(7/22) |
6×2.5 |
0.8 |
1.2 |
13.7 |
330 |
| 12(7/20) |
6×4 |
1 |
1.3 |
16.7 |
505 |
| 6577TQ |
| 17(7/26) |
7×1.5 |
0.8 |
1.2 |
12.2 |
260 |
| 16(7/24) |
7×2.5 |
0.8 |
1.2 |
14 |
365 |
| 65712TQ |
| 17(7/26) |
12×1.5 |
0.8 |
1.2 |
15.9 |
380 |
| 16(7/24) |
12×2.5 |
0.8 |
1.2 |
18.6 |
589 |
| 65716TQ
|
| 17(7/26) |
16×1.5 |
0.8 |
1.2 |
17.8 |
500 |
| 16(7/24) |
16×2.5 |
0.8 |
1.2 |
20.9 |
750 |
| 65719TQ
|
| 17(7/26) |
19×1.5 |
0.8 |
1.2 |
18.8 |
590 |
| 16(7/24) |
19×2.5 |
0.8 |
1.2 |
22 |
860 |
| 65724TQ
|
| 17(7/26) |
24×1.5 |
0.8 |
1.2 |
21.8 |
740 |
| 16(7/24) |
24×2.5 |
0.8 |
1.2 |
25.9 |
1090 |
