BS 6883 & BS 7917 标准海洋工程及船用电缆 |  |
|
|
|||
BS 6883 & BS 7917 标准海洋工程及船用电缆低压防火电力&控制缆
0.6/1kV HF-EPR绝缘，SW2/SW4护套铠装防火电力&控制缆

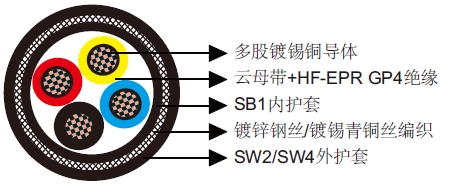

应用结构
导体：符合BS 6360/IEC 60228 cl.2的圆形多股镀锡铜丝。
绝缘：云母带+符合BS 7655 1.2的HF-EPR GP4。
内护套：符合BS 7917的无卤热固材料SB1。
铠装：镀锌钢丝编织或镀锡青铜丝编织（单芯）。铜丝编织可应要求提供。
外护套：符合BS 7655 2.6的无卤热固材料SW4或减少了卤素的热固材料SW2。
机械和热性能
最小内部弯曲半径：6×OD
温度范围：-40℃ ~ +90℃
尺寸和重量
单芯电缆
结构芯数×截面积 (mm2) |
标称绝缘厚度 mm |
标称内护套厚度 mm |
最小内护套外直径 mm |
最大内护套外直径 mm |
标称铠装丝直径 mm |
标称外护套厚度 mm |
最小外径 mm |
最大外径 mm |
近似重量 kg/km |
1×4 |
1.0 |
1.0 |
6.7 |
8.0 |
0.3 |
1.1 |
10.2 |
12.1 |
245 |
1×6 |
1.0 |
1.0 |
7.2 |
8.5 |
0.3 |
1.1 |
10.8 |
12.6 |
275 |
1×10 |
1.0 |
1.0 |
8.1 |
9.5 |
0.3 |
1.2 |
11.9 |
13.8 |
355 |
1×16 |
1.0 |
1.1 |
9.3 |
10.7 |
0.3 |
1.2 |
13.1 |
15.0 |
440 |
1×25 |
1.2 |
1.2 |
11.5 |
13.2 |
0.3 |
1.3 |
15.4 |
17.7 |
600 |
1×35 |
1.2 |
1.2 |
12.3 |
14.1 |
0.3 |
1.4 |
16.5 |
18.8 |
720 |
1×50 |
1.4 |
1.3 |
14.1 |
15.9 |
0.3 |
1.4 |
18.2 |
20.6 |
910 |
1×70 |
1.4 |
1.3 |
15.8 |
17.8 |
0.3 |
1.5 |
20.2 |
23.0 |
1170 |
1×95 |
1.6 |
1.4 |
18.1 |
20.2 |
0.3 |
1.6 |
22.6 |
25.6 |
1510 |
1×120 |
1.6 |
1.5 |
20.0 |
22.4 |
0.3 |
1.7 |
24.7 |
27.7 |
1830 |
1×150 |
1.8 |
1.6 |
22.0 |
24.6 |
0.3 |
1.8 |
26.9 |
30.1 |
2160 |
1×185 |
2.0 |
1.7 |
24.4 |
27.0 |
0.45 |
1.9 |
30.2 |
33.9 |
2790 |
1×240 |
2.2 |
1.8 |
27.5 |
30.3 |
0.45 |
2.0 |
33.5 |
37.3 |
3530 |
1×300 |
2.4 |
1.9 |
30.4 |
33.6 |
0.45 |
2.1 |
36.6 |
40.5 |
4280 |
多芯电缆
结构芯数×截面积 (mm2) |
标称绝缘厚度 mm |
标称内护套厚度 mm |
最小内护套外直径 mm |
最大内护套外直径 mm |
标称铠装丝直径 mm |
标称外护套厚度 mm |
最小外径 mm |
最大外径 mm |
近似重量 kg/km |
2×1.5 |
0.8 |
1.1 |
9.0 |
10.4 |
0.3 |
1.2 |
12.7 |
14.7 |
310 |
2×2.5 |
0.8 |
1.1 |
9.8 |
11.4 |
0.3 |
1.2 |
13.6 |
15.5 |
355 |
2×4 |
1.0 |
1.2 |
11.8 |
13.5 |
0.3 |
1.3 |
15.7 |
18.0 |
475 |
2×6 |
1.0 |
1.2 |
12.9 |
14.6 |
0.3 |
1.4 |
17.0 |
19.3 |
580 |
2×10 |
1.0 |
1.3 |
14.9 |
16.8 |
0.3 |
1.4 |
19.0 |
21.4 |
750 |
2×16 |
1.0 |
1.4 |
17.1 |
19.1 |
0.3 |
1.5 |
21.4 |
24.3 |
980 |
2×25 |
1.2 |
1.5 |
21.2 |
23.7 |
0.3 |
1.7 |
25.9 |
29.0 |
1380 |
2×35 |
1.2 |
1.6 |
23.1 |
25.7 |
0.3 |
1.8 |
28.0 |
31.2 |
1710 |
2×50 |
1.4 |
1.7 |
26.5 |
29.2 |
0.45 |
2.0 |
32.5 |
36.3 |
2370 |
2×70 |
1.4 |
1.9 |
30.3 |
33.5 |
0.45 |
2.1 |
36.5 |
40.5 |
3100 |
2×95 |
1.6 |
2.1 |
34.9 |
38.2 |
0.45 |
2.3 |
41.4 |
46.0 |
4020 |
2×120 |
1.6 |
2.2 |
38.4 |
42.2 |
0.45 |
2.5 |
45.4 |
50.1 |
4870 |
3×1.5 |
0.8 |
1.1 |
9.6 |
11.0 |
0.3 |
1.2 |
13.3 |
15.3 |
345 |
3×2.5 |
0.8 |
1.1 |
10.4 |
12.1 |
0.3 |
1.3 |
14.4 |
16.4 |
405 |
3×4 |
1.0 |
1.2 |
12.6 |
14.3 |
0.3 |
1.3 |
16.5 |
18.8 |
540 |
3×6 |
1.0 |
1.2 |
13.8 |
15.5 |
0.3 |
1.4 |
17.9 |
20.2 |
660 |
3×10 |
1.0 |
1.3 |
15.9 |
17.8 |
0.3 |
1.5 |
20.2 |
23.0 |
910 |
3×16 |
1.0 |
1.4 |
18.2 |
20.3 |
0.3 |
1.6 |
22.8 |
25.7 |
1200 |
3×25 |
1.2 |
1.6 |
22.9 |
25.4 |
0.3 |
1.8 |
27.8 |
30.9 |
1760 |
3×35 |
1.2 |
1.7 |
24.9 |
27.6 |
0.45 |
1.9 |
30.7 |
34.4 |
2260 |
结构芯数×截面积 (mm2) |
标称绝缘厚度 mm |
标称内护套厚度 mm |
最小内护套外直径 mm |
最大内护套外直径 mm |
标称铠装丝直径 mm |
标称外护套厚度 mm |
最小外径 mm |
最大外径 mm |
近似重量 kg/km |
3×50 |
1.4 |
1.8 |
28.5 |
31.3 |
0.45 |
2.0 |
34.5 |
38.4 |
2880 |
3×70 |
1.4 |
2.0 |
32.7 |
35.9 |
0.45 |
2.2 |
39.0 |
43.5 |
3800 |
3×95 |
1.6 |
2.2 |
37.5 |
41.0 |
0.45 |
2.4 |
44.3 |
48.9 |
4890 |
3×120 |
1.6 |
2.3 |
41.3 |
45.3 |
0.45 |
2.6 |
48.5 |
53.7 |
6070 |
3×150 |
1.8 |
2.5 |
45.8 |
49.9 |
0.45 |
2.8 |
53.3 |
58.7 |
7270 |
3×185 |
2.0 |
2.7 |
50.9 |
55.5 |
0.45 |
3.0 |
58.8 |
64.9 |
8970 |
3×240 |
2.2 |
2.9 |
57.5 |
62.4 |
0.45 |
3.2 |
65.8 |
72.2 |
1350 |
4×1.5 |
0.8 |
1.1 |
10.5 |
12.1 |
0.3 |
1.3 |
14.4 |
16.4 |
395 |
4×2.5 |
0.8 |
1.1 |
11.4 |
13.1 |
0.3 |
1.3 |
15.4 |
17.6 |
465 |
4×4 |
1.0 |
1.2 |
13.8 |
15.6 |
0.3 |
1.4 |
17.9 |
20.3 |
640 |
4×6 |
1.0 |
1.3 |
15.3 |
17.3 |
0.3 |
1.5 |
19.6 |
22.5 |
790 |
4×10 |
1.0 |
1.4 |
17.7 |
19.7 |
0.3 |
1.6 |
22.2 |
25.1 |
1070 |
4×16 |
1.0 |
1.5 |
20.3 |
22.8 |
0.3 |
1.7 |
25.0 |
28.1 |
1460 |
4×25 |
1.2 |
1.7 |
25.5 |
28.1 |
0.45 |
1.9 |
31.3 |
35.0 |
2140 |
4×35 |
1.2 |
1.8 |
27.7 |
30.5 |
0.45 |
2.0 |
33.7 |
37.5 |
2670 |
4×50 |
1.4 |
1.9 |
31.8 |
35.0 |
0.45 |
2.2 |
38.1 |
42.1 |
3630 |
4×70 |
1.4 |
2.1 |
36.3 |
39.7 |
0.45 |
2.4 |
43.1 |
47.7 |
4740 |
4×95 |
1.6 |
2.3 |
41.7 |
45.7 |
0.45 |
2.6 |
48.9 |
54.1 |
6290 |
4×120 |
1.6 |
2.5 |
46.2 |
50.3 |
0.45 |
2.8 |
53.7 |
59.2 |
7670 |
5×1.5 |
0.8 |
1.1 |
11.4 |
13.1 |
0.3 |
1.3 |
15.4 |
17.6 |
455 |
7×1.5 |
0.8 |
1.2 |
12.6 |
14.4 |
0.3 |
1.3 |
16.6 |
18.9 |
530 |
12×1.5 |
0.8 |
1.3 |
16.8 |
18.8 |
0.3 |
1.5 |
21.2 |
24.0 |
790 |
19×1.5 |
0.8 |
1.4 |
19.9 |
22.4 |
0.3 |
1.6 |
24.4 |
27.5 |
1080 |
27×1.5 |
0.8 |
1.6 |
24.3 |
26.9 |
0.3 |
1.8 |
29.2 |
32.8 |
1460 |
37×1.5 |
0.8 |
1.7 |
27.4 |
30.4 |
0.45 |
1.9 |
33.2 |
37.0 |
1990 |
5×2.5 |
0.8 |
1.2 |
12.7 |
14.4 |
0.3 |
1.3 |
16.6 |
18.9 |
560 |
7×2.5 |
0.8 |
1.2 |
13.9 |
15.6 |
0.3 |
1.4 |
18.0 |
20.3 |
650 |
12×2.5 |
0.8 |
1.4 |
18.7 |
20.8 |
0.3 |
1.6 |
23.2 |
26.2 |
970 |
19×2.5 |
0.8 |
1.5 |
22.1 |
24.7 |
0.3 |
1.7 |
26.8 |
30.0 |
1360 |
