应用
该电缆作为供电电缆或连接电缆用于大型材料处理机械，如露天采矿中承受很高机械应力的挖掘机T。特别适合在拖曳工作中需要耐磨强度的应用。
标准
VDE 0250 Part 813

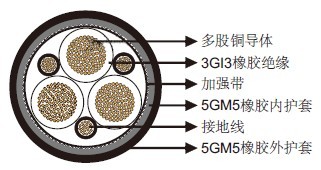

结构
导体：DIN VDE 0295标准class 5柔软多股镀锡铜导体。
内导体层：半导层。
绝缘：Type 3GI3橡胶。
外导体层：半导层。
接地线：分为3根分散于外层间隙或在单根芯线绝缘层外以同心方式分布（代码.../3E）。
加强带：极抗撕裂加强带。
内护套：Type 5GM5橡胶， 耐磨耐撕裂、防油、耐臭氧。
外护套：Type 5GM5橡胶， 耐磨耐撕裂、防油、耐臭氧，与内护套紧密粘结。
尺寸和重量
1.8/3kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
38.5 |
41.5 |
2470 |
3×35+3×25/3 |
42.9 |
45.9 |
3080 |
3×50+3×25/3 |
46.1 |
49.1 |
3750 |
3×70+3×35/3 |
49.7 |
53.7 |
4690 |
3×95+3×50/3 |
57.4 |
61.4 |
6210 |
3×120+3×70/3 |
61.2 |
65.2 |
7430 |
3×150+3×70/3 |
66.7 |
70.7 |
8900 |
3×185+3×95/3 |
70.6 |
74.6 |
10330 |
3×25+2×25/2+1×10ST |
40.3 |
44.3 |
2470 |
3×35+2×25/2+1×10ST |
42.9 |
46.9 |
3080 |
3×50+2×25/2+1×10ST |
46.8 |
50.8 |
3750 |
3×70+2×35/2+1×10ST |
51.5 |
55.5 |
4690 |
3×95+2×50/2+1×10ST |
57.4 |
62.4 |
6210 |
3×120+2×70/2+1×10ST |
63.6 |
68.6 |
7430 |
3×150+2×70/2+1×10ST |
67.2 |
72.2 |
8900 |
3×185+2×95/2+1×10ST |
70.2 |
75.2 |
10330 |
3.6/6kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
44.6 |
47.6 |
3080 |
3×35+3×25/3 |
47.6 |
50.6 |
3590 |
3×50+3×25/3 |
52.4 |
56.4 |
4520 |
3×70+3×35/3 |
56.3 |
60.3 |
5520 |
3×95+3×50/3 |
59.9 |
63.9 |
6580 |
3×120+3×70/3 |
65.6 |
69.6 |
8110 |
3×150+3×70/3 |
69.3 |
73.3 |
9320 |
3×185+3×95/3 |
73.2 |
77.2 |
10780 |
3×25+2×25/2+1×10ST |
45.0 |
49.0 |
3200 |
3×35+2×25/2+1×10ST |
47.6 |
51.6 |
3680 |
3×50+2×25/2+1×10ST |
53.0 |
57.0 |
4640 |
3×70+2×35/2+1×10ST |
56.2 |
60.2 |
5550 |
3×95+2×50/2+1×10ST |
61.8 |
66.8 |
6650 |
3×120+2×70/2+1×10ST |
66.1 |
71.1 |
8160 |
3×150+2×70/2+1×10ST |
69.8 |
74.8 |
9340 |
3×185+2×95/2+1×10ST |
74.6 |
79.6 |
10890 |
6/10 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
46.4 |
49.4 |
3270 |
3×35+3×25/3 |
49.1 |
53.1 |
3800 |
3×50+3×25/3 |
54.1 |
58.1 |
4750 |
3×70+3×35/3 |
58.0 |
62.0 |
5750 |
3×95+3×50/3 |
61.7 |
65.7 |
6830 |
3×120+3×70/3 |
67.4 |
71.4 |
8380 |
3×150+3×70/3 |
71.0 |
75.0 |
9620 |
3×185+3×95/3 |
76.7 |
80.7 |
11430 |
3×25+2×25/2+1×10ST |
46.8 |
50.8 |
3410 |
3×35+2×25/2+1×10ST |
50.9 |
54.9 |
3890 |
3×50+2×25/2+1×10ST |
54.5 |
58.9 |
4860 |
3×70+2×35/2+1×10ST |
58.0 |
62.0 |
5780 |
3×95+2×50/2+1×10ST |
63.5 |
68.5 |
6920 |
3×120+2×70/2+1×10ST |
67.8 |
72.8 |
8450 |
3×150+2×70/2+1×10ST |
71.5 |
76.5 |
9620 |
3×185+2×95/2+1×10ST |
76.3 |
81.3 |
10980 |
8.7/15 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
52.6 |
56.6 |
4040 |
3×35+3×25/3 |
55.6 |
59.6 |
4630 |
3×50+3×25/3 |
58.9 |
62.9 |
5370 |
3×70+3×35/3 |
64.5 |
68.5 |
6720 |
3×95+3×50/3 |
68.2 |
72.2 |
7850 |
3×120+3×70/3 |
72.1 |
76.1 |
9130 |
3×150+3×70/3 |
77.6 |
81.6 |
10750 |
3×185+3×95/3 |
81.5 |
85.5 |
12290 |
3×25+2×25/2+1×10ST |
53.0 |
57.0 |
4130 |
3×35+2×25/2+1×10ST |
55.6 |
59.6 |
4740 |
3×50+2×25/2+1×10ST |
59.3 |
63.3 |
5470 |
3×70+2×35/2+1×10ST |
64.6 |
68.6 |
6820 |
3×95+2×50/2+1×10ST |
68.3 |
73.3 |
7950 |
3×120+2×70/2+1×10ST |
74.4 |
79.4 |
9240 |
3×150+2×70/2+1×10ST |
78.1 |
83.1 |
10860 |
3×185+2×95/2+1×10ST |
81.1 |
86.1 |
12400 |
12/20 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
56.9 |
60.9 |
4620 |
3×35+3×25/3 |
59.9 |
63.9 |
5220 |
3×50+3×25/3 |
65.0 |
69.0 |
6300 |
3×70+3×35/3 |
68.9 |
72.9 |
7410 |
3×95+3×50/3 |
72.5 |
76.5 |
8560 |
3×120+3×70/3 |
78.2 |
82.2 |
10260 |
3×150+3×70/3 |
81.9 |
85.9 |
11570 |
3×185+3×95/3 |
87.4 |
92.4 |
13530 |
3×25+2×25/2+1×10ST |
57.3 |
61.3 |
4770 |
3×35+2×25/2+1×10ST |
59.9 |
63.9 |
5340 |
3×50+2×25/2+1×10ST |
65.4 |
69.4 |
6460 |
3×70+2×35/2+1×10ST |
68.8 |
72.8 |
7450 |
3×95+2×50/2+1×10ST |
74.4 |
79.4 |
8680 |
3×120+2×70/2+1×10ST |
78.7 |
83.7 |
10370 |
3×150+2×70/2+1×10ST |
82.2 |
87.2 |
11650 |
3×185+2×95/2+1×10ST |
87.0 |
92.0 |
13090 |
14/25 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+1×10ST |
64.7 |
68.7 |
5940 |
3×35+2×25/2+1×10ST |
67.3 |
71.3 |
6470 |
3×50+2×25/2+1×10ST |
71.0 |
75.0 |
7300 |
3×70+2×35/2+1×10ST |
75.2 |
80.2 |
8800 |
3×95+2×50/2+1×10ST |
80.0 |
85.0 |
10050 |
3×120+2×70/2+1×10ST |
85.9 |
90.9 |
11470 |
3×150+2×70/2+1×10ST |
89.6 |
94.6 |
13210 |
3×185+2×95/2+1×10ST |
92.6 |
97.6 |
14860 |
18/30 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+3×25/3 |
69.5 |
73.5 |
6680 |
3×35+3×25/3 |
72.5 |
76.5 |
7380 |
3×50+3×25/3 |
77.6 |
81.6 |
8460 |
3×70+3×35/3 |
81.5 |
85.5 |
9690 |
3×95+3×50/3 |
84.9 |
89.9 |
10960 |
3×120+3×70/3 |
90.6 |
95.6 |
12830 |
3×150+3×70/3 |
94.3 |
99.3 |
14250 |
3×185+3×95/3 |
100.0 |
105.0 |
16390 |
3×25+2×25/2+1×10ST |
69.9 |
73.9 |
7100 |
3×35+2×25/2+1×10ST |
72.6 |
76.6 |
7540 |
3×50+2×25/2+1×10ST |
78.0 |
82.0 |
8680 |
3×70+2×35/2+1×10ST |
80.4 |
85.4 |
9760 |
3×95+2×50/2+1×10ST |
86.8 |
91.8 |
11100 |
3×120+2×70/2+1×10ST |
91.1 |
96.1 |
12980 |
3×150+2×70/2+1×10ST |
94.8 |
99.8 |
14350 |
3×185+2×95/2+1×10ST |
99.6 |
104.6 |
15870 |
