应用及描述
此电缆可露天安装或用于赛道等干燥的环境中。
标准及认证
TIS 11-2531

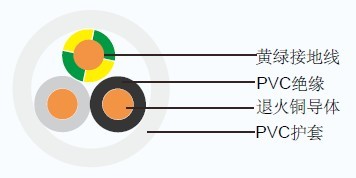

电缆结构
导体: 实心或多股退火铜, 1 mm2-35 mm2
绝缘: 聚氯乙烯(PVC)
颜色: 淡灰色, 黑色,接地线:黄绿色护套: 聚氯乙烯(PVC), 白色
技术特性
最大导体温度 70oC
回路电缆不超过 750 V
测试电压 2500 V
电缆参数
芯数 |
导体 |
接地线 |
护套厚 度 |
线缆外径 |
露天最大 额定电流 |
70°C时的最 |
线缆重量 |
||||
截面积 | 股数/直径 | 绝缘厚度 | 截面积 | 股数/直径 | 绝缘厚度 | ||||||
mm² |
No./mm | mm | mm² | No./mm | mm |
mm | mm | A |
Ohm/km |
kg / km |
|
2+1 |
1 |
1/1.13 |
0.6 |
1 |
1/1.13 |
0.6 |
0.9 |
8 |
15 |
0.0115 |
80 |
2+1 |
1 |
7/0.40 |
0.6 |
1 |
7/0.40 |
0.6 |
0.9 |
8.4 |
15 |
0.011 |
80 |
2+1 |
1.5 |
1/1.38 |
0.6 |
1 |
1/1.13 |
0.6 |
1.2 |
9.2 |
20 |
0.01 |
100 |
2+1 |
1.5 |
7/0.50 |
0.6 |
1 |
7/0.40 |
0.6 |
1.2 |
9.6 |
20 |
0.0094 |
100 |
2+1 |
2.5 |
1/1.78 |
0.7 |
1.5 |
1/1.38 |
0.6 |
1.2 |
10.5 |
25 |
0.0092 |
140 |
2+1 |
2.5 |
7/0.67 |
0.7 |
1.5 |
7/0.50 |
0.6 |
1.2 |
11.5 |
25 |
0.0084 |
140 |
2+1 |
4 |
1/2.25 |
0.8 |
2.5 |
1/1.78 |
0.6 |
1.2 |
12.5 |
33 |
0.0086 |
200 |
2+1 |
4 |
7/0.85 |
0.8 |
2.5 |
7/0.67 |
0.6 |
1.2 |
13 |
33 |
0.0078 |
200 |
2+1 |
6 |
7/1.04 |
0.8 |
4 |
7/0.85 |
0.6 |
1.2 |
14.5 |
45 |
0.0066 |
290 |
2+1 |
10 |
7/1.35 |
0.9 |
4 |
7/0.85 |
0.6 |
1.2 |
16 |
62 |
0.0059 |
410 |
2+1 |
16 |
7/1.70 |
1 |
6 |
7/1.04 |
0.6 |
1.4 |
19 |
81 |
0.0053 |
610 |
2+1 |
25 |
7/2.14 |
1.2 |
6 |
7/1.04 |
0.6 |
1.4 |
22.5 |
109 |
0.0051 |
880 |
2+1 |
35 |
19/1.53 |
1.2 |
10 |
7/1.35 |
0.6 |
1.4 |
25.5 |
134 |
0.0043 |
1176 |
3+1 |
1 |
1/1.13 |
0.6 |
1 |
1/1.13 |
0.6 |
0.9 |
8.6 |
13 |
0.0115 |
95 |
3+1 |
1 |
7/0.40 |
0.6 |
1 |
7/0.40 |
0.6 |
0.9 |
9 |
13 |
0.011 |
95 |
3+1 |
1.5 |
1/1.38 |
0.6 |
1 |
1/1.13 |
0.6 |
1.2 |
10 |
17 |
0.01 |
130 |
3+1 |
1.5 |
7/0.50 |
0.6 |
1 |
7/0.40 |
0.6 |
1.2 |
10.5 |
17 |
0.0094 |
130 |
3+1 |
2.5 |
1/1.78 |
0.7 |
1.5 |
1/1.38 |
0.6 |
1.2 |
11.5 |
21 |
0.0092 |
180 |
3+1 |
2.5 |
7/0.67 |
0.7 |
1.5 |
7/0.50 |
0.6 |
1.2 |
12.5 |
21 |
0.0084 |
180 |
3+1 |
4 |
1/2.25 |
0.8 |
2.5 |
1/1.78 |
0.6 |
1.2 |
13.5 |
30 |
0.0086 |
260 |
3+1 |
4 |
7/0.85 |
0.8 |
2.5 |
7/0.67 |
0.6 |
1.2 |
14 |
30 |
0.0078 |
260 |
3+1 |
6 |
7/1.04 |
0.8 |
4 |
7/0.85 |
0.6 |
1.2 |
15.5 |
38 |
0.0066 |
370 |
3+1 |
10 |
7/1.35 |
0.9 |
4 |
7/0.85 |
0.6 |
1.2 |
18.5 |
53 |
0.0059 |
530 |
3+1 |
16 |
7/1.70 |
1 |
6 |
7/1.04 |
0.6 |
1.4 |
22 |
71 |
0.0053 |
800 |
3+1 |
25 |
7/2.14 |
1.2 |
6 |
7/1.04 |
0.6 |
1.8 |
27.5 |
93 |
0.0051 |
1220 |
3+1 |
35 |
19/1.53 |
1.2 |
10 |
7/1.35 |
0.6 |
1.8 |
30.5 |
113 |
0.0043 |
1610 |
4+1 |
1 |
1/1.13 |
0.6 |
1 |
1/1.13 |
0.6 |
0.9 |
9.2 |
12 |
0.0115 |
110 |
4+1 |
1 |
7/0.40 |
0.6 |
1 |
7/0.40 |
0.6 |
0.9 |
9.8 |
12 |
0.011 |
110 |
4+1 |
1.5 |
1/1.38 |
0.6 |
1 |
1/1.13 |
0.6 |
1.2 |
11 |
15 |
0.01 |
150 |
4+1 |
1.5 |
7/0.50 |
0.6 |
1 |
7/0.40 |
0.6 |
1.2 |
11.5 |
15 |
0.0094 |
150 |
4+1 |
2.5 |
1/1.78 |
0.7 |
1.5 |
1/1.38 |
0.6 |
1.2 |
12.5 |
19 |
0.0092 |
220 |
4+1 |
2.5 |
7/0.67 |
0.7 |
1.5 |
7/0.50 |
0.6 |
1.2 |
13.5 |
19 |
0.0084 |
220 |
4+1 |
4 |
1/2.25 |
0.8 |
2.5 |
1/1.78 |
0.6 |
1.2 |
14.5 |
27 |
0.0086 |
330 |
4+1 |
4 |
7/0.85 |
0.8 |
2.5 |
7/0.67 |
0.6 |
1.2 |
15.5 |
27 |
0.0078 |
330 |
4+1 |
6 |
7/1.04 |
0.8 |
4 |
7/0.85 |
0.6 |
1.2 |
17 |
37 |
0.0066 |
470 |
4+1 |
10 |
7/1.35 |
0.9 |
4 |
7/0.85 |
0.6 |
1.4 |
20.5 |
49 |
0.0059 |
700 |
4+1 |
16 |
7/1.70 |
1 |
6 |
7/1.04 |
0.6 |
1.4 |
24.5 |
64 |
0.0053 |
1030 |
4+1 |
25 |
7/2.14 |
1.2 |
6 |
7/1.04 |
0.6 |
1.8 |
30 |
84 |
0.0051 |
1570 |
4+1 |
35 |
19/1.53 |
1.2 |
10 |
7/1.35 |
0.6 |
1.8 |
33.5 |
102 |
0.0043 |
2070 |
