NYY-J/NYY-O
应用及描述
NYY电力电缆是专用于电缆管道，发电站，工业和配电板，以及用户网络的能源供应。也可用于在砖墙，混凝土中（非紧实型混凝土），需要颤动，摇摆的被现状况除外，NYY电缆可安装在露天，敷设于地下，水中和室内防止机械损伤的区域。此电缆抗紫外线，可户外使用。
标准及认证
VDE-0276 Part-603 & Part-627, HD 603.1 & 627 S1, IEC 60502, VDE 0482-332-1-2, DIN EN60332-1-2/IEC 60332-1, CE 低压73/23/EEC和93/68/EEC指令, ROHS认证

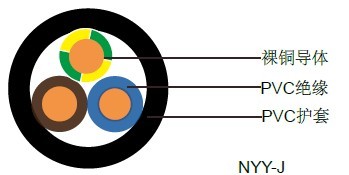

电缆结构
- 实心或多股裸铜导体
- 遵循DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2, IEC 60228 cl.1/cl.2
- PVC绝缘DIV4类，遵循HD 603.1
- 色彩编码遵循DIN VDE 0293-308, 0276- 603/HD 186
- 3+1/2的导体的线芯颜色
J类: 黄绿色 (1/2), 棕色, 黑色, 灰色
O类: 蓝色 (1/2), 棕色, 黑色, 灰色
- PVC外护套DMV5类，遵循HD 603.1
技术特性
- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 动态弯曲半径: 15 x Ø
- 静态弯曲半径: 12 x Ø
- 应用时的工作温度: -5º C ～ +50º C
- 固定安装温度: - 40º C ～ +70º C
- 阻燃: IEC 60332.1
- 绝缘电阻: >100 MΩ x km
电缆参数
线规 |
芯数 x 导体 |
标称外径 |
标称铜的重量 |
标称电缆重量 |
12 |
1x4re |
9.0 |
38.0 |
130.0 |
10 |
1x6re |
10.0 |
58.0 |
136.0 |
8 |
1x10re |
11.0 |
96.0 |
182.0 |
6 |
1x16re |
12.0 |
154.0 |
252.0 |
4 |
1x25rm |
13.0 |
240.0 |
365.0 |
2 |
1x35rm |
14.0 |
336.0 |
480.0 |
1 |
1x50rm |
16.0 |
480.0 |
620.0 |
2/0 |
1x70rm |
17.0 |
672.0 |
840.0 |
3/0 |
1x95rm |
19.0 |
912.0 |
1100.0 |
4/0 |
1x120rm |
21.0 |
1152.0 |
1320.0 |
300mcm |
1x150rm |
23.0 |
1440.0 |
1610.0 |
350mcm |
1x185rm |
25.0 |
1776.0 |
1.980.0 |
500mcm |
1x240rm |
28.0 |
2304.0 |
2550.0 |
750mcm |
1x300rm |
30.0 |
2880.0 |
3200.0 |
- |
1x400rm |
34.0 |
3840.0 |
4000.0 |
- |
1x500rm |
38.0 |
4800.0 |
5100.0 |
16 |
3x1.5re |
12.0 |
43.0 |
225.0 |
14 |
3x2.5re |
13.0 |
72.0 |
275.0 |
12 |
3x4re |
14.0 |
115.0 |
375.0 |
10 |
3x6re |
15.0 |
173.0 |
480.0 |
8 |
3x10re |
18.0 |
288.0 |
675.0 |
6 |
3x16re |
19.0 |
461.0 |
880.0 |
4 |
3x25rm |
24.0 |
720.0 |
1390.0 |
2 |
3x35sm |
25.0 |
1008.0 |
1600.0 |
1 |
3x50sm |
28.0 |
1440.0 |
2000.0 |
2/0 |
3x70sm |
31.0 |
2016.0 |
2700.0 |
3/0 |
3x95sm |
35.0 |
2736.0 |
3600.0 |
4/0 |
3x120sm |
39.0 |
3456.0 |
4400.0 |
300mcm |
3x150sm |
44.0 |
4320.0 |
4910.0 |
350mcm |
3x185sm |
49.0 |
5328.0 |
6520.0 |
500mcm |
3x240sm |
53.0 |
6912.0 |
8290.0 |
4 |
3x25rm/16re |
25.0 |
874.0 |
1575.0 |
2 |
3x35sm/16re |
26.0 |
1162.0 |
1700.0 |
1 |
3x50sm/25rm |
30.0 |
1680.0 |
2325.0 |
2/0 |
3x70sm/35sm |
35.0 |
2352.0 |
2900.0 |
3/0 |
3x95sm/50sm |
37.0 |
3216.0 |
3900.0 |
4/0 |
3x120sm/70sm |
42.0 |
4128.0 |
4900.0 |
300mcm |
3x150sm/70sm |
47.0 |
4992.0 |
5800.0 |
350mcm |
3x185sm/95sm |
51.0 |
6240.0 |
7400.0 |
500mcm |
3x240sm/120sm |
59.0 |
8064.0 |
9700.0 |
- |
3x300sm/150sm |
66.0 |
10080.0 |
12000.0 |
16 |
4x1.5re |
13.0 |
58.0 |
220.0 |
14 |
4x2.5re |
14.0 |
96.0 |
300.0 |
12 |
4x4re |
16.0 |
154.0 |
410.0 |
10 |
4x6re |
17.0 |
230.0 |
520.0 |
8 |
4x10re |
19.0 |
384.0 |
720.0 |
6 |
4x16re |
22.0 |
614.0 |
1050.0 |
4 |
4x25rm |
26.0 |
960.0 |
1650.0 |
2 |
4x35sm |
28.0 |
1344.0 |
1860.0 |
1 |
4x50sm |
31.0 |
1920.0 |
2500.0 |
2/0 |
4x70sm |
35.0 |
2688.0 |
3300.0 |
3/0 |
4x95sm |
38.0 |
3648.0 |
4500.0 |
4/0 |
4x120sm |
42.0 |
4608.0 |
5500.0 |
300mcm |
4x150sm |
47.0 |
5760.0 |
6880.0 |
350mcm |
4x185sm |
52.0 |
7104.0 |
8460.0 |
500mcm |
4x240sm |
59.0 |
9216.0 |
11000.0 |
16 |
5x1.5re |
13.0 |
72.0 |
280.0 |
14 |
5x2.5re |
15.0 |
120.0 |
360.0 |
12 |
5x4re |
16.0 |
192.0 |
490.0 |
10 |
5x6re |
18.0 |
288.0 |
650.0 |
8 |
5x10re |
20.0 |
480.0 |
870.0 |
6 |
5x16re |
23.0 |
768.0 |
1255.0 |
4 |
5x25rm |
30.0 |
1200.0 |
1980.0 |
2 |
5x35rm |
34.0 |
1680.0 |
2650.0 |
16 |
7x1.5re |
14.0 |
101.0 |
370.0 |
16 |
10x1.5re |
17.0 |
144.0 |
530.0 |
16 |
12x1.5re |
18.0 |
173.0 |
580.0 |
16 |
14x1.5re |
19.0 |
202.0 |
620.0 |
16 |
16x1.5re |
20.0 |
230.0 |
690.0 |
16 |
19x1.5re |
21.0 |
274.0 |
770.0 |
16 |
21x1.5re |
22.0 |
302.0 |
850.0 |
16 |
24x1.5re |
23.0 |
346.0 |
900.0 |
16 |
30x1.5re |
24.0 |
432.0 |
1030.0 |
16 |
40x1.5re |
28.0 |
576.0 |
1260.0 |
16 |
61x1.5re |
32.0 |
878.0 |
1760.0 |
14 |
7x2.5re |
16.0 |
168.0 |
460.0 |
14 |
10x2.5re |
19.0 |
240.0 |
650.0 |
14 |
12x2.5re |
20.0 |
288.0 |
730.0 |
14 |
14x2.5re |
21.0 |
336.0 |
820.0 |
14 |
16x2.5re |
22.0 |
384.0 |
930.0 |
14 |
19x2.5re |
23.0 |
456.0 |
1000.0 |
14 |
21x2.5re |
24.0 |
504.0 |
1050.0 |
14 |
24x2.5re |
26.0 |
576.0 |
1120.0 |
14 |
30x2.5re |
28.0 |
720.0 |
1300.0 |
14 |
40x2.5re |
30.0 |
960.0 |
1700.0 |
14 |
52x2.5re |
36.0 |
1248.0 |
2300.0 |
14 |
61x2.5re |
38.0 |
1464.0 |
2600.0 |
14 |
7x4re |
19.0 |
269.0 |
620.0 |
14 |
7x6re |
21.0 |
403.0 |
860.0 |
