NYCY
应用及描述
NYCY电缆用于发电工业和开关装置，路灯，家用电源连接，二级分配网络及其他。这些电缆很适用于地下应用，室内安装和电缆管道和室外应用，露天安装，在有机械保护的情况下，也可敷设于地下和水中。
标准及认证
VDE0276-603, CENELEC HD603 S1, IEC 60502 7芯及以上遵循VDE0267-627, CENELEC HD627 S1, IEC 60502

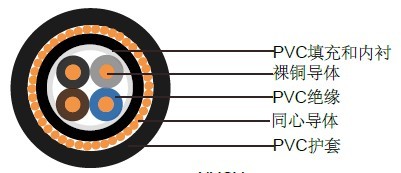

电缆结构
- 实心裸铜导体
- 遵循DIN VDE 0295 cl.1，IEC 60228 cl.1
- PVC绝缘DIV4类，遵循HD 603.1
- 色彩编码遵循DIN VDE 0293-308, 0276- 603/HD 186
- PVC填充和内衬
- 同心导体：铜丝和螺旋铜带
- PVC外护套DMV5类，遵循HD 603.1
技术特性
- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 动态弯曲半径: 15 x Ø
- 静态弯曲半径: 12 x Ø
- 应用时的工作温度: -5º C ～ +50º C
- 固定安装温度: - 40º C ～ +70º C
- 短路时可达到的温度: +160º C
- 阻燃: IEC 60332.1
- 绝缘电阻: >100 MΩ x km
电缆参数
线规 |
芯数 x 导体 |
导体类型 |
标称外径 |
标称铜的重量 |
标称电缆重量 |
8 |
1 x 10.0 |
re/10 |
11 |
216 |
280 |
6 |
1 x 16.0 |
re/16 |
12 |
336 |
440 |
16 |
2 x 1.5 |
re/1.5 |
13 |
52 |
205 |
14 |
2 x 2.5 |
re/2.5 |
13.5 |
80 |
270 |
12 |
2 x 4.0 |
re/4 |
15.5 |
123 |
360 |
10 |
2 x 6.0 |
re/6 |
17 |
182 |
435 |
8 |
2 x 10.0 |
re/10 |
19.5 |
312 |
590 |
6 |
2 x 16.0 |
re/16 |
20.5 |
489 |
820 |
16 |
3 x 1.5 |
re/1.5 |
13.5 |
66 |
225 |
14 |
3 x 2.5 |
re/2.5 |
14.5 |
104 |
290 |
12 |
3 x 4.0 |
re/4 |
16.5 |
161 |
400 |
10 |
3 x 6.0 |
re/6 |
17.5 |
240 |
510 |
8 |
3 x 10.0 |
re/10 |
20 |
408 |
850 |
6 |
3 x 16.0 |
re/16 |
23 |
643 |
1080 |
16 |
4 x 1.5 |
re/1.5 |
14.5 |
81 |
260 |
14 |
4 x 2.5 |
re/2.5 |
15.5 |
128 |
350 |
12 |
4 x 4.0 |
re/4 |
17 |
200 |
470 |
10 |
4 x 6.0 |
re/6 |
18.5 |
297 |
590 |
8 |
4 x 10.0 |
re/10 |
21 |
504 |
900 |
6 |
4 x 16.0 |
re/16 |
23 |
796 |
1250 |
16 |
5 x 1.5 |
re/1.5 |
15 |
95 |
330 |
14 |
5 x 2.5 |
re/2.5 |
16 |
152 |
400 |
12 |
5 x 4.0 |
re/4 |
19 |
238 |
560 |
10 |
5 x 6.0 |
re/6 |
21 |
355 |
710 |
8 |
5 x 10.0 |
re/10 |
23 |
600 |
1000 |
16 |
7 x 1.5 |
re/1.5 |
15 |
124 |
320 |
16 |
7 x 1.5 |
re/2.5 |
16 |
133 |
350 |
14 |
7 x 2.5 |
re/2.5 |
17.5 |
200 |
450 |
12 |
7 x 4.0 |
re/4 |
21 |
315 |
670 |
10 |
7 x 6.0 |
re/6 |
24 |
470 |
790 |
16 |
8 x 1.5 |
re/1.5 |
17 |
138 |
380 |
16 |
8 x 1.5 |
re/2.5 |
17 |
147 |
400 |
14 |
8 x 2.5 |
re/2.5 |
18 |
224 |
510 |
16 |
10 x 1.5 |
re/2.5 |
19 |
176 |
440 |
14 |
10 x 2.5 |
re/4 |
20.5 |
286 |
600 |
16 |
12 x 1.5 |
re/2.5 |
20 |
205 |
500 |
14 |
12 x 2.5 |
re/4 |
21 |
334 |
660 |
16 |
14 x 1.5 |
re/2.5 |
20.5 |
234 |
540 |
14 |
14 x 2.5 |
re/4 |
22 |
382 |
760 |
14 |
14 x 2.5 |
re/6 |
22.5 |
403 |
800 |
16 |
16 x 1.5 |
re/4 |
22 |
276 |
600 |
14 |
16 x 2.5 |
re/6 |
23 |
451 |
910 |
16 |
19 x 1.5 |
re/4 |
23 |
320 |
690 |
14 |
19 x 2.5 |
re/6 |
23.5 |
523 |
950 |
16 |
21 x 1.5 |
re/6 |
24 |
369 |
810 |
14 |
21 x 2.5 |
re/6 |
26 |
571 |
1100 |
16 |
24 x 1.5 |
re/6 |
26 |
413 |
860 |
14 |
24 x 2.5 |
re/10 |
28 |
696 |
1300 |
16 |
30 x 1.5 |
re/6 |
27 |
499 |
1230 |
14 |
30 x 2.5 |
re/10 |
30 |
840 |
1610 |
16 |
40 x 1.5 |
re/10 |
30 |
696 |
1590 |
14 |
40 x 2.5 |
re/10 |
35 |
1080 |
2100 |
16 |
52 x 1.5 |
re/10 |
32 |
869 |
1820 |
14 |
52 x 2.5 |
re/10 |
38 |
1368 |
2500 |
16 |
61 x 1.5 |
re/10 |
33 |
998 |
2000 |
14 |
61 x 2.5 |
re/10 |
40 |
1584 |
2850 |
