应用及描述
NAYY-J/NAYY-O电缆用于发电工业和开关装置,二级网络及其他。这些电缆很适用于地下应用,室内安装和露天安装,在有机械保护的情况下,也可敷设于地下和水中。
标准及认证
VDE 0276- 603, IEC 60502

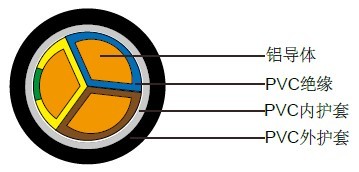

电缆结构
- 铝导体
- VDE 0295 cl.1/cl.2 (圆形和扇形), BS 6360/IEC 60228 cl.1/cl.2
- PVC绝缘DIV4类,遵循VDE0207
- 色彩编码遵循DIN VDE 0293
- PVC内护套
- PVC外护套,DMV5类,遵循VDE 0207
技术特性
- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 最小弯曲半径: 12 x Ø
- 应用时的工作温度: -5º C ~ +50º C
- 固定安装温度: - 30º C ~ +70º C
- 短路时可达到的温度: +160º C
- 阻燃遵循DIN VDE 0472-804 B级/IEC 60332-1
电缆参数
线规 |
芯数 x 导体 |
导体类型 |
标称外径 |
铝的重量 |
标称电缆重量 |
NAYY-O | |||||
4 |
1 x 25.0 |
re |
12.2 |
70 |
190 |
2 |
1 x 35.0 |
re |
13.1 |
97 |
229 |
1 |
1 x 50.0 |
re |
14.5 |
131 |
288 |
1 |
1 x 50.0 |
rm |
15.4 |
135 |
303 |
2/0 |
1 x 70.0 |
rm |
17.1 |
195 |
385 |
3/0 |
1 x 95.0 |
rm |
19.3 |
270 |
499 |
4/0 |
1 x 120.0 |
rm |
20.8 |
341 |
589 |
300mcm |
1 x 150.0 |
rm |
22.6 |
419 |
705 |
350mcm |
1 x 185.0 |
rm |
24.9 |
526 |
862 |
500mcm |
1 x 240.0 |
rm |
27.7 |
690 |
1083 |
750mcm |
1 x 300.0 |
rm |
30.6 |
863 |
1325 |
- |
1 x 400.0 |
rm |
34.0 |
1109 |
1657 |
- |
1 x 500.0 |
rm |
38.0 |
1461 |
2172 |
4 |
2 x 25.0 |
re |
22.4 |
140 |
685 |
2 |
2x 35.0 |
re |
24.3 |
194 |
826 |
2 |
2 x 35.0 |
rm |
25.4 |
199 |
880 |
1 |
2 x 50.0 |
re |
27.3 |
261 |
1049 |
1 |
2 x 50.0 |
rm |
29.1 |
269 |
1155 |
2/0 |
2 x 70.0 |
rm |
33.1 |
390 |
1447 |
3/0 |
2 x 95.0 |
rm |
37.9 |
539 |
1905 |
NAYY-J |
|||||
4 |
3 x 25.0 |
re |
23.7 |
210 |
768 |
2 |
3 x 35.0 |
re |
25.8 |
291 |
932 |
1 |
3 x 50.0 |
sm |
30.9 |
404 |
1294 |
1 |
3 x 50.0 |
sm |
27.8 |
404 |
994 |
2/0 |
3 x 70.0 |
sm |
31.2 |
584 |
1250 |
3/0 |
3 x 95.0 |
sm |
35.8 |
809 |
1675 |
4/0 |
3 x 120.0 |
sm |
38.0 |
1023 |
1964 |
300mcm |
3 x 150.0 |
sm |
41.8 |
1257 |
2365 |
350mcm |
3 x 185.0 |
sm |
45.7 |
1579 |
2913 |
500mcm |
3 x 240.0 |
sm |
51.1 |
2071 |
3693 |
1 |
3 x 50.0+25 |
re+re |
30.5 |
462 |
1310 |
1 |
3 x 50.0+25 |
sm+rm |
31.2 |
474 |
1158 |
2/0 |
3 x 70.0+35 |
sm+rm |
36.0 |
684 |
1537 |
3/0 |
3 x 95.0+50 |
sm+rm |
40.2 |
944 |
1971 |
4/0 |
3x120.0+70 |
sm+rm |
43.2 |
1218 |
2346 |
300mcm |
3 x 150.0+70 |
sm+rm |
48.0 |
1452 |
2839 |
350mcm |
3 x 185.0+95 |
sm+rm |
52.3 |
1848 |
3470 |
500mcm |
3x240.0+120 |
sm+rm |
58.7 |
2412 |
4399 |
750mcm |
3x300.0+150 |
sm+rm |
64.3 |
3008 |
5321 |
4 |
4 x 25.0 |
re |
25.8 |
281 |
912 |
2 |
4 x 35.0 |
re |
28.2 |
388 |
1111 |
1 |
4 x 50.0 |
se |
31.2 |
539 |
1265 |
2/0 |
4 x 70.0 |
se |
36.0 |
779 |
1658 |
3/0 |
4 x 95.0 |
se |
40.2 |
1079 |
2139 |
4/0 |
4 x120.0 |
se |
43.2 |
1364 |
2524 |
300mcm |
4 x 150.0 |
se |
48.0 |
1676 |
3123 |
350mcm |
4 x 185.0 |
se |
53.7 |
2105 |
4002 |
500mcm |
4 x 240.0 |
se |
58.7 |
2762 |
4848 |
750mcm |
4 x 300.0 |
se |
64.3 |
3452 |
5882 |
4 |
5 x 25.0 |
re |
28.1 |
351 |
1072 |
2 |
5 x 35.0 |
re |
30.9 |
485 |
1326 |
1 |
5 x 50.0 |
re |
35.7 |
653 |
1771 |
4 |
5 x 25.0 |
rm |
30.4 |
360 |
1183 |
2 |
5 x 35.0 |
rm |
33.0 |
497 |
1456 |
1 |
5 x 50.0 |
rm |
38.1 |
673 |
1919 |
2/0 |
5 x 70.0 |
rm |
43.3 |
974 |
2452 |
3/0 |
5 x 95.0 |
rm |
49.8 |
1349 |
3257 |
