应用及描述
N2XRY可安装于室内，户外和地下，管道中或用于有机械保护或在安装和操作过程中的需要较高拉力的开阔环境中。由于其导体可承受较高的温度，可用于较高的温度环境中。
标准及认证
IEC 60502-1, VDE 0276-604, BS5467

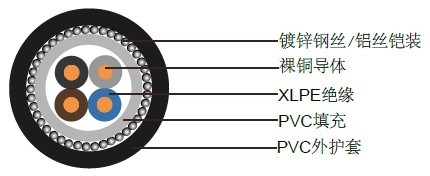

电缆结构
- 实心或多股裸铜导体
- 遵循DIN VDE 0295 cl.1/cl.2, BS 6360 cl.1/cl.2，IEC 60228 cl.1/cl.2
- 交联聚乙烯2XI1类，遵循VDE 0276-604
- 色彩编码遵循DIN VDE 0293(HD 308)
- PVC填充
- 镀锌钢丝/铝丝铠装
- PVC外护套DMV5类，遵循HD 603.1
技术特性
- 工作电压: 600/1000 V
- 测试电压: 3500 V
- 最小弯曲半径: 15 x Ø
- 应用时的工作温度: -5º C ～ +70º C
- 固定安装温度: - 30º C ～ +70º C
- 短路时可达到的温度: +250º C
- 阻燃: IEC 60332.1
- 绝缘电阻: >20 MΩ x km
电缆参数
线规 |
芯数 x 导体 |
导体类型 |
绝缘厚度 |
护套厚度 |
标称外径 |
电缆重量 |
4 |
1x25 |
rm |
0.9 |
1.8 |
16.6 |
503 |
2 |
1x35 |
rm |
0.9 |
1.8 |
17.7 |
612 |
1 |
1x50 |
rm |
1 |
1.8 |
19.5 |
783 |
2/0 |
1x70 |
rm |
1.1 |
1.8 |
21.5 |
1014 |
3/0 |
1x95 |
rm |
1.1 |
1.8 |
23.5 |
1280 |
4/0 |
1x120 |
rm |
1.2 |
1.8 |
26.0 |
1575 |
300mcm |
1x150 |
rm |
1.4 |
1.8 |
27.5 |
1872 |
350mcm |
1x185 |
rm |
1.6 |
1.8 |
30.0 |
2294 |
500mcm |
1x240 |
rm |
1.7 |
1.9 |
33.0 |
2923 |
750mcm |
1x300 |
rm |
1.8 |
2.1 |
36.0 |
3509 |
- |
1x400 |
rm |
2 |
2 |
40.5 |
4534 |
- |
1x500 |
rm |
2.2 |
2.3 |
45.0 |
5691 |
- |
1x630 |
rm |
2.4 |
2.5 |
49.5 |
7267 |
- |
1x800 |
rm |
0.7 |
1.8 |
56.5 |
9271 |
16 |
2x1.5 |
re/rm |
0.7 |
1.8 |
13.6 |
325 |
14 |
2x2.5 |
re/rm |
0.7 |
1.8 |
14.5 |
379 |
12 |
2x4 |
re/rm |
0.7 |
1.8 |
15.7 |
448 |
10 |
2x6 |
re/rm |
0.7 |
1.8 |
16.8 |
530 |
8 |
2x10 |
rm |
0.7 |
1.8 |
19.4 |
783 |
6 |
2x16 |
rm |
0.7 |
1.8 |
22.0 |
982 |
4 |
2x25 |
rm |
0.9 |
1.8 |
25.5 |
1447 |
2 |
2x35 |
rm |
0.9 |
1.8 |
28.0 |
1765 |
1 |
2x50 |
rm |
1 |
1.9 |
30.5 |
2106 |
2/0 |
2x70 |
rm |
1.1 |
2 |
35.0 |
2765 |
3/0 |
2x95 |
rm |
1.1 |
2..2 |
39.5 |
3746 |
4/0 |
2x120 |
rm |
1.2 |
2.3 |
43.5 |
4465 |
300mcm |
2x150 |
rm |
1.4 |
2.5 |
47.5 |
5303 |
350mcm |
2x185 |
rm |
1.6 |
2.6 |
54.0 |
6890 |
500mcm |
2x240 |
rm |
1.7 |
2.8 |
59.5 |
8463 |
750mcm |
2x300 |
rm |
1.8 |
3.1 |
65.0 |
10151 |
16 |
3x1.5 |
re/rm |
0.7 |
1.8 |
14.1 |
351 |
14 |
3x2.5 |
re/rm |
0.7 |
1.8 |
15.1 |
415 |
12 |
3x4 |
re/rm |
0.7 |
1.8 |
16.3 |
503 |
10 |
3x6 |
re/rm |
0.7 |
1.8 |
17.5 |
603 |
8 |
3x10 |
rm |
0.7 |
1.8 |
20.5 |
903 |
6 |
3x16 |
rm |
0.7 |
1.8 |
23.0 |
1161 |
4 |
3x25 |
rm |
0.9 |
1.8 |
27.0 |
1709 |
2 |
3x35 |
rm |
0.9 |
1.8 |
29.5 |
2127 |
1 |
3x50 |
sm |
1 |
1.9 |
31.5 |
2424 |
2/0 |
3x70 |
sm |
1.1 |
1.9 |
36.5 |
3438 |
3/0 |
3x95 |
sm |
1.1 |
2 |
40.0 |
4343 |
4/0 |
3x120 |
sm |
1.2 |
2.2 |
43.5 |
5172 |
300mcm |
3x150 |
sm |
1.4 |
2.3 |
49.5 |
6675 |
350mcm |
3x185 |
sm |
1.6 |
2.5 |
54.0 |
7977 |
500mcm |
3x240 |
sm |
1.7 |
2.6 |
60.0 |
9995 |
750mcm |
3x300 |
sm |
1.8 |
2.8 |
65.0 |
11990 |
16 |
4x1.5 |
re/rm |
0.7 |
1.8 |
14.9 |
395 |
14 |
4x2.5 |
re/rm |
0.7 |
1.8 |
16.0 |
470 |
12 |
4x4 |
re/rm |
0.7 |
1.8 |
17.4 |
575 |
10 |
4x6 |
re/rm |
0.7 |
1.8 |
19.5 |
798 |
8 |
4x10 |
rm |
0.7 |
1.8 |
22.0 |
1058 |
6 |
4x16 |
rm |
0.7 |
1.8 |
25.5 |
1518 |
4 |
4x25 |
rm |
0.9 |
1.8 |
29.0 |
2055 |
2 |
4x35 |
rm |
0.9 |
1.9 |
32.0 |
2585 |
1 |
4x50 |
sm |
1 |
2 |
35.5 |
3040 |
2/0 |
4x70 |
sm |
1.1 |
2.1 |
41.0 |
4305 |
3/0 |
4x95 |
sm |
1.1 |
2.2 |
45.0 |
5476 |
4/0 |
4x120 |
sm |
1.2 |
2.4 |
51.5 |
7064 |
300mcm |
4x150 |
sm |
1.4 |
2.5 |
57.5 |
8536 |
350mcm |
4x185 |
sm |
1.6 |
2.7 |
61.5 |
10189 |
500mcm |
4x240 |
sm |
1.7 |
2.8 |
68.0 |
12772 |
750mcm |
4x300 |
sm |
1.8 |
3 |
73.5 |
15380 |
16 |
5x1.5 |
re/rm |
0.7 |
1.8 |
15.8 |
441 |
14 |
5x2.5 |
re/rm |
0.7 |
1.8 |
17.0 |
535 |
12 |
5x4 |
re/rm |
0.7 |
1.8 |
19.3 |
768 |
10 |
5x6 |
re/rm |
0.7 |
1.8 |
21.0 |
921 |
8 |
5x10 |
rm |
0.7 |
1.8 |
23.5 |
1235 |
6 |
5x16 |
rm |
0.7 |
1.8 |
27.0 |
1765 |
4 |
5x25 |
rm |
0.9 |
1.8 |
31.5 |
2423 |
2 |
5x35 |
rm |
0.9 |
1.9 |
34.5 |
3057 |
1 |
5x50 |
rm |
1.1 |
2.2 |
40.0 |
4099 |
