H07RN-F
应用及描述
这些电缆高度柔软,可以抵御恶劣的天气,耐油脂,抗机械打击和温度压力。应用范围包括处理设备,移动电源,工地,舞台和视听设备,港口区和大坝。也可固定于安装石灰,临时建筑和住宅军营,排水和污水处理,寒冷的环境和恶劣的工业环境中。在单相或三相系统中,最大工作电压为Uo/U 476/825V,在直流系统中,最大工作电压为Uo/U 619/1238 V,如果在一个固定的或受保护的安装环境中Uo / U
为600/1000 V,这些电缆耐火,耐酸和耐油。
标准及认证
CEI 20-19/4 / 20-35 (EN60332-1), IEC 60245-4,
CE低压73/23/EEC & 93/68/EEC指令., ROHS认证

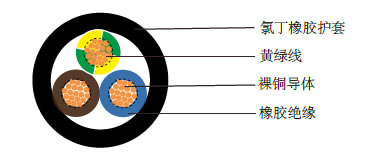

电缆结构
- 多股柔软裸铜导体
- 遵循VDE-0295 Cl 5, IEC 60228 Cl-5
- 橡胶绝缘EI4遵循VDE-0282第1部分
- 色彩编码遵循VDE-0293-308和HD 186
- 黄绿接地线(三芯及三芯以上)
- 氯丁橡胶护套 EM2
技术特性
- 工作电压: 450/750 V
- 测试电压: 2500 V
- 动态弯曲半径: 6 x Ø
- 固定安装弯曲半径: 4.0 x Ø
- 应用时的工作温度: -25º C to +60º C
- 固定安装温度: -40º C to +60º C
- 短路时可达到的温度: +200 º C
- 阻燃: IEC 60332.1
- 绝缘电阻: 20 MΩ x km
电缆参数
线规 |
芯数 x 导体截面积 |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称铜的 kg/Km |
标称电缆 kg/Km |
17(32/32) |
2 x 1 |
0.8 |
1.3 |
7.7-10 |
19 |
89 |
17(32/32) |
3 x 1 |
0.8 |
1.4 |
8.3-10.7 |
29 |
111 |
17(32/32) |
4 x 1 |
0.8 |
1.5 |
9.2-11.9 |
38 |
146 |
16(30/30) |
1 x 1.5 |
0.8 |
1.4 |
5.7-7.1 |
14.4 |
59 |
16(30/30) |
2 x 1.5 |
0.8 |
1.5 |
8.5-11.0 |
29 |
135 |
16(30/30) |
3 x 1.5 |
0.8 |
1.6 |
9.2-11.9 |
43 |
165 |
16(30/30) |
4 x 1.5 |
0.8 |
1.7 |
10.2-13.1 |
58 |
200 |
16(30/30) |
5 x 1.5 |
0.8 |
1.8 |
11.2-14.4 |
72 |
240 |
16(30/30) |
7 x 1.5 |
0.8 |
2.6 |
14.5-17.5 |
101 |
385 |
16(30/30) |
12 x 1.5 |
0.8 |
2.9 |
17.6-22.4 |
173 |
516 |
16(30/30) |
19 x 1.5 |
0.8 |
3.2 |
20.7-26.3 |
274 |
800 |
16(30/30) |
24 x 1.5 |
0.8 |
3.5 |
24.3-30.7 |
346 |
882 |
14(50/30) |
1 x 2.5 |
0.9 |
1.4 |
6.3-7.9 |
24 |
72 |
14(50/30) |
2 x 2.5 |
0.9 |
1.7 |
10.2-13.1 |
48 |
195 |
14(50/30) |
3 x 2.5 |
0.9 |
1.8 |
10.9-14.0 |
72 |
235 |
14(50/30) |
4 x 2.5 |
0.9 |
1.9 |
12.1-15.5 |
96 |
290 |
14(50/30) |
5 x 2.5 |
0.9 |
2.0 |
13.3-17.0 |
120 |
345 |
14(50/30) |
7 x 2.5 |
0.9 |
2.8 |
16.5-20.0 |
168 |
520 |
14(50/30) |
12 x 2.5 |
0.9 |
3.1 |
20.6-26.2 |
288 |
810 |
14(50/30) |
19 x 2.5 |
0.9 |
3.5 |
25.5-31.0 |
456 |
1200 |
14(50/30) |
24 x 2.5 |
0.9 |
3.9 |
28.8-36.4 |
576 |
1650 |
12(56/28) |
1 x 4 |
1.0 |
1.5 |
7.2-9.0 |
38 |
99 |
12(56/28) |
2 x 4 |
1.0 |
1.8 |
11.8-15.1 |
77 |
270 |
12(56/28) |
3 x 4 |
1.0 |
1.9 |
12.7-16.2 |
115 |
320 |
12(56/28) |
4 x 4 |
1.0 |
2 |
14.0-17.9 |
154 |
395 |
12(56/28) |
5 x 4 |
1.0 |
2.2 |
15.6-19.9 |
192 |
485 |
12(56/28) |
7 x 4 |
1.0 |
3.1 |
18.2-21.8 |
269 |
681 |
10(84/28) |
1 x 6 |
1.0 |
1.6 |
7.9-9.8 |
58 |
130 |
10(84/28) |
3 x 6 |
1.0 |
2.1 |
14.1-18.0 |
173 |
495 |
10(84/28) |
4 x 6 |
1.0 |
2.3 |
15.7-20.0 |
230 |
610 |
10(84/28) |
5 x 6 |
1.2 |
3.6 |
17.5-22.2 |
288 |
760 |
8(80/26) |
1 x 10 |
1.2 |
1.8 |
9.5-11.9 |
96 |
230 |
8(80/26) |
3 x 10 |
1.2 |
3.3 |
19.1-24.2 |
288 |
880 |
8(80/26) |
4 x 10 |
1.2 |
3.4 |
20.9-26.5 |
384 |
1060 |
8(80/26) |
5 x 10 |
1.2 |
3.6 |
22.9-29.1 |
480 |
1300 |
6(128/26) |
1 x 16 |
1.2 |
1.9 |
10.8-13.4 |
154 |
320 |
6(128/26) |
3 x 16 |
1.2 |
3.5 |
21.8-27.6 |
461 |
1090 |
6(128/26) |
4 x 16 |
1.2 |
3.6 |
23.8-30.1 |
614 |
1345 |
6(128/26) |
5 x 16 |
1.2 |
3.9 |
26.4-33.3 |
768 |
1680 |
4(200/26) |
1 x25 |
1.4 |
2.0 |
12.7-15.8 |
240 |
450 |
4(200/26) |
4 x 25 |
1.4 |
4.1 |
28.9-36.6 |
960 |
1995 |
4(200/26) |
5 x 25 |
1.4 |
4.4 |
32.0-40.4 |
1200 |
2470 |
2(280/26) |
1 x 35 |
1.4 |
2.2 |
14.3-17.9 |
336 |
605 |
2(280/26) |
3 x 35 |
1.4 |
4.1 |
29.3-37.1 |
1008 |
1900 |
2(280/26) |
4 x 35 |
1.4 |
4.4 |
32.5-41.1 |
1344 |
2645 |
2(280/26) |
5 x 35 |
1.4 |
4.7 |
37.0-45.0 |
1680 |
2810 |
1(400/26) |
1 x 50 |
1.6 |
2.4 |
16.5-20.6 |
480 |
825 |
1(400/26) |
4 x 50 |
1.6 |
4.8 |
37.7-47.5 |
1920 |
3635 |
1(400/26) |
5 x 50 |
1.6 |
5.1 |
40.0-50.8 |
2400 |
4050 |
2/0(356/24) |
1 x 70 |
1.6 |
2.6 |
18.6-23.3 |
672 |
1090 |
2/0(356/24) |
4 x 70 |
1.6 |
5.2 |
42.7-54.0 |
2688 |
4830 |
3/0(485/24) |
1 x 95 |
1.8 |
2.8 |
20.8-26.0 |
912 |
1405 |
3/0(485/24) |
4 x 95 |
1.8 |
5.9 |
48.4-61.0 |
3648 |
6320 |
4/0(614/24) |
1x 120 |
1.8 |
3 |
22.8-28.6 |
1152 |
1746 |
4/0(614/24) |
4 x 120 |
1.8 |
6 |
53.0-66.0 |
4608 |
6830 |
300MCM (765/24) |
1 x 150 |
2 |
3.2 |
25.2-31.4 |
1440 |
1887 |
300MCM (765/24) |
4 x 150 |
58.0-73.0 |
5760 |
8320 |
||
350MCM (944/24) |
1 x 185 |
2.2 |
3.4 |
27.6-34.4 |
1776 |
2274 |
350MCM (944/24) |
4 x 185 |
64.0-80.0 |
7104 |
9800 |
||
500MCM (1221/24) |
1x 240 |
2.4 |
3.5 |
30.6-38.3 |
23.4 |
2956 |
500MCM (1221/24) |
4x 240 |
- |
- |
72.0-90.0 |
9216 |
12100 |
- |
1 x 300 |
2.6 |
3.6 |
33.5-41.9 |
2880 |
3479 |
- |
1 x 400 |
2.8 |
3.8 |
- |
- |
4500 |
- |
1x 500 |
3 |
4 |
- |
- |
5800 |
