FTG10(O)M1
应用及描述
这些电缆适用于为那些即使发生火灾也必须正常运作的安全系统。特别适用于烟雾探测系统、消防灭火系统、电力供应自动扶梯和自动门、电力供应应急照明、报警系统、通风设备等，可固定安装在室内和室外、铺设在墙壁和货架上。
标准及认证
EN 50200, CEI 20-11, CEI 20-22 III, CEI 20-29, CEI 20-35, CEI 20-36, CEI 20-37, CEI 20-45,UNEL 00722
电缆结构
- 柔软裸铜导体 IEC60228 cl.5
- 热塑性橡胶G10绝缘

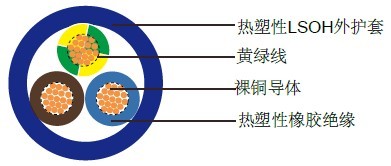

- 玻璃或云母带
- 低烟无卤热塑性复合物M1外护套
技术特性
- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 最小弯曲半径: 14 x Ø
- 应用时的工作温度: -5º C to +90º C
- 静态时可承受的温度: -25º C to +90º C
- 短路时可达到的最高温度: +250º C
- 阻燃: CEI 20-22 II - IEC 60332-3-C
- 绝缘电阻: 10 MΩ x km
M1.jpg)
M12.jpg)
电缆参数
| 线规 | 芯数 x 导体 截面积 # x mm² |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称电缆 重量 kg/km |
| 单芯 | |||||
16(30/30) |
1 x 1.5 |
1.0 |
1.4 |
7.6 |
80 |
14(50/30) |
1 x 2.5 |
1.0 |
1.4 |
8.0 |
90 |
12(56/28) |
1 x 4.0 |
1.0 |
1.4 |
8.6 |
110 |
10(84/28) |
1 x 6.0 |
1.0 |
1.4 |
9.1 |
130 |
8(80/26) |
1 x 10.0 |
1.0 |
1.4 |
10.5 |
180 |
6(128/26) |
1 x 16.0 |
1.0 |
1.4 |
11.7 |
250 |
4(200/26) |
1 x 25.0 |
1.2 |
1.4 |
13.0 |
350 |
2(280/26) |
1 x 35.0 |
1.2 |
1.6 |
14.2 |
460 |
1(400/26) |
1 x 50.0 |
1.4 |
1.6 |
16.2 |
620 |
2/0(356/24) |
1 x 70.0 |
1.4 |
1.8 |
17.9 |
820 |
3/0(485/24) |
1 x 95.0 |
1.6 |
2.0 |
19.6 |
1100 |
4/0(614/24) |
1 x 120.0 |
1.6 |
2.0 |
21.4 |
1350 |
300MCM |
1 x 150.0 |
1.8 |
2.0 |
23.3 |
1630 |
350MCM |
1 x 185.0 |
2.0 |
2.0 |
26.0 |
1980 |
500MCM |
1 x 240.0 |
2.4 |
2.0 |
29.4 |
2550 |
2芯 |
|||||
16(30/30) |
2 x 1.5 |
1.0 |
1.8 |
13.4 |
230 |
14(50/30) |
2 x 2.5 |
1.0 |
1.8 |
14.4 |
270 |
12(56/28) |
2 x 4.0 |
1.0 |
1.8 |
15.5 |
330 |
10(84/28) |
2 x 6.0 |
1.0 |
1.8 |
16.6 |
400 |
8(80/26) |
2 x 10.0 |
1.0 |
1.8 |
19.0 |
560 |
6(128/26) |
2 x 16.0 |
1.0 |
1.8 |
21.2 |
750 |
4(200/26) |
2 x 25.0 |
1.2 |
2.0 |
23.9 |
1020 |
2(280/26) |
2 x 35.0 |
1.2 |
2.0 |
26.2 |
1300 |
1(400/26) |
2 x 50.0 |
1.4 |
2.0 |
30.1 |
1750 |
3芯(包括接地线) |
|||||
16(30/30) |
3 x 1.5 |
1.0 |
1.8 |
14.2 |
260 |
14(50/30) |
3 x 2.5 |
1.0 |
1.8 |
15.1 |
320 |
12(56/28) |
3 x 4.0 |
1.0 |
1.8 |
16.4 |
390 |
10(84/28) |
3 x 6.0 |
1.0 |
1.8 |
17.5 |
470 |
8(80/26) |
3 x 10.0 |
1.0 |
1.8 |
20.0 |
670 |
6(128/26) |
3 x 16.0 |
1.0 |
1.8 |
22.6 |
910 |
4(200/26) |
3 x 25.0 |
1.2 |
2.0 |
25.4 |
1250 |
2(280/26) |
3 x 35.0 |
1.2 |
2.0 |
27.8 |
1640 |
1(400/26) |
3 x 50.0 |
1.4 |
2.0 |
32.2 |
2210 |
| 4芯(包括接地线) | |||||
16(30/30) |
4 x 1.5 |
1.0 |
1.8 |
15.2 |
300 |
14(50/30) |
4 x 2.5 |
1.0 |
1.8 |
16.4 |
370 |
12(56/28) |
4 x 4.0 |
1.0 |
1.8 |
17.9 |
460 |
10(84/28) |
4 x 6.0 |
1.0 |
1.8 |
18.7 |
560 |
8(80/26) |
4 x 10.0 |
1.0 |
2.0 |
21.9 |
810 |
6(128/26) |
4 x 16.0 |
1.0 |
2.0 |
24.7 |
1100 |
4(200/26) |
4 x 25.0 |
1.2 |
2.0 |
27.9 |
1530 |
2(280/26) |
3 x 35.0+ 1 x 25 |
1.2 |
2.0 |
30.0 |
1900 |
1(400/26) |
3 x 50.0+ 1 x 25 |
1.4 |
2.0 |
33.7 |
2440 |
5芯(包括接地线) |
|||||
16(30/30) |
5 x 1.5 |
1.0 |
|
16.5 |
350 |
14(50/30) |
5 x 2.5 |
1.0 |
1.8 |
17.9 |
430 |
12(56/28) |
5 x 4.0 |
1.0 |
1.8 |
19.3 |
540 |
10(84/28) |
5 x 6.0 |
1.0 |
1.8 |
20.0 |
670 |
8(80/26) |
5 x 10.0 |
1.0 |
2.0 |
24.0 |
990 |
6(128/26) |
5 x 16.0 |
1.0 |
2.0 |
27.1 |
1350 |
4(200/26) |
5 x 25.0 |
1.2 |
2.0 |
30.7 |
1870 |
2(280/26) |
5 x 35.0 |
1.2 |
2.2 |
34.0 |
2480 |
1(400/26) |
5 x 50.0 |
1.4 |
2.2 |
39.7 |
3410 |
16(30/30) |
7 x 1.5 |
1.0 |
1.8 |
17.9 |
420 |
16(30/30) |
10 x 1.5 |
1.0 |
2.0 |
21.8 |
560 |
16(30/30) |
12 x 1.5 |
1.0 |
2.0 |
22.6 |
630 |
16(30/30) |
16 x 1.5 |
1.0 |
2.0 |
25.4 |
790 |
16(30/30) |
19 x 1.5 |
1.0 |
2.0 |
26.2 |
890 |
14(50/30) |
24 x 2.5 |
1.0 |
2.0 |
30.2 |
1170 |
14(50/30) |
7 x 2.5 |
1.0 |
1.8 |
19.0 |
520 |
14(50/30) |
10 x 2.5 |
1.0 |
2.0 |
23.7 |
700 |
14(50/30) |
12 x 2.5 |
1.0 |
2.0 |
24.4 |
800 |
14(50/30) |
16 x 2.5 |
1.0 |
2.0 |
27.1 |
1000 |
14(50/30) |
19 x 2.5 |
1.0 |
2.0 |
28.5 |
1130 |
14(50/30) |
24 x 2.5 |
1.0 |
2.2 |
33.1 |
1510 |
