FG7OR
应用及描述
这些电缆适合于电力传输、厂房、住宅建筑和手工业。适宜砌体及金属结构安装、过道、管道及类似系统。也适用于固定安装在室内和室外。地下铺设亦可用。
标准及认证
CEI 20-13, CEI 20-22/2, CEI 20-35 (EN60332-1), CEI 20-37 pt.2 (EN50267), CEI 20-52,低压直流73/23/EEC

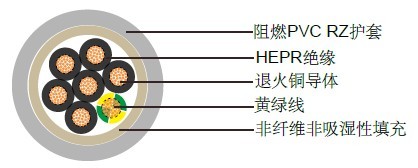

电缆结构
- 柔软退火铜导体 cl.5
- HEPR, G7绝缘，遵循CEI 20-11 - CEI 20-3
- 无纤维，无吸湿性填料
- 灰色聚氯乙烯Rz外护套
技术特性
- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 最小弯曲半径: 4 x Ø
- 应用时的工作温度: -0º C to +90º C
- 静态时可承受的温度: -25º C to +90º C
- 短路时可达到的最高温度: +250º C
- 阻燃: CEI 20-22 II - IEC 60332-34, CEI 20-35 - IEC 60332-1
- 绝缘电阻: 10 MΩ x km
电缆参数
线规 |
芯数 x 导体 截面积 # x mm² |
标称绝缘厚度 mm |
标称胡桃厚度 mm |
标称外径 mm |
标称电缆重量 kg/km |
| 电力 | |||||
16(30/30) |
1 x 1.5 |
0.7 |
1.4 |
6.3 |
49 |
14(50/30) |
1 x 2.5 |
0.7 |
1.4 |
6.9 |
60 |
12(56/28) |
1 x 4 |
0.7 |
1.4 |
7.6 |
80 |
10(84/28) |
1 x 6 |
0.7 |
1.4 |
8.2 |
102 |
8(80/26) |
1 x 10 |
0.7 |
1.4 |
9.0 |
147 |
6(128/26) |
1 x 16 |
0.7 |
1.4 |
10.1 |
206 |
4(200/26) |
1 x 25 |
0.9 |
1.4 |
11.2 |
290 |
2(280/26) |
1 x 35 |
0.9 |
1.4 |
12.2 |
390 |
1(400/26) |
1 x 50 |
1 |
1.4 |
13.9 |
530 |
2/0(356/24) |
1 x 70 |
1.1 |
1.4 |
16.0 |
720 |
3/0(485/24) |
1 x 95 |
1.1 |
1.5 |
17.7 |
940 |
4/0(614/24) |
1 x 120 |
1.2 |
1.5 |
19.7 |
1200 |
250MCM |
1 x 150 |
1.4 |
1.6 |
21.8 |
1480 |
350MCM |
1 x 185 |
1.6 |
1.6 |
23.9 |
1800 |
450MCM |
1 x 240 |
1.7 |
1.7 |
26.4 |
2330 |
550MCM |
1 x 300 |
1.8 |
1.8 |
28.9 |
3050 |
750MCM |
1 x 400 |
2.0 |
1.9 |
35.0 |
4000 |
1000MCM |
1 x 500 |
2.2 |
2.1 |
39.5 |
5020 |
1250MCM |
1 x 630 |
2.4 |
2.2 |
44.0 |
6600 |
16(30/30) |
2 x 1.5 |
0.7 |
1.8 |
12 |
150 |
14(50/30) |
2 x 2.5 |
0.7 |
1.8 |
13 |
185 |
12(56/28) |
2 x 4 |
0.7 |
1.8 |
14.2 |
238 |
10(84/28) |
2 x 6 |
0.7 |
1.8 |
15.4 |
304 |
8(80/26) |
2 x 10 |
0.7 |
1.8 |
19.2 |
435 |
6(128/26) |
2 x 16 |
0.7 |
1.8 |
20.4 |
590 |
4(200/26) |
2 x 25 |
0.9 |
1.8 |
24.5 |
830 |
2(280/26) |
2 x 35 |
0.9 |
1.8 |
26.6 |
1100 |
1(400/26) |
2 x 50 |
1 |
1.8 |
30 |
1500 |
16(30/30) |
3 x 1.5 |
0.7 |
1.8 |
12.5 |
165 |
14(50/30) |
3 x 2.5 |
0.7 |
1.8 |
13.6 |
210 |
12(56/28) |
3 x 4 |
0.7 |
1.8 |
14.9 |
275 |
10(84/28) |
3 x 6 |
0.7 |
1.8 |
16.2 |
355 |
8(80/26) |
3 x 10 |
0.7 |
1.8 |
19.3 |
515 |
6(128/26) |
3 x 16 |
0.7 |
1.8 |
21.6 |
730 |
4(200/26) |
3 x 25 |
0.9 |
1.8 |
26 |
1040 |
2(280/26) |
3 x 35 |
0.9 |
1.8 |
28.3 |
1370 |
1(400/26) |
3 x 50 |
1 |
1.8 |
31.9 |
1875 |
2/0(356/24) |
3 x 70 |
1.1 |
1.9 |
37.4 |
2610 |
3/0(485/24) |
3 x 95 |
1.1 |
2 |
42.2 |
3340 |
4/0(614/24) |
3 x 120 |
1.2 |
2.1 |
46.7 |
4320 |
300MCM |
3 x 150 |
1.4 |
2.3 |
51.1 |
5300 |
- |
3 x 35 + 25 |
0.9 |
1.8 |
30.5 |
1600 |
- |
3 x 50 + 25 |
1 |
1.8 |
33.7 |
2210 |
- |
3 x 70+ 35 |
1.1 |
1.9 |
38.8 |
3050 |
- |
3 x 95 + 50 |
1.1 |
2.1 |
43.9 |
3800 |
- |
3 x 120 + 70 |
1.2 |
2.2 |
49.3 |
5000 |
- |
3 x 150 + 95 |
1.4 |
2.4 |
54.4 |
6350 |
16(30/30) |
4 x 1.5 |
0.7 |
1.8 |
13.4 |
190 |
14(50/30) |
4 x 2.5 |
0.7 |
1.8 |
14.5 |
245 |
12(56/28) |
4 x 4 |
0.7 |
1.8 |
16.1 |
325 |
10(84/28) |
4 x 6 |
0.7 |
1.8 |
17.5 |
425 |
8(80/26) |
4 x 10 |
0.7 |
1.8 |
21 |
625 |
6(128/26) |
4 x 16 |
0.7 |
1.8 |
23.5 |
890 |
4(200/26) |
4 x 25 |
0.9 |
1.8 |
28.6 |
1300 |
16(30/30) |
5 x 1.5 |
0.7 |
1.8 |
14.4 |
217 |
14(50/30) |
5 x 2.5 |
0.7 |
1.8 |
15.6 |
283 |
12(56/28) |
5 x 4 |
0.7 |
1.8 |
17.3 |
378 |
10(84/28) |
5 x 6 |
0.7 |
1.8 |
18.8 |
500 |
8(80/26) |
5 x 10 |
0.7 |
1.8 |
22.8 |
740 |
6(128/26) |
5 x 16 |
0.7 |
1.8 |
25.7 |
1070 |
4(200/26) |
5 x 25 |
0.9 |
1.8 |
31.2 |
1550 |
2(280/26) |
5 x 35 |
0.9 |
1.8 |
34.3 |
2050 |
1(400/26) |
5 x 50 |
1 |
2 |
39.1 |
2850 |
控制 |
|||||
16(30/30) |
5 x 1.5 |
0.7 |
1.8 |
17.5 |
350 |
16(30/30) |
7 x 1.5 |
0.7 |
1.8 |
18.5 |
400 |
16(30/30) |
10 x 1.5 |
0.7 |
1.8 |
21.5 |
550 |
16(30/30) |
12 x 1.5 |
0.7 |
1.8 |
22.5 |
600 |
16(30/30) |
16 x 1.5 |
0.7 |
1.8 |
24.0 |
720 |
16(30/30) |
19 x 1.5 |
0.7 |
1.8 |
25.0 |
830 |
16(30/30) |
24 x 1.5 |
0.7 |
1.8 |
28.5 |
1050 |
14(50/30) |
7 x2.5 |
0.7 |
1.8 |
19.5 |
500 |
14(50/30) |
10 x 2.5 |
0.7 |
1.8 |
23.5 |
750 |
14(50/30) |
12 x 2.5 |
0.7 |
1.8 |
24.5 |
800 |
14(50/30) |
16 x 2.5 |
0.7 |
1.8 |
26.5 |
1000 |
14(50/30) |
19 x 2.5 |
0.7 |
1.8 |
28.0 |
1150 |
14(50/30) |
24 x 2.5 |
0.7 |
1.8 |
31.5 |
1450 |
*镀锌钢丝铠装(FG7ORAR)也可根据客户需求提供
