FG7OH1M1/FG7OH2M1
应用及描述
这些电缆适用于高危火灾环境，可保证安全和防止系统设备遭腐蚀性气体损害，比如学校、医院，公共场所、宾馆、超市、管道、影院、剧院、舞厅、公共机构等）。适宜固定安装在室内和室外、墙壁和金属框架上。
标准及认证
CEI 20-11, CEI 20-13, CEI 20-22 III, CEI 20-37, CEI 20-38, IEC 60502-1, IEC60228,IEC60332.1, IEC60332.3-C, IEC60754.1

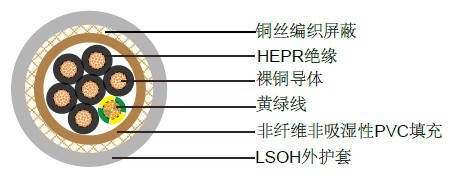

电缆结构
- 柔软裸铜导体 cl.5
- HEPR, G7绝缘，遵循CEI 20-11，CEI 20-3
- 非纤维非吸湿性填料
- 铜带屏蔽(FG7OH1M1)
- 铜丝编织屏蔽(FG7OH2M1)
- 灰色低烟无卤外护套
技术特性
- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 最小弯曲半径: 8 x Ø
- 应用时的工作温度: -0º C to +90º C
- 静态时可承受的温度: -25º C to +90º C
- 短路时可达到的最高温度: +250º C
- 阻燃: CEI 20-22 II - IEC 60332-34, CEI EN 60332-1
- 绝缘电阻: 10 MΩ x km
电缆参数
线规 |
芯数 x 导体 |
标称绝缘厚度 |
标称胡桃厚度 |
标称外径 |
标称电缆重 |
16(30/30) |
3 x 1.5 |
0.7 |
1.8 |
13.0 |
262 |
14(50/30) |
3 x 2.5 |
0.7 |
1.8 |
14.1 |
316 |
12(56/28) |
3 x 4 |
0.7 |
1.8 |
15.0 |
380 |
10(84/28) |
3 x 6 |
0.7 |
1.8 |
16.1 |
456 |
8(80/26) |
3 x 10 |
0.7 |
1.8 |
19.3 |
675 |
6(128/26) |
3 x 16 |
0.7 |
1.8 |
22.3 |
939 |
4(200/26) |
3 x 25 |
0.9 |
1.8 |
26.6 |
1346 |
2(280/26) |
3 x 35 |
0.9 |
1.8 |
29.2 |
1744 |
1(400/26) |
3 x 50 |
1 |
1.8 |
32.3 |
2262 |
2/0(356/24) |
3 x 70 |
1.1 |
1.9 |
38.5 |
3188 |
3/0(485/24) |
3 x 95 |
1.1 |
2 |
44.2 |
4309 |
4/0(614/24) |
3 x 120 |
1.2 |
2.1 |
51.6 |
5635 |
250MCM |
3 x 150 |
1.4 |
2.3 |
56.6 |
6921 |
350MCM |
3 x 185 |
1.6 |
2.4 |
64.2 |
8079 |
450MCM |
3 x 240 |
1.7 |
2.6 |
72.7 |
10639 |
- |
3 x 35 + 25 |
0.9 |
1.8 |
31.1 |
2038 |
- |
3 x 50 + 25 |
1 |
1.8 |
34.7 |
2606 |
- |
3 x 70+ 35 |
1.1 |
1.9 |
39.8 |
3540 |
- |
3 x 95 + 50 |
1.1 |
2.1 |
45.9 |
4818 |
- |
3 x 120 + 70 |
1.2 |
2.2 |
53.9 |
6358 |
- |
3 x 150 + 95 |
1.4 |
2.4 |
59.0 |
7852 |
- |
3 x 185 + 95 |
1.6 |
2.6 |
62.8 |
9066 |
- |
3 x 240 + 150 |
1.7 |
2.8 |
73.0 |
12078 |
16(30/30) |
4 x 1.5 |
0.7 |
1.8 |
13.8 |
298 |
14(50/30) |
4 x 2.5 |
0.7 |
1.8 |
14.9 |
357 |
12(56/28) |
4 x 4 |
0.7 |
1.8 |
16.1 |
438 |
10(84/28) |
4 x 6 |
0.7 |
1.8 |
17.3 |
535 |
8(80/26) |
4 x 10 |
0.7 |
1.8 |
20.8 |
802 |
6(128/26) |
4 x 16 |
0.7 |
1.8 |
24.6 |
1164 |
4(200/26) |
4 x 25 |
0.9 |
1.8 |
28.8 |
1664 |
16(30/30) |
5 x 1.5 |
0.7 |
1.8 |
14.9 |
351 |
14(50/30) |
5 x 2.5 |
0.7 |
1.8 |
16.2 |
424 |
12(56/28) |
5 x 4 |
0.7 |
1.8 |
17.5 |
527 |
10(84/28) |
5 x 6 |
0.7 |
1.8 |
18.9 |
635 |
8(80/26) |
5 x 10 |
0.7 |
1.8 |
23.7 |
1027 |
6(128/26) |
5 x 16 |
0.7 |
1.8 |
26.9 |
1415 |
4(200/26) |
5 x 25 |
0.9 |
1.8 |
31.6 |
2022 |
控制 |
|||||
16(30/30) |
7 x 1.5 |
0.7 |
1.8 |
15.7 |
399 |
16(30/30) |
10 x 1.5 |
0.7 |
1.8 |
17.8 |
503 |
16(30/30) |
12 x 1.5 |
0.7 |
1.8 |
19.2 |
574 |
16(30/30) |
16 x 1.5 |
0.7 |
1.8 |
21.0 |
690 |
16(30/30) |
19 x 1.5 |
0.7 |
1.8 |
22.6 |
813 |
16(30/30) |
24 x 1.5 |
0.7 |
1.8 |
24.6 |
927 |
14(50/30) |
7 x2.5 |
0.7 |
1.8 |
17.1 |
496 |
14(50/30) |
10 x 2.5 |
0.7 |
1.8 |
19.5 |
644 |
14(50/30) |
12 x 2.5 |
0.7 |
1.8 |
21.2 |
732 |
14(50/30) |
16 x 2.5 |
0.7 |
1.8 |
24.0 |
950 |
14(50/30) |
19 x 2.5 |
0.7 |
1.8 |
25.0 |
1056 |
14(50/30) |
24 x 2.5 |
0.7 |
1.8 |
38.3 |
1281 |
