应用及描述
此电缆主要用于电气设备和电站控制电路的监控，可户外安装，或安装于干燥或潮湿的电缆沟中。
标准及认证
IEC 60502-1标准,JIS C 3401标准

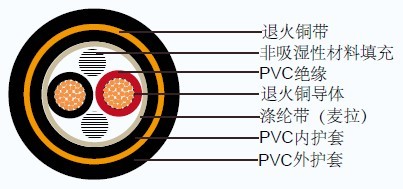

电缆结构
导体: 柔软多股退火铜导体, 0.5 mm2到6 mm2
绝缘: 聚氯乙烯(PVC)
颜色: 2-4芯-黑色, 白色, 红色，绿色
多于4芯: 黑色线芯加数字标注
填充: 非吸湿性材料(可选)
粘合带: 涤纶带（麦拉） (可选)
内护套: 聚氯乙烯(PVC), 黑色
屏蔽: 退火铜带, 0.1mm
外护套: 聚氯乙烯(PVC), 黑色 (可选阻燃聚氯乙烯FR-PVC)
技术特性
最大导体温度 70oC
回路电缆不超过 600 V
测试电压 2000V(JIS) / 3500 V(IEC)
电缆参数
IEC 60502-1标准电缆
芯数 |
导体 |
绝缘厚度 |
内护套厚 度 |
外护套厚 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
| 标称导体 截面积 |
股数/直径 | 直径 | ||||||||
mm² |
mm | mm |
mm |
mm | mm | mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.2 |
10.5 |
39.0 |
0.0130 |
130 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.2 |
11 |
26.0 |
0.0114 |
140 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.2 |
11.5 |
19.5 |
0.0104 |
150 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.3 |
12 |
13.3 |
0.0089 |
180 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.3 |
13.5 |
7.98 |
0.0081 |
230 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.3 |
15 |
4.95 |
0.0076 |
300 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.4 |
17 |
3.30 |
0.0061 |
400 |
|
| 3 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.2 |
11 |
39.0 |
0.0130 |
140 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.2 |
11.5 |
26.0 |
0.0114 |
160 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.2 |
12 |
19.5 |
0.0104 |
170 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.3 |
12.5 |
13.3 |
0.0089 |
200 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.3 |
14 |
7.98 |
0.0081 |
270 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.4 |
16 |
4.95 |
0.0076 |
360 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.4 |
18 |
3.30 |
0.0061 |
480 |
|
| 4 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.2 |
11.5 |
39.0 |
0.0130 |
160 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.3 |
12 |
26.0 |
0.0114 |
180 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.3 |
12.5 |
19.5 |
0.0104 |
200 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.3 |
13.5 |
13.3 |
0.0089 |
240 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.3 |
15 |
7.98 |
0.0081 |
320 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.4 |
17 |
4.95 |
0.0076 |
430 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.4 |
19.5 |
3.30 |
0.0061 |
580 |
|
| 5 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.3 |
12.5 |
39.0 |
0.0130 |
190 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.3 |
13 |
26.0 |
0.0114 |
210 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.3 |
13.5 |
19.5 |
0.0104 |
230 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.3 |
14 |
13.3 |
0.0089 |
280 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.4 |
16 |
7.98 |
0.0081 |
380 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.4 |
18.5 |
4.95 |
0.0076 |
520 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.5 |
21 |
3.30 |
0.0061 |
700 |
|
| 6 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.3 |
13 |
39.0 |
0.0130 |
200 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.3 |
13.5 |
26.0 |
0.0114 |
230 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.3 |
14 |
19.5 |
0.0104 |
250 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.3 |
15 |
13.3 |
0.0089 |
300 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.4 |
17.5 |
7.98 |
0.0081 |
410 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.5 |
20 |
4.95 |
0.0076 |
570 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.5 |
23 |
3.30 |
0.0061 |
760 |
|
| 7 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.3 |
13 |
39.0 |
0.0130 |
200 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.3 |
13.5 |
26.0 |
0.0114 |
230 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.3 |
14 |
19.5 |
0.0104 |
260 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.3 |
15 |
13.3 |
0.0089 |
310 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.4 |
17.5 |
7.98 |
0.0081 |
440 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.5 |
20 |
4.95 |
0.0076 |
610 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.5 |
23 |
3.30 |
0.0061 |
820 |
|
| 8 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.3 |
13.5 |
39.0 |
0.0130 |
220 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.3 |
14.5 |
26.0 |
0.0114 |
260 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.4 |
15 |
19.5 |
0.0104 |
300 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.4 |
16 |
13.3 |
0.0089 |
350 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.5 |
18.5 |
7.98 |
0.0081 |
490 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.5 |
21 |
4.95 |
0.0076 |
680 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.6 |
25 |
3.30 |
0.0061 |
930 |
|
| 9 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.3 |
14.5 |
39.0 |
0.0130 |
240 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
15.5 |
26.0 |
0.0114 |
290 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.4 |
16 |
19.5 |
0.0104 |
330 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.4 |
17 |
13.3 |
0.0089 |
390 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.5 |
20 |
7.98 |
0.0081 |
550 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.6 |
23 |
4.95 |
0.0076 |
770 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.7 |
26.5 |
3.30 |
0.0061 |
1050 |
|
| 10 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.3 |
15.5 |
39.0 |
0.0130 |
260 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
16.5 |
26.0 |
0.0114 |
310 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.4 |
17 |
19.5 |
0.0104 |
350 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.4 |
18 |
13.3 |
0.0089 |
420 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.5 |
21 |
7.98 |
0.0081 |
600 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.6 |
24.5 |
4.95 |
0.0076 |
840 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.7 |
29 |
3.30 |
0.0061 |
1150 |
|
| 11 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.3 |
15.5 |
39.0 |
0.0130 |
280 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
17 |
26.0 |
0.0114 |
340 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.4 |
17.5 |
19.5 |
0.0104 |
380 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.4 |
18.5 |
13.3 |
0.0089 |
460 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.5 |
21.5 |
7.98 |
0.0081 |
650 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.6 |
25 |
4.95 |
0.0076 |
920 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.7 |
29.5 |
3.30 |
0.0061 |
1260 |
|
| 12 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
16 |
39.0 |
0.0130 |
290 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
17 |
26.0 |
0.0114 |
340 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.4 |
17.5 |
19.5 |
0.0104 |
390 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.4 |
18.5 |
13.3 |
0.0089 |
470 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.5 |
21.5 |
7.98 |
0.0081 |
670 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.6 |
25 |
4.95 |
0.0076 |
960 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.7 |
29.5 |
3.30 |
0.0061 |
1310 |
|
| 13 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
16.5 |
39.0 |
0.0130 |
320 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
17.5 |
26.0 |
0.0114 |
370 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.4 |
18 |
19.5 |
0.0104 |
420 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.5 |
19.5 |
13.3 |
0.0089 |
520 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.6 |
23 |
7.98 |
0.0081 |
740 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.7 |
26.5 |
4.95 |
0.0076 |
1060 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.7 |
31 |
3.30 |
0.0061 |
1430 |
|
| 14 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
16.5 |
39.0 |
0.0130 |
320 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
17.5 |
26.0 |
0.0114 |
380 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.4 |
18 |
19.5 |
0.0104 |
430 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.5 |
19.5 |
13.3 |
0.0089 |
530 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.6 |
23 |
7.98 |
0.0081 |
760 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.7 |
26.5 |
4.95 |
0.0076 |
1090 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.7 |
31 |
3.30 |
0.0061 |
1480 |
|
| 15 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
17 |
39.0 |
0.0130 |
350 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
18 |
26.0 |
0.0114 |
410 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
19 |
19.5 |
0.0104 |
480 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.5 |
20.5 |
13.3 |
0.0089 |
580 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.6 |
24 |
7.98 |
0.0081 |
830 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.7 |
28 |
4.95 |
0.0076 |
1190 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.8 |
33 |
3.30 |
0.0061 |
1630 |
|
| 16 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
17 |
39.0 |
0.0130 |
350 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.4 |
18 |
26.0 |
0.0114 |
420 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
19 |
19.5 |
0.0104 |
480 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.5 |
20.5 |
13.3 |
0.0089 |
590 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.6 |
24 |
7.98 |
0.0081 |
850 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.7 |
28 |
4.95 |
0.0076 |
1220 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.8 |
33 |
3.30 |
0.0061 |
1680 |
|
| 17 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
18 |
39.0 |
0.0130 |
380 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
19 |
26.0 |
0.0114 |
460 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
20 |
19.5 |
0.0104 |
520 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.5 |
21.5 |
13.3 |
0.0089 |
640 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.6 |
25 |
7.98 |
0.0081 |
920 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.8 |
29.5 |
4.95 |
0.0076 |
1340 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.8 |
34.5 |
3.30 |
0.0061 |
1820 |
|
| 18 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
18 |
39.0 |
0.0130 |
380 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
19 |
26.0 |
0.0114 |
460 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
20 |
19.5 |
0.0104 |
530 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.5 |
21.5 |
13.3 |
0.0089 |
650 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.6 |
25 |
7.98 |
0.0081 |
940 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.8 |
29.5 |
4.95 |
0.0076 |
1370 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.8 |
34.5 |
3.30 |
0.0061 |
1870 |
|
| 19 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
18 |
39.0 |
0.0130 |
390 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
19 |
26.0 |
0.0114 |
470 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
20 |
19.5 |
0.0104 |
540 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.5 |
21.5 |
13.3 |
0.0089 |
660 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.6 |
25 |
7.98 |
0.0081 |
960 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.8 |
29.5 |
4.95 |
0.0076 |
1400 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.8 |
34.5 |
3.30 |
0.0061 |
1920 |
|
| 20 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
18.5 |
39.0 |
0.0130 |
420 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
20 |
26.0 |
0.0114 |
500 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
21 |
19.5 |
0.0104 |
580 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
22.5 |
13.3 |
0.0089 |
720 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.7 |
26.5 |
7.98 |
0.0081 |
1050 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.8 |
31 |
4.95 |
0.0076 |
1510 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.9 |
36.5 |
3.30 |
0.0061 |
2080 |
|
| 21 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.4 |
18.5 |
39.0 |
0.0130 |
420 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
20 |
26.0 |
0.0114 |
510 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
21 |
19.5 |
0.0104 |
580 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
22.5 |
13.3 |
0.0089 |
730 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.7 |
26.5 |
7.98 |
0.0081 |
1060 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.8 |
31 |
4.95 |
0.0076 |
1530 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.9 |
36.5 |
3.30 |
0.0061 |
2120 |
|
| 22 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
19.5 |
39.0 |
0.0130 |
460 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
20.5 |
26.0 |
0.0114 |
550 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
21.5 |
19.5 |
0.0104 |
630 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
23.5 |
13.3 |
0.0089 |
780 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.7 |
27.5 |
7.98 |
0.0081 |
1140 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.8 |
32 |
4.95 |
0.0076 |
1650 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.9 |
38 |
3.30 |
0.0061 |
2280 |
|
| 23 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
19.5 |
39.0 |
0.0130 |
460 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
20.5 |
26.0 |
0.0114 |
550 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.5 |
21.5 |
19.5 |
0.0104 |
630 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
23.5 |
13.3 |
0.0089 |
790 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.7 |
27.5 |
7.98 |
0.0081 |
1150 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.8 |
32 |
4.95 |
0.0076 |
1660 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1 |
1.9 |
38 |
3.30 |
0.0061 |
2310 |
|
| 24 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
20.5 |
39.0 |
0.0130 |
480 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
21.5 |
26.0 |
0.0114 |
570 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
23 |
19.5 |
0.0104 |
670 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
24.5 |
13.3 |
0.0089 |
820 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.7 |
29 |
7.98 |
0.0081 |
1200 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.9 |
34 |
4.95 |
0.0076 |
1750 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2 |
41 |
3.30 |
0.0061 |
2460 |
|
| 25 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
21 |
39.0 |
0.0130 |
500 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
22 |
26.0 |
0.0114 |
600 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
23.5 |
19.5 |
0.0104 |
700 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
25 |
13.3 |
0.0089 |
870 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.7 |
29.5 |
7.98 |
0.0081 |
1270 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.9 |
35 |
4.95 |
0.0076 |
1850 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2 |
41.5 |
3.30 |
0.0061 |
2600 |
|
| 26 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
21 |
39.0 |
0.0130 |
510 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
22 |
26.0 |
0.0114 |
610 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
23.5 |
19.5 |
0.0104 |
710 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
25 |
13.3 |
0.0089 |
880 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.7 |
29.5 |
7.98 |
0.0081 |
1290 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.9 |
35 |
4.95 |
0.0076 |
1880 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2 |
41.5 |
3.30 |
0.0061 |
2650 |
|
| 27 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
21 |
39.0 |
0.0130 |
510 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.5 |
22 |
26.0 |
0.0114 |
610 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
23.5 |
19.5 |
0.0104 |
720 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.6 |
25 |
13.3 |
0.0089 |
890 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.8 |
29.5 |
7.98 |
0.0081 |
1320 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.9 |
35 |
4.95 |
0.0076 |
1920 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2 |
41.5 |
3.30 |
0.0061 |
2700 |
|
| 28 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
21.5 |
39.0 |
0.0130 |
540 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
23 |
26.0 |
0.0114 |
660 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
24 |
19.5 |
0.0104 |
760 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
26 |
13.3 |
0.0089 |
950 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.8 |
30.5 |
7.98 |
0.0081 |
1390 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.9 |
36 |
4.95 |
0.0076 |
2020 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.1 |
43.5 |
3.30 |
0.0061 |
2870 |
|
| 29 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
21.5 |
39.0 |
0.0130 |
540 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
23 |
26.0 |
0.0114 |
660 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
24 |
19.5 |
0.0104 |
770 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
26 |
13.3 |
0.0089 |
960 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.8 |
30.5 |
7.98 |
0.0081 |
1420 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.9 |
36 |
4.95 |
0.0076 |
2060 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.1 |
43.5 |
3.30 |
0.0061 |
2920 |
|
| 30 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
21.5 |
39.0 |
0.0130 |
550 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
23 |
26.0 |
0.0114 |
670 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
24 |
19.5 |
0.0104 |
780 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
26 |
13.3 |
0.0089 |
980 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.8 |
30.5 |
7.98 |
0.0081 |
1440 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1 |
1.9 |
36 |
4.95 |
0.0076 |
2090 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.1 |
43.5 |
3.30 |
0.0061 |
2970 |
|
31 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
22 |
39.0 |
0.0130 |
580 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
23.5 |
26.0 |
0.0114 |
710 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
25 |
19.5 |
0.0104 |
820 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
27 |
13.3 |
0.0089 |
1030 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.8 |
31.5 |
7.98 |
0.0081 |
1520 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2 |
38 |
4.95 |
0.0076 |
2260 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.1 |
45 |
3.30 |
0.0061 |
3140 |
|
32 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
22 |
39.0 |
0.0130 |
580 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
23.5 |
26.0 |
0.0114 |
710 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
25 |
19.5 |
0.0104 |
830 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
27 |
13.3 |
0.0089 |
1040 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.8 |
31.5 |
7.98 |
0.0081 |
1540 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2 |
38 |
4.95 |
0.0076 |
2290 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.1 |
45 |
3.30 |
0.0061 |
3190 |
|
33 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.5 |
22 |
39.0 |
0.0130 |
590 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
23.5 |
26.0 |
0.0114 |
720 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
25 |
19.5 |
0.0104 |
840 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
27 |
13.3 |
0.0089 |
1060 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.8 |
31.5 |
7.98 |
0.0081 |
1560 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2 |
38 |
4.95 |
0.0076 |
2330 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.1 |
45 |
3.30 |
0.0061 |
3240 |
|
34 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
23 |
39.0 |
0.0130 |
630 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
24.5 |
26.0 |
0.0114 |
760 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
25.5 |
19.5 |
0.0104 |
880 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
27.5 |
13.3 |
0.0089 |
1110 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
33 |
7.98 |
0.0081 |
1660 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2 |
39 |
4.95 |
0.0076 |
2450 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.2 |
46.5 |
3.30 |
0.0061 |
3420 |
|
35 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
23 |
39.0 |
0.0130 |
640 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
24.5 |
26.0 |
0.0114 |
770 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
25.5 |
19.5 |
0.0104 |
890 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
27.5 |
13.3 |
0.0089 |
1120 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
33 |
7.98 |
0.0081 |
1680 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2 |
39 |
4.95 |
0.0076 |
2480 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.2 |
46.5 |
3.30 |
0.0061 |
3480 |
|
36 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
23 |
39.0 |
0.0130 |
640 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
24.5 |
26.0 |
0.0114 |
770 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
25.5 |
19.5 |
0.0104 |
900 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
27.5 |
13.3 |
0.0089 |
1140 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
33 |
7.98 |
0.0081 |
1700 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2 |
39 |
4.95 |
0.0076 |
2520 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.2 |
46.5 |
3.30 |
0.0061 |
3530 |
|
37 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
23 |
39.0 |
0.0130 |
640 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
24.5 |
26.0 |
0.0114 |
780 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.6 |
25.5 |
19.5 |
0.0104 |
910 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
27.5 |
13.3 |
0.0089 |
1150 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
33 |
7.98 |
0.0081 |
1720 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2 |
39 |
4.95 |
0.0076 |
2550 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.2 |
46.5 |
3.30 |
0.0061 |
3580 |
|
38 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
23.5 |
39.0 |
0.0130 |
680 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
25 |
26.0 |
0.0114 |
820 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
26.5 |
19.5 |
0.0104 |
970 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
28.5 |
13.3 |
0.0089 |
1210 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
34 |
7.98 |
0.0081 |
1800 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.1 |
41 |
4.95 |
0.0076 |
2700 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.2 |
48.5 |
3.30 |
0.0061 |
3750 |
|
39 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
23.5 |
39.0 |
0.0130 |
680 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
25 |
26.0 |
0.0114 |
830 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
26.5 |
19.5 |
0.0104 |
980 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
28.5 |
13.3 |
0.0089 |
1220 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
34 |
7.98 |
0.0081 |
1830 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.1 |
41 |
4.95 |
0.0076 |
2730 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.2 |
48.5 |
3.30 |
0.0061 |
3800 |
|
40 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
23.5 |
39.0 |
0.0130 |
680 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.6 |
25 |
26.0 |
0.0114 |
830 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
26.5 |
19.5 |
0.0104 |
980 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.7 |
28.5 |
13.3 |
0.0089 |
1230 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
34 |
7.98 |
0.0081 |
1840 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.1 |
41 |
4.95 |
0.0076 |
2750 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.2 |
48.5 |
3.30 |
0.0061 |
3840 |
|
41 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25 |
39.0 |
0.0130 |
740 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27 |
26.0 |
0.0114 |
900 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
28.5 |
19.5 |
0.0104 |
1050 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31 |
13.3 |
0.0089 |
1320 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
36.5 |
7.98 |
0.0081 |
1960 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.1 |
44 |
4.95 |
0.0076 |
2920 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.3 |
52.5 |
3.30 |
0.0061 |
4090 |
|
42 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25 |
39.0 |
0.0130 |
740 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27 |
26.0 |
0.0114 |
910 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
28.5 |
19.5 |
0.0104 |
1060 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31 |
13.3 |
0.0089 |
1330 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
36.5 |
7.98 |
0.0081 |
1980 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.1 |
44 |
4.95 |
0.0076 |
2960 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.3 |
52.5 |
3.30 |
0.0061 |
4140 |
|
43 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25 |
39.0 |
0.0130 |
740 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27 |
26.0 |
0.0114 |
910 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
28.5 |
19.5 |
0.0104 |
1060 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31 |
13.3 |
0.0089 |
1340 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1 |
1.9 |
36.5 |
7.98 |
0.0081 |
1990 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.1 |
44 |
4.95 |
0.0076 |
2970 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.2 |
2.3 |
52.5 |
3.30 |
0.0061 |
4170 |
|
44 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25 |
39.0 |
0.0130 |
750 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27 |
26.0 |
0.0114 |
920 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
28.5 |
19.5 |
0.0104 |
1070 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31 |
13.3 |
0.0089 |
1350 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
2 |
37.5 |
7.98 |
0.0081 |
2070 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.2 |
44 |
4.95 |
0.0076 |
3030 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
2.3 |
53 |
3.30 |
0.0061 |
4280 |
|
45 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25.5 |
39.0 |
0.0130 |
780 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27.5 |
26.0 |
0.0114 |
960 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
29 |
19.5 |
0.0104 |
1120 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31.5 |
13.3 |
0.0089 |
1420 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
2 |
38 |
7.98 |
0.0081 |
2170 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.2 |
45 |
4.95 |
0.0076 |
3180 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
2.3 |
53.5 |
3.30 |
0.0061 |
4480 |
|
46 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25.5 |
39.0 |
0.0130 |
780 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27.5 |
26.0 |
0.0114 |
960 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
29 |
19.5 |
0.0104 |
1120 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31.5 |
13.3 |
0.0089 |
1420 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
2 |
38 |
7.98 |
0.0081 |
2170 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.2 |
45 |
4.95 |
0.0076 |
3190 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
2.3 |
53.5 |
3.30 |
0.0061 |
4500 |
|
47 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25.5 |
39.0 |
0.0130 |
780 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27.5 |
26.0 |
0.0114 |
970 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
29 |
19.5 |
0.0104 |
1130 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31.5 |
13.3 |
0.0089 |
1430 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
2 |
38 |
7.98 |
0.0081 |
2190 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.2 |
45 |
4.95 |
0.0076 |
3220 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
2.3 |
53.5 |
3.30 |
0.0061 |
4550 |
|
48 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1 |
1.6 |
25.5 |
39.0 |
0.0130 |
790 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1 |
1.7 |
27.5 |
26.0 |
0.0114 |
980 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1 |
1.7 |
29 |
19.5 |
0.0104 |
1140 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1 |
1.8 |
31.5 |
13.3 |
0.0089 |
1450 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
2 |
38 |
7.98 |
0.0081 |
2220 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
2.2 |
45 |
4.95 |
0.0076 |
3270 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
2.4 |
54 |
3.30 |
0.0061 |
4650 |
|
JIS C 3401标准电缆
芯数 |
导体 |
绝缘厚度 |
内护套厚 度 |
外护套厚 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
| 标称导体 截面积 |
股数/直径 | 直径 | ||||||||
mm² |
mm | mm |
mm |
mm | mm | mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
13 |
19.5 |
0.05 |
155 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
14 |
13.3 |
0.05 |
172 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
15 |
7.98 |
0.05 |
206 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
16 |
4.95 |
0.05 |
247 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
17 |
3.3 |
0.05 |
324 |
|
| 3 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
14 |
19.5 |
0.05 |
175 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
14 |
13.3 |
0.05 |
196 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
15 |
7.98 |
0.05 |
241 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
16 |
4.95 |
0.05 |
297 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
18 |
3.3 |
0.05 |
398 |
|
| 4 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
14 |
19.5 |
0.05 |
200 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
15 |
13.3 |
0.05 |
228 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
16 |
7.98 |
0.05 |
284 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
17 |
4.95 |
0.05 |
355 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
19 |
3.3 |
0.05 |
483 |
|
| 5 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
15 |
19.5 |
0.05 |
227 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
16 |
13.3 |
0.05 |
261 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
17 |
7.98 |
0.05 |
329 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
18 |
4.95 |
0.05 |
417 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
21 |
3.3 |
0.05 |
573 |
|
| 6 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
16 |
19.5 |
0.05 |
255 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
17 |
13.3 |
0.05 |
295 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
18 |
7.98 |
0.05 |
375 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
20 |
4.95 |
0.05 |
480 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
22 |
3.3 |
0.05 |
665 |
|
| 7 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
16 |
19.5 |
0.05 |
269 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
17 |
13.3 |
0.05 |
312 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
18 |
7.98 |
0.05 |
401 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
20 |
4.95 |
0.05 |
518 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
22 |
3.3 |
0.05 |
723 |
|
| 8 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
17 |
19.5 |
0.05 |
297 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
18 |
13.3 |
0.05 |
347 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
19 |
7.98 |
0.05 |
449 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
21 |
4.95 |
0.05 |
583 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
24 |
3.3 |
0.05 |
817 |
|
| 9 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
18 |
19.5 |
0.05 |
327 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
19 |
13.3 |
0.05 |
384 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
20 |
7.98 |
0.05 |
498 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
22 |
4.95 |
0.05 |
649 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.35 |
25 |
3.3 |
0.05 |
914 |
|
| 10 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
19 |
19.5 |
0.05 |
362 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
20 |
13.3 |
0.05 |
425 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
22 |
7.98 |
0.05 |
555 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
23 |
4.95 |
0.05 |
724 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.44 |
28 |
3.3 |
0.05 |
1033 |
|
| 11 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
19 |
19.5 |
0.05 |
375 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
20 |
13.3 |
0.05 |
442 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
22 |
7.98 |
0.05 |
580 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
23 |
4.95 |
0.05 |
763 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.44 |
28 |
3.3 |
0.05 |
1091 |
|
| 12 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
19 |
19.5 |
0.05 |
397 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
20 |
13.3 |
0.05 |
470 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
22 |
7.98 |
0.05 |
619 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.35 |
24 |
4.95 |
0.05 |
815 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.53 |
29 |
3.3 |
0.05 |
1182 |
|
| 13 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
20 |
19.5 |
0.05 |
425 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
21 |
13.3 |
0.05 |
504 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
23 |
7.98 |
0.05 |
666 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
25 |
4.95 |
0.05 |
880 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.53 |
30 |
3.3 |
0.05 |
1276 |
|
| 14 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
20 |
19.5 |
0.05 |
438 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
21 |
13.3 |
0.05 |
521 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
23 |
7.98 |
0.05 |
692 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
25 |
4.95 |
0.05 |
917 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.53 |
30 |
3.3 |
0.05 |
1336 |
|
| 15 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
21 |
19.5 |
0.05 |
469 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
22 |
13.3 |
0.05 |
558 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
24 |
7.98 |
0.05 |
742 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
26 |
4.95 |
0.05 |
986 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.53 |
31 |
3.3 |
0.05 |
1436 |
|
| 16 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
21 |
19.5 |
0.05 |
481 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
22 |
13.3 |
0.05 |
575 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
24 |
7.98 |
0.05 |
767 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
26 |
4.95 |
0.05 |
1034 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1 |
1.62 |
32 |
3.3 |
0.05 |
1506 |
|
| 17 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
21 |
19.5 |
0.05 |
491 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
23 |
13.3 |
0.05 |
586 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
25 |
7.98 |
0.05 |
783 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
28 |
4.95 |
0.05 |
1058 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
33 |
3.3 |
0.05 |
1569 |
|
| 18 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
21 |
19.5 |
0.05 |
506 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
23 |
13.3 |
0.05 |
606 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
25 |
7.98 |
0.05 |
813 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
28 |
4.95 |
0.05 |
1102 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
33 |
3.3 |
0.05 |
1636 |
|
| 19 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
21 |
19.5 |
0.05 |
522 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
23 |
13.3 |
0.05 |
626 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
25 |
7.98 |
0.05 |
843 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
28 |
4.95 |
0.05 |
1146 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
33 |
3.3 |
0.05 |
1703 |
|
| 20 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
22 |
19.5 |
0.05 |
548 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
24 |
13.3 |
0.05 |
658 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
26 |
7.98 |
0.05 |
887 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
29 |
4.95 |
0.05 |
1206 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
35 |
3.3 |
0.05 |
1807 |
|
| 21 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
22 |
19.5 |
0.05 |
564 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
24 |
13.3 |
0.05 |
678 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
26 |
7.98 |
0.05 |
917 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
29 |
4.95 |
0.05 |
1250 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
35 |
3.3 |
0.05 |
1875 |
|
| 22 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
23 |
19.5 |
0.05 |
591 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
25 |
13.3 |
0.05 |
711 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
28 |
7.98 |
0.05 |
961 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
30 |
4.95 |
0.05 |
1310 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
37 |
3.3 |
0.05 |
1965 |
|
| 23 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
23 |
19.5 |
0.05 |
606 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
25 |
13.3 |
0.05 |
731 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.35 |
28 |
7.98 |
0.05 |
991 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.44 |
30 |
4.95 |
0.05 |
1354 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
37 |
3.3 |
0.05 |
2032 |
|
| 24 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
24 |
19.5 |
0.05 |
636 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
26 |
13.3 |
0.05 |
766 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.44 |
29 |
7.98 |
0.05 |
1050 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.62 |
32 |
4.95 |
0.05 |
1442 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
39 |
3.3 |
0.05 |
2128 |
|
| 25 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
24 |
19.5 |
0.05 |
651 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
26 |
13.3 |
0.05 |
786 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.44 |
29 |
7.98 |
0.05 |
1080 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.62 |
32 |
4.95 |
0.05 |
1486 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
39 |
3.3 |
0.05 |
2196 |
|
| 26 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
24 |
19.5 |
0.05 |
667 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
26 |
13.3 |
0.05 |
806 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.44 |
29 |
7.98 |
0.05 |
1110 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1 |
1.62 |
32 |
4.95 |
0.05 |
1530 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
39 |
3.3 |
0.05 |
2263 |
|
| 27 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
25 |
19.5 |
0.05 |
688 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
26 |
13.3 |
0.05 |
833 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.53 |
30 |
7.98 |
0.05 |
1158 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.2 |
1.62 |
33 |
4.95 |
0.05 |
1611 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
39 |
3.3 |
0.05 |
2342 |
|
| 28 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
25 |
19.5 |
0.05 |
713 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
28 |
13.3 |
0.05 |
863 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.53 |
31 |
7.98 |
0.05 |
1201 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.2 |
1.62 |
35 |
4.95 |
0.05 |
1684 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
41 |
3.3 |
0.05 |
2428 |
|
| 29 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.35 |
25 |
19.5 |
0.05 |
729 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.35 |
28 |
13.3 |
0.05 |
883 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.53 |
31 |
7.98 |
0.05 |
1231 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.2 |
1.62 |
35 |
4.95 |
0.05 |
1728 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
41 |
3.3 |
0.05 |
2495 |
|
| 30 | 1 |
36/0.19 |
1.35 |
0.72 |
1 |
1.44 |
25 |
19.5 |
0.05 |
754 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1 |
1.44 |
28 |
13.3 |
0.05 |
914 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1 |
1.53 |
31 |
7.98 |
0.05 |
1261 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.2 |
1.62 |
35 |
4.95 |
0.05 |
1772 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.2 |
1.62 |
41 |
3.3 |
0.05 |
2563 |
|
