应用及描述
此电缆主要用于电气设备和电站控制电路的监控，可户外安装，或安装于干燥或潮湿的电缆沟中。
标准及认证
IEC 60502-1标准,JIS C 3401标准

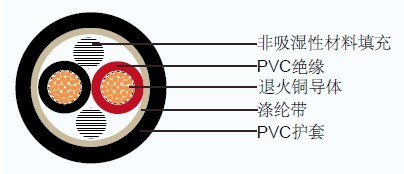

电缆结构
导体: 柔软多股退火铜导体, 0.5 mm2到6 mm2
绝缘: 聚氯乙烯(PVC)
颜色: 2-4芯-黑色, 白色, 红色，绿色
多于4芯: 黑色线芯加数字标注
填充: 非吸湿性材料(可选)
粘合带: 涤纶带（麦拉） (可选)
护套: 聚氯乙烯(PVC), 黑色 (可选阻燃聚氯乙烯FR-PVC)
技术特性
最大导体温度 70oC
回路电压不超过 600 V
测试电压 2000V(JIS) / 3500 V(IEC)
电缆参数
IEC 60502-1标准电缆
芯数 |
导体 |
绝缘厚度 |
护套厚度 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
| 标称导体 截面积 |
股数/直径 | 直径 | |||||||
mm² |
mm | mm |
mm |
mm |
mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
0.5 |
16/0.20 |
0.92 |
0.6 |
0.9 |
7.5 |
39.0 |
0.0130 |
50 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
8.5 |
26.0 |
0.0114 |
70 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.2 |
8.7 |
19.5 |
0.0104 |
80 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.2 |
9.3 |
13.3 |
0.0089 |
100 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
10.5 |
7.98 |
0.0081 |
140 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
12.0 |
4.95 |
0.0076 |
190 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
14.0 |
3.30 |
0.0061 |
280 |
|
| 3 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
8.5 |
39.0 |
0.0130 |
70 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
8.9 |
26.0 |
0.0114 |
80 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.2 |
9.1 |
19.5 |
0.0104 |
100 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.2 |
9.8 |
13.3 |
0.0089 |
120 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
11.0 |
7.98 |
0.0081 |
170 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.2 |
13.0 |
4.95 |
0.0076 |
240 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
15.0 |
3.30 |
0.0061 |
350 |
|
| 4 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
9.1 |
39.0 |
0.0130 |
80 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
9.6 |
26.0 |
0.0114 |
100 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.2 |
9.8 |
19.5 |
0.0104 |
120 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.2 |
10.5 |
13.3 |
0.0089 |
140 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.2 |
12.0 |
7.98 |
0.0081 |
210 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
14.5 |
4.95 |
0.0076 |
320 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
16.5 |
3.30 |
0.0061 |
440 |
|
| 5 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
9.8 |
39.0 |
0.0130 |
100 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
10.0 |
26.0 |
0.0114 |
120 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.2 |
10.5 |
19.5 |
0.0104 |
140 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.2 |
11.5 |
13.3 |
0.0089 |
180 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
13.5 |
7.98 |
0.0081 |
270 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
15.5 |
4.95 |
0.0076 |
390 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
18.0 |
3.30 |
0.0061 |
540 |
|
| 6 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
10.5 |
39.0 |
0.0130 |
110 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
11.0 |
26.0 |
0.0114 |
130 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.2 |
11.5 |
19.5 |
0.0104 |
150 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.2 |
12.0 |
13.3 |
0.0089 |
190 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
14.5 |
7.98 |
0.0081 |
290 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
17.0 |
4.95 |
0.0076 |
430 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
19.5 |
3.30 |
0.0061 |
590 |
|
| 7 | 6 |
16/0.20 |
0.92 |
0.6 |
1.2 |
10.5 |
39.0 |
0.0130 |
110 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
11.0 |
26.0 |
0.0114 |
140 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.2 |
11.5 |
19.5 |
0.0104 |
160 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.2 |
12.0 |
13.3 |
0.0089 |
200 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
14.5 |
7.98 |
0.0081 |
320 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
17.0 |
4.95 |
0.0076 |
460 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
19.5 |
3.30 |
0.0061 |
640 |
|
| 8 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
11.0 |
39.0 |
0.0130 |
130 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
11.5 |
26.0 |
0.0114 |
160 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.2 |
12.0 |
19.5 |
0.0104 |
180 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
13.5 |
13.3 |
0.0089 |
240 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
16.0 |
7.98 |
0.0081 |
360 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
18.0 |
4.95 |
0.0076 |
520 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
21.0 |
3.30 |
0.0061 |
730 |
|
| 9 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
12.0 |
39.0 |
0.0130 |
140 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.2 |
12.5 |
26.0 |
0.0114 |
170 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
13.5 |
19.5 |
0.0104 |
220 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
14.5 |
13.3 |
0.0089 |
270 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
17.0 |
7.98 |
0.0081 |
400 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
20.0 |
4.95 |
0.0076 |
590 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.4 |
23.0 |
3.30 |
0.0061 |
830 |
|
| 10 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
12.5 |
39.0 |
0.0130 |
150 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
14.0 |
26.0 |
0.0114 |
200 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
14.5 |
19.5 |
0.0104 |
240 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
15.5 |
13.3 |
0.0089 |
300 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
18.0 |
7.98 |
0.0081 |
440 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
21.0 |
4.95 |
0.0076 |
640 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
25.0 |
3.30 |
0.0061 |
950 |
|
| 11 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
12.5 |
39.0 |
0.0130 |
170 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
14.0 |
26.0 |
0.0114 |
220 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
14.5 |
19.5 |
0.0104 |
260 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
15.5 |
13.3 |
0.0089 |
330 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
18.0 |
7.98 |
0.0081 |
490 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
21.0 |
4.95 |
0.0076 |
720 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
25.0 |
3.30 |
0.0061 |
1060 |
|
| 12 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.2 |
13.0 |
39.0 |
0.0130 |
170 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
14.5 |
26.0 |
0.0114 |
230 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
15.0 |
19.5 |
0.0104 |
270 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
16.0 |
13.3 |
0.0089 |
340 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
19.0 |
7.98 |
0.0081 |
510 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
22.0 |
4.95 |
0.0076 |
750 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
26.0 |
3.30 |
0.0061 |
1110 |
|
| 13 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
14.0 |
39.0 |
0.0130 |
200 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
15.0 |
26.0 |
0.0114 |
250 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
15.5 |
19.5 |
0.0104 |
300 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
17.0 |
13.3 |
0.0089 |
370 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
20.0 |
7.98 |
0.0081 |
560 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
23.0 |
4.95 |
0.0076 |
830 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
28.0 |
3.30 |
0.0061 |
1220 |
|
| 14 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
14.0 |
39.0 |
0.0130 |
210 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
15.0 |
26.0 |
0.0114 |
260 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
15.5 |
19.5 |
0.0104 |
300 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
17.0 |
13.3 |
0.0089 |
390 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
20.0 |
7.98 |
0.0081 |
580 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.4 |
23.0 |
4.95 |
0.0076 |
860 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
28.0 |
3.30 |
0.0061 |
1270 |
|
| 15 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
14.5 |
39.0 |
0.0130 |
230 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
15.5 |
26.0 |
0.0114 |
280 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
16.0 |
19.5 |
0.0104 |
330 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
17.5 |
13.3 |
0.0089 |
430 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
21.0 |
7.98 |
0.0081 |
640 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
25.0 |
4.95 |
0.0076 |
1000 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
29.0 |
3.30 |
0.0061 |
1390 |
|
| 16 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
15.0 |
39.0 |
0.0130 |
230 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
15.5 |
26.0 |
0.0114 |
290 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
16.0 |
19.5 |
0.0104 |
340 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
17.5 |
13.3 |
0.0089 |
440 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
21.0 |
7.98 |
0.0081 |
660 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
25.0 |
4.95 |
0.0076 |
1030 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
29.0 |
3.30 |
0.0061 |
1440 |
|
| 17 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
15.5 |
39.0 |
0.0130 |
260 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
16.5 |
26.0 |
0.0114 |
320 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
17.0 |
19.5 |
0.0104 |
370 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
18.5 |
13.3 |
0.0089 |
480 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
22.0 |
7.98 |
0.0081 |
720 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
27.0 |
4.95 |
0.0076 |
1120 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
31.0 |
3.30 |
0.0061 |
1570 |
|
| 18 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
15.5 |
39.0 |
0.0130 |
260 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
16.5 |
26.0 |
0.0114 |
320 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
17.0 |
19.5 |
0.0104 |
380 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
18.5 |
13.3 |
0.0089 |
490 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
22.0 |
7.98 |
0.0081 |
740 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
27.0 |
4.95 |
0.0076 |
1150 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
31.0 |
3.30 |
0.0061 |
1620 |
|
| 19 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
15.5 |
39.0 |
0.0130 |
260 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
16.5 |
26.0 |
0.0114 |
330 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
17.0 |
19.5 |
0.0104 |
390 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
18.5 |
13.3 |
0.0089 |
500 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
22.0 |
7.98 |
0.0081 |
760 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
27.0 |
4.95 |
0.0076 |
1190 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
31.0 |
3.30 |
0.0061 |
1670 |
|
| 20 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
16.0 |
39.0 |
0.0130 |
290 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
17.0 |
26.0 |
0.0114 |
360 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
17.5 |
19.5 |
0.0104 |
420 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
19.0 |
13.3 |
0.0089 |
540 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
23.0 |
7.98 |
0.0081 |
820 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
28.0 |
4.95 |
0.0076 |
1280 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
32.0 |
3.30 |
0.0061 |
1800 |
|
| 21 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
16.5 |
39.0 |
0.0130 |
290 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
17.5 |
26.0 |
0.0114 |
360 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
18.0 |
19.5 |
0.0104 |
430 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
19.5 |
13.3 |
0.0089 |
550 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.4 |
23.0 |
7.98 |
0.0081 |
840 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
28.0 |
4.95 |
0.0076 |
1300 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
32.0 |
3.30 |
0.0061 |
1840 |
|
| 22 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
17.0 |
39.0 |
0.0130 |
310 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
18.0 |
26.0 |
0.0114 |
390 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
18.5 |
19.5 |
0.0104 |
470 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
20.0 |
13.3 |
0.0089 |
600 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
25.0 |
7.98 |
0.0081 |
950 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
30.0 |
4.95 |
0.0076 |
1410 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
34.0 |
3.30 |
0.0061 |
1980 |
|
| 23 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
17.0 |
39.0 |
0.0130 |
310 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
18.0 |
26.0 |
0.0114 |
390 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
18.5 |
19.5 |
0.0104 |
470 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
20.0 |
13.3 |
0.0089 |
600 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
25.0 |
7.98 |
0.0081 |
960 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
30.0 |
4.95 |
0.0076 |
1430 |
|
6 |
84/0.30 |
3.6 |
0.8 |
1.8 |
34.0 |
3.30 |
0.0061 |
2010 |
|
| 24 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
18.0 |
39.0 |
0.0130 |
330 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
19.0 |
26.0 |
0.0114 |
410 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
19.5 |
19.5 |
0.0104 |
490 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
21.0 |
13.3 |
0.0089 |
620 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
26.0 |
7.98 |
0.0081 |
1000 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
31.0 |
4.95 |
0.0076 |
1480 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
37.0 |
3.30 |
0.0061 |
2160 |
|
| 25 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
18.0 |
39.0 |
0.0130 |
350 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
19.0 |
26.0 |
0.0114 |
430 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
19.5 |
19.5 |
0.0104 |
520 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
21.0 |
13.3 |
0.0089 |
660 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
26.0 |
7.98 |
0.0081 |
1060 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
31.0 |
4.95 |
0.0076 |
1580 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
37.0 |
3.30 |
0.0061 |
2290 |
|
| 26 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
18.0 |
39.0 |
0.0130 |
350 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
19.0 |
26.0 |
0.0114 |
440 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
19.5 |
19.5 |
0.0104 |
530 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
21.0 |
13.3 |
0.0089 |
680 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
26.0 |
7.98 |
0.0081 |
1080 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
31.0 |
4.95 |
0.0076 |
1610 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
37.0 |
3.30 |
0.0061 |
2340 |
|
| 27 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
18.5 |
39.0 |
0.0130 |
360 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
19.5 |
26.0 |
0.0114 |
450 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
20.0 |
19.5 |
0.0104 |
530 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
22.0 |
13.3 |
0.0089 |
690 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
27.0 |
7.98 |
0.0081 |
1100 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
32.0 |
4.95 |
0.0076 |
1640 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
38.0 |
3.30 |
0.0061 |
2390 |
|
| 28 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
19.0 |
39.0 |
0.0130 |
380 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
20.0 |
26.0 |
0.0114 |
480 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
21.0 |
19.5 |
0.0104 |
570 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
23.0 |
13.3 |
0.0089 |
730 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
28.0 |
7.98 |
0.0081 |
1170 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
33.0 |
4.95 |
0.0076 |
1740 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
39.0 |
3.30 |
0.0061 |
2530 |
|
| 29 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
19.0 |
39.0 |
0.0130 |
380 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
20.0 |
26.0 |
0.0114 |
480 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
21.0 |
19.5 |
0.0104 |
580 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
23.0 |
13.3 |
0.0089 |
740 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
28.0 |
7.98 |
0.0081 |
1190 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
33.0 |
4.95 |
0.0076 |
1780 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
39.0 |
3.30 |
0.0061 |
2580 |
|
| 30 | 0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
19.0 |
39.0 |
0.0130 |
390 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
20.0 |
26.0 |
0.0114 |
490 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
21.0 |
19.5 |
0.0104 |
580 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.4 |
23.0 |
13.3 |
0.0089 |
760 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
28.0 |
7.98 |
0.0081 |
1210 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
33.0 |
4.95 |
0.0076 |
1810 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
39.0 |
3.30 |
0.0061 |
2630 |
|
31 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
19.5 |
39.0 |
0.0130 |
410 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
21.0 |
26.0 |
0.0114 |
520 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
22.0 |
19.5 |
0.0104 |
620 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
24.0 |
13.3 |
0.0089 |
850 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
29.0 |
7.98 |
0.0081 |
1280 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
34.0 |
4.95 |
0.0076 |
1920 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
41.0 |
3.30 |
0.0061 |
2780 |
|
32 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
19.5 |
39.0 |
0.0130 |
420 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
21.0 |
26.0 |
0.0114 |
530 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
22.0 |
19.5 |
0.0104 |
630 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
24.0 |
13.3 |
0.0089 |
860 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
29.0 |
7.98 |
0.0081 |
1300 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
34.0 |
4.95 |
0.0076 |
1950 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
41.0 |
3.30 |
0.0061 |
2830 |
|
33 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
19.5 |
39.0 |
0.0130 |
420 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
21.0 |
26.0 |
0.0114 |
530 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
22.0 |
19.5 |
0.0104 |
640 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
24.0 |
13.3 |
0.0089 |
870 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
29.0 |
7.98 |
0.0081 |
1330 |
|
4 |
56/0.30 |
2.59 |
0.8 |
1.8 |
34.0 |
4.95 |
0.0076 |
1980 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
41.0 |
3.30 |
0.0061 |
2880 |
|
34 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
20.0 |
39.0 |
0.0130 |
450 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
21.0 |
26.0 |
0.0114 |
570 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
22.0 |
19.5 |
0.0104 |
680 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
25.0 |
13.3 |
0.0089 |
920 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
30.0 |
7.98 |
0.0081 |
1400 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
37.0 |
4.95 |
0.0076 |
2160 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
42.0 |
3.30 |
0.0061 |
3030 |
|
35 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
20.0 |
39.0 |
0.0130 |
450 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
21.0 |
26.0 |
0.0114 |
570 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
22.0 |
19.5 |
0.0104 |
680 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
25.0 |
13.3 |
0.0089 |
930 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
30.0 |
7.98 |
0.0081 |
1420 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
37.0 |
4.95 |
0.0076 |
2190 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
42.0 |
3.30 |
0.0061 |
3080 |
|
36 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
20.0 |
39.0 |
0.0130 |
460 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
21.0 |
26.0 |
0.0114 |
580 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
22.0 |
19.5 |
0.0104 |
690 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
25.0 |
13.3 |
0.0089 |
950 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
30.0 |
7.98 |
0.0081 |
1440 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
37.0 |
4.95 |
0.0076 |
2220 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
42.0 |
3.30 |
0.0061 |
3140 |
|
37 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
20.0 |
39.0 |
0.0130 |
460 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
21.0 |
26.0 |
0.0114 |
590 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
22.0 |
19.5 |
0.0104 |
700 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
25.0 |
13.3 |
0.0089 |
960 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
30.0 |
7.98 |
0.0081 |
1460 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
37.0 |
4.95 |
0.0076 |
2260 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
42.0 |
3.30 |
0.0061 |
3190 |
|
38 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
21.0 |
39.0 |
0.0130 |
490 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
22.0 |
26.0 |
0.0114 |
620 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
23.0 |
19.5 |
0.0104 |
740 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
26.0 |
13.3 |
0.0089 |
1010 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
31.0 |
7.98 |
0.0081 |
1540 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
38.0 |
4.95 |
0.0076 |
2370 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
44.0 |
3.30 |
0.0061 |
3340 |
|
39 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
21.0 |
39.0 |
0.0130 |
490 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
22.0 |
26.0 |
0.0114 |
620 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
23.0 |
19.5 |
0.0104 |
750 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
26.0 |
13.3 |
0.0089 |
1020 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
31.0 |
7.98 |
0.0081 |
1560 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
38.0 |
4.95 |
0.0076 |
2400 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
44.0 |
3.30 |
0.0061 |
3390 |
|
40 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
21.0 |
39.0 |
0.0130 |
500 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
22.0 |
26.0 |
0.0114 |
630 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.4 |
23.0 |
19.5 |
0.0104 |
750 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
26.0 |
13.3 |
0.0089 |
1030 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
31.0 |
7.98 |
0.0081 |
1570 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
38.0 |
4.95 |
0.0076 |
2430 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
44.0 |
3.30 |
0.0061 |
3430 |
|
41 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
22.0 |
39.0 |
0.0130 |
530 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
23.0 |
26.0 |
0.0114 |
670 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
25.0 |
19.5 |
0.0104 |
850 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
27.0 |
13.3 |
0.0089 |
1100 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
33.0 |
7.98 |
0.0081 |
1670 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
40.0 |
4.95 |
0.0076 |
2580 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
46.0 |
3.30 |
0.0061 |
3630 |
|
42 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
22.0 |
39.0 |
0.0130 |
540 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
23.0 |
26.0 |
0.0114 |
680 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
25.0 |
19.5 |
0.0104 |
860 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
27.0 |
13.3 |
0.0089 |
1110 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
33.0 |
7.98 |
0.0081 |
1690 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
40.0 |
4.95 |
0.0076 |
2610 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
46.0 |
3.30 |
0.0061 |
3680 |
|
43 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
22.0 |
39.0 |
0.0130 |
540 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
23.0 |
26.0 |
0.0114 |
680 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
25.0 |
19.5 |
0.0104 |
860 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
27.0 |
13.3 |
0.0089 |
1120 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
33.0 |
7.98 |
0.0081 |
1700 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
40.0 |
4.95 |
0.0076 |
2620 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.2 |
46.0 |
3.30 |
0.0061 |
3700 |
|
44 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
22.0 |
39.0 |
0.0130 |
540 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
24.0 |
26.0 |
0.0114 |
690 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
26.0 |
19.5 |
0.0104 |
870 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
28.0 |
13.3 |
0.0089 |
1130 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
34.0 |
7.98 |
0.0081 |
1720 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
41.0 |
4.95 |
0.0076 |
2660 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.6 |
48.0 |
3.30 |
0.0061 |
3860 |
|
45 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
22.0 |
39.0 |
0.0130 |
580 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
24.0 |
26.0 |
0.0114 |
730 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
26.0 |
19.5 |
0.0104 |
920 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
28.0 |
13.3 |
0.0089 |
1190 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
34.0 |
7.98 |
0.0081 |
1820 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
41.0 |
4.95 |
0.0076 |
2810 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.6 |
48.0 |
3.30 |
0.0061 |
4050 |
|
46 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
22.0 |
39.0 |
0.0130 |
570 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
24.0 |
26.0 |
0.0114 |
730 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
26.0 |
19.5 |
0.0104 |
920 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
28.0 |
13.3 |
0.0089 |
1190 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
34.0 |
7.98 |
0.0081 |
1820 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
41.0 |
4.95 |
0.0076 |
2810 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.6 |
48.0 |
3.30 |
0.0061 |
4060 |
|
47 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
22.0 |
39.0 |
0.0130 |
580 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.4 |
24.0 |
26.0 |
0.0114 |
730 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
26.0 |
19.5 |
0.0104 |
930 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
28.0 |
13.3 |
0.0089 |
1200 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
34.0 |
7.98 |
0.0081 |
1840 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
41.0 |
4.95 |
0.0076 |
2850 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.6 |
48.0 |
3.30 |
0.0061 |
4120 |
|
48 |
0.5 |
16/0.20 |
0.92 |
0.6 |
1.4 |
23.0 |
39.0 |
0.0130 |
580 |
0.75 |
24/0.20 |
1.13 |
0.6 |
1.8 |
25.0 |
26.0 |
0.0114 |
790 |
|
1 |
32/0.20 |
1.31 |
0.6 |
1.8 |
26.0 |
19.5 |
0.0104 |
940 |
|
1.5 |
30/0.25 |
1.58 |
0.6 |
1.8 |
29.0 |
13.3 |
0.0089 |
1210 |
|
2.5 |
50/0.25 |
2.04 |
0.7 |
1.8 |
34.0 |
7.98 |
0.0081 |
1860 |
|
4 |
56/0.30 |
2.59 |
0.8 |
2.2 |
42.0 |
4.95 |
0.0076 |
2880 |
|
6 |
84/0.30 |
3.6 |
0.8 |
2.6 |
49.0 |
3.30 |
0.0061 |
4170 |
|
JIS C 3401标准电缆
芯数 |
导体 |
绝缘厚度 |
护套厚度 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
| 标称导体 截面积 |
股数/直径 | 直径 | |||||||
mm² |
mm | mm |
mm |
mm |
mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
11 |
19.5 |
0.05 |
87 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
11 |
13.3 |
0.05 |
100 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
12 |
7.98 |
0.05 |
128 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
13 |
4.95 |
0.05 |
163 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
15 |
3.3 |
0.05 |
227 |
|
| 3 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
11 |
19.5 |
0.05 |
104 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
12 |
13.3 |
0.05 |
121 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
13 |
7.98 |
0.05 |
159 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
14 |
4.95 |
0.05 |
209 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
16 |
3.3 |
0.05 |
296 |
|
| 4 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
12 |
19.5 |
0.05 |
124 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
13 |
13.3 |
0.05 |
147 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
14 |
7.98 |
0.05 |
196 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
15 |
4.95 |
0.05 |
260 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
17 |
3.3 |
0.05 |
372 |
|
| 5 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
13 |
19.5 |
0.05 |
146 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
175 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
15 |
7.98 |
0.05 |
234 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
16 |
4.95 |
0.05 |
314 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
19 |
3.3 |
0.05 |
452 |
|
| 6 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
168 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
203 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
16 |
7.98 |
0.05 |
273 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
17 |
4.95 |
0.05 |
369 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
20 |
3.3 |
0.05 |
534 |
|
| 7 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
182 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
220 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
16 |
7.98 |
0.05 |
299 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
17 |
4.95 |
0.05 |
406 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
20 |
3.3 |
0.05 |
592 |
|
| 8 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
205 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
15 |
13.3 |
0.05 |
248 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
17 |
7.98 |
0.05 |
340 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
18 |
4.95 |
0.05 |
464 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
21 |
3.3 |
0.05 |
677 |
|
| 9 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
15 |
19.5 |
0.05 |
228 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
16 |
13.3 |
0.05 |
278 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
18 |
7.98 |
0.05 |
381 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
20 |
4.95 |
0.05 |
521 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.35 |
23 |
3.3 |
0.05 |
763 |
|
| 10 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
16 |
19.5 |
0.05 |
257 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
18 |
13.3 |
0.05 |
312 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
19 |
7.98 |
0.05 |
429 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
21 |
4.95 |
0.05 |
585 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.44 |
25 |
3.3 |
0.05 |
868 |
|
| 11 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
16 |
19.5 |
0.05 |
269 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
18 |
13.3 |
0.05 |
329 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
19 |
7.98 |
0.05 |
454 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
21 |
4.95 |
0.05 |
624 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.44 |
25 |
3.3 |
0.05 |
926 |
|
| 12 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
17 |
19.5 |
0.05 |
288 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
18 |
13.3 |
0.05 |
353 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
20 |
7.98 |
0.05 |
489 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
22 |
4.95 |
0.05 |
673 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.53 |
26 |
3.3 |
0.05 |
1010 |
|
| 13 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
311 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
19 |
13.3 |
0.05 |
382 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
21 |
7.98 |
0.05 |
529 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
23 |
4.95 |
0.05 |
730 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.53 |
29 |
3.3 |
0.05 |
1096 |
|
| 14 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
324 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
19 |
13.3 |
0.05 |
399 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
21 |
7.98 |
0.05 |
555 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
23 |
4.95 |
0.05 |
767 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.53 |
28 |
3.3 |
0.05 |
1155 |
|
| 15 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
349 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
429 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
22 |
7.98 |
0.05 |
598 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.35 |
24 |
4.95 |
0.05 |
828 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.53 |
29 |
3.3 |
0.05 |
1246 |
|
| 16 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
362 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
446 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
22 |
7.98 |
0.05 |
623 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
24 |
4.95 |
0.05 |
875 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
29 |
3.3 |
0.05 |
1314 |
|
| 17 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
365 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
451 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
633 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
25 |
4.95 |
0.05 |
891 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1339 |
|
| 18 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
381 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
471 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
662 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
25 |
4.95 |
0.05 |
935 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1406 |
|
| 19 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
396 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
491 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
692 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
25 |
4.95 |
0.05 |
979 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1473 |
|
| 20 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
20 |
19.5 |
0.05 |
417 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
517 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
24 |
7.98 |
0.05 |
729 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
1030 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
33 |
3.3 |
0.05 |
1563 |
|
| 21 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
20 |
19.5 |
0.05 |
433 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
537 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
24 |
7.98 |
0.05 |
759 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
1074 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
33 |
3.3 |
0.05 |
1630 |
|
| 22 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
21 |
19.5 |
0.05 |
454 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
22 |
13.3 |
0.05 |
563 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
25 |
7.98 |
0.05 |
795 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
28 |
4.95 |
0.05 |
1126 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
34 |
3.3 |
0.05 |
1709 |
|
| 23 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
21 |
19.5 |
0.05 |
469 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
22 |
13.3 |
0.05 |
583 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.35 |
25 |
7.98 |
0.05 |
825 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.44 |
28 |
4.95 |
0.05 |
1169 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
34 |
3.3 |
0.05 |
1776 |
|
| 24 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
492 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
24 |
13.3 |
0.05 |
610 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.44 |
27 |
7.98 |
0.05 |
873 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1245 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
1857 |
|
| 25 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
507 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
24 |
13.3 |
0.05 |
630 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.44 |
27 |
7.98 |
0.05 |
903 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1289 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
1924 |
|
| 26 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
522 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
24 |
13.3 |
0.05 |
650 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.44 |
27 |
7.98 |
0.05 |
933 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1333 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
1991 |
|
| 27 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
541 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
24 |
13.3 |
0.05 |
673 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.53 |
28 |
7.98 |
0.05 |
977 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.62 |
31 |
4.95 |
0.05 |
1381 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
37 |
3.3 |
0.05 |
2064 |
|
| 28 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
23 |
19.5 |
0.05 |
561 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
25 |
13.3 |
0.05 |
698 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.53 |
29 |
7.98 |
0.05 |
1013 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1444 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2141 |
|
| 29 | 1 |
36/0.19 |
1.35 |
0.72 |
1.35 |
23 |
19.5 |
0.05 |
576 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.35 |
25 |
13.3 |
0.05 |
718 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.53 |
29 |
7.98 |
0.05 |
1043 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1488 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2208 |
|
| 30 | 1 |
36/0.19 |
1.35 |
0.72 |
1.44 |
23 |
19.5 |
0.05 |
600 |
1.5 |
36/0.23 |
1.65 |
0.72 |
1.44 |
25 |
13.3 |
0.05 |
747 |
|
2.5 |
60/0.23 |
2.15 |
0.72 |
1.53 |
29 |
7.98 |
0.05 |
1073 |
|
4 |
56/0.29 |
2.65 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1532 |
|
6 |
84/0.29 |
3.4 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2274 |
|
