应用及描述
此电缆用作电源线，永久连接线圈绕组的电机，面板布线和电气机械。耐高温，可浸泡在清漆中。也可用于汽车配线，HOFR护套防油抗漆，多股导体既保证了电缆使用时的灵活性也保证了其位置的稳定性，在某些应用中可以替代三相电缆和两相电缆使用。

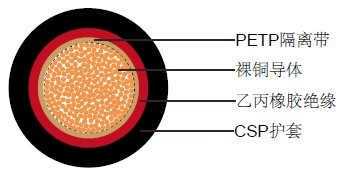

电缆结构
- 多股柔软裸铜导体
- 遵循BS 6360 Cl-5/IEC 60228 Cl-5
- PETP隔离带
- 乙丙橡胶-耐热，防油，阻燃绝缘, ype FR1 (4A & 4C) & FR2 (4D & 4E&4F)，遵循BS 7655
- CSP(氯磺化聚乙烯), HOFR (耐热，防油，阻燃)护套～BS 6899, 黑色
技术特性
- 工作电压: 4A类: 300/500V
4C类: 600/1000V
4D类: 1900/3300V
4E类: 3800/6600V
4F类: 6350/11000V
- 最小弯曲半径: 4x外径
- 工作温度: -20º C～+90º C
电缆参数
线规 |
芯数 x 导体截 |
标称绝缘厚度 |
标称外径 |
标称电缆重量 |
4A类 |
||||
18(24/32) |
1x0.75 |
0.8 |
3.5 |
16 |
17(32/32) |
1x1 |
0.8 |
3.7 |
19 |
16(30/30) |
1x1.5 |
0.8 |
4 |
25 |
14(50/30) |
1x2.5 |
0.9 |
4.6 |
37 |
12(56/28) |
1x4 |
1 |
5.4 |
57 |
10(84/28) |
1x6 |
1 |
6.5 |
80 |
8(80/26) |
1x10 |
1.2 |
7.9 |
130 |
4C类 |
||||
20(16/32) |
1x0.5 |
1.4 |
4.5 |
17 |
18(24/32) |
1x0.75 |
1.4 |
4.7 |
21 |
17(32/32) |
1x1 |
1.4 |
4.9 |
24 |
16(30/30) |
1x1.5 |
1.4 |
5.2 |
30 |
14(50/30) |
1x2.5 |
1.4 |
5.6 |
41 |
12(56/28) |
1x4 |
1.4 |
6.3 |
66 |
10(84/28) |
1x6 |
1.5 |
7.5 |
93 |
8(80/26) |
1x10 |
1.5 |
8.5 |
136 |
6(128/26) |
1x16 |
1.5 |
9.6 |
206 |
4(200/26) |
1x25 |
1.6 |
11.4 |
300 |
2(280/26) |
1x35 |
1.6 |
12.8 |
406 |
1(400/26) |
1x50 |
1.7 |
14.8 |
573 |
2/0(356/24) |
1x70 |
1.8 |
17.2 |
793 |
3/0(485/24) |
1x95 |
2 |
19.7 |
1028 |
4/0(614/24) |
1x120 |
2.2 |
21.9 |
1285 |
300 MCM (765/24) |
1x150 |
2.3 |
24.1 |
1562 |
350 MCM (944/24) |
1x185 |
2.4 |
26.3 |
1914 |
500MCM(1225/24) |
1x240 |
2.4 |
28.3 |
2431 |
(1525/24) |
1x300 |
2.6 |
33 |
3024 |
(2013/24) |
1x400 |
2.8 |
37.4 |
3948 |
4D类 |
||||
6(128/26) |
1x16 |
2.8 |
12.4 |
255 |
4(200/26) |
1x25 |
2.8 |
13.8 |
351 |
2(280/26) |
1x35 |
2.8 |
15.2 |
458 |
1(400/26) |
1x50 |
2.8 |
17.1 |
616 |
2/0(356/24) |
1x70 |
2.8 |
19.2 |
820 |
3/0(485/24) |
1x95 |
3 |
22 |
1097 |
4/0(614/24) |
1x120 |
3 |
23.5 |
1340 |
300 MCM (765/24) |
1x150 |
3 |
25.5 |
1635 |
350 MCM (944/24) |
1x185 |
3 |
27.5 |
1973 |
500MCM(1225/24) |
1x240 |
3 |
30.6 |
2504 |
(1525/24) |
1x300 |
3 |
33.8 |
3098 |
(2013/24) |
1x400 |
3 |
37.8 |
4045 |
4E类 |
||||
6(128/26) |
1x16 |
5 |
17.2 |
384 |
4(200/26) |
1x25 |
5 |
18.6 |
495 |
2(280/26) |
1x35 |
5 |
20 |
613 |
1(400/26) |
1x50 |
5 |
22.1 |
796 |
2/0(356/24) |
1x70 |
5 |
24.2 |
1020 |
3/0(485/24) |
1x95 |
5 |
26.3 |
1287 |
4/0(614/24) |
1x120 |
5 |
27.8 |
1542 |
300 MCM (765/24) |
1x150 |
5 |
29.8 |
1853 |
350 MCM (944/24) |
1x185 |
5 |
32.1 |
2225 |
500MCM(1225/24) |
1x240 |
5 |
35.1 |
2782 |
4F类 |
||||
6(128/26) |
1x16 |
7.6 |
22.9 |
566 |
4(200/26) |
1x25 |
7.6 |
24.1 |
680 |
2(280/26) |
1x35 |
7.6 |
25.5 |
810 |
1(400/26) |
1x50 |
7.6 |
27.3 |
997 |
2/0(356/24) |
1x70 |
7.6 |
29.4 |
1237 |
3/0(485/24) |
1x95 |
7.6 |
31.5 |
1520 |
4/0(614/24) |
1x120 |
7.6 |
33.3 |
1804 |
300 MCM (765/24) |
1x150 |
7.6 |
35.3 |
2131 |
350 MCM (944/24) |
1x185 |
7.6 |
37.3 |
2503 |
500MCM(1225/24) |
1x240 |
7.6 |
40.3 |
3081 |
