应用及描述
此电缆主要用于电气设备和电站控制电路的监控，可户外安装，或安装于干燥或潮湿的电缆沟中。
标准及认证
IEC 60502-1标准,JIS C 3401标准

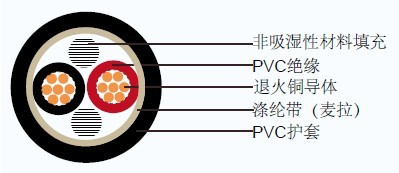

电缆结构
导体: 同心多股退火铜导体, 0.5 mm2到6 mm2
绝缘: 聚氯乙烯(PVC)
颜色: 2-4芯-黑色, 白色, 红色，绿色
多于4芯: 黑色线芯加数字标注
填充: 非吸湿性材料(可选)
粘合带: 涤纶带（麦拉） (可选)
护套: 聚氯乙烯(PVC), 黑色 (可选阻燃聚氯乙烯FR-PVC)
技术特性
最大导体温度 70oC
回路电压不超过 600 V
测试电压 2000V(JIS) / 3500 V(IEC)
电缆参数
IEC 60502-1标准电缆
芯数 |
导体 |
绝缘厚度 |
护套厚度 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
| 标称导体 截面积 |
股数/直径 | 直径 | |||||||
mm² |
mm | mm |
mm |
mm |
mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
9.5 |
36 |
0.0162 |
100 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
10 |
24.5 |
0.0142 |
110 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
10.5 |
18.1 |
0.0128 |
120 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
11 |
12.1 |
0.0112 |
140 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
12 |
7.41 |
0.0093 |
180 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
14 |
4.61 |
0.0092 |
250 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
15.5 |
3.08 |
0.0078 |
310 |
|
| 3 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
10 |
36 |
0.0162 |
110 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
10.5 |
24.5 |
0.0142 |
130 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
11 |
18.1 |
0.0128 |
140 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
12 |
12.1 |
0.0112 |
170 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
13 |
7.41 |
0.0093 |
210 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
15 |
4.61 |
0.0092 |
310 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
16 |
3.08 |
0.0078 |
390 |
|
| 4 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
11 |
36 |
0.0162 |
130 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
11.5 |
24.5 |
0.0142 |
150 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
12 |
18.1 |
0.0128 |
170 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
12.5 |
12.1 |
0.0112 |
200 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
14 |
7.41 |
0.0093 |
260 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
16 |
4.61 |
0.0092 |
380 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
17.5 |
3.08 |
0.0078 |
490 |
|
| 5 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
12 |
36 |
0.0162 |
150 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
12.5 |
24.5 |
0.0142 |
180 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
13 |
18.1 |
0.0128 |
200 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
13.5 |
12.1 |
0.0112 |
240 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
15 |
7.41 |
0.0093 |
320 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
17.5 |
4.61 |
0.0092 |
470 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
19 |
3.08 |
0.0078 |
600 |
|
| 6 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
12.5 |
36 |
0.0162 |
160 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
13.5 |
24.5 |
0.0142 |
190 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
14 |
18.1 |
0.0128 |
220 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
14.5 |
12.1 |
0.0112 |
260 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
16 |
7.41 |
0.0093 |
340 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
19 |
4.61 |
0.0092 |
510 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
20.5 |
3.08 |
0.0078 |
660 |
|
| 7 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
12.5 |
36 |
0.0162 |
170 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
13.5 |
24.5 |
0.0142 |
200 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
14 |
18.1 |
0.0128 |
230 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
14.5 |
12.1 |
0.0112 |
270 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
16 |
7.41 |
0.0093 |
370 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
19 |
4.61 |
0.0092 |
540 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
20.5 |
3.08 |
0.0078 |
720 |
|
| 8 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
13.5 |
36 |
0.0162 |
190 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
14 |
24.5 |
0.0142 |
220 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
15 |
18.1 |
0.0128 |
250 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
15.5 |
12.1 |
0.0112 |
310 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
17 |
7.41 |
0.0093 |
410 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
20.5 |
4.61 |
0.0092 |
610 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
22.5 |
3.08 |
0.0078 |
810 |
|
| 9 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
14.5 |
36 |
0.0162 |
210 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
15 |
24.5 |
0.0142 |
250 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
16 |
18.1 |
0.0128 |
280 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
17 |
12.1 |
0.0112 |
340 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
18.5 |
7.41 |
0.0093 |
460 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
22 |
4.61 |
0.0092 |
690 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
24 |
3.08 |
0.0078 |
920 |
|
| 10 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
15.5 |
36 |
0.0162 |
230 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
16 |
24.5 |
0.0142 |
270 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
17 |
18.1 |
0.0128 |
310 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
18 |
12.1 |
0.0112 |
370 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
20 |
7.41 |
0.0093 |
510 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
24 |
4.61 |
0.0092 |
760 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
26 |
3.08 |
0.0078 |
1000 |
|
| 11 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
16 |
36 |
0.0162 |
250 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
16.5 |
24.5 |
0.0142 |
290 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
17.5 |
18.1 |
0.0128 |
340 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
18.5 |
12.1 |
0.0112 |
410 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
20.5 |
7.41 |
0.0093 |
560 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
24.5 |
4.61 |
0.0092 |
840 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
27 |
3.08 |
0.0078 |
1120 |
|
| 12 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
16 |
36 |
0.0162 |
250 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
16.5 |
24.5 |
0.0142 |
300 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
17.5 |
18.1 |
0.0128 |
350 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
18.5 |
12.1 |
0.0112 |
430 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
20.5 |
7.41 |
0.0093 |
580 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
24.5 |
4.61 |
0.0092 |
880 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
27 |
3.08 |
0.0078 |
1170 |
|
| 13 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
16.5 |
36 |
0.0162 |
280 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
17.5 |
24.5 |
0.0142 |
330 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
18.5 |
18.1 |
0.0128 |
380 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
19.5 |
12.1 |
0.0112 |
470 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
21.5 |
7.41 |
0.0093 |
640 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
26 |
4.61 |
0.0092 |
970 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
28.5 |
3.08 |
0.0078 |
1290 |
|
| 14 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
16.5 |
36 |
0.0162 |
280 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
17.5 |
24.5 |
0.0142 |
340 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
18.5 |
18.1 |
0.0128 |
390 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
19.5 |
12.1 |
0.0112 |
480 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
21.5 |
7.41 |
0.0093 |
660 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
26 |
4.61 |
0.0092 |
1000 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
28.5 |
3.08 |
0.0078 |
1340 |
|
| 15 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
17.5 |
36 |
0.0162 |
310 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
18.5 |
24.5 |
0.0142 |
370 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
19 |
18.1 |
0.0128 |
430 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
20.5 |
12.1 |
0.0112 |
530 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
22.5 |
7.41 |
0.0093 |
730 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
27 |
4.61 |
0.0092 |
1100 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
30 |
3.08 |
0.0078 |
1480 |
|
| 16 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
17.5 |
36 |
0.0162 |
320 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
18.5 |
24.5 |
0.0142 |
380 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
19 |
18.1 |
0.0128 |
440 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
20.5 |
12.1 |
0.0112 |
540 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
22.5 |
7.41 |
0.0093 |
750 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
27 |
4.61 |
0.0092 |
1140 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
30 |
3.08 |
0.0078 |
1530 |
|
| 17 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
18 |
36 |
0.0162 |
340 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
19 |
24.5 |
0.0142 |
410 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
20 |
18.1 |
0.0128 |
480 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
21.5 |
12.1 |
0.0112 |
590 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
23.5 |
7.41 |
0.0093 |
820 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
28.5 |
4.61 |
0.0092 |
1240 |
|
6 |
7/1.04 |
3.12 |
1 |
1.9 |
31.5 |
3.08 |
0.0078 |
1660 |
|
| 18 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
18 |
36 |
0.0162 |
350 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
19 |
24.5 |
0.0142 |
420 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
20 |
18.1 |
0.0128 |
490 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
21.5 |
12.1 |
0.0112 |
610 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
23.5 |
7.41 |
0.0093 |
840 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
28.5 |
4.61 |
0.0092 |
1280 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
31.5 |
3.08 |
0.0078 |
1720 |
|
| 19 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
18 |
36 |
0.0162 |
360 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
19 |
24.5 |
0.0142 |
430 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
20 |
18.1 |
0.0128 |
500 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
21.5 |
12.1 |
0.0112 |
620 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
23.5 |
7.41 |
0.0093 |
860 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
28.5 |
4.61 |
0.0092 |
1310 |
|
6 |
7/1.04 |
3.12 |
1 |
1.8 |
31.5 |
3.08 |
0.0078 |
1770 |
|
| 20 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
19 |
36 |
0.0162 |
380 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
20 |
24.5 |
0.0142 |
460 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
21 |
18.1 |
0.0128 |
540 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
22.5 |
12.1 |
0.0112 |
670 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
25 |
7.41 |
0.0093 |
930 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
30 |
4.61 |
0.0092 |
1420 |
|
6 |
7/1.04 |
3.12 |
1 |
1.9 |
33.5 |
3.08 |
0.0078 |
1920 |
|
| 21 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
19 |
36 |
0.0162 |
390 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
20 |
24.5 |
0.0142 |
470 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
21 |
18.1 |
0.0128 |
550 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
22.5 |
12.1 |
0.0112 |
680 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
25 |
7.41 |
0.0093 |
940 |
|
4 |
7/0.85 |
2.55 |
1 |
1.8 |
30 |
4.61 |
0.0092 |
1440 |
|
6 |
7/1.04 |
3.12 |
1 |
1.9 |
33.5 |
3.08 |
0.0078 |
1960 |
|
| 22 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
20 |
36 |
0.0162 |
420 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
21 |
24.5 |
0.0142 |
510 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
22 |
18.1 |
0.0128 |
590 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
23.5 |
12.1 |
0.0112 |
740 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
26 |
7.41 |
0.0093 |
1030 |
|
4 |
7/0.85 |
2.55 |
1 |
1.9 |
32 |
4.61 |
0.0092 |
1580 |
|
6 |
7/1.04 |
3.12 |
1 |
2 |
35.5 |
3.08 |
0.0078 |
2140 |
|
| 23 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
20 |
36 |
0.0162 |
430 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
21 |
24.5 |
0.0142 |
520 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
22 |
18.1 |
0.0128 |
600 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
23.5 |
12.1 |
0.0112 |
750 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
26 |
7.41 |
0.0093 |
1050 |
|
4 |
7/0.85 |
2.55 |
1 |
1.9 |
32 |
4.61 |
0.0092 |
1620 |
|
6 |
7/1.04 |
3.12 |
1 |
2 |
35.5 |
3.08 |
0.0078 |
2190 |
|
| 24 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
21 |
36 |
0.0162 |
440 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
22 |
24.5 |
0.0142 |
530 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
23 |
18.1 |
0.0128 |
620 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
25 |
12.1 |
0.0112 |
770 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
27.5 |
7.41 |
0.0093 |
1070 |
|
4 |
7/0.85 |
2.55 |
1 |
1.9 |
34 |
4.61 |
0.0092 |
1660 |
|
6 |
7/1.04 |
3.12 |
1 |
2 |
37.5 |
3.08 |
0.0078 |
2250 |
|
| 25 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
21.5 |
36 |
0.0162 |
460 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
22.5 |
24.5 |
0.0142 |
560 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
23.5 |
18.1 |
0.0128 |
660 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
25.5 |
12.1 |
0.0112 |
820 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
28 |
7.41 |
0.0093 |
1140 |
|
4 |
7/0.85 |
2.55 |
1 |
1.9 |
34.5 |
4.61 |
0.0092 |
1760 |
|
6 |
7/1.04 |
3.12 |
1 |
2 |
38.5 |
3.08 |
0.0078 |
2390 |
|
| 26 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
21.5 |
36 |
0.0162 |
470 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
22.5 |
24.5 |
0.0142 |
570 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
23.5 |
18.1 |
0.0128 |
670 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
25.5 |
12.1 |
0.0112 |
830 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
28 |
7.41 |
0.0093 |
1160 |
|
4 |
7/0.85 |
2.55 |
1 |
1.9 |
34.5 |
4.61 |
0.0092 |
1800 |
|
6 |
7/1.04 |
3.12 |
1 |
2 |
38.5 |
3.08 |
0.0078 |
2440 |
|
| 27 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
21.5 |
36 |
0.0162 |
480 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
22.5 |
24.5 |
0.0142 |
580 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
23.5 |
18.1 |
0.0128 |
680 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
25.5 |
12.1 |
0.0112 |
840 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
28 |
7.41 |
0.0093 |
1190 |
|
4 |
7/0.85 |
2.55 |
1 |
1.9 |
34.5 |
4.61 |
0.0092 |
1830 |
|
6 |
7/1.04 |
3.12 |
1 |
2 |
38.5 |
3.08 |
0.0078 |
2500 |
|
| 28 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
22 |
36 |
0.0162 |
500 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
23.5 |
24.5 |
0.0142 |
610 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
24.5 |
18.1 |
0.0128 |
720 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
26.5 |
12.1 |
0.0112 |
900 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
29 |
7.41 |
0.0093 |
1260 |
|
4 |
7/0.85 |
2.55 |
1 |
2 |
36 |
4.61 |
0.0092 |
1960 |
|
6 |
7/1.04 |
3.12 |
1 |
2.1 |
40 |
3.08 |
0.0078 |
2660 |
|
| 29 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
22 |
36 |
0.0162 |
510 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
23.5 |
24.5 |
0.0142 |
620 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
24.5 |
18.1 |
0.0128 |
730 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
26.5 |
12.1 |
0.0112 |
910 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
29 |
7.41 |
0.0093 |
1280 |
|
4 |
7/0.85 |
2.55 |
1 |
2 |
36 |
4.61 |
0.0092 |
2000 |
|
6 |
7/1.04 |
3.12 |
1 |
2.1 |
40 |
3.08 |
0.0078 |
2720 |
|
| 30 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1.8 |
22 |
36 |
0.0162 |
520 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1.8 |
23.5 |
24.5 |
0.0142 |
630 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1.8 |
24.5 |
18.1 |
0.0128 |
740 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1.8 |
26.5 |
12.1 |
0.0112 |
930 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1.8 |
29 |
7.41 |
0.0093 |
1300 |
|
4 |
7/0.85 |
2.55 |
1 |
2 |
36 |
4.61 |
0.0092 |
2030 |
|
6 |
7/1.04 |
3.12 |
1 |
2.1 |
40 |
3.08 |
0.0078 |
2770 |
|
JIS C 3401标准电缆
芯数 |
导体 |
绝缘厚度 |
护套厚度 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
| 标称导体 截面积 |
股数/直径 | 直径 | |||||||
mm² |
mm | mm |
mm |
mm |
mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
11 |
19.5 |
0.05 |
86 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
11 |
13.3 |
0.05 |
103 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
12 |
7.98 |
0.05 |
132 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
13 |
4.95 |
0.05 |
174 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
15 |
3.3 |
0.05 |
241 |
|
| 3 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
11 |
19.5 |
0.05 |
103 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
12 |
13.3 |
0.05 |
126 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
13 |
7.98 |
0.05 |
166 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
14 |
4.95 |
0.05 |
225 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
16 |
3.3 |
0.05 |
315 |
|
| 4 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
12 |
19.5 |
0.05 |
124 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
13 |
13.3 |
0.05 |
153 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
14 |
7.98 |
0.05 |
205 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
15 |
4.95 |
0.05 |
281 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
17 |
3.3 |
0.05 |
398 |
|
| 5 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
13 |
19.5 |
0.05 |
145 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
182 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
15 |
7.98 |
0.05 |
246 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
16 |
4.95 |
0.05 |
338 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
19 |
3.3 |
0.05 |
484 |
|
| 6 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
168 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
211 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
16 |
7.98 |
0.05 |
288 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
17 |
4.95 |
0.05 |
399 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
20 |
3.3 |
0.05 |
573 |
|
| 7 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
181 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
14 |
13.3 |
0.05 |
230 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
16 |
7.98 |
0.05 |
316 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
17 |
4.95 |
0.05 |
442 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
20 |
3.3 |
0.05 |
637 |
|
| 8 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
14 |
19.5 |
0.05 |
205 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
15 |
13.3 |
0.05 |
260 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
17 |
7.98 |
0.05 |
359 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
19 |
4.95 |
0.05 |
503 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
22 |
3.3 |
0.05 |
727 |
|
| 9 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
15 |
19.5 |
0.05 |
228 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
16 |
13.3 |
0.05 |
290 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
18 |
7.98 |
0.05 |
403 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
20 |
4.95 |
0.05 |
566 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.35 |
23 |
3.3 |
0.05 |
819 |
|
| 10 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
16 |
19.5 |
0.05 |
256 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
17 |
13.3 |
0.05 |
326 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
19 |
7.98 |
0.05 |
452 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
21 |
4.95 |
0.05 |
635 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.44 |
25 |
3.3 |
0.05 |
931 |
|
| 11 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
16 |
19.5 |
0.05 |
268 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
17 |
13.3 |
0.05 |
345 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
19 |
7.98 |
0.05 |
480 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
21 |
4.95 |
0.05 |
677 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.44 |
25 |
3.3 |
0.05 |
996 |
|
| 12 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
17 |
19.5 |
0.05 |
288 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
18 |
13.3 |
0.05 |
369 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
20 |
7.98 |
0.05 |
517 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
22 |
4.95 |
0.05 |
732 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
26 |
3.3 |
0.05 |
1085 |
|
| 13 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
17 |
19.5 |
0.05 |
311 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
19 |
13.3 |
0.05 |
400 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
21 |
7.98 |
0.05 |
560 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
23 |
4.95 |
0.05 |
794 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
28 |
3.3 |
0.05 |
1178 |
|
| 14 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
17 |
19.5 |
0.05 |
324 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
19 |
13.3 |
0.05 |
418 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
21 |
7.98 |
0.05 |
588 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
23 |
4.95 |
0.05 |
836 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
28 |
3.3 |
0.05 |
1242 |
|
| 15 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
349 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
450 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
22 |
7.98 |
0.05 |
634 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.35 |
24 |
4.95 |
0.05 |
902 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.53 |
29 |
3.3 |
0.05 |
1339 |
|
| 16 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
18 |
19.5 |
0.05 |
361 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
469 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
22 |
7.98 |
0.05 |
662 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
24 |
4.95 |
0.05 |
953 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
30 |
3.3 |
0.05 |
1414 |
|
| 17 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
366 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
476 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
674 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
974 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1444 |
|
| 18 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
382 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
497 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
706 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
1022 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1517 |
|
| 19 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
19 |
19.5 |
0.05 |
397 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
20 |
13.3 |
0.05 |
519 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
23 |
7.98 |
0.05 |
739 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
26 |
4.95 |
0.05 |
1070 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
31 |
3.3 |
0.05 |
1590 |
|
| 20 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
20 |
19.5 |
0.05 |
418 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
546 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
24 |
7.98 |
0.05 |
778 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
27 |
4.95 |
0.05 |
1127 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
33 |
3.3 |
0.05 |
1686 |
|
| 21 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
20 |
19.5 |
0.05 |
434 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
21 |
13.3 |
0.05 |
568 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
24 |
7.98 |
0.05 |
810 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
27 |
4.95 |
0.05 |
1175 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
33 |
3.3 |
0.05 |
1759 |
|
| 22 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
21 |
19.5 |
0.05 |
455 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
22 |
13.3 |
0.05 |
595 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
25 |
7.98 |
0.05 |
849 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
28 |
4.95 |
0.05 |
1232 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
34 |
3.3 |
0.05 |
1844 |
|
| 23 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
21 |
19.5 |
0.05 |
470 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
22 |
13.3 |
0.05 |
617 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.35 |
25 |
7.98 |
0.05 |
881 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.44 |
28 |
4.95 |
0.05 |
1280 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
34 |
3.3 |
0.05 |
1917 |
|
| 24 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
493 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
23 |
13.3 |
0.05 |
646 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.44 |
26 |
7.98 |
0.05 |
932 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1362 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
2005 |
|
| 25 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
508 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
23 |
13.3 |
0.05 |
667 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.44 |
26 |
7.98 |
0.05 |
964 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1410 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
2078 |
|
| 26 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
524 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
23 |
13.3 |
0.05 |
689 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.44 |
26 |
7.98 |
0.05 |
996 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
30 |
4.95 |
0.05 |
1458 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
36 |
3.3 |
0.05 |
2151 |
|
| 27 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
22 |
19.5 |
0.05 |
542 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
24 |
13.3 |
0.05 |
713 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
27 |
7.98 |
0.05 |
1042 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
31 |
4.95 |
0.05 |
1511 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
37 |
3.3 |
0.05 |
2230 |
|
| 28 | 1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
23 |
19.5 |
0.05 |
562 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
25 |
13.3 |
0.05 |
740 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
28 |
7.98 |
0.05 |
1081 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1580 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2312 |
|
29 |
1 |
7/0.43 |
1.29 |
0.72 |
1.35 |
23 |
19.5 |
0.05 |
578 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.35 |
25 |
13.3 |
0.05 |
761 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
28 |
7.98 |
0.05 |
1113 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1628 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2385 |
|
30 |
1 |
7/0.43 |
1.29 |
0.72 |
1.44 |
23 |
19.5 |
0.05 |
602 |
1.5 |
7/0.52 |
1.56 |
0.72 |
1.44 |
25 |
13.3 |
0.05 |
792 |
|
2.5 |
7/0.67 |
2.01 |
0.72 |
1.53 |
28 |
7.98 |
0.05 |
1146 |
|
4 |
7/0.85 |
2.55 |
0.72 |
1.62 |
32 |
4.95 |
0.05 |
1677 |
|
6 |
7/1.04 |
3.12 |
0.9 |
1.62 |
38 |
3.3 |
0.05 |
2458 |
|
