应用及描述
此电缆可通过电缆管道,电缆盘安装,或直埋于地下,也可在水下使用。
标准及认证
IEC 60502-1标准,

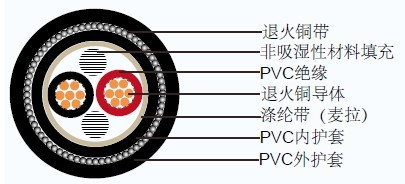

电缆结构
导体: 同心多股退火铜导体, 0.5 mm2到6 mm2
绝缘: 聚氯乙烯(PVC)
颜色: 2-4芯-黑色, 白色, 红色,绿色 ,多于4芯: 黑色线芯加数字标注
填充: 非吸湿性材料(可选)
粘合带: 涤纶带(麦拉) (可选)
内护套: 聚氯乙烯(PVC), 黑色
铠装: 镀锌钢丝铠装
隔离带: 涤纶带(麦拉)
外护套: 聚氯乙烯(PVC), 黑色(可选阻燃聚氯乙烯FR-PVC)
技术特性
最大导体温度 70oC
回路电压不超过 600 V
测试电压 3500 V
电缆参数
IEC 60502-1标准电缆
芯数 |
导体 |
绝缘厚度 |
内护套厚度 |
钢丝铠装 直径 |
外护套厚度 |
线缆外径 |
20°c时的 |
70°c时的 |
线缆重量 |
||
标称导体 截面积 |
股数/直径 | 直径 | |||||||||
mm² |
mm | mm |
mm |
mm |
mm | mm |
mm |
Ohm / km |
Ohm/km |
kg / km |
|
2 |
0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
0.8 |
1.8 |
14.5 |
36 |
0.0162 |
300 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
0.8 |
1.8 |
15 |
24.5 |
0.0142 |
320 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
0.8 |
1.8 |
15.5 |
18.1 |
0.0128 |
340 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
0.8 |
1.8 |
16 |
12.1 |
0.0112 |
370 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
0.8 |
1.8 |
17 |
7.41 |
0.0093 |
430 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.25 |
1.8 |
20 |
4.61 |
0.0092 |
670 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.25 |
1.8 |
21 |
3.08 |
0.0078 |
760 |
|
3 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
0.8 |
1.8 |
15 |
36 |
0.0162 |
320 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
0.8 |
1.8 |
15.5 |
24.5 |
0.0142 |
350 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
0.8 |
1.8 |
16 |
18.1 |
0.0128 |
370 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
0.8 |
1.8 |
16.5 |
12.1 |
0.0112 |
410 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
0.8 |
1.8 |
17.5 |
7.41 |
0.0093 |
480 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.25 |
1.8 |
20.5 |
4.61 |
0.0092 |
750 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.25 |
1.8 |
22 |
3.08 |
0.0078 |
870 |
|
4 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
0.8 |
1.8 |
16 |
36 |
0.0162 |
360 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
0.8 |
1.8 |
16.5 |
24.5 |
0.0142 |
390 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
0.8 |
1.8 |
17 |
18.1 |
0.0128 |
420 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
0.8 |
1.8 |
17.5 |
12.1 |
0.0112 |
460 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.25 |
1.8 |
19.5 |
7.41 |
0.0093 |
660 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.25 |
1.8 |
22 |
4.61 |
0.0092 |
860 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.25 |
1.8 |
23.5 |
3.08 |
0.0078 |
1010 |
|
5 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
0.8 |
1.8 |
16.5 |
36 |
0.0162 |
400 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
0.8 |
1.8 |
17.5 |
24.5 |
0.0142 |
430 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
0.8 |
1.8 |
18 |
18.1 |
0.0128 |
470 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
19.5 |
12.1 |
0.0112 |
640 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.25 |
1.8 |
20.5 |
7.41 |
0.0093 |
760 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.25 |
1.8 |
23.5 |
4.61 |
0.0092 |
990 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.25 |
1.8 |
25 |
3.08 |
0.0078 |
1170 |
|
6 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
0.8 |
1.8 |
17.5 |
36 |
0.0162 |
420 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
0.8 |
1.8 |
18 |
24.5 |
0.0142 |
470 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
19.5 |
18.1 |
0.0128 |
620 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
20.5 |
12.1 |
0.0112 |
690 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.25 |
1.8 |
22 |
7.41 |
0.0093 |
820 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.25 |
1.8 |
25 |
4.61 |
0.0092 |
1070 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.8 |
27 |
3.08 |
0.0078 |
1420 |
|
7 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
0.8 |
1.8 |
17.5 |
36 |
0.0162 |
430 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
0.8 |
1.8 |
18 |
24.5 |
0.0142 |
480 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
19.5 |
18.1 |
0.0128 |
630 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
20.5 |
12.1 |
0.0112 |
700 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.25 |
1.8 |
22 |
7.41 |
0.0093 |
840 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.25 |
1.8 |
25 |
4.61 |
0.0092 |
1100 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.8 |
27 |
3.08 |
0.0078 |
1470 |
|
8 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
19.5 |
36 |
0.0162 |
580 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
20 |
24.5 |
0.0142 |
640 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
20.5 |
18.1 |
0.0128 |
690 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
21.5 |
12.1 |
0.0112 |
770 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.25 |
1.8 |
23 |
7.41 |
0.0093 |
930 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.8 |
27 |
4.61 |
0.0092 |
1370 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.8 |
29 |
3.08 |
0.0078 |
1640 |
|
9 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
20 |
36 |
0.0162 |
640 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
21 |
24.5 |
0.0142 |
700 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
21.5 |
18.1 |
0.0128 |
750 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
22.5 |
12.1 |
0.0112 |
840 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.25 |
1.8 |
24 |
7.41 |
0.0093 |
1010 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.8 |
28.5 |
4.61 |
0.0092 |
1500 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.8 |
30.5 |
3.08 |
0.0078 |
1800 |
|
10 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
21 |
36 |
0.0162 |
680 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
22 |
24.5 |
0.0142 |
740 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
23 |
18.1 |
0.0128 |
810 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
24 |
12.1 |
0.0112 |
910 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
7.41 |
0.0093 |
1240 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.8 |
30.5 |
4.61 |
0.0092 |
1620 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.9 |
33 |
3.08 |
0.0078 |
1980 |
|
11 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
21.5 |
36 |
0.0162 |
710 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
22.5 |
24.5 |
0.0142 |
790 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
23.5 |
18.1 |
0.0128 |
850 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
24.5 |
12.1 |
0.0112 |
960 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
27 |
7.41 |
0.0093 |
1310 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.8 |
31 |
4.61 |
0.0092 |
1750 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.9 |
33.5 |
3.08 |
0.0078 |
2130 |
|
12 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
21.5 |
36 |
0.0162 |
720 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
22.5 |
24.5 |
0.0142 |
800 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
23.5 |
18.1 |
0.0128 |
860 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.25 |
1.8 |
24.5 |
12.1 |
0.0112 |
980 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
27 |
7.41 |
0.0093 |
1330 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.8 |
31 |
4.61 |
0.0092 |
1780 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.9 |
33.5 |
3.08 |
0.0078 |
2190 |
|
13 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
22.5 |
36 |
0.0162 |
760 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
23.5 |
24.5 |
0.0142 |
840 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
24 |
18.1 |
0.0128 |
920 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
26 |
12.1 |
0.0112 |
1190 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
28 |
7.41 |
0.0093 |
1430 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.8 |
32.5 |
4.61 |
0.0092 |
1910 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.9 |
35 |
3.08 |
0.0078 |
2350 |
|
14 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
22.5 |
36 |
0.0162 |
770 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
23.5 |
24.5 |
0.0142 |
850 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
24 |
18.1 |
0.0128 |
930 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
26 |
12.1 |
0.0112 |
1200 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
28 |
7.41 |
0.0093 |
1450 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.8 |
32.5 |
4.61 |
0.0092 |
1950 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
1.9 |
35 |
3.08 |
0.0078 |
2400 |
|
15 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
23 |
36 |
0.0162 |
820 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
24 |
24.5 |
0.0142 |
920 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
25 |
18.1 |
0.0128 |
1000 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
27 |
12.1 |
0.0112 |
1280 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
29 |
7.41 |
0.0093 |
1560 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.9 |
34 |
4.61 |
0.0092 |
2120 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
2 |
37 |
3.08 |
0.0078 |
2600 |
|
16 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
23 |
36 |
0.0162 |
830 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
24 |
24.5 |
0.0142 |
930 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.25 |
1.8 |
25 |
18.1 |
0.0128 |
1010 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
27 |
12.1 |
0.0112 |
1300 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
29 |
7.41 |
0.0093 |
1580 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.9 |
34 |
4.61 |
0.0092 |
2160 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
1.6 |
2 |
37 |
3.08 |
0.0078 |
2660 |
|
17 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
24 |
36 |
0.0162 |
880 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
25 |
24.5 |
0.0142 |
980 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
18.1 |
0.0128 |
1220 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
28 |
12.1 |
0.0112 |
1390 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
30 |
7.41 |
0.0093 |
1690 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.9 |
35.5 |
4.61 |
0.0092 |
2320 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
2 |
2 |
39.5 |
3.08 |
0.0078 |
3120 |
|
18 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
24 |
36 |
0.0162 |
890 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
25 |
24.5 |
0.0142 |
990 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
18.1 |
0.0128 |
1230 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
28 |
12.1 |
0.0112 |
1400 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
30 |
7.41 |
0.0093 |
1700 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.9 |
35.5 |
4.61 |
0.0092 |
2350 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
2 |
2 |
39.5 |
3.08 |
0.0078 |
3170 |
|
19 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
24 |
36 |
0.0162 |
900 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.25 |
1.8 |
25 |
24.5 |
0.0142 |
1000 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
18.1 |
0.0128 |
1240 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
28 |
12.1 |
0.0112 |
1410 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
30 |
7.41 |
0.0093 |
1730 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
1.9 |
35.5 |
4.61 |
0.0092 |
2390 |
|
6 |
7/1.04 |
3.12 |
1 |
1 |
2 |
2 |
39.5 |
3.08 |
0.0078 |
3220 |
|
20 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
25 |
36 |
0.0162 |
940 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
24.5 |
0.0142 |
1200 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
27.5 |
18.1 |
0.0128 |
1310 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
29 |
12.1 |
0.0112 |
1500 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
31.5 |
7.41 |
0.0093 |
1860 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
2 |
37 |
4.61 |
0.0092 |
2570 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.1 |
41.5 |
3.08 |
0.0078 |
3500 |
|
21 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.25 |
1.8 |
25 |
36 |
0.0162 |
950 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
24.5 |
0.0142 |
1210 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
27.5 |
18.1 |
0.0128 |
1320 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
29 |
12.1 |
0.0112 |
1510 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.8 |
31.5 |
7.41 |
0.0093 |
1870 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
1.6 |
2 |
37 |
4.61 |
0.0092 |
2590 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.1 |
41.5 |
3.08 |
0.0078 |
3540 |
|
22 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
36 |
0.0162 |
1150 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
27.5 |
24.5 |
0.0142 |
1280 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
28.5 |
18.1 |
0.0128 |
1400 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
30 |
12.1 |
0.0112 |
1600 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
33 |
7.41 |
0.0093 |
2000 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
2 |
2.1 |
39.5 |
4.61 |
0.0092 |
3040 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.2 |
43.5 |
3.08 |
0.0078 |
3810 |
|
23 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
26.5 |
36 |
0.0162 |
1160 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
27.5 |
24.5 |
0.0142 |
1290 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
28.5 |
18.1 |
0.0128 |
1420 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
30 |
12.1 |
0.0112 |
1620 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
33 |
7.41 |
0.0093 |
2030 |
|
4 |
7/0.85 |
2.55 |
1 |
1 |
2 |
2.1 |
39.5 |
4.61 |
0.0092 |
3080 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.2 |
43.5 |
3.08 |
0.0078 |
3870 |
|
24 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
27.5 |
36 |
0.0162 |
1210 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
28.5 |
24.5 |
0.0142 |
1340 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
29.5 |
18.1 |
0.0128 |
1470 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
31.5 |
12.1 |
0.0112 |
1680 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
34.5 |
7.41 |
0.0093 |
2110 |
|
4 |
7/0.85 |
2.55 |
1 |
1.2 |
2 |
2.1 |
42 |
4.61 |
0.0092 |
3260 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.2 |
45.5 |
3.08 |
0.0078 |
4010 |
|
25 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
28 |
36 |
0.0162 |
1250 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
29 |
24.5 |
0.0142 |
1390 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
30 |
18.1 |
0.0128 |
1530 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
32 |
12.1 |
0.0112 |
1760 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
35 |
7.41 |
0.0093 |
2200 |
|
4 |
7/0.85 |
2.55 |
1 |
1.2 |
2 |
2.1 |
43 |
4.61 |
0.0092 |
3400 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.2 |
46.5 |
3.08 |
0.0078 |
4220 |
|
26 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
28 |
36 |
0.0162 |
1260 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
29 |
24.5 |
0.0142 |
1400 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
30 |
18.1 |
0.0128 |
1540 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
32 |
12.1 |
0.0112 |
1780 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
35 |
7.41 |
0.0093 |
2220 |
|
4 |
7/0.85 |
2.55 |
1 |
1.2 |
2 |
2.1 |
43 |
4.61 |
0.0092 |
3440 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.2 |
46.5 |
3.08 |
0.0078 |
4270 |
|
27 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
28 |
36 |
0.0162 |
1270 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
29 |
24.5 |
0.0142 |
1410 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
30 |
18.1 |
0.0128 |
1550 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
32 |
12.1 |
0.0112 |
1790 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
35 |
7.41 |
0.0093 |
2240 |
|
4 |
7/0.85 |
2.55 |
1 |
1.2 |
2 |
2.1 |
43 |
4.61 |
0.0092 |
3470 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.2 |
46.5 |
3.08 |
0.0078 |
4320 |
|
28 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
28.5 |
36 |
0.0162 |
1310 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
30 |
24.5 |
0.0142 |
1480 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
31 |
18.1 |
0.0128 |
1630 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.8 |
33 |
12.1 |
0.0112 |
1880 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
36 |
7.41 |
0.0093 |
2350 |
|
4 |
7/0.85 |
2.55 |
1 |
1.2 |
2 |
2.2 |
44.5 |
4.61 |
0.0092 |
3670 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.3 |
48 |
3.08 |
0.0078 |
4550 |
|
29 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
28.5 |
36 |
0.0162 |
1320 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
30 |
24.5 |
0.0142 |
1490 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
31 |
18.1 |
0.0128 |
1640 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.9 |
33 |
12.1 |
0.0112 |
1900 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
36 |
7.41 |
0.0093 |
2370 |
|
4 |
7/0.85 |
2.55 |
1 |
1.2 |
2 |
2.2 |
44.5 |
4.61 |
0.0092 |
3700 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.3 |
48 |
3.08 |
0.0078 |
4600 |
|
30 | 0.5 |
7/0.30 |
0.9 |
0.8 |
1 |
1.6 |
1.8 |
28.5 |
36 |
0.0162 |
1330 |
0.75 |
7/0.37 |
1.11 |
0.8 |
1 |
1.6 |
1.8 |
30 |
24.5 |
0.0142 |
1500 |
|
1 |
7/0.43 |
1.29 |
0.8 |
1 |
1.6 |
1.8 |
31 |
18.1 |
0.0128 |
1650 |
|
1.5 |
7/0.52 |
1.56 |
0.8 |
1 |
1.6 |
1.9 |
33 |
12.1 |
0.0112 |
1910 |
|
2.5 |
7/0.67 |
2.01 |
0.8 |
1 |
1.6 |
1.9 |
36 |
7.41 |
0.0093 |
2400 |
|
4 |
7/0.85 |
2.55 |
1 |
1.2 |
2 |
2.2 |
44.5 |
4.61 |
0.0092 |
3740 |
|
6 |
7/1.04 |
3.12 |
1 |
1.2 |
2 |
2.3 |
48 |
3.08 |
0.0078 |
4660 |
