应用及描述
此电缆是为在海上应用,不需要机械保护。应用实例包括船舶和海上钻井平台和石油平台的固定布线。

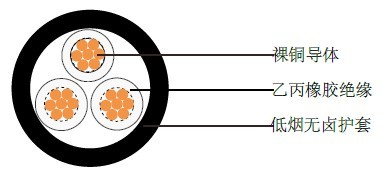

电缆结构
- 多股镀锡退火铜丝
- 多股遵循BS 6360 Cl-2/IEC 60228 Cl-2
- EPR(乙丙橡胶)绝缘,遵循BS 6899
- LSOH(低烟无卤), SW4,遵循BS 6899
线芯颜色
1芯: 黑色/黄绿色
2芯及以上: 白色绝缘加黑色数字标注
技术特性
- 工作电压: 600/1000 V
- 测试电压: 2000 V
- 最小弯曲半径: 达到10mm² - 3x外径
10mm²-25mm² - 4x外径
25mm²以上 - 6x外径
- 工作温度范围: -25º C~+85º C
- 氧指数32%, HCL 5%
- 阻燃: IEC 60332.1
- 绝缘电阻: 20 MΩxkm
电缆参数
线规 |
芯数 x 导体截 |
标称绝缘厚度 |
标称 护套厚度 mm |
标称外径 |
标称电缆重量 |
6571TQ |
|||||
17(7/26) |
1X1.0 |
0.8 |
1 |
5.2 |
41 |
16(7/24) |
1X1.5 |
0.8 |
1 |
5.5 |
47 |
14(7/22) |
1X2.5 |
0.8 |
1 |
6 |
55 |
12(7/20) |
1X4 |
1 |
1 |
6.9 |
84 |
10(7/18) |
1X6 |
1 |
1 |
7.5 |
110 |
8(7/16) |
1X10 |
1.2 |
1.1 |
9 |
165 |
6(7/14) |
1X16 |
1.2 |
1.1 |
101 |
235 |
4(7/12) |
1X25 |
1.4 |
1.2 |
12.4 |
375 |
2(7/10) |
1X35 |
1.4 |
1.2 |
13.3 |
460 |
1(19/13) |
1X50 |
1.6 |
1.3 |
15.2 |
670 |
2/0(19/11) |
1X70 |
1.6 |
1.4 |
17.2 |
835 |
3/0(19/10) |
1X95 |
1.8 |
1.4 |
19.3 |
1200 |
4/0(37/12) |
1X120 |
1.8 |
1.5 |
21.4 |
1410 |
300MCM(37/11) |
1X150 |
2 |
1.6 |
23.5 |
1890 |
350MCM(37/10) |
1X185 |
2.2 |
1.7 |
26 |
2360 |
500MCM(61/11) |
1X240 |
2.4 |
1.8 |
29.2 |
3050 |
-(61/10) |
1X300 |
2.6 |
1.9 |
32.3 |
3700 |
-(61/9) |
1X400 |
2.8 |
2.1 |
36.4 |
4400 |
-(61/8) |
1X500 |
3 |
2.2 |
40.2 |
5360 |
-(127/10) |
1X630 |
3 |
2.3 |
44.1 |
6660 |
6572TQ |
|||||
17(7/26) |
2X1.0 |
0.8 |
1 |
8 |
85 |
16(7/24) |
2X1.5 |
0.8 |
1 |
8.6 |
115 |
14(7/22) |
2X2.5 |
0.8 |
1.1 |
9.8 |
147 |
12(7/20) |
2X4 |
1 |
1.2 |
12 |
225 |
10(7/18) |
2X6 |
1 |
1.2 |
13.1 |
285 |
8(7/16) |
2X10 |
1.2 |
1.3 |
16 |
440 |
6(7/14) |
2X16 |
1.2 |
1.4 |
18.3 |
635 |
4(7/12) |
2X25 |
1.4 |
1.6 |
22.9 |
1020 |
2(7/10) |
2X35 |
1.4 |
1.6 |
24.7 |
1230 |
1(19/13) |
2X50 |
1.6 |
1.8 |
28.4 |
1650 |
2/0(19/11) |
2X70 |
1.6 |
1.9 |
32.3 |
2200 |
3/0(19/10) |
2X95 |
1.8 |
2.1 |
37 |
2940 |
4/0(37/12) |
2X120 |
1.8 |
2.2 |
40.8 |
3680 |
300MCM(37/11) |
2X150 |
2 |
2.4 |
45.1 |
4450 |
350MCM(37/10) |
2X185 |
2.2 |
2.6 |
50 |
5600 |
500MCM(61/11) |
2X240 |
2.4 |
2.8 |
56.6 |
7260 |
-(61/10) |
2X300 |
2.6 |
3 |
62.7 |
9020 |
6573TQ |
|||||
17(7/26) |
3X1.0 |
0.8 |
1 |
8.4 |
95 |
16(7/24) |
3X1.5 |
0.8 |
1.1 |
9.3 |
130 |
14(7/22) |
3X2.5 |
0.8 |
1.1 |
10.4 |
175 |
12(7/20) |
3X4 |
1 |
1.2 |
12.7 |
270 |
10(7/18) |
3X6 |
1 |
1.2 |
13.9 |
355 |
8(7/16) |
3X10 |
1.2 |
1.4 |
17.2 |
570 |
6(7/14) |
3X16 |
1.2 |
1.4 |
19.5 |
790 |
4(7/12) |
3X25 |
1.4 |
1.6 |
24.4 |
1290 |
2(7/10) |
3X35 |
1.4 |
1.7 |
26.5 |
1590 |
1(19/13) |
3X50 |
1.6 |
1.8 |
30.3 |
2150 |
2/0(19/11) |
3X70 |
1.6 |
2 |
34.7 |
2920 |
3/0(19/10) |
3X95 |
1.8 |
2.2 |
39.7 |
3790 |
4/0(37/12) |
3X120 |
1.8 |
2.3 |
43.8 |
4790 |
300MCM(37/11) |
3X150 |
2 |
2.5 |
48.4 |
5860 |
350MCM(37/10) |
3X185 |
2.2 |
2.7 |
53.9 |
7290 |
500MCM(61/11) |
3X240 |
2.4 |
3 |
61.1 |
9500 |
-(61/10) |
3X300 |
2.6 |
3.2 |
67.6 |
11960 |
6574TQ |
|||||
17(7/26) |
4X1.0 |
0.8 |
1.1 |
9.3 |
130 |
16(7/24) |
4X1.5 |
0.8 |
1.1 |
10.1 |
160 |
14(7/22) |
4X2.5 |
0.8 |
1.1 |
11.4 |
220 |
12(7/20) |
4X4 |
1 |
1.2 |
13.9 |
345 |
10(7/18) |
4X6 |
1 |
1.3 |
15.4 |
450 |
8(7/16) |
4X10 |
1.2 |
1.4 |
18.9 |
700 |
6(7/14) |
4X16 |
1.2 |
1.5 |
21.7 |
1020 |
4(7/12) |
4X25 |
1.4 |
1.7 |
27.1 |
1630 |
2(7/10) |
4X35 |
1.4 |
1.8 |
29.4 |
2058 |
1(19/13) |
4X50 |
1.6 |
2 |
33.9 |
2700 |
2/0(19/11) |
4X70 |
1.6 |
2.1 |
38.5 |
3730 |
3/0(19/10) |
4X95 |
1.8 |
2.4 |
44.5 |
4960 |
4/0(37/12) |
4X120 |
1.8 |
2.5 |
48.9 |
6240 |
300MCM(37/11) |
4X150 |
2 |
2.7 |
54.1 |
7600 |
350MCM(37/10) |
4X185 |
2.2 |
2.9 |
60 |
9510 |
500MCM(61/11) |
4X240 |
2.4 |
3.2 |
68 |
12410 |
-(61/10) |
4X300 |
2.6 |
3.5 |
75.7 |
15200 |
6575TQ |
|||||
17(7/26) |
5X1.0 |
0.8 |
1.1 |
10.1 |
155 |
16(7/24) |
5X1.5 |
0.8 |
1.1 |
11 |
190 |
14(7/22) |
5X2.5 |
0.8 |
1.2 |
12.6 |
280 |
12(7/20) |
5X4 |
1 |
1.3 |
15.3 |
425 |
6576TQ |
|||||
17(7/26) |
6X1.0 |
0.8 |
1.1 |
11.1 |
180 |
16(7/24) |
6X1.5 |
0.8 |
1.2 |
12.2 |
240 |
14(7/22) |
6X2.5 |
0.8 |
1.2 |
13.7 |
330 |
12(7/20) |
6X4 |
1 |
1.3 |
16.7 |
505 |
6577TQ |
|||||
17(7/26) |
7X1.5 |
0.8 |
1.2 |
12.2 |
260 |
16(7/24) |
7X2.5 |
0.8 |
1.2 |
14 |
365 |
65712TQ |
|||||
17(7/26) |
12X1.5 |
0.8 |
1.2 |
15.9 |
380 |
16(7/24) |
12X2.5 |
0.8 |
1.2 |
18.6 |
589 |
65716TQ |
|||||
17(7/26) |
16X1.5 |
0.8 |
1.2 |
17.8 |
500 |
16(7/24) |
16X2.5 |
0.8 |
1.2 |
20.9 |
750 |
65719TQ |
|||||
17(7/26) |
19X1.5 |
0.8 |
1.2 |
18.8 |
590 |
16(7/24) |
19X2.5 |
0.8 |
1.2 |
22 |
860 |
65724TQ |
|||||
17(7/26) |
24X1.5 |
0.8 |
1.2 |
21.8 |
740 |
16(7/24) |
24X2.5 |
0.8 |
1.2 |
25.9 |
1090 |
