MTX 3.6/6kV、6/10kV、8.7/15kV XLPE绝缘，LSOH (SHF1) 护套，铠装阻燃中压电力电缆（SHF1内护套）
应用
该铠装中压电缆适用于船体上任何位置的固定安装，符合IEC 60092-352标准。该电缆阻燃、低烟、无卤。
标准
IEC 60092-350/351/354/359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2

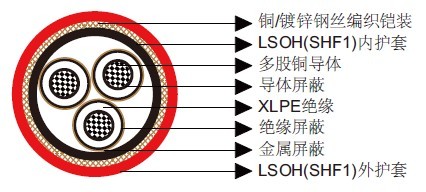

IEC 61034 结构
导体：Class 2多股铜导体。
导体屏蔽：半导电层（带/复合物）。
绝缘：XLPE。
绝缘屏蔽：半导电层（带/复合物）。
金属屏蔽：铜带。
内护套：LSOH（SHF1）。
铠装：铜丝编织或镀锌钢丝编织
外护套：LSOH（SHF1）。SHF2可选。
线芯识别
彩色标识带应插入金属屏蔽层下。
3芯：红、黄、蓝。
机械和热性能
固定安装弯曲半径：12×OD（单芯）；9×OD（三芯）
温度范围：-30℃ ~ +80℃
尺寸和重量
3.6/6kV
订货代码 |
结构
芯数×截面积
（mm²） |
标称绝缘厚度
mm |
标称护套厚度
mm |
标称外径
mm |
标称重量
kg/km |
内 |
外 |
MTX-3.6/6KV-RZ1MZ1-1C10 |
1×10 |
2.5 |
1.3 |
1.0 |
19.2 |
560 |
MTX-3.6/6KV-RZ1MZ1-1C16 |
1×16 |
2.5 |
1.3 |
1.0 |
20.1 |
650 |
MTX-3.6/6KV-RZ1MZ1-1C25 |
1×25 |
2.5 |
1.4 |
1.1 |
21.8 |
800 |
MTX-3.6/6KV-RZ1MZ1-1C35 |
1×35 |
2.5 |
1.4 |
1.1 |
23.0 |
940 |
MTX-3.6/6KV-RZ1MZ1-1C50 |
1×50 |
2.5 |
1.5 |
1.2 |
24.7 |
1120 |
MTX-3.6/6KV-RZ1MZ1-1C70 |
1×70 |
2.5 |
1.6 |
1.2 |
26.7 |
1390 |
MTX-3.6/6KV-RZ1MZ1-1C95 |
1×95 |
2.5 |
1.6 |
1.3 |
28.8 |
1720 |
MTX-3.6/6KV-RZ1MZ1-1C120 |
1×120 |
2.5 |
1.7 |
1.3 |
30.6 |
2020 |
MTX-3.6/6KV-RZ1MZ1-1C150 |
1×150 |
2.5 |
1.8 |
1.3 |
32.4 |
2350 |
MTX-3.6/6KV-RZ1MZ1-1C185 |
1×185 |
2.5 |
1.8 |
1.4 |
34.4 |
2780 |
MTX-3.6/6KV-RZ1MZ1-1C240 |
1×240 |
2.6 |
2.0 |
1.5 |
38.4 |
3580 |
MTX-3.6/6KV-RZ1MZ1-1C300 |
1×300 |
2.8 |
2.1 |
1.6 |
41.6 |
4310 |
MTX-3.6/6KV-RZ1MZ1-1C400 |
1×400 |
3.0 |
2.2 |
1.7 |
45.8 |
5440 |
MTX-3.6/6KV-RZ1MZ1-1C500 |
1×500 |
3.2 |
2.4 |
1.7 |
49.3 |
6450 |
MTX-3.6/6KV-RZ1MZ1-1C630 |
1×630 |
3.2 |
2.5 |
1.9 |
54.1 |
8110 |
MTX-3.6/6KV-RZ1MZ1-3C10 |
3×10 |
2.5 |
1.9 |
1.4 |
36.3 |
1710 |
MTX-3.6/6KV-RZ1MZ1-3C16 |
3×16 |
2.5 |
2.0 |
1.5 |
38.8 |
2030 |
MTX-3.6/6KV-RZ1MZ1-3C25 |
3×25 |
2.5 |
2.1 |
1.6 |
42.0 |
2500 |
MTX-3.6/6KV-RZ1MZ1-3C35 |
3×35 |
2.5 |
2.2 |
1.6 |
44.8 |
2950 |
MTX-3.6/6KV-RZ1MZ1-3C50 |
3×50 |
2.5 |
2.3 |
1.7 |
48.0 |
3510 |
MTX-3.6/6KV-RZ1MZ1-3C70 |
3×70 |
2.5 |
2.5 |
1.8 |
52.5 |
4420 |
MTX-3.6/6KV-RZ1MZ1-3C95 |
3×95 |
2.5 |
2.6 |
1.9 |
57.0 |
5470 |
MTX-3.6/6KV-RZ1MZ1-3C120 |
3×120 |
2.5 |
2.8 |
2.0 |
61.0 |
6480 |
MTX-3.6/6KV-RZ1MZ1-3C150 |
3×150 |
2.5 |
2.9 |
2.1 |
64.9 |
7540 |
MTX-3.6/6KV-RZ1MZ1-3C185 |
3×185 |
2.5 |
3.1 |
2.2 |
69.3 |
8940 |
MTX-3.6/6KV-RZ1MZ1-3C240 |
3×240 |
2.6 |
3.3 |
2.4 |
76.4 |
11180 |
6/10kV
订货代码 |
结构
芯数×截面积
（mm²） |
标称绝缘厚度
mm |
标称护套厚度
mm |
标称外径
mm |
标称重量
kg/km |
内 |
外 |
MTX-6/10KV-RZ1MZ1-1C16 |
1×16 |
3.4 |
1.4 |
1.1 |
22.3 |
750 |
MTX-6/10KV-RZ1MZ1-1C25 |
1×25 |
3.4 |
1.5 |
1.1 |
23.8 |
890 |
MTX-6/10KV-RZ1MZ1-1C35 |
1×35 |
3.4 |
1.5 |
1.2 |
25.2 |
1040 |
MTX-6/10KV-RZ1MZ1-1C50 |
1×50 |
3.4 |
1.6 |
1.2 |
26.7 |
1220 |
MTX-6/10KV-RZ1MZ1-1C70 |
1×70 |
3.4 |
1.6 |
1.2 |
28.5 |
1480 |
MTX-6/10KV-RZ1MZ1-1C95 |
1×95 |
3.4 |
1.7 |
1.3 |
30.8 |
1830 |
MTX-6/10KV-RZ1MZ1-1C120 |
1×120 |
3.4 |
1.8 |
1.3 |
32.6 |
2140 |
MTX-6/10KV-RZ1MZ1-1C150 |
1×150 |
3.4 |
1.8 |
1.4 |
34.4 |
2470 |
MTX-6/10KV-RZ1MZ1-1C185 |
1×185 |
3.4 |
1.9 |
1.4 |
36.9 |
2990 |
MTX-6/10KV-RZ1MZ1-1C240 |
1×240 |
3.4 |
2.0 |
1.5 |
40.0 |
3680 |
MTX-6/10KV-RZ1MZ1-1C300 |
1×300 |
3.4 |
2.1 |
1.6 |
42.8 |
4390 |
MTX-6/10KV-RZ1MZ1-1C400 |
1×400 |
3.4 |
2.3 |
1.7 |
46.8 |
5510 |
MTX-6/10KV-RZ1MZ1-1C500 |
1×500 |
3.4 |
2.4 |
1.8 |
49.9 |
6480 |
MTX-6/10KV-RZ1MZ1-1C630 |
1×630 |
3.4 |
2.5 |
1.9 |
54.5 |
8130 |
MTX-6/10KV-RZ1MZ1-3C16 |
3×16 |
3.4 |
2.1 |
1.6 |
43.1 |
2350 |
MTX-6/10KV-RZ1MZ1-3C25 |
3×25 |
3.4 |
2.2 |
1.7 |
46.3 |
2840 |
MTX-6/10KV-RZ1MZ1-3C35 |
3×35 |
3.4 |
2.3 |
1.7 |
49.1 |
3310 |
MTX-6/10KV-RZ1MZ1-3C50 |
3×50 |
3.4 |
2.5 |
1.8 |
52.5 |
3910 |
MTX-6/10KV-RZ1MZ1-3C70 |
3×70 |
3.4 |
2.6 |
1.9 |
56.8 |
4820 |
MTX-6/10KV-RZ1MZ1-3C95 |
3×95 |
3.4 |
2.8 |
2.0 |
61.4 |
5930 |
MTX-6/10KV-RZ1MZ1-3C120 |
3×120 |
3.4 |
2.9 |
2.1 |
65.3 |
6940 |
MTX-6/10KV-RZ1MZ1-3C150 |
3×150 |
3.4 |
3.1 |
2.2 |
69.3 |
8050 |
MTX-6/10KV-RZ1MZ1-3C185 |
3×185 |
3.4 |
3.2 |
2.3 |
73.6 |
9460 |
MTX-6/10KV-RZ1MZ1-3C240 |
3×240 |
3.4 |
3.4 |
2.5 |
80.2 |
11680 |
8.7/15kV
订货代码 |
结构
芯数×截面积
（mm²） |
标称绝缘厚度
mm |
标称护套厚度
mm |
标称外径
mm |
标称重量
kg/km |
内 |
外 |
MTX-8.7/15KV-RZ1MZ1-1C25 |
1×25 |
4.5 |
1.6 |
1.2 |
26.4 |
1030 |
MTX-8.7/15KV-RZ1MZ1-1C35 |
1×35 |
4.5 |
1.6 |
1.2 |
27.6 |
1180 |
MTX-8.7/15KV-RZ1MZ1-1C50 |
1×50 |
4.5 |
1.7 |
1.3 |
29.3 |
1370 |
MTX-8.7/15KV-RZ1MZ1-1C70 |
1×70 |
4.5 |
1.7 |
1.3 |
31.1 |
1650 |
MTX-8.7/15KV-RZ1MZ1-1C95 |
1×95 |
4.5 |
1.8 |
1.4 |
33.4 |
2010 |
MTX-8.7/15KV-RZ1MZ1-1C120 |
1×120 |
4.5 |
1.9 |
1.4 |
35.7 |
2410 |
MTX-8.7/15KV-RZ1MZ1-1C150 |
1×150 |
4.5 |
1.9 |
1.5 |
37.5 |
2760 |
MTX-8.7/15KV-RZ1MZ1-1C185 |
1×185 |
4.5 |
2.0 |
1.5 |
39.5 |
3200 |
MTX-8.7/15KV-RZ1MZ1-1C240 |
1×240 |
4.5 |
2.1 |
1.6 |
42.6 |
3910 |
MTX-8.7/15KV-RZ1MZ1-1C300 |
1×300 |
4.5 |
2.2 |
1.6 |
45.2 |
4610 |
MTX-8.7/15KV-RZ1MZ1-1C400 |
1×400 |
4.5 |
2.3 |
1.7 |
49.0 |
5730 |
MTX-8.7/15KV-RZ1MZ1-1C500 |
1×500 |
4.5 |
2.5 |
1.8 |
52.3 |
6740 |
MTX-8.7/15KV-RZ1MZ1-1C630 |
1×630 |
4.5 |
2.6 |
1.9 |
56.9 |
8400 |
MTX-8.7/15KV-RZ1MZ1-3C25 |
3×25 |
4.5 |
2.4 |
1.8 |
51.6 |
3300 |
MTX-8.7/15KV-RZ1MZ1-3C35 |
3×35 |
4.5 |
2.5 |
1.9 |
54.6 |
3820 |
MTX-8.7/15KV-RZ1MZ1-3C50 |
3×50 |
4.5 |
2.6 |
1.9 |
57.6 |
4400 |
MTX-8.7/15KV-RZ1MZ1-3C70 |
3×70 |
4.5 |
2.8 |
2.0 |
62.1 |
5370 |
MTX-8.7/15KV-RZ1MZ1-3C95 |
3×95 |
4.5 |
3.0 |
2.2 |
67.0 |
6550 |
MTX-8.7/15KV-RZ1MZ1-3C120 |
3×120 |
4.5 |
3.1 |
2.3 |
70.8 |
7580 |
MTX-8.7/15KV-RZ1MZ1-3C150 |
3×150 |
4.5 |
3.2 |
2.3 |
74.5 |
8680 |
MTX-8.7/15KV-RZ1MZ1-3C185 |
3×185 |
4.5 |
3.4 |
2.5 |
79.2 |
10180 |
MTX-8.7/15KV-RZ1MZ1-3C240 |
3×240 |
4.5 |
3.6 |
2.6 |
85.6 |
12420 |
|
