意大利标准工业电缆 |
FROH2R
应用&描述
这些电缆适合用来在内部和外部环境的能量和信号传输。也可用于固定露天安装，管道内墙面及金属框
架上。铠装层可防止可能发生的机械冲击及防鼠。也可直接或间接地面铺设。
标准及认证
CEI 20-11, CEI 20-22/2, CEI 20-29, CEI 20-34, CEI 20-35 (EN60332-1), CEI 20-37 pt.2
(EN50267),
CEI20-52

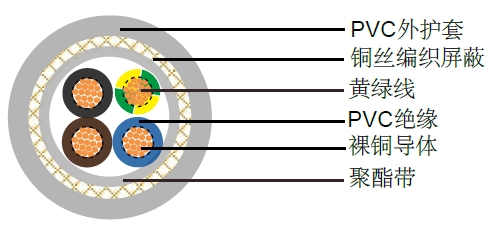

电缆结构 - 柔软裸铜导体 |
FROH2R |
技术特性 - 工作电压: 300/500V 450/750V |
FROH2R |
电缆参数
线规 |
芯数 x 导体截面积 # x mm2 |
标称绝缘厚度 mm |
标称护套厚度 mm |
标称外径 mm |
标称电缆重量 kg/km |
|
FROH2R 300/500V |
||||||
7芯(包括接地线) |
||||||
17(32/32) |
7 x 1 |
0.6 |
1.0 |
10.5 |
147.1 |
|
16(30/30) |
0.7 |
1.2 |
12.1 |
186.9 |
||
14(50/30) |
7 x 2.5 |
0.8 |
1.4 |
14.0 |
242.4 |
|
10芯(包括接地线) |
||||||
17(32/32) |
10 x 1 |
0.6 |
1.2 |
12.8 |
215.9 |
|
16(30/30) |
10 x 1.5 |
0.7 |
1.3 |
14.5 |
263.9 |
|
14(50/30) |
10 x 2.5 |
0.8 |
1.5 |
16.7 |
345.5 |
|
12芯(包括接地线) |
||||||
17(32/32) |
12 x 1 |
0.6 |
1.2 |
14.0 |
252.0 |
|
16(30/30) |
12 x 1.5 |
0.7 |
1.4 |
16.1 |
315.1 |
|
14(50/30) |
12 x 2.5 |
0.8 |
1.6 |
18.7 |
412.7 |
|
14芯(包括接地线) |
||||||
17(32/32) |
14 x 1 |
0.6 |
1.3 |
14.9 |
287.9 |
|
16(30/30) |
14 x 1.5 |
0.7 |
1.4 |
16.9 |
350.9 |
|
14(50/30) |
14 x 2.5 |
0.8 |
1.6 |
19.6 |
460.5 |
|
16芯(包括接地线) |
||||||
17(32/32) |
16 x 1 |
0.6 |
1.3 |
15.6 |
317.3 |
|
16(30/30) |
16 x 1.5 |
0.7 |
1.5 |
17.9 |
397.5 |
|
14(50/30) |
16x 2.5 |
0.8 |
1.7 |
20.9 |
520.9 |
|
19芯(包括接地线) |
||||||
17(32/32) |
19 x 1 |
0.6 |
1.4 |
16.6 |
368.3 |
|
16(30/30) |
19 x 1.5 |
0.7 |
1.5 |
18.8 |
449.2 |
|
14(50/30) |
19 x 2.5 |
0.8 |
1.7 |
22.0 |
593.7 |
|
24芯(包括接地线) |
||||||
17(32/32) |
24 x 1 |
0.6 |
1.5 |
19.4 |
459.8 |
|
16(30/30) |
24 x 1.5 |
0.7 |
1.7 |
22.2 |
573.0 |
|
14(50/30) |
24 x 2.5 |
0.8 |
1.9 |
26.4 |
793.9 |
|
FROH2R 450/750V |
||||||
2芯 |
||||||
17(32/32) |
2 x 1 |
0.7 |
1.0 |
8.6 |
106.7 |
|
16(30/30) |
2 x 1.5 |
0.7 |
1.0 |
9.0 |
118.4 |
|
14(50/30) |
2 x 2.5 |
0.8 |
1.2 |
10.7 |
169.6 |
|
12(56/28) |
2 x 4.0 |
0.8 |
1.2 |
12.1 |
218.9 |
|
10(84/28) |
2 x 6.0 |
0.9 |
1.3 |
13.5 |
287.1 |
|
3芯(包括接地线) |
||||||
17(32/32) |
3x 1 |
0.7 |
1.0 |
9.1 |
123.5 |
|
16(30/30) |
3 x 1.5 |
0.7 |
1.0 |
9.5 |
142.2 |
|
14(50/30) |
3 x 2.5 |
0.8 |
1.2 |
11.3 |
203.8 |
|
12(56/28) |
3 x 4.0 |
0.8 |
1.3 |
13.0 |
277.0 |
|
10(84/28) |
3 x 6.0 |
0.9 |
1.4 |
14.4 |
364.8 |
|
4芯(包括接地线) |
||||||
17(32/32) |
4 x 1 |
0.7 |
1.0 |
9.8 |
144.8 |
|
16(30/30) |
4 x 1.5 |
0.7 |
1.1 |
10.5 |
173.5 |
|
14(50/30) |
4 x 2.5 |
0.8 |
1.2 |
12.2 |
242.5 |
|
12(56/28) |
4 x 4.0 |
0.8 |
1.3 |
14.4 |
345.6 |
|
10(84/28) |
4 x 6.0 |
0.9 |
1.4 |
15.6 |
441.3 |
|
5芯(包括接地线) |
||||||
17 |
5 x 1 |
0.7 |
1.1 |
10.7 |
175.4 |
|
16(30/30) |
5 x 1.5 |
0.7 |
1.2 |
11.5 |
209.0 |
|
14(50/30) |
5 x 2.5 |
0.8 |
1.3 |
13.6 |
308.4 |
|
12(56/28) |
5 x 4.0 |
0.8 |
1.5 |
15.9 |
430.7 |
|
10(84/28) |
5 x 6.0 |
0.9 |
1.5 |
17.1 |
536.7 |
|
