意大利标准工业电缆 |
FG7M1/FG7OM1
应用&描述
这些电缆适用于高危火灾环境，可保证安全和防止系统设备遭腐蚀性气体损害，比如学校、医院，公共场所、宾
馆、超市、管道、影院、剧院、舞厅、公共机构等）。适宜固定安装在室内和室外、墙壁和金属框架上。
标准及认证
CEI 20-11; CEI 20-13; CEI 20-22 III; CEI 20-29; CEI 20-35; CEI 20-37; CEI 20-38; CEIUNEL
00722;
CEI-UNEL 35382/35384, EN 60332-1,直流低压73/23/EEC & 93/68/EEC., ROHS认证

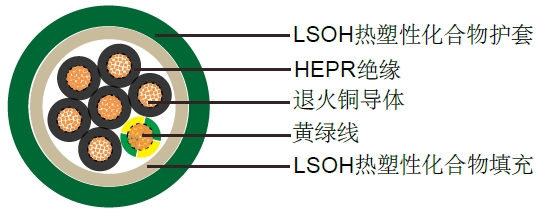

电缆结构
- 柔软裸铜导体 IEC60228 cl.5
- HEPR, G7绝缘
- 低烟无卤热塑性复合物内护套
- 低烟无卤热塑性复合物M1外护套
FG7OM1 |
FG7OM1 |
技术特性
- 工作电压: 600/1000 V
- 测试电压: 4000 V
- 最小弯曲半径: UNEL 35382: 4 xOD UNEL 35384: 6 x OD
- 应用时的工作温度: -0 ℃to +90 ℃
- 静态时可承受的温度: -25 ℃ to +90 ℃
- 短路时可达到的最高温度: +250 ℃
- 阻燃: CEI 20-22 II - IEC 60332-3-C
- 绝缘电阻: 10 MΩ x km
电缆参数
线规 |
芯数 x 导体截面积 |
标称绝缘厚度 |
标称护套厚度 |
标称外径 |
标称电缆重量 |
# x mm2 |
mm |
mm |
mm |
kg/km |
|
FG7M1(电力) |
|||||
16(30/30) |
1x1.5 |
0.7 |
1.4 |
6.7 |
55 |
14(50/30) |
1x2.5 |
0.7 |
1.4 |
7.2 |
65 |
12(56/28) |
1x4 |
0.7 |
1.4 |
7.8 |
85 |
10(84/28) |
1x6 |
0.7 |
1.4 |
8.4 |
105 |
8(80/26) |
1x10 |
0.7 |
1.4 |
9.4 |
155 |
6(128/26) |
1x16 |
0.7 |
1.4 |
10.4 |
210 |
4(200/26) |
1x25 |
0.9 |
1.4 |
12.2 |
310 |
2(280/26) |
1x35 |
0.9 |
1.4 |
13.6 |
410 |
1(400/26) |
1x50 |
1 |
1.4 |
15.4 |
560 |
2/0(356/24) |
1x70 |
1.1 |
1.4 |
17.3 |
770 |
3/0(485/24) |
1x95 |
1.1 |
1.5 |
19.4 |
990 |
4/0(614/24) |
1x120 |
1.2 |
1.5 |
21.4 |
1250 |
250 MCM |
1x150 |
1.4 |
1.6 |
23.8 |
1550 |
350 MCM |
1x185 |
1.6 |
1.6 |
36.0 |
1900 |
450 MCM |
1x240 |
1.7 |
1.7 |
29.2 |
2450 |
550 MCM |
1x300 |
1.8 |
1.8 |
32.0 |
3000 |
FG7OM1(电力） |
|||||
16(30/30) |
2x1.5 |
0.7 |
1.8 |
12.0 |
155 |
14(50/30) |
2x2.5 |
0.7 |
1.8 |
13.0 |
190 |
12(56/28) |
2x4 |
0.7 |
1.8 |
14.2 |
240 |
10(84/28) |
2x6 |
0.7 |
1.8 |
15.4 |
310 |
8(80/26) |
2x10 |
0.7 |
1.8 |
17.3 |
460 |
6(128/26) |
2x16 |
0.7 |
1.8 |
19.4 |
620 |
4(200/26) |
2x25 |
0.9 |
1.8 |
23.0 |
900 |
2(280/26) |
2x35 |
0.9 |
1.8 |
25.7 |
1200 |
1(400/26) |
2x50 |
1.0 |
1.8 |
29.3 |
1650 |
2/0(356/24) |
2x70 |
1.1 |
1.8 |
33.1 |
2050 |
3/0(485/24) |
2x95 |
1.1 |
2.0 |
37.4 |
2670 |
4/0(614/24) |
2x120 |
1.2 |
2.1 |
41.5 |
3330 |
250 MCM |
2x150 |
1.4 |
2.2 |
46.1 |
4100 |
16(30/30) |
3x1.5 |
0.7 |
1.8 |
12.5 |
175 |
14(50/30) |
3x2.5 |
0.7 |
1.8 |
13.6 |
220 |
12(56/28) |
3x4 |
0.7 |
1.8 |
14.9 |
280 |
10(84/28) |
3x6 |
0.7 |
1.8 |
16.2 |
365 |
8(80/26) |
3x10 |
0.7 |
1.8 |
18.2 |
550 |
6(128/26) |
3x16 |
0.7 |
1.8 |
20.6 |
760 |
4(200/26) |
3x25 |
0.9 |
1.8 |
24.5 |
1100 |
2(280/26) |
3x35 |
0.9 |
1.8 |
27.3 |
1500 |
1(400/26) |
3x50 |
1 |
1.8 |
31.2 |
2050 |
2/0(356/24) |
3x70 |
1.1 |
1.9 |
35.6 |
2850 |
3/0(485/24) |
3x95 |
1.1 |
2.0 |
40.0 |
3600 |
4/0(614/24) |
3x120 |
1.2 |
2.1 |
44.4 |
4600 |
250 MCM |
3x150 |
1.4 |
2.3 |
49.5 |
5600 |
350 MCM |
3x185 |
1.6 |
2.4 |
55.2 |
6900 |
450 MCM |
3x240 |
1.7 |
2.6 |
61.9 |
9150 |
550 MCM |
3x300 |
1.8 |
2.8 |
68.0 |
11000 |
16(30/30) |
4x1.5 |
0.7 |
1.8 |
13.4 |
200 |
14(50/30) |
4x2.5 |
0.7 |
1.8 |
14.6 |
260 |
12(56/28) |
4x4 |
0.7 |
1.8 |
16.0 |
340 |
10(84/28) |
4x6 |
0.7 |
1.8 |
17.5 |
440 |
8(80/26) |
4x10 |
0.7 |
1.8 |
19.8 |
670 |
6(128/26) |
4x16 |
0.7 |
1.8 |
22.4 |
950 |
4(200/26) |
4x25 |
0.9 |
1.8 |
26.8 |
1400 |
2(280/26) |
3x35+25 |
0.9 |
1.8 |
29.2 |
1700 |
1(400/26) |
3x50+25 |
1 |
1.8 |
32.4 |
2300 |
2/0(356/24) |
3x70+35 |
1.1 |
1.9 |
37.0 |
3100 |
3/0(485/24) |
3x95+50 |
1.1 |
2.1 |
42.0 |
4050 |
4/0(614/24) |
3x120+70 |
1.2 |
2.2 |
46.9 |
5250 |
300MCM |
3x150+95 |
1.4 |
2.4 |
52.5 |
6500 |
350MCM |
3x185+95 |
1.6 |
2.5 |
57.3 |
7800 |
500MCM |
3x240+150 |
1.7 |
2.7 |
65.5 |
10500 |
16(30/30) |
5x1.5 |
0.7 |
1.8 |
14.4 |
250 |
14(50/30) |
5x2.5 |
0.7 |
1.8 |
15.6 |
320 |
12(56/28) |
5x4 |
0.7 |
1.8 |
17.3 |
410 |
10(84/28) |
5x6 |
0.7 |
1.8 |
18.9 |
540 |
8(80/26) |
5x10 |
0.7 |
1.8 |
21.5 |
800 |
6(128/26) |
5x16 |
0.7 |
1.8 |
24.4 |
1150 |
4(200/26) |
5x25 |
0.9 |
1.8 |
29.3 |
1700 |
2(280/26) |
5x35 |
0.9 |
1.8 |
32.8 |
2250 |
1(400/26) |
5x50 |
1 |
2.0 |
38.2 |
3200 |
FG7OM1(控制) |
|||||
16(30/30) |
7x1.5 |
0.7 |
1.8 |
15.4 |
275 |
16(30/30) |
10x1.5 |
0.7 |
1.8 |
18.7 |
365 |
16(30/30) |
12x1.5 |
0.7 |
1.8 |
19.3 |
410 |
16(30/30) |
16x1.5 |
0.7 |
1.8 |
21.1 |
510 |
16(30/30) |
19x1.5 |
0.7 |
1.8 |
22.1 |
580 |
16(30/30) |
24x1.5 |
0.7 |
1.8 |
25.4 |
700 |
14(30/50) |
7x2.5 |
0.7 |
1.8 |
16.8 |
310 |
14(30/50) |
10x2.5 |
0.7 |
1.8 |
20.6 |
395 |
14(30/50) |
12x2.5 |
0.7 |
1.8 |
21.3 |
445 |
14(30/50) |
16x2.5 |
0.7 |
1.8 |
23.3 |
545 |
14(30/50) |
19x2.5 |
0.7 |
1.8 |
24.5 |
615 |
14(30/50) |
24x2.5 |
0.7 |
1.8 |
28.3 |
750 |
