符合IEC 60502-2标准的中压XLPE绝缘钢丝铠装电缆
应用
这些电缆多用于安装在配电站、室内室外、电缆管道、地下或水中，也用于电缆桥架安装行业。
标准
IEC 60228; IEC 60502-2

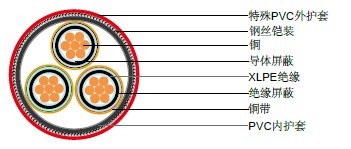

结构
导体: 多股裸铜 (2类)
导体屏蔽: 半导电交联化合物经过三重挤压过程后形成的挤出层
绝缘: XLPE
绝缘屏蔽: 半导电交联化合物经过三重挤压过程后形成的挤出层
线芯识别:
1芯: 自然色
3芯: 黑, 绿, 综
内护套: PVC
铠装: 1芯：铝丝铠装；多芯：镀锌钢丝铠装
外护套: 特殊PVC。红色。可根据要求添加防紫外线功能
性能
防火标准: IEC 60332-3-22
工作温度: -20~60°C
工作中导体能承受的最高温度: 90°C
耐化学性: 耐脂肪烃及芳香烃
1芯
导体截面积 |
加上绝缘的外径 |
加上绝缘 |
加上内护套的外径 |
加上铠装的外径 |
最小外径 |
最大外径 |
重量 |
额定电压 Uo/ U(Um) |
(mm2) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg/km) |
(kv) |
25 |
12.3 |
13.7 |
17.7 |
21.5 |
31.5 |
34.8 |
1621 |
3.6 / 6 (7.2) |
35 |
13.3 |
14.7 |
18.7 |
22.5 |
32.5 |
35.8 |
1781 |
3.6 / 6 (7.2) |
50 |
14.4 |
15.8 |
19.8 |
23.6 |
33.6 |
37.0 |
1953 |
3.6 / 6 (7.2) |
70 |
16.0 |
17.4 |
21.4 |
25.2 |
35.1 |
38.7 |
2247 |
3.6 / 6 (7.2) |
95 |
17.55 |
19.0 |
23.0 |
26.8 |
36.7 |
40.4 |
2589 |
3.6 / 6 (7.2) |
120 |
19.06 |
20.5 |
24.5 |
28.3 |
38.1 |
42.1 |
2904 |
3.6 / 6 (7.2) |
150 |
20.37 |
21.8 |
25.8 |
29.6 |
39.4 |
43.4 |
3233 |
3.6 / 6 (7.2) |
185 |
22.05 |
23.5 |
27.5 |
31.3 |
41.0 |
45.3 |
3681 |
3.6 / 6 (7.2) |
240 |
24.6 |
26.0 |
30.0 |
33.8 |
43.5 |
47.9 |
4365 |
3.6 / 6 (7.2) |
300 |
27.4 |
28.8 |
32.8 |
36.6 |
46.2 |
50.9 |
5121 |
3.6 / 6 (7.2) |
400 |
30.9 |
32.3 |
36.3 |
40.1 |
49.6 |
54.7 |
6174 |
3.6 / 6 (7.2) |
500 |
35.4 |
36.8 |
40.8 |
45.8 |
55.3 |
61.0 |
7735 |
3.6 / 6 (7.2) |
630 |
39.8 |
41.2 |
45.3 |
50.3 |
60.0 |
66.2 |
9419 |
3.6 / 6 (7.2) |
25 |
14.1 |
15.5 |
19.5 |
23.3 |
33.3 |
36.7 |
1764 |
6 / 10 (12) |
35 |
15.1 |
16.5 |
20.5 |
24.3 |
34.2 |
37.8 |
1925 |
6 / 10 (12) |
50 |
16.2 |
17.6 |
21.6 |
25.4 |
35.3 |
38.9 |
2107 |
6 / 10 (12) |
70 |
17.8 |
19.2 |
23.2 |
27.0 |
36.9 |
40.7 |
2404 |
6 / 10 (12) |
95 |
19.35 |
20.8 |
24.8 |
28.6 |
38.4 |
42.4 |
2748 |
6 / 10 (12) |
120 |
20.86 |
22.3 |
26.3 |
30.1 |
39.9 |
44.0 |
3073 |
6 / 10 (12) |
150 |
22.17 |
23.6 |
27.6 |
31.4 |
41.1 |
45.4 |
3405 |
6 / 10 (12) |
185 |
23.85 |
25.3 |
29.3 |
33.1 |
42.8 |
47.2 |
3854 |
6 / 10 (12) |
240 |
26.2 |
27.6 |
31.6 |
35.4 |
45.0 |
49.6 |
4531 |
6 / 10 (12) |
300 |
28.6 |
30.0 |
34.0 |
37.8 |
47.3 |
52.2 |
5249 |
6 / 10 (12) |
400 |
31.7 |
33.1 |
37.1 |
40.9 |
50.3 |
55.5 |
6267 |
6 / 10 (12) |
500 |
35.8 |
37.2 |
41.2 |
46.2 |
55.7 |
61.4 |
7791 |
6 / 10 (12) |
630 |
40.2 |
41.6 |
45.7 |
50.7 |
60.4 |
66.7 |
9464 |
6 / 10 (12) |
25 |
16.3 |
17.7 |
21.7 |
25.5 |
35.4 |
39.1 |
1955 |
8.7 / 15 (17.5) |
35 |
17.3 |
18.7 |
22.7 |
26.5 |
36.4 |
40.1 |
2112 |
8.7 / 15 (17.5) |
50 |
18.4 |
19.8 |
23.8 |
27.6 |
37.4 |
41.3 |
2305 |
8.7 / 15 (17.5) |
70 |
20.0 |
21.4 |
25.4 |
29.2 |
39.0 |
43.0 |
2608 |
8.7 / 15 (17.5) |
95 |
21.55 |
23.0 |
27.0 |
30.8 |
40.5 |
44.7 |
2950 |
8.7 / 15 (17.5) |
120 |
23.06 |
24.5 |
28.5 |
32.3 |
42.0 |
46.3 |
3288 |
8.7 / 15 (17.5) |
150 |
24.37 |
25.8 |
29.8 |
33.6 |
43.3 |
47.7 |
3623 |
8.7 / 15 (17.5) |
185 |
26.05 |
27.5 |
31.5 |
35.3 |
44.9 |
49.5 |
4081 |
8.7 / 15 (17.5) |
240 |
28.4 |
29.8 |
33.8 |
37.6 |
47.1 |
52.0 |
4756 |
8.7 / 15 (17.5) |
300 |
30.8 |
32.2 |
36.2 |
40.0 |
49.5 |
54.6 |
5478 |
8.7 / 15 (17.5) |
400 |
33.9 |
35.3 |
39.3 |
44.3 |
53.8 |
59.4 |
6738 |
8.7 / 15 (17.5) |
500 |
38.0 |
39.4 |
43.4 |
48.4 |
58.0 |
64.0 |
8091 |
8.7 / 15 (17.5) |
630 |
42.4 |
43.8 |
47.9 |
52.9 |
62.8 |
69.2 |
9793 |
8.7 / 15 (17.5) |
35 |
19.3 |
20.7 |
24.7 |
28.5 |
38.3 |
42.3 |
2287 |
12 / 20 (24) |
50 |
20.4 |
21.8 |
25.8 |
29.6 |
39.4 |
43.4 |
2485 |
12 / 20 (24) |
70 |
22.0 |
23.4 |
27.4 |
31.2 |
40.9 |
45.2 |
2795 |
12 / 20 (24) |
95 |
23.55 |
25.0 |
29.0 |
32.8 |
42.5 |
46.9 |
3139 |
12 / 20 (24) |
120 |
25.06 |
26.5 |
30.5 |
34.3 |
43.9 |
48.5 |
3482 |
12 / 20 (24) |
150 |
26.37 |
27.8 |
31.8 |
35.6 |
45.2 |
49.9 |
3824 |
12 / 20 (24) |
185 |
28.05 |
29.5 |
33.5 |
37.3 |
46.9 |
51.7 |
4287 |
12 / 20 (24) |
240 |
30.4 |
31.8 |
35.8 |
39.6 |
49.1 |
54.1 |
4974 |
12 / 20 (24) |
300 |
32.8 |
34.2 |
38.2 |
42.0 |
51.6 |
56.9 |
5734 |
12 / 20 (24) |
400 |
35.9 |
37.3 |
41.3 |
46.3 |
56.0 |
61.7 |
6994 |
12 / 20 (24) |
500 |
40.0 |
41.4 |
45.5 |
50.5 |
60.2 |
66.4 |
8392 |
12 / 20 (24) |
630 |
44.4 |
45.8 |
49.9 |
54.9 |
64.9 |
71.6 |
10119 |
12 / 20 (24) |
25 |
26.3 |
27.7 |
31.7 |
35.5 |
45.1 |
49.8 |
2866 |
18 / 30 (36) |
50 |
25.4 |
26.8 |
30.8 |
34.6 |
44.2 |
48.8 |
2969 |
18 / 30 (36) |
70 |
27.0 |
28.4 |
32.4 |
36.2 |
45.8 |
50.5 |
3309 |
18 / 30 (36) |
95 |
28.8 |
30.2 |
34.0 |
37.8 |
47.3 |
52.2 |
3660 |
18 / 30 (36) |
120 |
30.06 |
31.5 |
35.5 |
39.3 |
48.8 |
53.8 |
4007 |
18 / 30 (36) |
150 |
31.37 |
32.8 |
36.8 |
40.6 |
50.1 |
55.2 |
4354 |
18 / 30 (36) |
185 |
33.05 |
34.5 |
38.5 |
43.5 |
53.1 |
58.5 |
5060 |
18 / 30 (36) |
240 |
35.4 |
36.8 |
40.8 |
45.8 |
55.5 |
61.2 |
5801 |
18 / 30 (36) |
300 |
37.8 |
39.2 |
43.2 |
48.2 |
58.0 |
64.0 |
6621 |
18 / 30 (36) |
400 |
40.9 |
42.3 |
46.4 |
51.4 |
61.3 |
67.6 |
7701 |
18 / 30 (36) |
500 |
45.0 |
46.4 |
50.5 |
55.5 |
65.5 |
72.2 |
9130 |
18 / 30 (36) |
3芯
导体截面积 |
加上绝缘的外径 |
加上绝缘屏蔽的外 径 |
加上内护套的外径 |
加上铠装的外径 |
最小外径 |
最大外径 |
重量 |
额定电压 Uo/ U(Um) |
(mm2) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg/km) |
(kv) |
25 |
12.3 |
13.7 |
36.7 |
40.7 |
46.3 |
51.0 |
4418 |
3.6 / 6 (7.2) |
35 |
13.3 |
14.7 |
38.9 |
42.9 |
48.4 |
53.4 |
4944 |
3.6 / 6 (7.2) |
50 |
14.4 |
15.8 |
41.4 |
46.4 |
51.8 |
57.1 |
5995 |
3.6 / 6 (7.2) |
70 |
16.0 |
17.4 |
44.9 |
49.9 |
55.2 |
60.9 |
7012 |
3.6 / 6 (7.2) |
95 |
17.55 |
19.0 |
48.4 |
53.4 |
58.6 |
64.6 |
8226 |
3.6 / 6 (7.2) |
120 |
19.06 |
20.5 |
51.7 |
56.7 |
61.8 |
68.2 |
9357 |
3.6 / 6 (7.2) |
150 |
20.37 |
21.8 |
54.6 |
59.6 |
64.6 |
71.3 |
10528 |
3.6 / 6 (7.2) |
185 |
22.05 |
23.5 |
58.3 |
63.3 |
68.2 |
75.2 |
12064 |
3.6 / 6 (7.2) |
240 |
24.6 |
26.0 |
63.8 |
68.8 |
73.5 |
81.1 |
14480 |
3.6 / 6 (7.2) |
300 |
27.4 |
28.8 |
70.0 |
77.5 |
82.4 |
90.8 |
18262 |
3.6 / 6 (7.2) |
25 |
14.1 |
15.5 |
40.7 |
44.7 |
50.1 |
55.3 |
4961 |
6 / 10 (12) |
35 |
15.1 |
16.5 |
42.9 |
47.9 |
53.3 |
58.7 |
5954 |
6 / 10 (12) |
50 |
16.2 |
17.6 |
45.3 |
50.3 |
55.6 |
61.3 |
6634 |
6 / 10 (12) |
70 |
17.8 |
19.2 |
48.8 |
53.8 |
59.0 |
65.1 |
7674 |
6 / 10 (12) |
95 |
19.35 |
20.8 |
52.4 |
57.4 |
62.5 |
68.9 |
8913 |
6 / 10 (12) |
120 |
20.86 |
22.3 |
55.7 |
60.7 |
65.7 |
72.4 |
10084 |
6 / 10 (12) |
150 |
22.17 |
23.6 |
58.5 |
63.5 |
68.4 |
75.4 |
11273 |
6 / 10 (12) |
185 |
23.85 |
25.3 |
62.3 |
67.3 |
72.1 |
79.5 |
12828 |
6 / 10 (12) |
240 |
26.2 |
27.6 |
67.3 |
73.6 |
79.5 |
87.7 |
16365 |
6 / 10 (12) |
300 |
28.6 |
30.0 |
72.6 |
80.1 |
84.9 |
93.6 |
18919 |
6 / 10 (12) |
25 |
16.3 |
17.7 |
45.5 |
50.5 |
55.8 |
61.5 |
6149 |
8.7 / 15 (17.5) |
35 |
17.3 |
18.7 |
47.7 |
52.7 |
57.9 |
63.9 |
6755 |
8.7 / 15 (17.5) |
50 |
18.4 |
19.8 |
50.2 |
55.2 |
60.3 |
66.6 |
7457 |
8.7 / 15 (17.5) |
70 |
20.0 |
21.4 |
53.7 |
58.7 |
63.7 |
70.3 |
8532 |
8.7 / 15 (17.5) |
95 |
21.55 |
23.0 |
57.2 |
62.2 |
67.1 |
74.0 |
9805 |
8.7 / 15 (17.5) |
120 |
23.06 |
24.5 |
60.5 |
65.5 |
70.3 |
77.6 |
11004 |
8.7 / 15 (17.5) |
150 |
24.37 |
25.8 |
63.4 |
68.4 |
73.1 |
80.7 |
12217 |
8.7 / 15 (17.5) |
185 |
26.05 |
27.5 |
67.1 |
73.4 |
79.3 |
87.5 |
14993 |
8.7 / 15 (17.5) |
240 |
28.4 |
29.8 |
72.2 |
78.5 |
84.7 |
93.4 |
17580 |
8.7 / 15 (17.5) |
300 |
30.8 |
32.2 |
77.4 |
83.7 |
89.9 |
99.2 |
20280 |
8.7 / 15 (17.5) |
35 |
19.3 |
20.7 |
52.1 |
57.1 |
62.2 |
68.6 |
7537 |
12 / 20 (24) |
50 |
20.4 |
21.8 |
54.6 |
59.6 |
64.6 |
71.3 |
8261 |
12 / 20 (24) |
70 |
22.0 |
23.4 |
58.1 |
63.1 |
68.0 |
75.0 |
9373 |
12 / 20 (24) |
95 |
23.55 |
25.0 |
61.6 |
66.6 |
71.4 |
78.8 |
10627 |
12 / 20 (24) |
120 |
25.06 |
26.5 |
64.9 |
69.9 |
74.6 |
82.3 |
11895 |
12 / 20 (24) |
150 |
26.37 |
27.8 |
67.8 |
74.1 |
80.0 |
88.3 |
14306 |
12 / 20 (24) |
185 |
28.05 |
29.5 |
71.5 |
77.8 |
83.8 |
92.4 |
16021 |
12 / 20 (24) |
240 |
30.4 |
31.8 |
76.6 |
82.9 |
89.1 |
98.3 |
18645 |
12 / 20 (24) |
50 |
25.4 |
26.8 |
65.6 |
71.9 |
77.9 |
85.9 |
11491 |
18 / 30 (36) |
70 |
27.0 |
28.4 |
69.1 |
75.4 |
81.5 |
89.9 |
12878 |
18 / 30 (36) |
95 |
28.55 |
30.0 |
72.6 |
78.9 |
85.1 |
93.8 |
14252 |
18 / 30 (36) |
120 |
30.06 |
31.5 |
75.9 |
82.2 |
88.5 |
97.6 |
15708 |
18 / 30 (36) |
150 |
31.37 |
32.8 |
78.8 |
85.1 |
91.5 |
100.9 |
17092 |
18 / 30 (36) |
185 |
33.05 |
34.5 |
82.5 |
88.8 |
95.3 |
105.1 |
18901 |
18 / 30 (36) |
240 |
35.4 |
36.8 |
87.6 |
95.1 |
101.0 |
111.0 |
21499 |
18 / 30 (36) |
