符合IEC 60502-2标准的中压XLPE绝缘总屏蔽电缆
应用
这些电缆多用于安装在配电站、室内室外、电缆管道、地下或水中，也用于电缆桥架安装行业。
标准
IEC 60228; IEC 60502-2

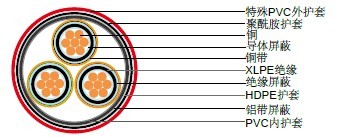

结构
导体: 多股裸铜 (2类)
导体屏蔽: 半导电交联化合物经过三重挤压过程后形成的挤出层
绝缘: XLPE
绝缘屏蔽: 半导电交联化合物经过三重挤压过程后形成的挤出层
线芯识别:
1芯: 自然色
3芯: 黑, 绿, 综
内护套: PVC 黑色
总屏蔽: 铝带/聚乙烯带
护套: HDPE 黑色
中间护套: 聚酰胺
外护套: 特殊PVC。红色。可根据要求添加防紫外线功能
性能
防火标准: IEC 60332-3-22
工作温度: -20~60°C
工作中导体能承受的最高温度: 90°C
耐化学性: 耐脂肪烃及芳香烃
1芯
导体截面 积 |
加上绝缘的外径 |
加上绝缘屏蔽的外 径 |
加上内护套的外径 |
加上中间护套的外径 |
最小外径 |
最大外径 |
重量 |
额定电压 Uo/ U(Um) |
(mm2) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg/km) |
(kv) |
25 |
12.3 |
13.7 |
15.6 |
19.9 |
22.6 |
24.9 |
778 |
3.6 / 6 (7.2) |
35 |
13.3 |
14.7 |
16.6 |
20.9 |
23.6 |
26.0 |
892 |
3.6 / 6 (7.2) |
50 |
14.4 |
15.8 |
17.7 |
22.1 |
24.7 |
27.3 |
1037 |
3.6 / 6 (7.2) |
70 |
16.0 |
17.4 |
19.4 |
23.7 |
26.5 |
29.2 |
1285 |
3.6 / 6 (7.2) |
95 |
17.55 |
19.0 |
20.9 |
25.2 |
27.9 |
30.8 |
1567 |
3.6 / 6 (7.2) |
120 |
19.06 |
20.5 |
22.4 |
26.7 |
29.6 |
32.6 |
1849 |
3.6 / 6 (7.2) |
150 |
20.37 |
21.8 |
23.7 |
28.0 |
30.8 |
34.0 |
2130 |
3.6 / 6 (7.2) |
185 |
22.05 |
23.5 |
25.4 |
29.7 |
32.7 |
36.1 |
2532 |
3.6 / 6 (7.2) |
240 |
24.6 |
26.0 |
28.5 |
32.8 |
35.9 |
39.6 |
3194 |
3.6 / 6 (7.2) |
300 |
27.4 |
28.8 |
31.2 |
35.5 |
38.7 |
42.7 |
3871 |
3.6 / 6 (7.2) |
400 |
30.9 |
32.3 |
34.7 |
39.0 |
42.3 |
46.7 |
4773 |
3.6 / 6 (7.2) |
500 |
35.4 |
36.8 |
39.6 |
43.9 |
47.2 |
52.1 |
5997 |
3.6 / 6 (7.2) |
630 |
39.8 |
41.2 |
42.8 |
47.1 |
50.5 |
55.7 |
7455 |
3.6 / 6 (7.2) |
25 |
14.1 |
15.5 |
17.4 |
21.7 |
24.3 |
26.9 |
850 |
6 / 10 (12) |
35 |
15.1 |
16.5 |
18.4 |
22.7 |
25.5 |
28.1 |
984 |
6 / 10 (12) |
50 |
16.2 |
17.6 |
19.5 |
23.8 |
26.6 |
29.3 |
1132 |
6 / 10 (12) |
70 |
17.8 |
19.2 |
21.3 |
25.6 |
28.5 |
31.5 |
1397 |
6 / 10 (12) |
95 |
19.35 |
20.8 |
22.7 |
27.0 |
29.9 |
33.0 |
1675 |
6 / 10 (12) |
120 |
20.86 |
22.3 |
24.2 |
28.5 |
31.5 |
34.8 |
1965 |
6 / 10 (12) |
150 |
22.17 |
23.6 |
25.5 |
29.8 |
32.8 |
36.2 |
2254 |
6 / 10 (12) |
185 |
23.85 |
25.3 |
27.6 |
31.9 |
35.0 |
38.6 |
2692 |
6 / 10 (12) |
240 |
26.2 |
27.6 |
30.1 |
34.4 |
37.4 |
41.3 |
3298 |
6 / 10 (12) |
300 |
28.6 |
30.0 |
32.4 |
36.7 |
39.9 |
44.0 |
3954 |
6 / 10 (12) |
400 |
31.7 |
33.1 |
35.5 |
39.8 |
43.1 |
47.5 |
4831 |
6 / 10 (12) |
500 |
35.8 |
37.2 |
40.0 |
44.3 |
47.6 |
52.5 |
6030 |
6 / 10 (12) |
630 |
40.2 |
41.6 |
43.2 |
47.5 |
50.9 |
56.2 |
7491 |
6 / 10 (12) |
25 |
16.3 |
17.7 |
19.6 |
23.9 |
26.7 |
29.4 |
968 |
8.7 / 15 (17.5) |
35 |
17.3 |
18.7 |
20.6 |
24.9 |
27.6 |
30.5 |
1097 |
8.7 / 15 (17.5) |
50 |
18.4 |
19.8 |
21.8 |
26.1 |
29.0 |
32.0 |
1269 |
8.7 / 15 (17.5) |
70 |
20.0 |
21.4 |
23.4 |
27.7 |
30.6 |
33.7 |
1510 |
8.7 / 15 (17.5) |
95 |
21.55 |
23.0 |
24.9 |
29.2 |
32.2 |
35.5 |
1814 |
8.7 / 15 (17.5) |
120 |
23.06 |
24.5 |
26.4 |
30.7 |
33.7 |
37.1 |
2097 |
8.7 / 15 (17.5) |
150 |
24.37 |
25.8 |
28.1 |
32.4 |
35.5 |
39.2 |
2439 |
8.7 / 15 (17.5) |
185 |
26.05 |
27.5 |
29.8 |
34.1 |
37.2 |
41.0 |
2839 |
8.7 / 15 (17.5) |
240 |
28.4 |
29.8 |
32.3 |
36.6 |
39.8 |
43.9 |
3472 |
8.7 / 15 (17.5) |
300 |
30.8 |
32.2 |
34.6 |
38.9 |
42.2 |
46.5 |
4133 |
8.7 / 15 (17.5) |
400 |
33.9 |
35.3 |
38.1 |
42.4 |
45.8 |
50.5 |
5068 |
8.7 / 15 (17.5) |
500 |
38.0 |
39.4 |
42.2 |
46.5 |
50.0 |
55.1 |
6242 |
8.7 / 15 (17.5) |
630 |
42.4 |
43.8 |
45.4 |
49.7 |
53.3 |
58.7 |
7714 |
8.7 / 15 (17.5) |
35 |
19.3 |
20.7 |
22.6 |
26.9 |
29.8 |
32.8 |
1214 |
12 / 20 (24) |
50 |
20.4 |
21.8 |
23.7 |
28.0 |
30.8 |
34.0 |
1369 |
12 / 20 (24) |
70 |
22.0 |
23.4 |
25.4 |
29.7 |
32.7 |
36.1 |
1640 |
12 / 20 (24) |
95 |
23.55 |
25.0 |
27.3 |
31.6 |
34.7 |
38.3 |
1987 |
12 / 20 (24) |
120 |
25.06 |
26.5 |
28.8 |
33.1 |
36.2 |
39.9 |
2276 |
12 / 20 (24) |
150 |
26.37 |
27.8 |
30.1 |
34.4 |
37.6 |
41.5 |
2592 |
12 / 20 (24) |
185 |
28.05 |
29.5 |
31.8 |
36.1 |
39.3 |
43.3 |
2999 |
12 / 20 (24) |
240 |
30.4 |
31.8 |
34.3 |
38.6 |
41.9 |
46.2 |
3638 |
12 / 20 (24) |
300 |
32.8 |
34.2 |
36.6 |
40.9 |
44.3 |
48.9 |
4314 |
12 / 20 (24) |
400 |
35.9 |
37.3 |
40.1 |
44.4 |
47.9 |
52.9 |
5257 |
12 / 20 (24) |
500 |
40.0 |
41.4 |
44.3 |
48.6 |
52.2 |
57.6 |
6483 |
12 / 20 (24) |
630 |
44.4 |
45.8 |
47.4 |
51.7 |
55.4 |
61.1 |
7930 |
12 / 20 (24) |
25 |
26.3 |
27.7 |
30.0 |
34.3 |
37.3 |
41.2 |
1636 |
18 / 30 (36) |
50 |
25.4 |
26.8 |
29.1 |
33.4 |
36.5 |
40.2 |
1740 |
18 / 30 (36) |
70 |
27.0 |
28.4 |
30.8 |
35.1 |
38.3 |
42.3 |
2034 |
18 / 30 (36) |
95 |
28.55 |
30.0 |
32.3 |
36.6 |
39.8 |
43.9 |
2346 |
18 / 30 (36) |
120 |
30.06 |
31.5 |
33.8 |
38.1 |
41.4 |
45.7 |
2669 |
18 / 30 (36) |
150 |
31.37 |
32.8 |
35.1 |
39.4 |
42.7 |
47.1 |
2971 |
18 / 30 (36) |
185 |
33.05 |
34.5 |
36.8 |
41.1 |
44.5 |
49.1 |
3416 |
18 / 30 (36) |
240 |
35.4 |
36.8 |
39.7 |
44.0 |
47.5 |
52.4 |
4115 |
18 / 30 (36) |
3芯
导体截面积 |
加上绝缘的外径 |
加上绝缘屏蔽的外 径 |
加上内护套的外径 |
加上中间护套的外径 |
最小外径 |
最大外径 |
重量 |
额定电压 Uo/ U(Um) |
(mm2) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kg/km) |
(kv) |
25 |
12.3 |
13.7 |
33.1 |
37.4 |
40.5 |
44.7 |
2760 |
3.6 / 6 (7.2) |
35 |
13.3 |
14.7 |
35.3 |
39.6 |
42.9 |
47.3 |
3228 |
3.6 / 6 (7.2) |
50 |
14.4 |
15.8 |
38.1 |
42.4 |
45.8 |
50.5 |
3835 |
3.6 / 6 (7.2) |
70 |
16.0 |
17.4 |
41.8 |
46.1 |
49.6 |
54.7 |
4788 |
3.6 / 6 (7.2) |
95 |
17.55 |
19.0 |
45.1 |
49.4 |
53.0 |
58.4 |
5856 |
3.6 / 6 (7.2) |
120 |
19.06 |
20.5 |
48.8 |
53.1 |
56.9 |
62.8 |
6998 |
3.6 / 6 (7.2) |
150 |
20.37 |
21.8 |
51.7 |
56.0 |
59.9 |
66.1 |
8092 |
3.6 / 6 (7.2) |
185 |
22.05 |
23.5 |
55.4 |
59.7 |
63.7 |
70.3 |
9585 |
3.6 / 6 (7.2) |
25 |
14.1 |
15.5 |
37.1 |
41.4 |
44.8 |
49.4 |
3213 |
6 / 10 (12) |
35 |
15.1 |
16.5 |
39.6 |
43.9 |
47.2 |
52.1 |
3723 |
6 / 10 (12) |
50 |
16.2 |
17.6 |
42.1 |
46.4 |
49.9 |
55.0 |
4333 |
6 / 10 (12) |
70 |
17.8 |
19.2 |
45.8 |
50.1 |
53.8 |
59.4 |
5343 |
6 / 10 (12) |
95 |
19.35 |
20.8 |
49.5 |
53.8 |
57.6 |
63.6 |
6516 |
6 / 10 (12) |
120 |
20.86 |
22.3 |
52.8 |
57.1 |
61.0 |
67.3 |
7619 |
6 / 10 (12) |
150 |
22.17 |
23.6 |
55.7 |
60.0 |
64.0 |
70.6 |
8741 |
6 / 10 (12) |
185 |
23.85 |
25.3 |
59.4 |
63.7 |
67.8 |
74.8 |
10259 |
6 / 10 (12) |
25 |
16.3 |
17.7 |
42.3 |
46.6 |
50.1 |
55.2 |
3843 |
8.7 / 15 (17.5) |
35 |
17.3 |
18.7 |
44.5 |
48.8 |
52.4 |
57.8 |
4380 |
8.7 / 15 (17.5) |
50 |
18.4 |
19.8 |
46.9 |
51.2 |
54.9 |
60.6 |
5022 |
8.7 / 15 (17.5) |
70 |
20.0 |
21.4 |
51.8 |
55.3 |
59.1 |
65.2 |
6117 |
8.7 / 15 (17.5) |
35 |
19.3 |
20.7 |
49.3 |
53.6 |
57.4 |
63.3 |
5086 |
12 / 20 (24) |
50 |
20.4 |
21.8 |
51.7 |
56.0 |
59.9 |
66.1 |
5763 |
12 / 20 (24) |
70 |
22.0 |
23.4 |
55.4 |
59.7 |
63.7 |
70.3 |
6856 |
12 / 20 (24) |
