These screened cables are designed for flexible use for medium mechanical stresses as measuring and control cables in tool machines, conveyor belts, production lines; for plant installations, air conditioning, in steel production plants and rolling mills, suitable for dry, moist and wet rooms as well as outside (fixed installation) .

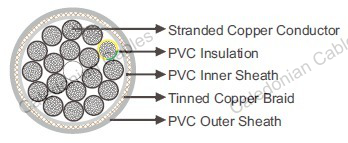

| Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
| Insulation | PVC type TI2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. |
| Inner Sheath | PVC type TM 2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. |
| Screen | Tinned copper braid. |
| Outer Sheath | PVC type TM 2 according to DIN VDE 0281 part 1, class 43 UL-Std. 1581. |
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | flexing: -5℃~+80℃; fixed: -40℃~+90℃ |
| Minimum Bending Radius | flexing: 10×OD; fixed: 5×OD |
| Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1/VW 1/FT1 |
| Oil Resistant | Yes |
| Silicone Free | Yes |
| UV Resistant | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 2×0.5 | 8.3 | 129 |
| 3G0.5 | 8.6 | 150 |
| 4G0.5 | 9.4 | 170 |
| 5G0.5 | 10.1 | 199 |
| 7G0.5 | 12.1 | 235 |
| 12G0.5 | 14.7 | 320 |
| 18G0.5 | 17.3 | 428 |
| 25G0.5 | 20.6 | 503 |
| 2×0.75 | 8.7 | 143 |
| 3G0.75 | 9.0 | 155 |
| 4G0.75 | 9.9 | 190 |
| 5G0.75 | 10.8 | 228 |
| 7G0.75 | 13.0 | 323 |
| 12G0.75 | 15.8 | 410 |
| 18G0.75 | 17.9 | 560 |
| 25G0.75 | 22.8 | 730 |
| 2×1 | 9.4 | 150 |
| 3G1 | 9.8 | 163 |
| 4G1 | 10.8 | 200 |
| 5G1 | 12.1 | 239 |
| 7G1 | 14.5 | 289 |
| 12G1 | 17.4 | 464 |
| 18G1 | 20.7 | 628 |
| 25G1 | 24.8 | 855 |
| 2×1.5 | 10.2 | 162 |
| 3G1.5 | 10.9 | 187 |
| 4G1.5 | 12.2 | 240 |
| 5G1.5 | 13.3 | 289 |
| 7G1.5 | 16.0 | 383 |
| 12G1.5 | 19.6 | 592 |
| 18G1.5 | 23.4 | 806 |
| 25G1.5 | 28.2 | 1241 |
| 2×2.5 | 11.5 | 272 |
| 3G2.5 | 12.2 | 298 |
| 4G2.5 | 13.4 | 345 |
| 5G2.5 | 14.9 | 427 |
| 7G2.5 | 17.9 | 561 |
| 12G2.5 | 21.9 | 857 |
| 18G2.5 | 26.1 | 1355 |
| 25G2.5 | 31.9 | 1995 |
| 2×4 | 14.3 | 306 |
| 3G4 | 15.1 | 391 |
| 4G4 | 16.7 | 527 |
| 5G4 | 18.6 | 700 |
| 7G4 | 20.0 | 920 |
| 3G6 | 17.0 | 629 |
| 4G6 | 18.7 | 731 |
| 5G6 | 20.7 | 1105 |
| 7G6 | 23.0 | 1465 |
| 3G10 | 19.6 | 1125 |
| 4G10 | 21.9 | 1345 |
| 5G10 | 24.1 | 1635 |
| 7G10 | 26.8 | 2210 |
| 3G16 | 23.5 | 1395 |
| 4G16 | 26.4 | 1870 |
| 5G16 | 28.8 | 2720 |
| 7G16 | 31.9 | 3213 |
| 3G25 | 28.0 | 2465 |
| 4G25 | 32.5 | 2750 |
| 5G25 | 35.7 | 3490 |
| 7G25 | 39.0 | 4980 |
G: with green-yellow earth core
×: without green-yellow earth core
