These halogen free cables are used as drag chain cables for frequent and fast lifting and bending stresses in machines and tool building, robot systems and constantly moving machine components.

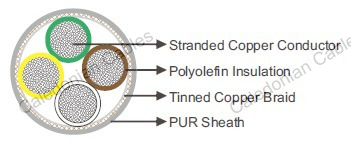

| Conductor | Stranded bare copper, class 6 according to VDE 0295/BS 6360. |
| Insulation | Polyolefin. |
| Screen | Tinned copper wire braid. |
| Sheath | Full polyurethane sheath TMPU. |
| Rated Voltage Uo/U (Um) | 300V |
| Operating Temperatures | flexing: -40℃~+80℃; fixed: -50℃~+80℃ |
| Minimum Bending Radius | flexing: 7.5×OD; fixed: 4×OD |
| Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Oil Resistant | Yes |
| Halogen Free | Yes |
| Ozone, Oxygen Resistant | Yes |
| Silicone Free | Yes |
| UV Resistant | Yes |
| Abrasion Resistance | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 26AWG | ||
| 2×0.14 | 4.3 | 32 |
| 3×0.14 | 4.6 | 35 |
| 4×0.14 | 4.8 | 40 |
| 5×0.14 | 5.1 | 45 |
| 7×0.14 | 5.8 | 66 |
| 10×0.14 | 6.8 | 86 |
| 12×0.14 | 7.4 | 94 |
| 14×0.14 | 7.4 | 102 |
| 18×0.14 | 7.8 | 118 |
| 24×0.14 | 8.8 | 149 |
| 25×0.14 | 9.2 | 156 |
| 24AWG | ||
| 2×0.25 | 5.0 | 38 |
| 3×0.25 | 5.2 | 44 |
| 4×0.25 | 5.6 | 51 |
| 5×0.25 | 5.9 | 68 |
| 7×0.25 | 6.8 | 82 |
| 10×0.25 | 8.3 | 110 |
| 12×0.25 | 8.4 | 124 |
| 14×0.25 | 8.9 | 135 |
| 18×0.25 | 9.5 | 150 |
| 24×0.25 | 10.8 | 194 |
| 25×0.25 | 11.3 | 204 |
| 22AWG | ||
| 2×0.34 | 5.4 | 45 |
| 3×0.34 | 5.7 | 60 |
| 4×0.34 | 6.0 | 76 |
| 5×0.34 | 6.5 | 82 |
| 7×0.34 | 7.7 | 110 |
| 10×0.34 | 9.1 | 148 |
| 12×0.34 | 10.0 | 166 |
| 14×0.34 | 10.0 | 185 |
| 18×0.34 | 10.6 | 216 |
| 24×0.34 | 12.1 | 291 |
| 25×0.34 | 12.8 | 305 |
G: with green-yellow earth core
×: without green-yellow earth core
