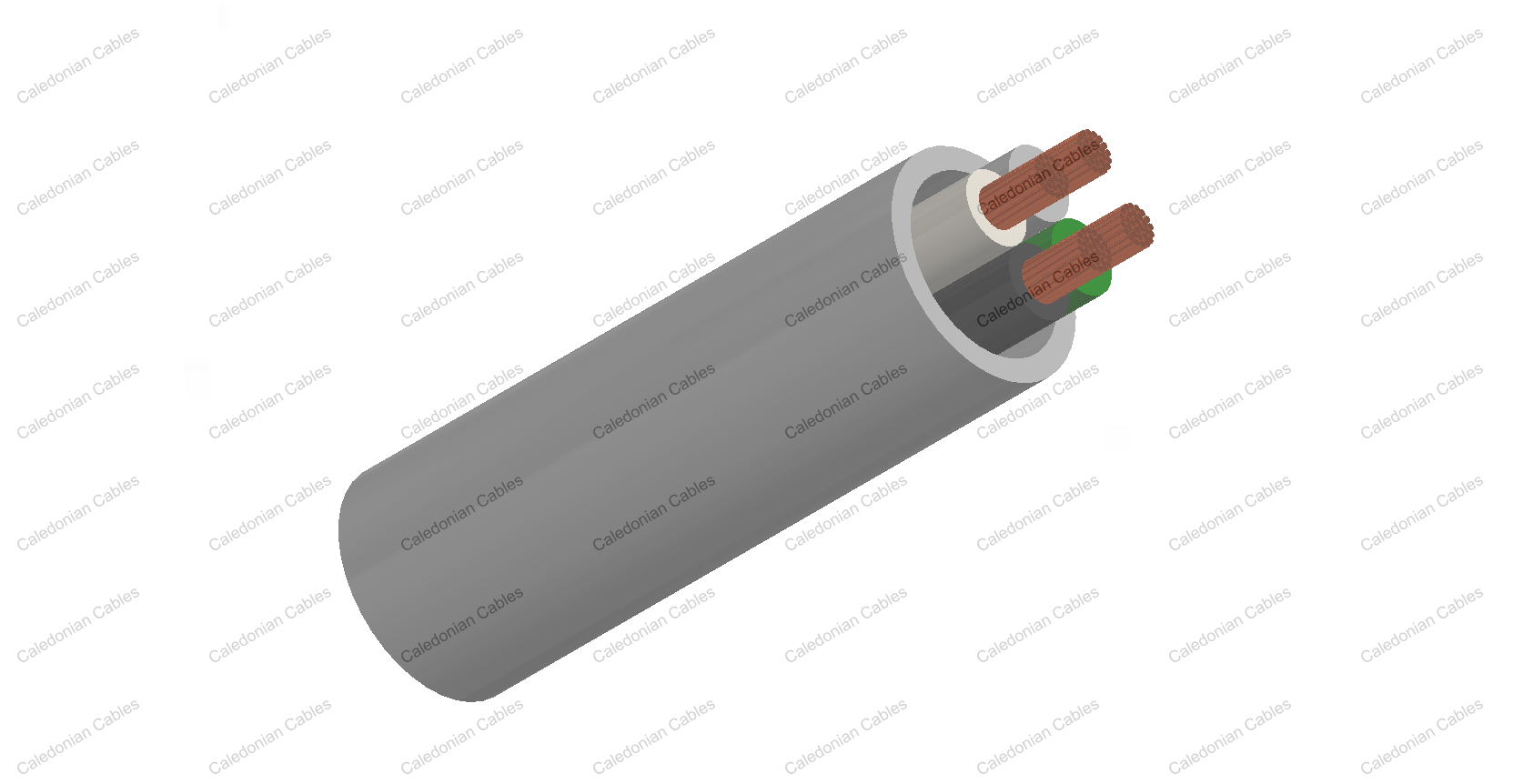

These data cables are designed for use as measuring and control cables in tool making machinery conveyor system and production lines, in industrial plants and in air conditioning as well as in the steel producing industries.

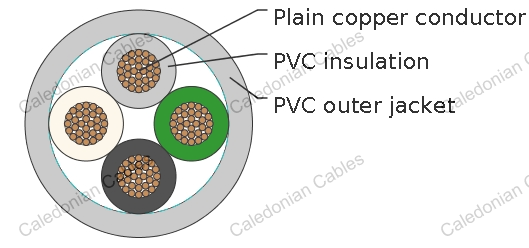

| Conductor | Stranded tinned copper, according to ASTM-B. |
| Insulation | PVC class 43. |
| Sheath | PVC class 43. |
| Rated Voltage Uo/U (Um) | 300V |
| Operating Temperatures | flexing: -10℃~+80℃; fixed: -20℃~+80℃ |
| Minimum Bending Radius | flexing: 15×OD; fixed: 6×OD |
| Flame Retardant | UL VW-1/CSA FT-1 |
| Oil Resistant | Yes |
| Silicone Free | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 26AWG | ||
| 2×0.14 | 3.6 | 13 |
| 3×0.14 | 3.7 | 15 |
| 4×0.14 | 4.0 | 18 |
| 6×0.14 | 4.6 | 25 |
| 10×0.14 | 5.6 | 38 |
| 12×0.14 | 5.8 | 46 |
| 16×0.14 | 6.3 | 56 |
| 18×0.14 | 6.6 | 62 |
| 24×0.14 | 7.5 | 82 |
| 27×0.14 | 7.8 | 97 |
| 30×0.14 | 8.1 | 110 |
| 24AWG | ||
| 2×0.23 | 3.8 | 16 |
| 3×0.23 | 4.0 | 19 |
| 4×0.23 | 4.2 | 23 |
| 6×0.23 | 4.9 | 32 |
| 10×0.23 | 6.0 | 55 |
| 12×0.23 | 6.1 | 60 |
| 16×0.23 | 6.7 | 75 |
| 18×0.23 | 7.1 | 82 |
| 24×0.23 | 8.2 | 116 |
| 27×0.23 | 8.5 | 140 |
| 30×0.23 | 8.8 | 150 |
| 22AWG | ||
| 2×0.34 | 4.2 | 25 |
| 3×0.34 | 4.3 | 30 |
| 4×0.34 | 4.6 | 45 |
| 6×0.34 | 5.5 | 60 |
| 10×0.34 | 6.8 | 80 |
| 12×0.34 | 7.0 | 105 |
| 16×0.34 | 7.8 | 130 |
| 18×0.34 | 8.3 | 140 |
| 24×0.34 | 9.6 | 190 |
| 27×0.34 | 10.0 | 207 |
| 30×0.34 | 10.5 | 225 |
| 20AWG | ||
| 2×0.56 | 4.6 | 30 |
| 3×0.56 | 4.8 | 33 |
| 4×0.56 | 5.2 | 41 |
| 6×0.56 | 6.1 | 65 |
| 10×0.56 | 7.6 | 102 |
| 12×0.56 | 8.0 | 120 |
| 16×0.56 | 8.8 | 152 |
| 18×0.56 | 9.4 | 168 |
| 24×0.56 | 11.0 | 224 |
| 27×0.56 | 11.3 | 260 |
| 30×0.56 | 11.8 | 300 |
| 18AWG | ||
| 2×0.82 | 6.1 | 50 |
| 3×0.82 | 6.4 | 62 |
| 4×0.82 | 6.9 | 72 |
| 6×0.82 | 8.1 | 100 |
| 10×0.82 | 10.4 | 180 |
| 12×0.82 | 10.9 | 182 |
| 16×0.82 | 12.2 | 240 |
| 18×0.82 | 13.0 | 270 |
| 24×0.82 | 15.2 | 370 |
| 27×0.82 | 15.8 | 400 |
| 30×0.82 | 16.3 | 470 |
| 16AWG | ||
| 2×1.3 | 6.9 | 70 |
| 3×1.3 | 7.3 | 90 |
| 4×1.3 | 7.9 | 110 |
| 6×1.3 | 9.6 | 160 |
| 10×1.3 | 12.4 | 250 |
| 12×1.3 | 12.8 | 300 |
| 16×1.3 | 14.6 | 400 |
| 18×1.3 | 15.5 | 450 |
| 24×1.3 | 18.1 | 650 |
| 27×1.3 | 18.7 | 680 |
| 30×1.3 | 19.5 | 750 |
