LiYCY Data Cable

Application

These screened cables are designed for special purpose of data transmission in wind turbines, suitable for in dry, moist and wet rooms.

Standards

DIN VDE 0245, 0812

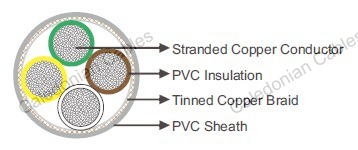

Construction

Conductor	Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
Insulation	PVC type TI2.
Drain Wire	Tinned copper conductor.
Screen	Tinned copper wire braid.
Sheath	PVC type TM2.

Technical Data

Rated Voltage Uo/U (Um)	350V (<0.25 mm2); 500V (≥0.25 mm2)
Operating Temperatures	flexing: -5℃~+80℃; fixed: -40℃~+80℃
Minimum Bending Radius	flexing: 10×OD; fixed: 5×OD
Flame Retardant	VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1
Oil Resistant	Yes
Silicone Free	Yes

Dimensions and Weight

CONSTRUCTION	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES×MM2	MM	KG/KM
1×0.14	2.5	16
2×0.14	3.7	20
3×0.14	3.9	27
4×0.14	4.1	32
5×0.14	4.4	37
6×0.14	4.9	42
7×0.14	4.9	48
8×0.14	5.2	55
10×0.14	6.2	65
12×0.14	6.2	77
14×0.14	6.6	79
16×0.14	6.9	89
18×0.14	7.2	103
20×0.14	7.7	116
21×0.14	7.9	120
24×0.14	8.3	131
25×0.14	8.5	136
27×0.14	8.5	142
30×0.14	9.3	157
32×0.14	9.6	163
36×0.14	9.9	182
40×0.14	10.2	209
42×0.14	10.5	217
44×0.14	11.2	226
48×0.14	11.3	240
52×0.14	11.8	270
56×0.14	12.1	320
61×0.14	12.4	370
80×0.14	14.1	510
100×0.14	15.5	580
1×0.25	2.9	27
2×0.25	4.2	31
3×0.25	4.3	36
4×0.25	4.7	40
5×0.25	5.3	51
6×0.25	5.7	58
7×0.25	5.7	64
8×0.25	6.6	82
10×0.25	7.2	85
12×0.25	7.3	90
14×0.25	7.9	110
16×0.25	8.3	142
18×0.25	8.9	144
19×0.25	9.1	146
20×0.25	9.4	150
21×0.25	9.4	152
24×0.25	10.0	163
25×0.25	10.1	169
27×0.25	10.1	176
30×0.25	11.1	189
32×0.25	11.1	204
36×0.25	11.9	219
37×0.25	11.9	230
40×0.25	12.4	247
42×0.25	12.8	269
44×0.25	12.8	292
48×0.25	13.5	317
52×0.25	14.1	330
56×0.25	14.5	343
61×0.25	14.9	365
80×0.25	17.1	480
100×0.25	19.6	605
1×0.34	3.2	24
2×0.34	4.8	30
3×0.34	5.2	37
4×0.34	5.5	48
5×0.34	6.0	54
6×0.34	6.7	61
7×0.34	6.7	67
8×0.34	7.8	81
10×0.34	8.4	103
12×0.34	8.5	110
14×0.34	9.0	153
16×0.34	9.4	159
18×0.34	9.8	172
19×0.34	9.9	181
20×0.34	10.1	191
21×0.34	10.7	199
24×0.34	10.7	229
25×0.34	12.0	241
27×0.34	12.1	258
30×0.34	12.1	290
32×0.34	12.6	305
36×0.34	12.6	330
37×0.34	13.7	348
40×0.34	13.7	364
42×0.34	14.6	389
44×0.34	14.6	414
48×0.34	14.6	420
52×0.34	14.6	450
56×0.34	16.2	480
61×0.34	16.6	520
80×0.34	17.1	580
100×0.34	19.4	694
1×0.5	3.4	40
2×0.5	5.3	45
3×0.5	5.6	55
4×0.5	6.0	61
5×0.5	6.7	76
6×0.5	7.3	89
7×0.5	7.3	98
8×0.5	8.5	117
10×0.5	9.2	135
12×0.5	9.5	157
14×0.5	10.0	190
16×0.5	10.6	210
18×0.5	10.7	217
19×0.5	11.2	246
20×0.5	11.9	275
24×0.5	12.6	337
25×0.5	12.7	351
27×0.5	12.7	373
30×0.5	14.0	396
32×0.5	14.5	431
34×0.5	15.3	440
36×0.5	15.3	445
37×0.5	16.3	458
40×0.5	16.3	470
50×0.5	18.0	570
61×0.5	19.1	650
80×0.5	21.8	780
100×0.5	24.3	990
1×0.75	3.8	41
2×0.75	6.0	59
3×0.75	6.2	66
4×0.75	6.7	77
5×0.75	7.3	93
6×0.75	8.1	113
7×0.75	8.2	130
8×0.75	9.0	145
10×0.75	10.3	180
12×0.75	10.4	202
14×0.75	11.2	225
16×0.75	11.8	275
18×0.75	12.6	292
19×0.75	12.6	322
20×0.75	13.1	362
24×0.75	14.1	415
25×0.75	14.3	435
27×0.75	14.3	467
30×0.75	15.7	486
32×0.75	16.3	530
34×0.75	17.1	570
36×0.75	17.1	600
37×0.75	17.6	640
40×0.75	17.8	680
42×0.75	18.4	714
61×0.75	21.5	900
80×0.75	24.5	1200
100×0.75	27.2	1440
2×1	6.4	65
3×1	6.7	80
4×1	7.2	98
5×1	8.0	127
6×1	8.6	144
7×1	8.6	158
8×1	10.0	197
10×1	11.2	232
12×1	11.4	260
14×1	12.0	302
16×1	12.8	346
19×1	13.4	412
24×1	15.2	493
27×1	15.4	562
37×1	18.9	790
2×1.5	7.3	88
3×1.5	7.6	100
4×1.5	8.2	126
5×1.5	9.1	160
6×1.5	9.9	192
7×1.5	9.9	208
8×1.5	10.8	244
10×1.5	13.2	315
12×1.5	13.2	338
14×1.5	13.9	383
16×1.5	14.8	424
19×1.5	15.6	506
24×1.5	17.6	690
27×1.5	17.9	781
37×1.5	21.9	941
