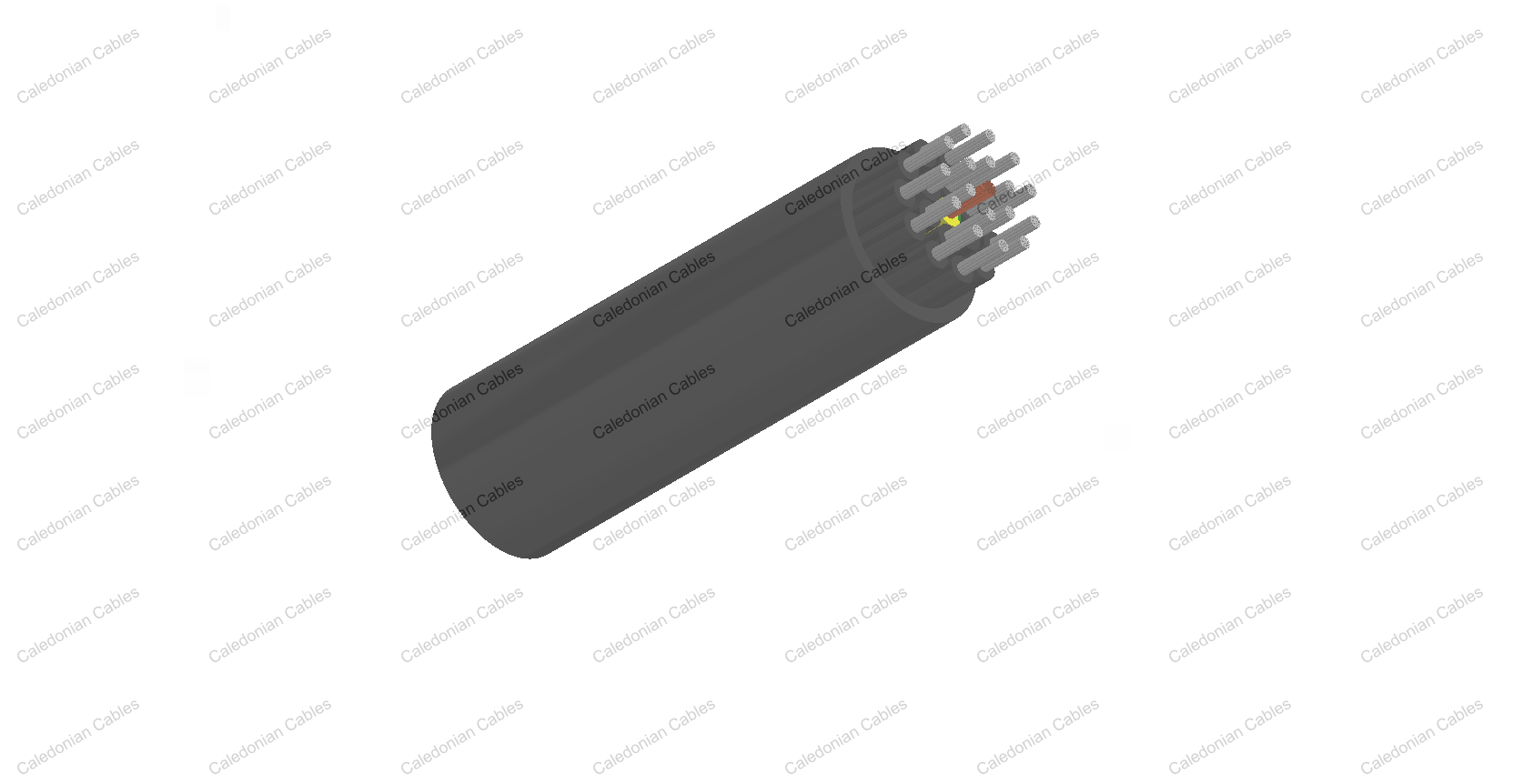

These halogen-free, flame retardant cables are designed for use as measuring and control cable in machine tools, conveyor belts, production lines as well as in plant installations, in air-conditioning and steel production works, suitable for the application in dry, damp and wet environments and also for laying on, in and under plaster as well as in concrete and masonry excluding in direct laying in vibration, compacted or compressed concrete.

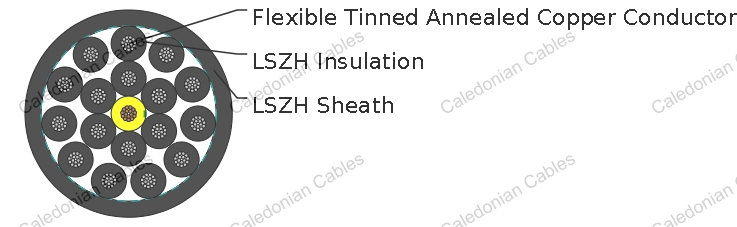

| Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/BS 6360/IEC 60228. |
| Insulation | Halogen-free compound TI6/XLPE compound Type HF |
| Sheath | Halogen-free sheath compound TM7/HM4. |
| Rated Voltage Uo/U (Um) | 600/1000V |
| Operating Temperatures | flexing: -15℃~+70℃; fixed: -40℃~+70℃ |
| Minimum Bending Radius | 15×OD |
| Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
| Halogen Free | VDE 0482 part 267/DIN EN 50267-2-1/IEC 60754 |
| Gases Corrosively | VDE 0482 part 267/DIN EN 50267-2-2/IEC 60754 |
| Smoke Density | VDE 0482 part 1034-1+2/IEC 61034-1+2/DIN EN 61034-1+2/BS 7622 part 1+2 |
| Oil Resistant | Yes |
| Silicone Free | Yes |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM2 | MM | KG/KM |
| 2×0.5 | 6.4 | 57 |
| 3G0.5 | 6.8 | 69 |
| 3×0.5 | 6.8 | 69 |
| 4G0.5 | 7.6 | 104 |
| 4×0.5 | 7.6 | 104 |
| 5G0.5 | 8.2 | 121 |
| 5×0.5 | 8.2 | 121 |
| 7G0.5 | 9.8 | 145 |
| 10G0.5 | 11.6 | 186 |
| 12G0.5 | 12.2 | 224 |
| 18G0.5 | 14.4 | 292 |
| 25G0.5 | 17.2 | 357 |
| 2×0.75 | 6.8 | 68 |
| 3G0.75 | 7.2 | 77 |
| 3×0.75 | 7.2 | 77 |
| 4G0.75 | 8.0 | 136 |
| 4×0.75 | 8.0 | 136 |
| 5G0.75 | 8.8 | 152 |
| 5×0.75 | 8.8 | 152 |
| 7G0.75 | 10.7 | 208 |
| 10G0.75 | 12.7 | 250 |
| 12G0.75 | 13.1 | 271 |
| 18G0.75 | 15.6 | 387 |
| 25G0.75 | 18.9 | 498 |
| 2×1 | 7.4 | 82 |
| 3G1 | 8.0 | 99 |
| 3×1 | 8.0 | 99 |
| 4G1 | 8.8 | 140 |
| 4×1 | 8.8 | 140 |
| 5G1 | 9.8 | 160 |
| 5×1 | 9.8 | 160 |
| 7G1 | 11.7 | 217 |
| 10G1 | 14.1 | 271 |
| 12G1 | 14.5 | 301 |
| 18G1 | 17.3 | 417 |
| 25G1 | 21.1 | 576 |
| 2×1.5 | 8.4 | 97 |
| 3G1.5 | 9.1 | 119 |
| 3×1.5 | 9.1 | 119 |
| 4G1.5 | 9.9 | 148 |
| 4×1.5 | 9.9 | 148 |
| 5G1.5 | 11.0 | 172 |
| 5×1.5 | 11.0 | 172 |
| 7G1.5 | 13.3 | 243 |
| 10G1.5 | 15.9 | 311 |
| 12G1.5 | 16.6 | 392 |
| 18G1.5 | 19.7 | 529 |
| 25G1.5 | 23.9 | 741 |
| 2×2.5 | 9.4 | 160 |
| 3G2.5 | 9.9 | 177 |
| 3×2.5 | 9.9 | 177 |
| 4G2.5 | 11.1 | 209 |
| 4×2.5 | 11.1 | 209 |
| 5G2.5 | 12.4 | 272 |
| 5×2.5 | 12.4 | 272 |
| 7G2.5 | 15.0 | 340 |
| 10G2.5 | 18.4 | 561 |
| 12G2.5 | 22.0 | 799 |
| 18G2.5 | 24.6 | 940 |
| 25G2.5 | 26.9 | 1121 |
| 3G4 | 12.3 | 255 |
| 4G4 | 13.8 | 319 |
| 5G4 | 15.3 | 423 |
| 3G6 | 14.1 | 380 |
| 4G6 | 15.6 | 441 |
| 5G6 | 17.3 | 657 |
| 3G10 | 16.5 | 668 |
| 4G10 | 18.4 | 796 |
| 5G10 | 20.5 | 972 |
| 3G16 | 19.1 | 832 |
| 4G16 | 21.2 | 1122 |
| 5G16 | 23.6 | 1604 |
| 3G25 | 24.0 | 1457 |
| 4G25 | 26.9 | 1611 |
| 5G25 | 29.3 | 2070 |
| 3G35 | 26.2 | 1914 |
| 4G35 | 29.4 | 2424 |
| 5G35 | 32.8 | 2970 |
| 4G50 | 34.2 | 3467 |
| 4G70 | 41.0 | 4491 |
| 4G95 | 46.2 | 6170 |
| 4G120 | 50.3 | 7618 |
G: with green-yellow earth core
×: without green-yellow earth core
