    PUR Sheathed CAN BUS 2×2×0.25mm^2

    Application

    These cables with its oil-resistant PUR sheath and increased temperature resistance is employed in the wind turbine area and similar sectors for monitoring wind speed, temperature and performance parameters.

    Standards

    • UL/CSA 21223
    • DIN 19245 T3
    • EN 50170

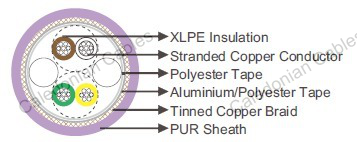

    Construction

    Conductor Stranded bare copper 19×24AWG (Section 0.25 mm2).
    Insulation Irradiated cross-linked PE.
    Cable Element Double core.
    Screen 1 Polyester tape over stranded bundle.
    Screen 2 Aluminium/Polyester tape.
    Overall Screen Tinned copper braid.
    Sheath PUR compound.

    Technical Data

    Operating Temperatures -40℃~+105℃
    Minimum Bending Radius 126mm
    Impedance 120Ohm +/-10%
    Maximum Conductor Resistance @20°C 87Ohm/km
    Nominal Mutual Capacitance 42nF/km
    Minimum Insulation resistance 1GOhm×km
    Oil Resistant Yes
    UV Resistant Yes

    Dimensions and Weight

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM2 MM KG/KM
    2×2×0.25 8.4 80
