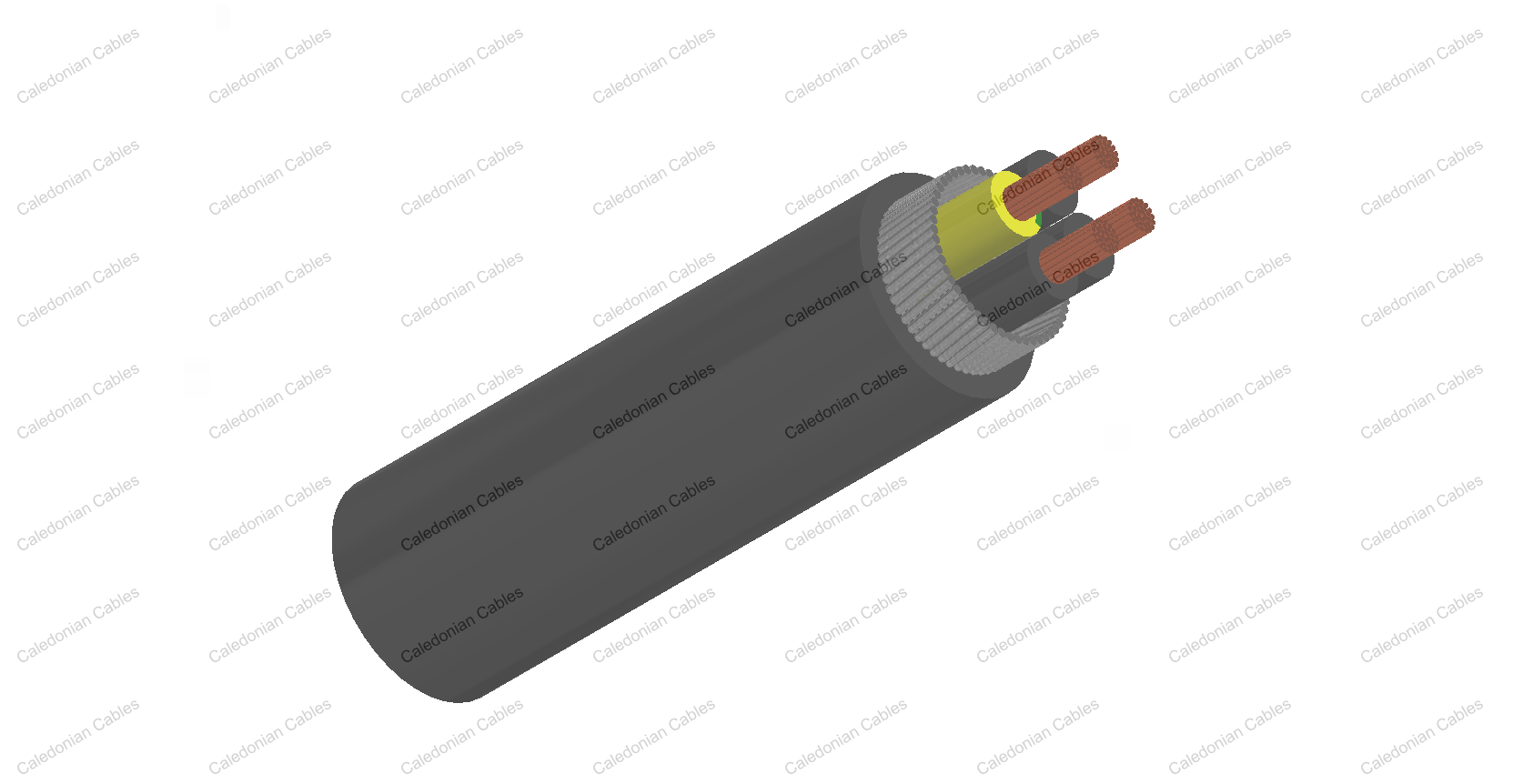

UL/CSA 600V PVC/PVC Screened Torsion Resistant Cable

These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.

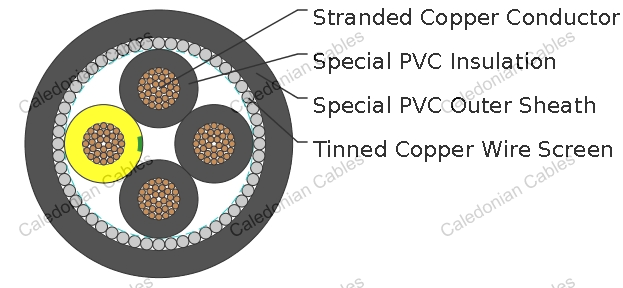

Conductor	Stranded bare copper according to DIN VDE 0295.
Insulation	Special PVC flexible at low temperatures.
Screen	Tinned copper wire wrapped.
Sheath	Special PVC flexible at low temperatures.

CONSTRUCTION	AWG /MCM	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES×MM^2	-	MM	KG/KM
2×2×0.25	24	8.9	90
4×2×0.25	24	9.9	115
5×2×0.25	24	11.1	130
4×0.34	22	7.7	91
2×2×0.34	22	9.6	110
4×2×0.34	22	11.0	130
4×0.5	20	8.0	105
6×0.5	20	9.2	130
10×0.5	20	11.4	170
12×0.5	20	11.7	220
2×2×0.5	20	9.8	115
4×2×0.5	20	11.3	150
3×0.75	19	7.7	97
4×0.75	19	8.3	122
5×0.75	19	9.0	145
7×0.75	19	9.7	200
8×0.75	19	10.7	220
12×0.75	19	12.2	258
18×0.75	19	14.4	400
25×0.75	19	17.8	552
32×0.75	19	18.8	610
41×0.75	19	21.2	795
50×0.75	19	23.5	900
2×2×0.75	19	10.4	130
4×2×0.75	19	12.7	211
8×2×0.75	19	17.1	410
12×2×0.75	19	17.6	520
4×1.0	18	8.7	110
6×1.0	18	10.2	150
8×1.0	18	11.7	210
12×1.0	18	13.3	280
2×1.5	16	6.8	86
3×1.5	16	8.8	133
4×1.5	16	9.4	159
5×1.5	16	10.3	195
7×1.5	16	11.9	247
12×1.5	16	14.7	410
2×2×1.5	16	12.1	180
3×2×1.5	16	14.0	235
4×2×1.5	16	14.6	210
3×2.5	14	10.4	210
4×2.5	14	10.6	264
5×2.5	14	12.3	288
7×2.5	14	14.8	411
12×2.5	14	18.2	638
5×4	12	13.6	382
7×4	12	16.3	582
12×4	12	20.0	806
5×6	10	17.4	640
4×10	8	17.8	727
5×10	8	19.8	935
4×16	6	21.1	1072
5×16	6	26.2	1330
4×25	4	26.0	1664
5×25	4	28.6	2014
4×50	1	37.0	3200
1×70	2/0	19.8	950
1×95	3/0	22.5	1200
1×120	4/0	25.0	1400
1×150	300	24.9	2000
1×185	350	27.8	2340
1×240	500	32.5	3150
1×300	600	39.0	3920
