UL/CSA 1000V PVC/PVC Torsion Resistant Cable 90°C

These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.

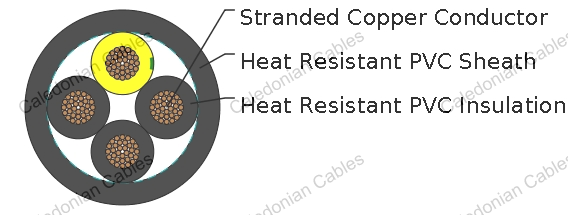

Conductor	Stranded bare copper according to DIN VDE 0295.
Insulation	Special heat resistant PVC.
Sheath	Special heat resistant PVC.

CONSTRUCTION	AWG /MCM	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
NO. OF CORES×MM^2	-	MM	KG/KM
4×0.34	22	7.1	86
4×0.5	20	7.4	99
6×0.5	20	8.6	121
10×0.5	20	10.8	165
12×0.5	20	11.1	208
3×0.75	19	7.3	77
4×0.75	19	7.9	100
5×0.75	19	8.6	120
7×0.75	19	10.0	170
10×0.75	19	11.0	200
12×0.75	19	11.8	220
14×0.75	19	12.5	238
16×0.75	19	13.2	271
18×0.75	19	13.9	310
21×0.75	19	15.2	380
25×0.75	19	16.9	490
32×0.75	19	18.2	560
36×0.75	19	19.1	620
40×0.75	19	20.5	729
41×0.75	19	20.8	750
50×0.75	19	23.5	990
4×1	18	8.3	100
5×1	18	9.0	110
7×1	18	10.5	140
10×1	18	13.0	220
12×1	18	13.2	240
14×1	18	13.4	280
16×1	18	14.1	310
18×1	18	15.1	360
21×1	18	16.7	410
25×1	18	18.4	500
32×1	18	19.8	590
36×1	18	20.6	700
40×1	18	22.4	800
41×1	18	22.4	810
50×1	18	24.6	980
2×1.5	16	7.9	75
3×1.5	16	8.0	110
4×1.5	16	8.9	131
5×1.5	16	9.7	165
7×1.5	16	12.0	210
10×1.5	16	13.1	270
12×1.5	16	14.3	360
14×1.5	16	14.9	420
16×1.5	16	15.7	450
18×1.5	16	16.8	510
21×1.5	16	17.8	590
25×1.5	16	20.6	700
32×1.5	16	22.2	900
36×1.5	16	23.1	980
40×1.5	16	25.0	1030
41×1.5	16	25.0	1050
50×1.5	16	27.7	1200
3×2.5	14	8.9	151
4×2.5	14	9.7	230
5×2.5	14	10.9	250
7×2.5	14	14.4	360
10×2.5	14	15.8	480
12×2.5	14	16.3	580
19×2.5	14	20.4	690
3×4	12	10.8	250
4×4	12	12.0	270
5×4	12	13.6	370
7×4	12	15.9	530
12×4	12	19.6	740
3×6	10	13.1	340
4×6	10	14.6	460
5×6	10	16.3	550
7×6	10	19.6	780
4×10	8	17.4	670
5×10	8	20.1	870
7×10	8	23.5	1150
4×16	6	22.6	1000
5×16	6	25.4	1250
4×25	4	26.5	1580
5×25	4	28.2	1900
4×35	2	31.4	2100
5×35	2	35.4	2600
4×50	1	36.7	2800
1×35	2	12.9	460
1×50	1	15.6	630
1×70	2/0	17.9	880
1×95	3/0	21.9	1230
1×120	4/0	23.1	1540
1×150	300	27.2	1870
1×185	350	27.5	2300
1×240	500	31.2	2970
1×300	600	34.2	3730
1×400	750	39.3	4500
