    QFCI

    Application

    These cables are designed for data transmission in the Tower.

    Standards

    • IEC 60794

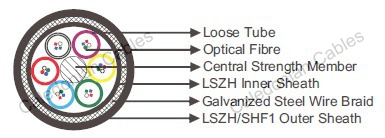

    Construction

    Fibre Type ?Loose Tube.
    Support Element Central strength member.
    Inner Sheath LSZH.
    Armour Galvanized steel wire braid (GSWB).
    Outer Sheath SHF1/LSZH.

    Technical Data

    Operating Temperatures -40℃~+70℃
    Minimum Bending Radius 350mm
    Flame Retardant IEC 60332-3
    Halogen Free IEC 60754
    Smoke Density IEC 61034
    Fire Resistant IEC 60331-25
    No-Fire Propagation IEC 60331-3-24

    Dimensions and Weight

    CONSTRUCTION FIBRE TYPE NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF FIBRES - MM KG/KM
    2~48 Multimode G50/125 16.5 350
    2~48 Multimode G62.5/125 16.5 350
    2~48 Single-Mode E9/125 16.5 350
