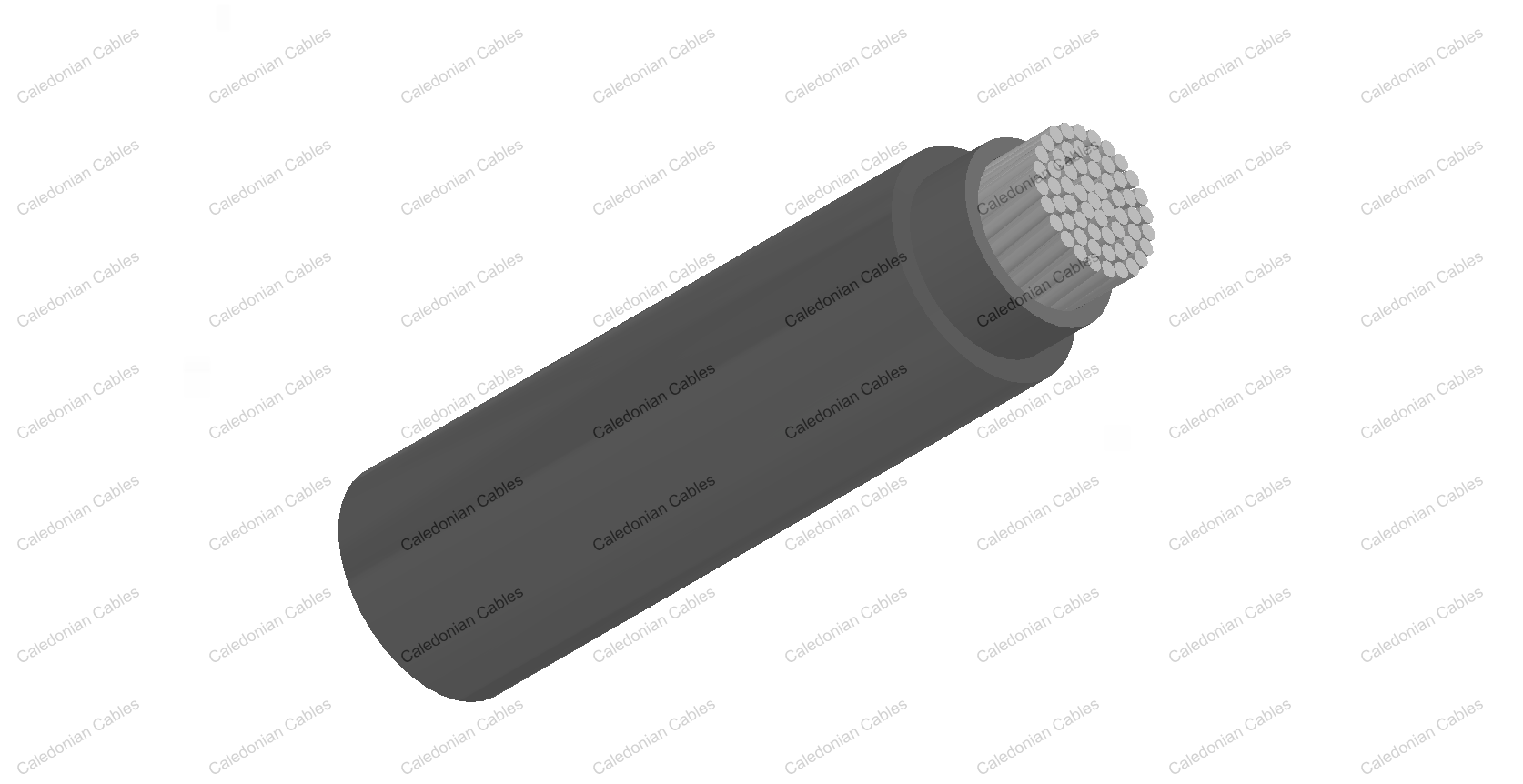

    NTSCGEWOEU Medium Voltage Torsion Resistant Cable 3.6/6kV

    Application

    These medium-voltage cables are designed for energy transmission, also for loop applications.

    Standards

    • DIN VDE 0250-813

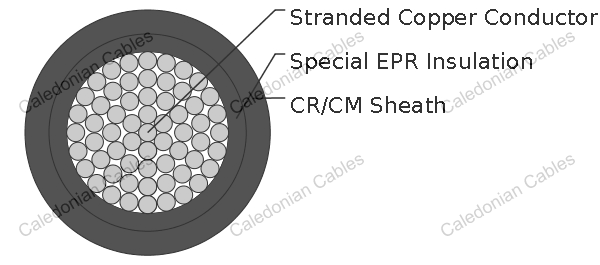

    Construction

    Conductor Stranded tinned copper wires according to DIN VDE 0295
    Insulation Special EPR with inner and outer conducting layer
    Sheath CM/CR

    Technical Data

    Rated Voltage U0/U (Um) 3.6/6kV
    Operating Temperatures -40℃~+90℃
    Minimum Bending Radius 10×OD
    Torsion Application +/-100°/m
    Oil Resistant Yes
    Ozone Resistant Yes
    UV Resistant Yes

    Dimensions and Weight

    3.6/6KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    3×35/35 61.0 5723
    3×50/50 69.0 6596
    3×70/70 73.0 7881
    3×95/95 80.0 10612
    1×240 42.8 3100
    1×300 44.9 3800
