These cables are designed for energy supply, suitable for fixed installation in dry, damp or wet environments; in, above, on and beneath plaster as well as in masonary walls and in concrete, also suitable for outdoor applications and in underground by using in conduits or tubes.

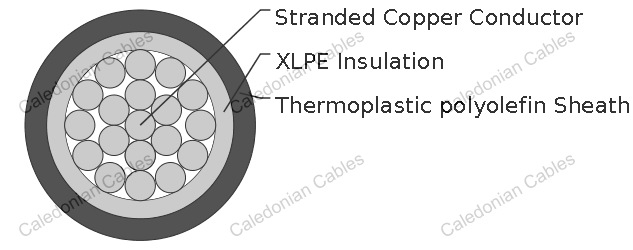

| Conductor | Bare copper conductor wire according to VDE 0295/IEC 60228 |
| Insulation | Halogen free cross-linked polyethylene (XLPE), Type 2XI1 |
| Inner Covering | Overall filled inner sheath covered by filling compound or wrapped tape |
| Sheath | Thermoplastic polyolefin, Type HM4 |
| Rated Voltage Uo/U (Um) | 0.6/1kV |
| Operating Temperatures | -30℃~+ 90℃ |
| Minimum Bending Radius | 15×OD |
| Flame Retardant | DIN VDE 0482 part 266-2/BS 4066 part 3/EN 50266-2/IEC 60332-3 |
| Halogen Free | DIN VDE 0482 part 267/EN 50267-2-1/IEC 60754 |
| Corrosive Gases | DIN VDE 0482 part 267/EN 50267-2-2/IEC 60754 |
| Smoke Density | DIN VDE 0482 part 268/HD 606/EN 50268-1+2/ IEC 61034/BS 7622 part 1+2 |
| CONSTRUCTION | NOMINAL OVERALL DIAMETER | NOMINAL WEIGHT |
|---|---|---|
| NO. OF CORES×MM^2 | MM | KG/KM |
| 1×185 rm | 25.0 | 1910 |
| 1×240 rm | 28.0 | 2370 |
| 1×300 rm | 30.0 | 2970 |
