    (N)TSCGEHXOEU Medium Voltage LSOH Torsion Resistant Cable

    Application

    These LSOH cables are specifically designed for special application condition in wind turbines, used for economical transmission of large energy rates with medium voltage.

    Standards

    • DIN VDE 0250 Part 813

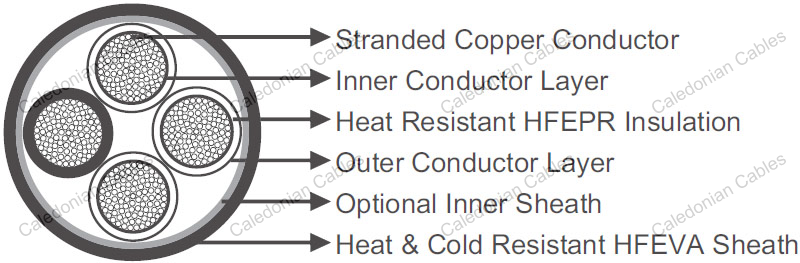

    Construction

    Conductor Stranded tinned/bare copper, class 5 according to DIN VDE 0295 IEC 60228
    Inner Conductor Layer Semiconductive halogen free rubber compound
    Insulation Halogen free, heat resistant insulation based on EPR
    Outer Conductor Layer Semiconductive rubber compound
    Optional Inner Sheath Extruded special rubber compound
    Sheath Halogen free special rubber compound based on EVA

    Technical Data

    Rated Voltage Uo/U (Um) 8.7/15 kV, 12/20 kV,18/30 kV,20/35 kV
    Operating Temperatures -40℃~+90℃
    Minimum Bending Radius 10×OD
    Torsion Application +/100°/m
    Maximum Permissible Tensile Load 15N/mm^2
    Short-circuit Temperature 250℃
    Flame Retardant DIN EN 60332-1
    Halogen Free IEC 60754
    Corrosive Gases DIN EN 50267-2-3
    Smoke Density DIN EN 50268-2
    Oil Resistant Yes
    Ozone Resistant Yes
    UV Resistant Yes
    Silicone Free Yes

    Dimensions and Weight

    8.7/15KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    3×50/50 51.5 4050
    3×70/70 57.5 5250
    3×95+3×16.7 57.5 5600

    12/20KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    3×25/25 51.5 3400
    3×35/35 54.5 4000
    3×50/50 56.5 4700
    3×70/70 59.0 5700
    3×95/95 65.5 6900

    18/30KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    3×25/25 67.5 5300
    3×35/35 67.5 5600
    3×50/50 69.5 6300
    3×70/70 71.5 7100
    3×95/95 76.5 8500

    20/35 KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    3×25/25 73.0 6100
    3×35/35 73.0 6500
    3×50/50 73.0 6800
    3×70/70 76.0 7900
    3×95/95 78.0 9100
