    Medium Voltage High Temperature Resistant Cables +180°C

    Application

    These cables are specifically designed for applications requiring for high temperature and oil resistant, suitable used for linking generators to transformers positioned up in the nacelle.

    Standards

    • IEC 60092

    Construction

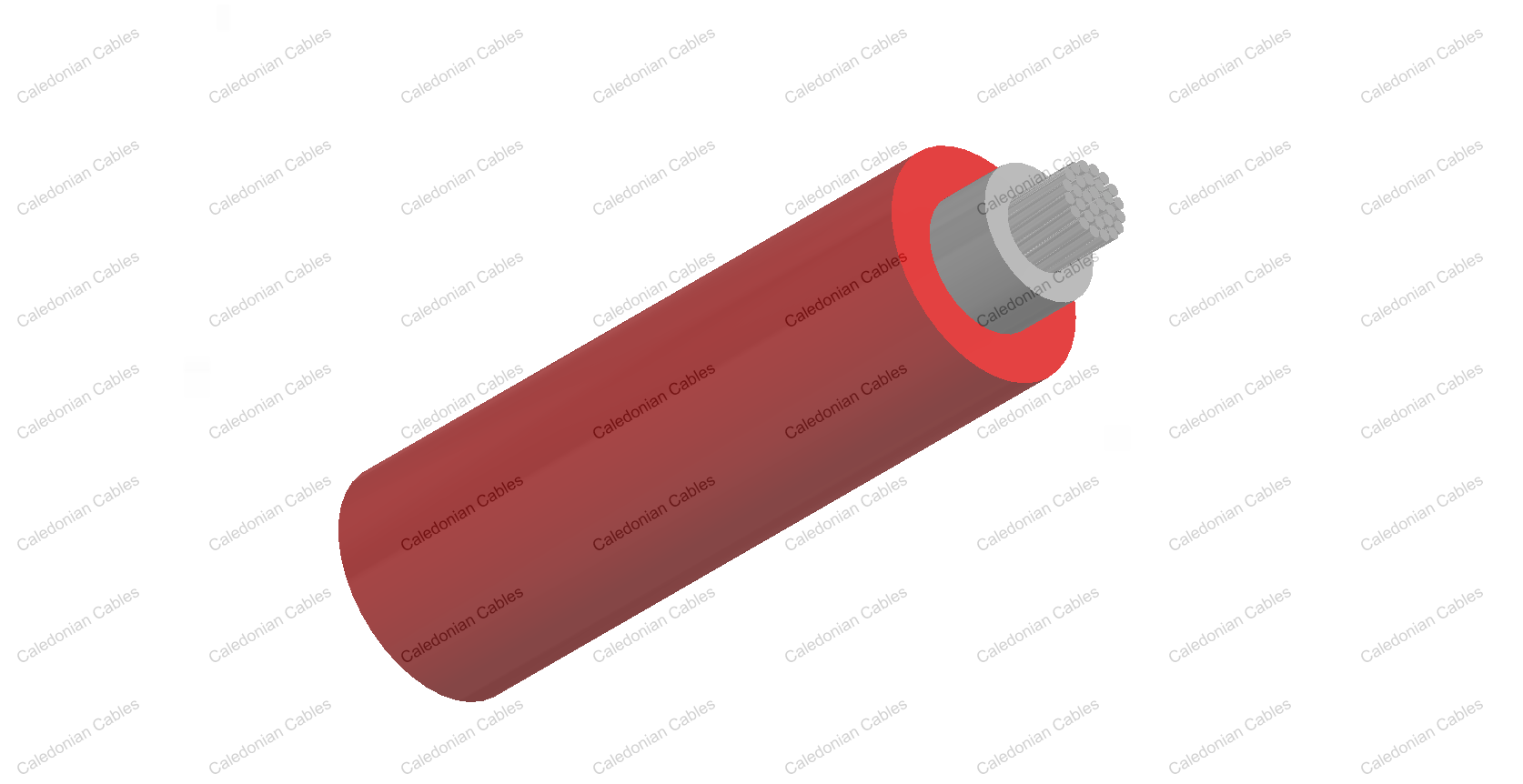

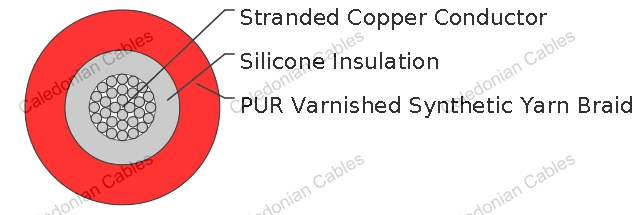

    Conductor Stranded tinned copper wires, class 5 according to IEC 60228
    Tape Polyester tape (up 16 mm^2), Semi-conductive layer (only for 6.6 and 13.8 kV)
    Insulation Silicone rubber insulation
    Braid PUR varnished synthetic yarn braid

    Technical Data

    Rated Voltage U0/U (Um) 1.1kV-15kV
    Operating Temperatures -55℃~+180℃
    Minimum Bending Radius 6×OD (1.1kV); 12×OD (>=1.1kV)
    Flame Retardant IEC 60332-1/IEC 60332-3
    Halogen Free IEC 60754
    Corrosive Gases IEC 60754
    Smoke Density IEC 61034
    Oil Resistant Yes
    Ozone Resistant Yes
    UV Resistant Yes
    Cold Resistant CSA C 22.2

    Dimensions and Weight

    1.1KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×2.5 4.5 36
    1×4 5.0 52
    1×6 5.4 69
    1×10 6.4 111
    1×16 8.6 177
    1×25 10.3 267
    1×35 11.6 365
    1×50 13.6 510
    1×70 15.7 701
    1×95 17.9 926
    1×120 19.8 1154
    1×150 21.9 1432
    1×185 24.3 1761
    1×240 26.9 2284

    3.3-4.2KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×2.5 6.3 54
    1×6 7.3 90
    1×10 8.2 135
    1×16 10.4 208
    1×25 12.0 302
    1×35 13.2 401
    1×50 15.4 559
    1×70 17.5 775
    1×95 19.5 981
    1×120 21.4 1215
    1×150 23.1 1481
    1×185 25.1 1798
    1×240 27.5 2314

    6.6-7.2KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×4 7.6 81
    1×6 8.0 99
    1×10 9.0 145
    1×16 11.3 225
    1×25 12.9 322
    1×35 14.1 423
    1×50 16.3 584
    1×70 18.3 785
    1×95 20.2 1006
    1×120 22.0 1238
    1×150 24.1 1525
    1×185 26.1 1844
    1×240 28.3 2355

    13.8-15.0KV

    CONSTRUCTION NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF CORES×MM^2 MM KG/KM
    1×10 12.1 205
    1×16 14.0 288
    1×25 15.5 390
    1×35 16.7 497
    1×50 18.5 655
    1×70 20.6 864
    1×95 22.4 1093
    1×120 24.2 1332
    1×150 26.5 1637
    1×185 28.5 1966
    1×240 30.7 2486
