    I-V2Y POF Cord

    Application

    These flexible and robust cables are used in mechanical engineering, both in mobile and fixed applications, suitable for applications where trouble-free data transmission in necessary under heavyduty conditions.

    Standards

    • DIN VDE 0888
    • IEC 60794

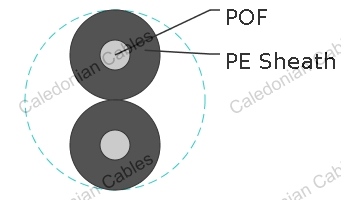

    Construction

    Fibre Type POF 980/1000.
    Sheath PE.

    Technical Data

    Operating Temperatures -20℃~+80℃
    Minimum Bending Radius 25mm

    Dimensions and Weight

    CONSTRUCTION CORE/CLADDING DIAMETER NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF POF ELEMENT ΜM MM KG/KM
    1 980/1000 2.2 4
    2 980/1000 2.2×4.4 8
