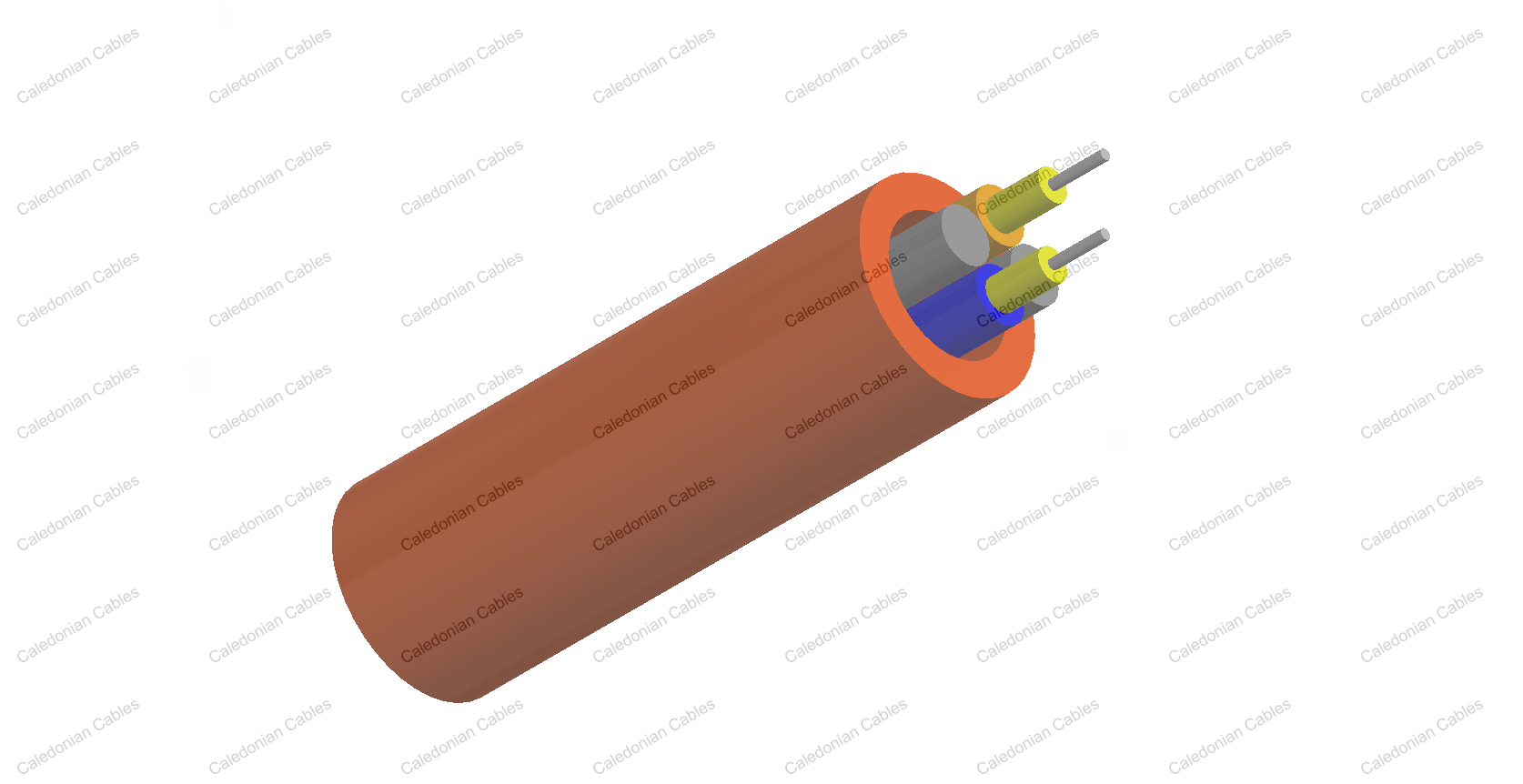

    I-V(ZN)Y11Y Fibre Optic Breakout Cable

    Application

    These flexible and robust cables are designed for industrial use, can use in wind turbines, medium distance communication, factory automation, etc. It contains two break-out units ?2.2mm, each with a large core step index multi mode fibre.

    Standards

    • IEC 60794

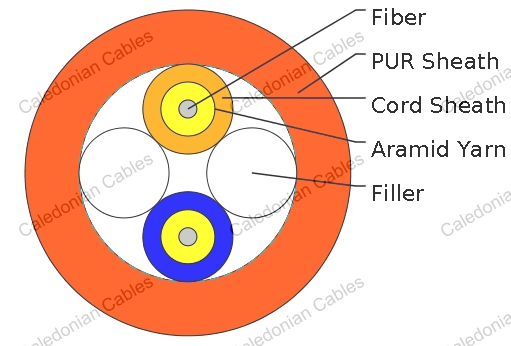

    Construction

    Core Type Tight buffer.
    Strain Relief Aramid yarns.
    Outer Sheath PUR

    Technical Data

    Operating Temperatures -40℃~+80℃
    Minimum Bending Radius 50mm
    Torsion Application 180°/m
    Oil Resistant Yes

    Dimensions and Weight

    CONSTRUCTION CORE/CLADDING DIAMETER NOMINAL OVERALL DIAMETER NOMINAL WEIGHT
    NO. OF FIBRES ΜM MM KG/KM
    2 200/230 7.0 43
